Trendnet TI-PELC80. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 1000 entries, Switching capacity: 1.6 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. DC input voltage: 48 – 56 V. Power over Ethernet (PoE). Wall mountable

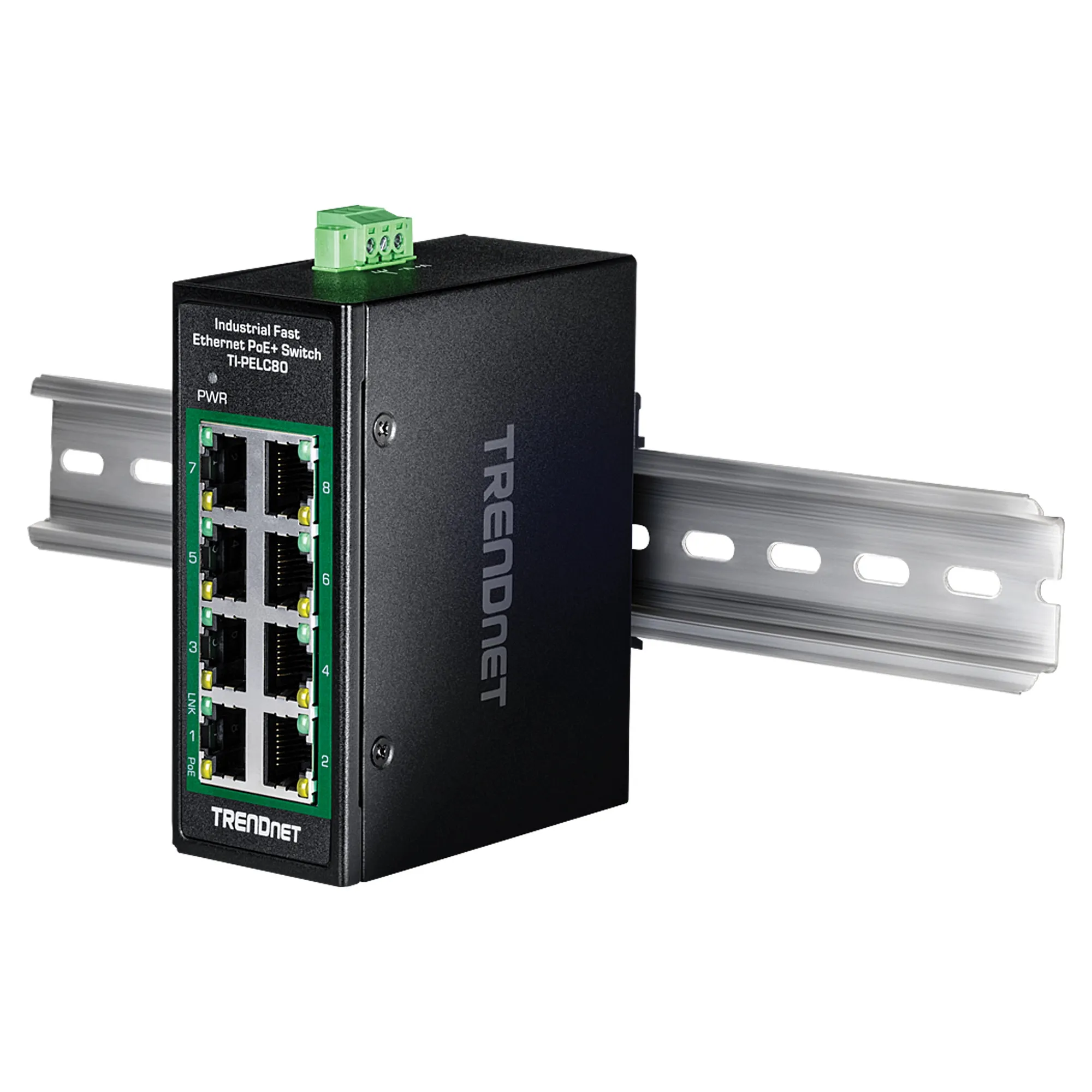

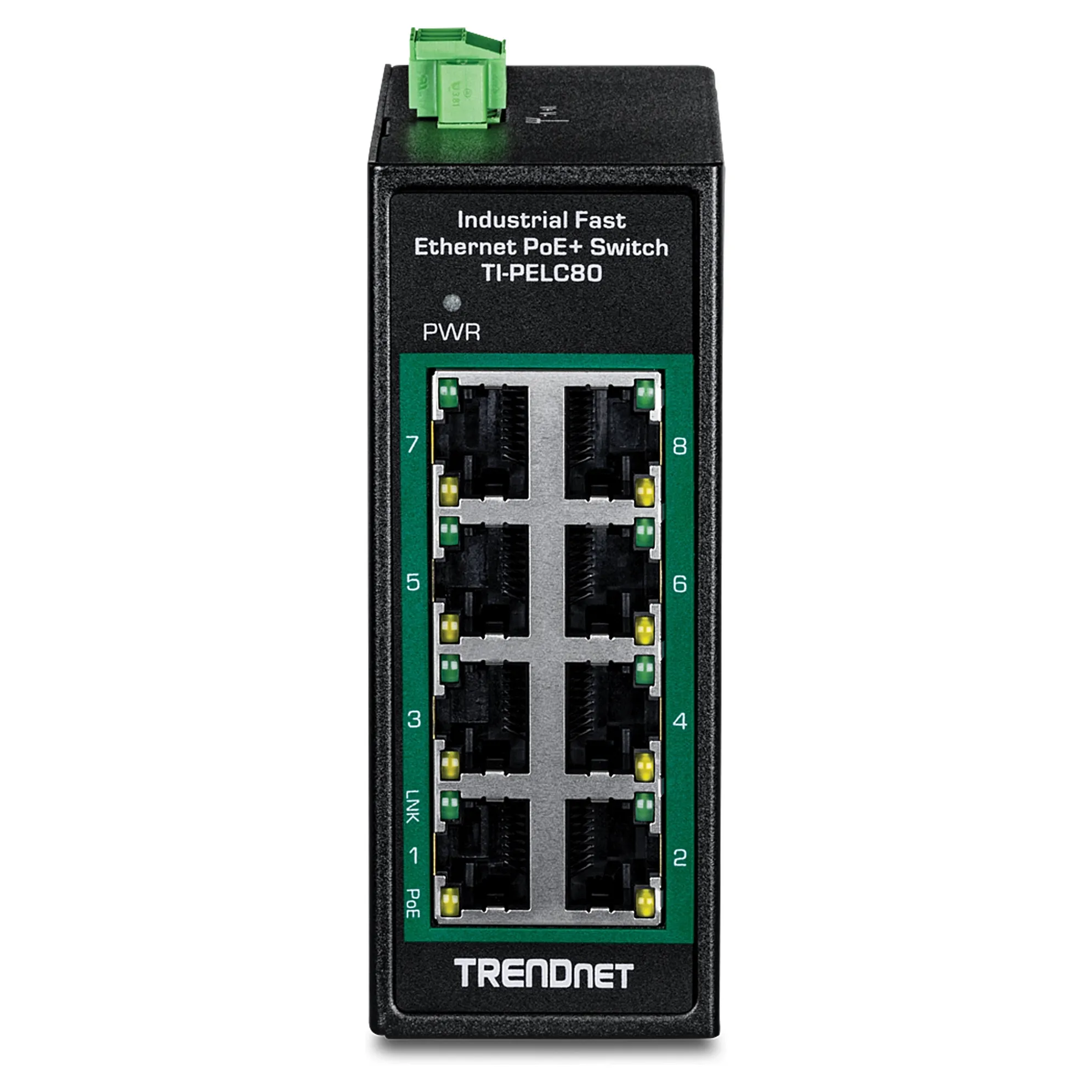

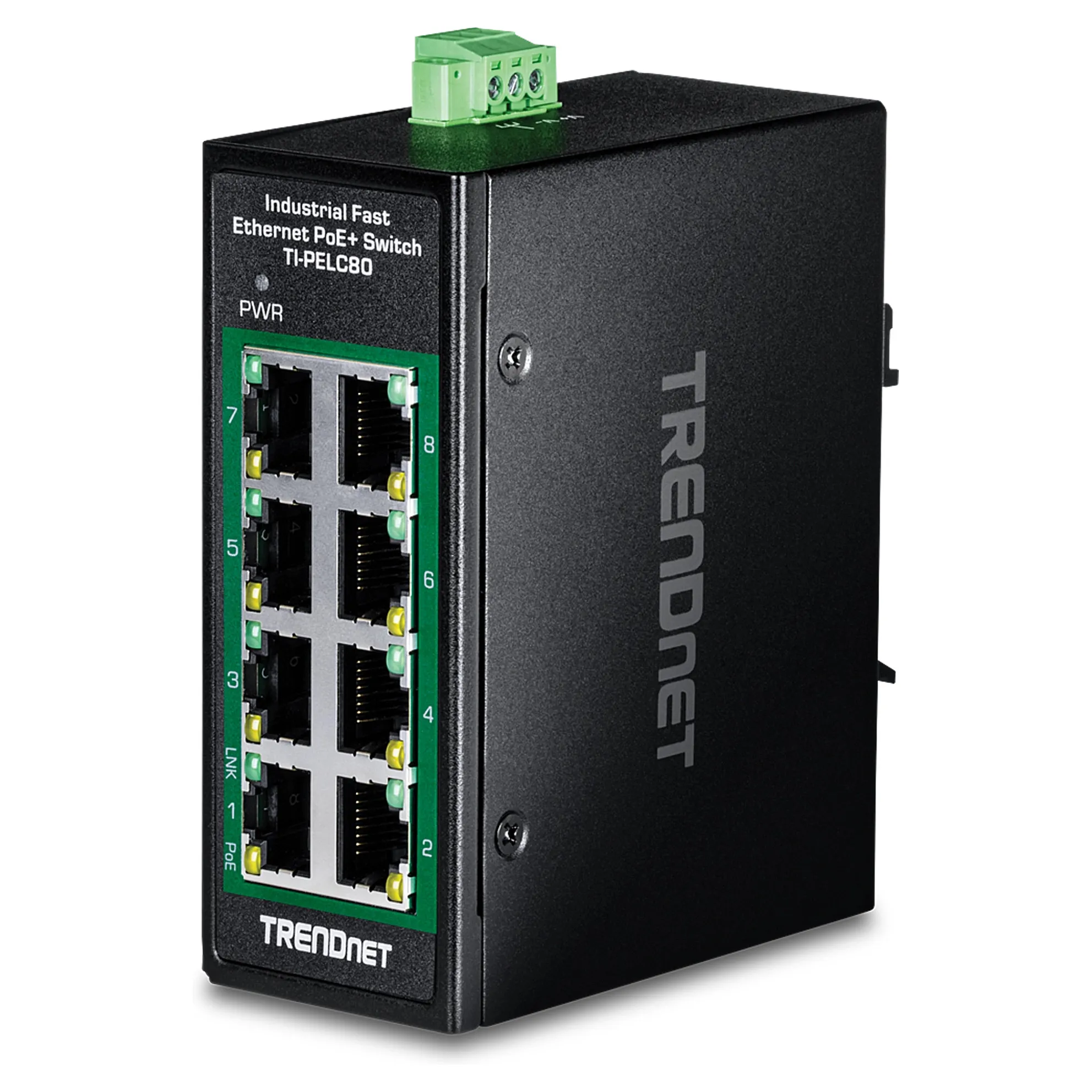

TRENDnet’s 8-Port Industrial Fast Ethernet PoE+ DIN-Rail Mini Switch, model TI-PELC80, is a reliable and rugged networking solution designed for use in both extreme and demanding environments. This Industrial Fast Ethernet DIN-Rail Mini Switch features a rugged IP30 rated metal enclosure, and is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). The hardened industrial switch features eight Fast Ethernet PoE+ ports for high-speed device connections. The mini-sized housing is designed to fit into most compact installation
areas. Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Industrial Fast Ethernet PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one cable to deliver both data and power from the industrial unmanaged PoE+ switch. With these industrial unmanaged PoE+ switches, easily network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems,
IPTV decoders, access controls, and more.
areas. Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Industrial Fast Ethernet PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one cable to deliver both data and power from the industrial unmanaged PoE+ switch. With these industrial unmanaged PoE+ switches, easily network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems,
IPTV decoders, access controls, and more.
Management features
Switch type: Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Network
Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Feature: Full duplex
Feature: Half duplex
Feature: Auto-negotiation
Data transmission
Switching capacity: 1.6 Gbit/s
Forwarding rate: 1.19 Mpps
MAC address table: 1000 entries
Feature: Store-and-forward
Packet buffer memory: 1 MB
Design
Product colour: Black
International Protection (IP) code: IP30
Feature: Wall mountable

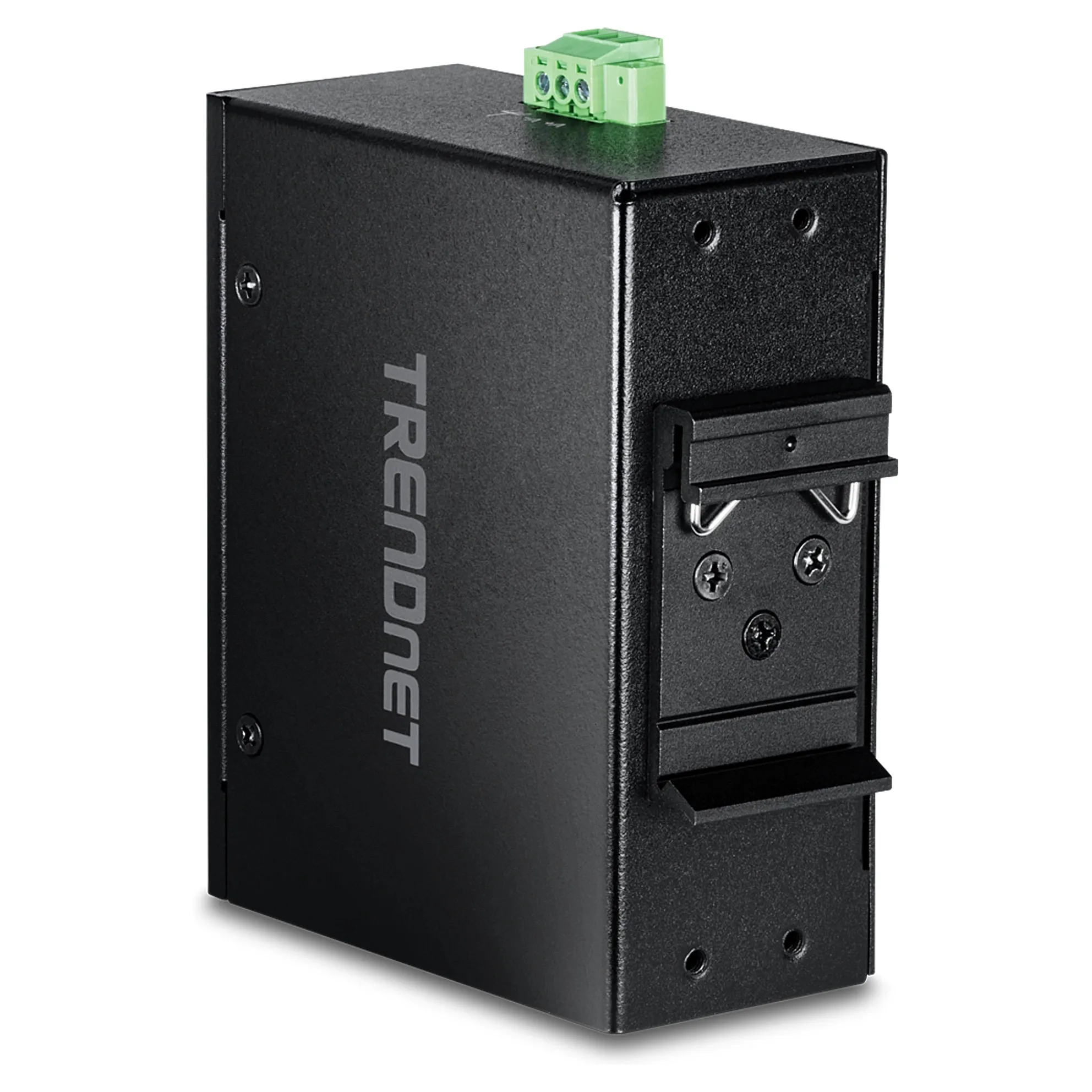

Feature: DIN rail mounting
Performance
Mean time between failures (MTBF): 560321 h
Power
Power source: DC/PoE

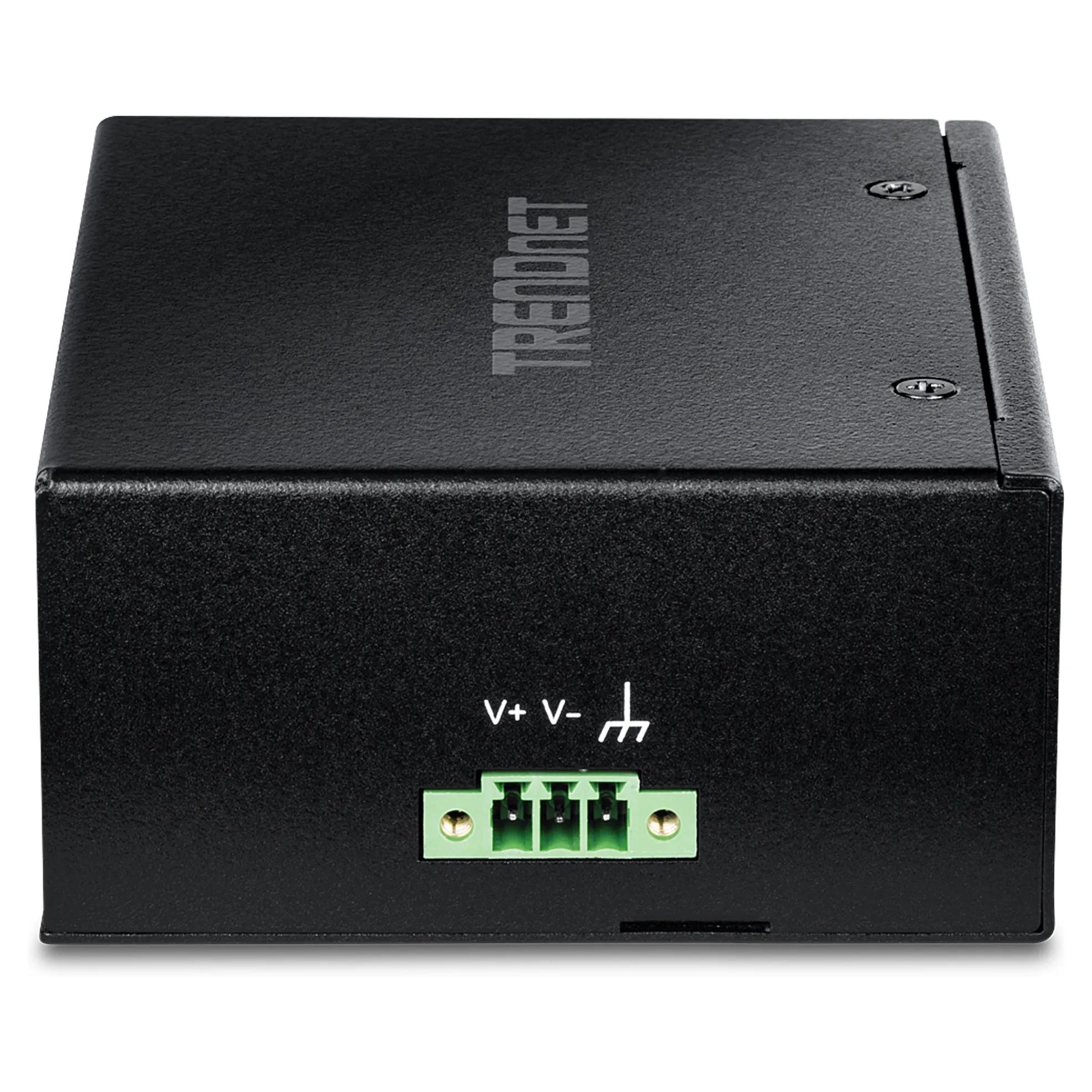

DC input voltage: 48 – 56 V
Power consumption (max): 2.24 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 200 W
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Weight & dimensions
Width: 100 mm
Depth: 80.5 mm
Height: 39 mm
Weight: 340 g
Packaging content
Feature: Quick start guide
Certificates
Certification: CEFCC
Switch type: Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Network
Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Feature: Full duplex
Feature: Half duplex
Feature: Auto-negotiation
Data transmission
Switching capacity: 1.6 Gbit/s
Forwarding rate: 1.19 Mpps
MAC address table: 1000 entries
Feature: Store-and-forward
Packet buffer memory: 1 MB
Design
Product colour: Black
International Protection (IP) code: IP30
Feature: Wall mountable
Feature: DIN rail mounting
Performance
Mean time between failures (MTBF): 560321 h
Power
Power source: DC/PoE
DC input voltage: 48 – 56 V
Power consumption (max): 2.24 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 200 W
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Weight & dimensions
Width: 100 mm
Depth: 80.5 mm
Height: 39 mm
Weight: 340 g
Packaging content
Feature: Quick start guide
Certificates
Certification: CEFCC
