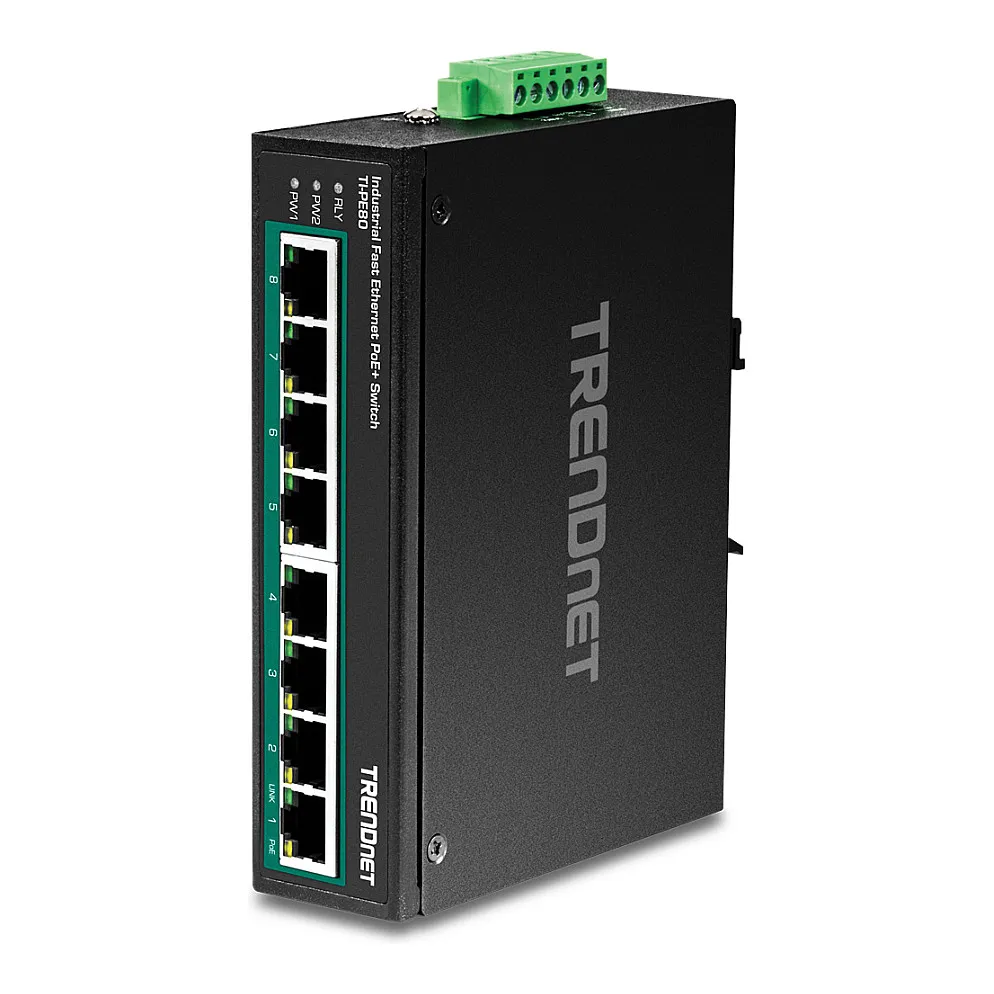

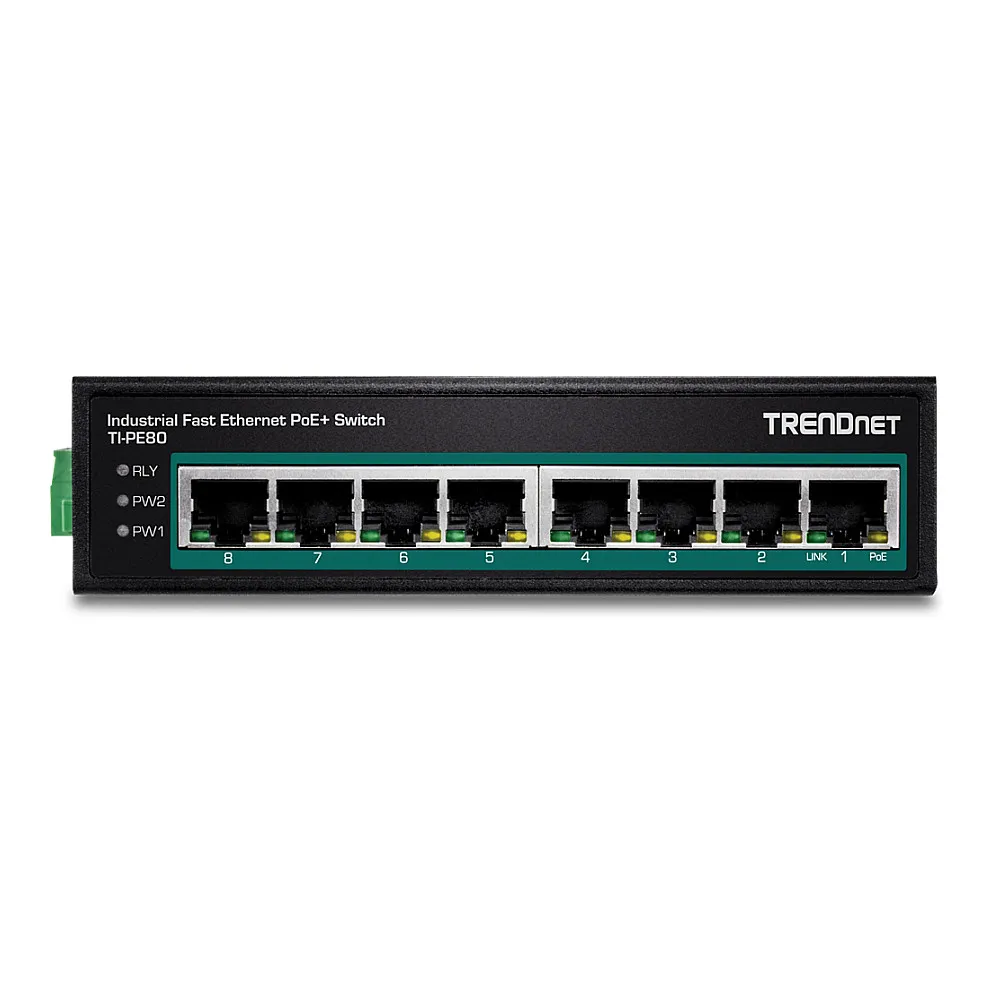

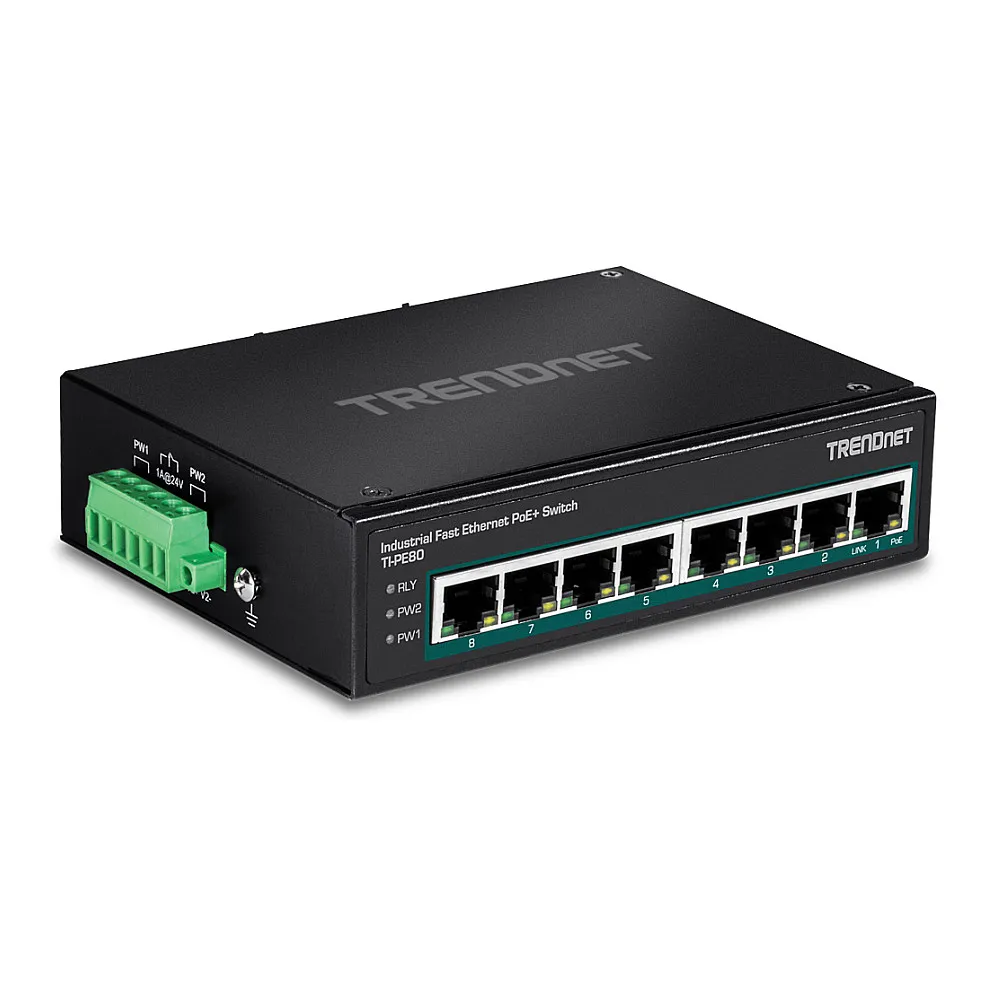

Trendnet TI-PE80. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 1000 entries, Switching capacity: 1.6 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. DC input voltage: 48 – 56 V. Power over Ethernet (PoE). Wall mountable
TRENDnet’s Industrial Fast Ethernet PoE+ DIN-Rail Switches feature a rugged IP30 rated metal enclosure. These industrial unmanaged PoE+ switches are designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). Redundant power inputs with overload current protection on each industrial unmanaged PoE+ switch minimizes network downtime.Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Industrial Fast Ethernet Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power from the industrial unmanaged PoE+ switch. With these industrial unmanaged PoE+ switches, easily network PoE devices such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.
Management features
Switch type: Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Feature: Full duplex
Data transmission
Switching capacity: 1.6 Gbit/s
Forwarding rate: 1.19 Mpps
MAC address table: 1000 entries
Packet buffer memory: 1 MB
Design
Product colour: Black
Housing material: Metal
LED indicators: Yes
International Protection (IP) code: IP30

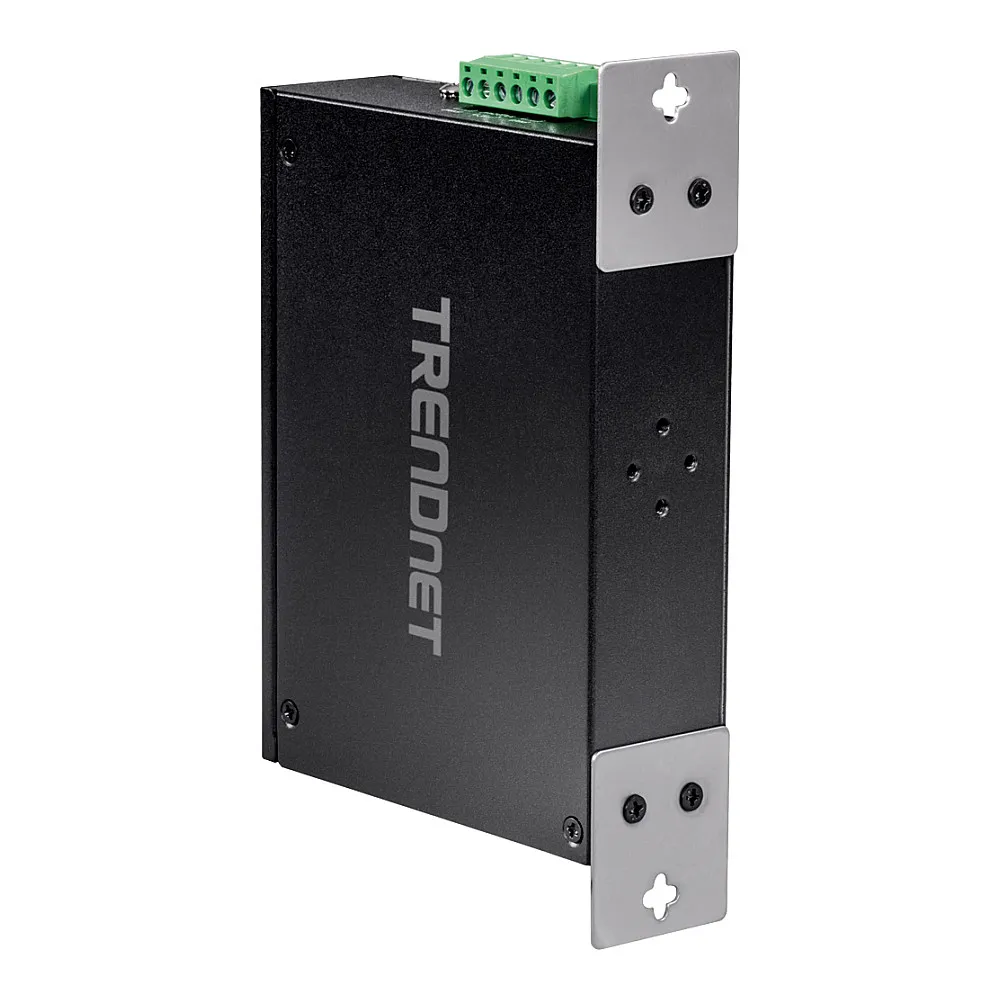

Feature: Wall mountable

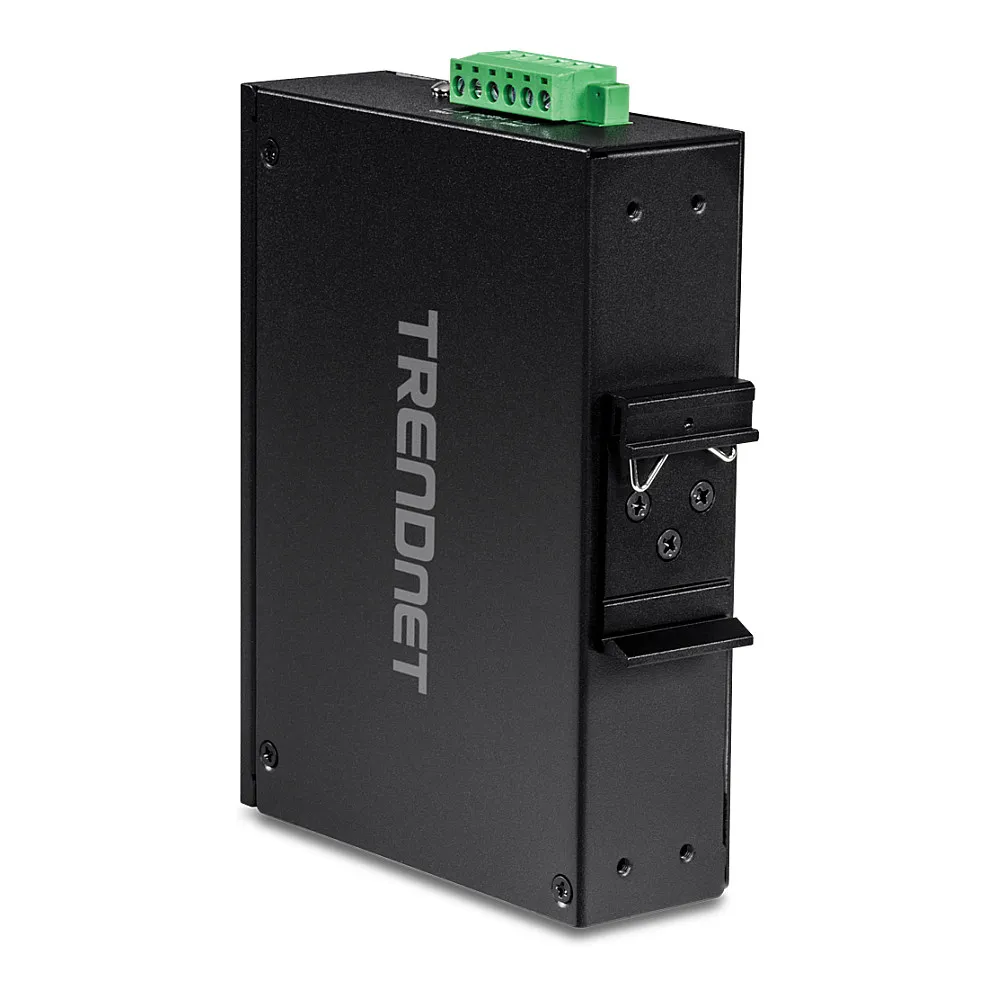

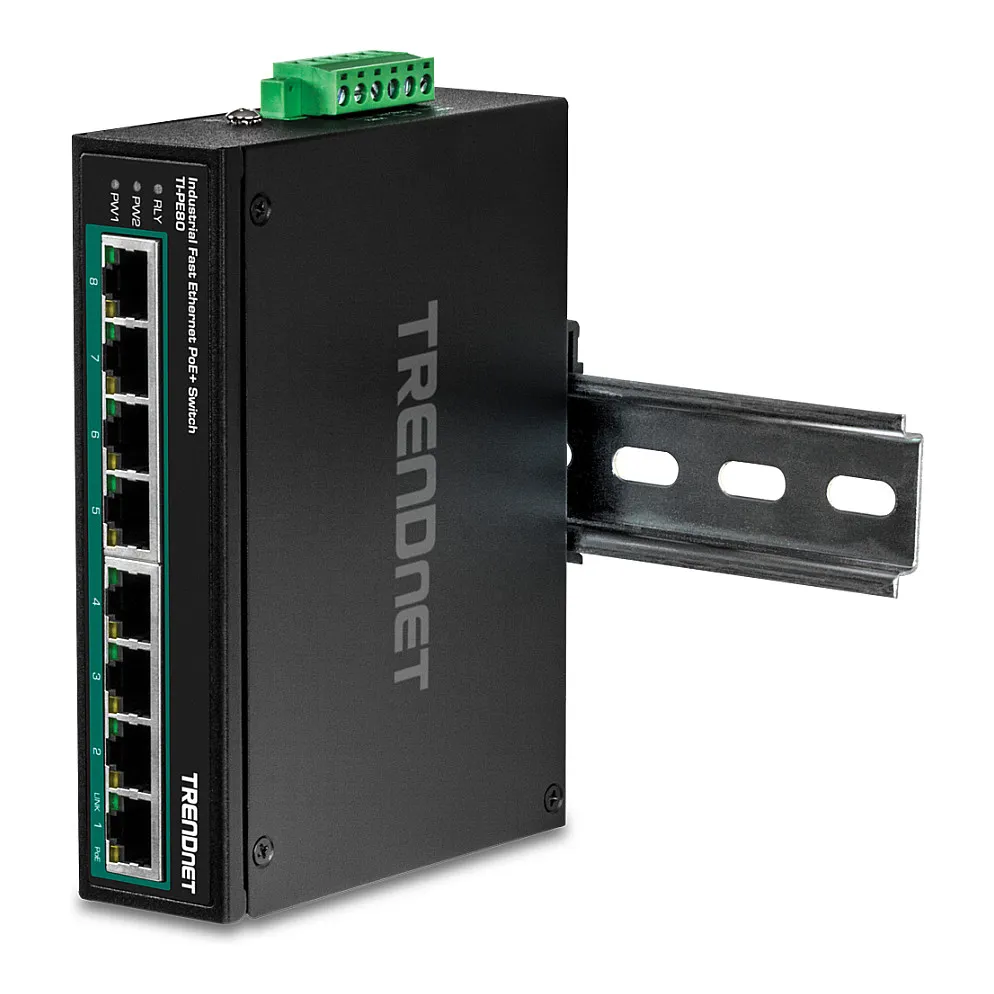

Feature: DIN rail mounting
Performance
Mean time between failures (MTBF): 510304 h
Power

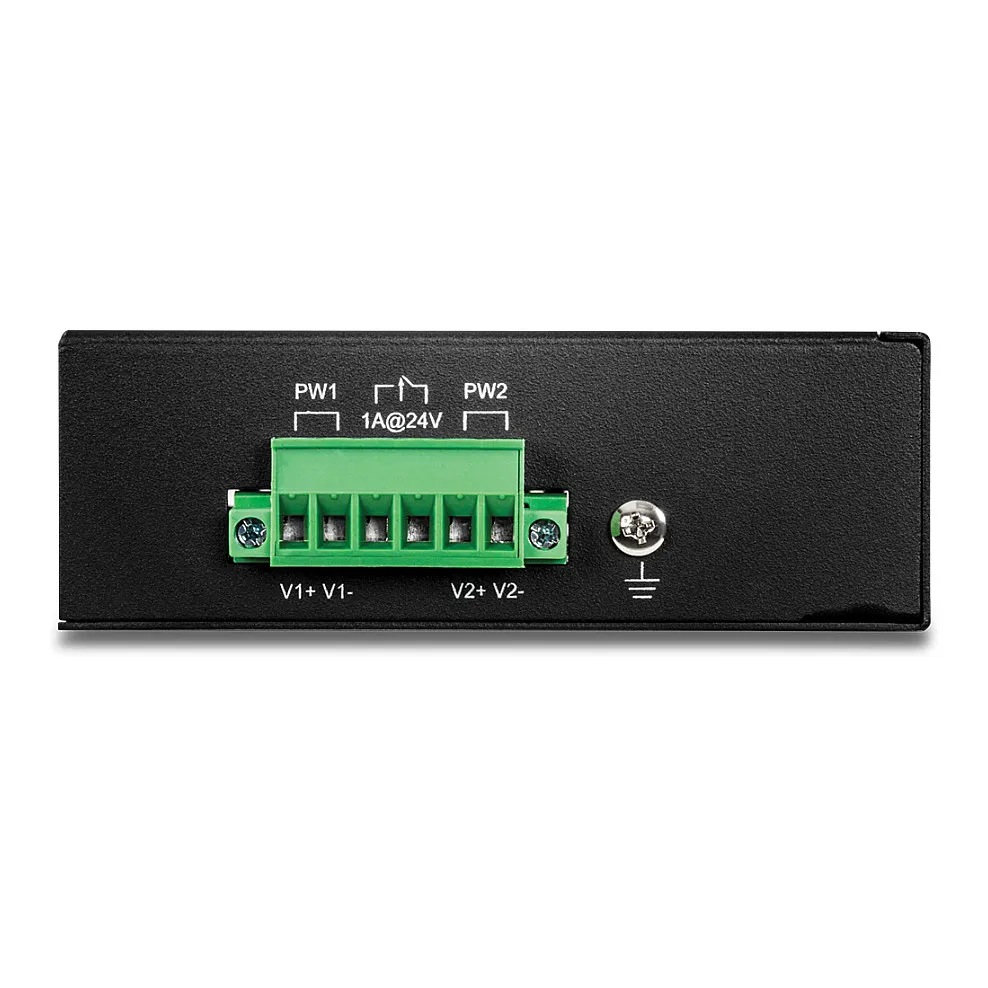

Feature: Redundant power supply (RPS) support
DC input voltage: 48 – 56 V
Power consumption (max): 5.76 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 8
Total Power over Ethernet (PoE) budget: 200 W
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Operating relative humidity (H-H): 0 – 95%
Weight & dimensions
Width: 142 mm
Depth: 105 mm
Height: 37 mm
Weight: 486 g
Packaging content
Feature: Quick start guide
Certificates
Certification: CEFCCULIEC 60068-2-27IEC 60068-2-32IEC 60068-2-6
Logistics data
Harmonized System (HS) code: 85176990
Switch type: Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Feature: Full duplex
Data transmission
Switching capacity: 1.6 Gbit/s
Forwarding rate: 1.19 Mpps
MAC address table: 1000 entries
Packet buffer memory: 1 MB
Design
Product colour: Black
Housing material: Metal
LED indicators: Yes
International Protection (IP) code: IP30
Feature: Wall mountable
Feature: DIN rail mounting
Performance
Mean time between failures (MTBF): 510304 h
Power
Feature: Redundant power supply (RPS) support
DC input voltage: 48 – 56 V
Power consumption (max): 5.76 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 8
Total Power over Ethernet (PoE) budget: 200 W
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Operating relative humidity (H-H): 0 – 95%
Weight & dimensions
Width: 142 mm
Depth: 105 mm
Height: 37 mm
Weight: 486 g
Packaging content
Feature: Quick start guide
Certificates
Certification: CEFCCULIEC 60068-2-27IEC 60068-2-32IEC 60068-2-6
Logistics data
Harmonized System (HS) code: 85176990
