Trendnet TI-IG90. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u. Product colour: Black, Maximum operating distance: 100 m. Input voltage: 52 – 56, Total Power over Ethernet (PoE) budget: 90 W. Certification: CE FCC IEC EN60950-1 Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6). Width: 104 mm, Depth: 82 mm, Height: 32 mm

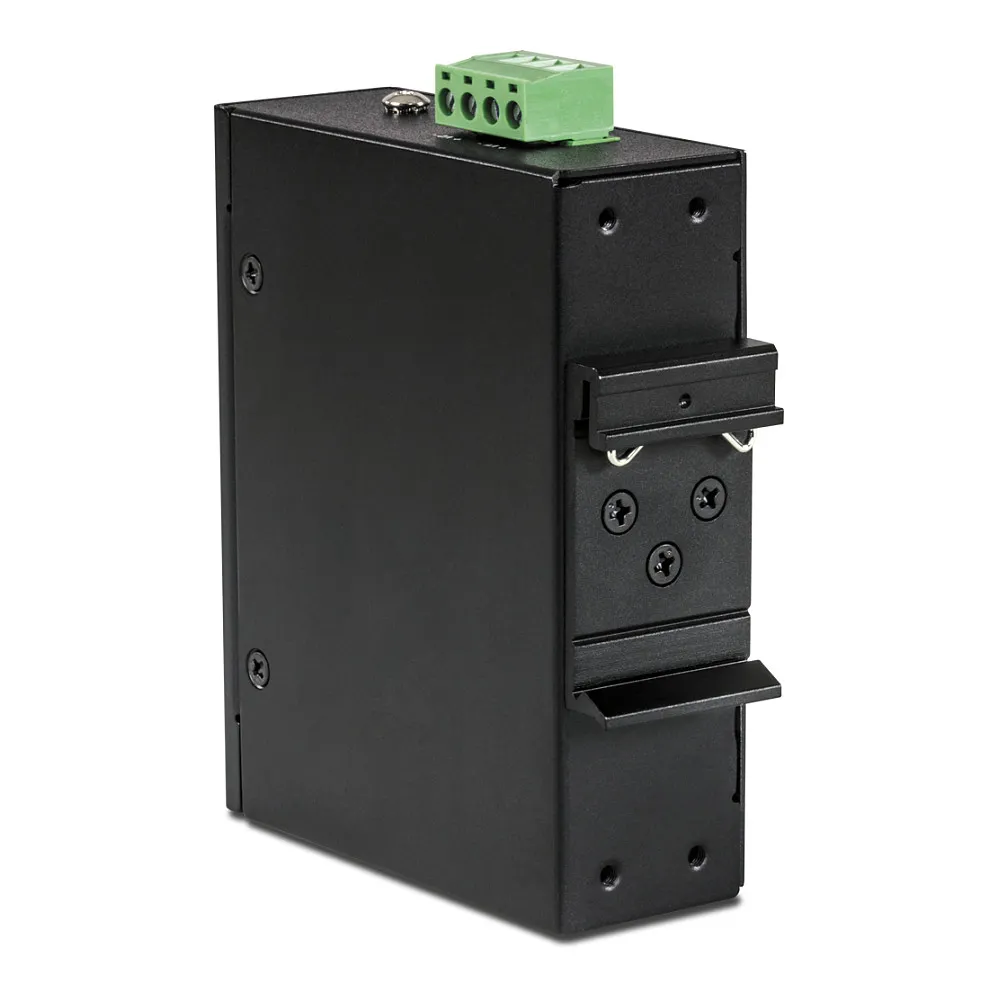

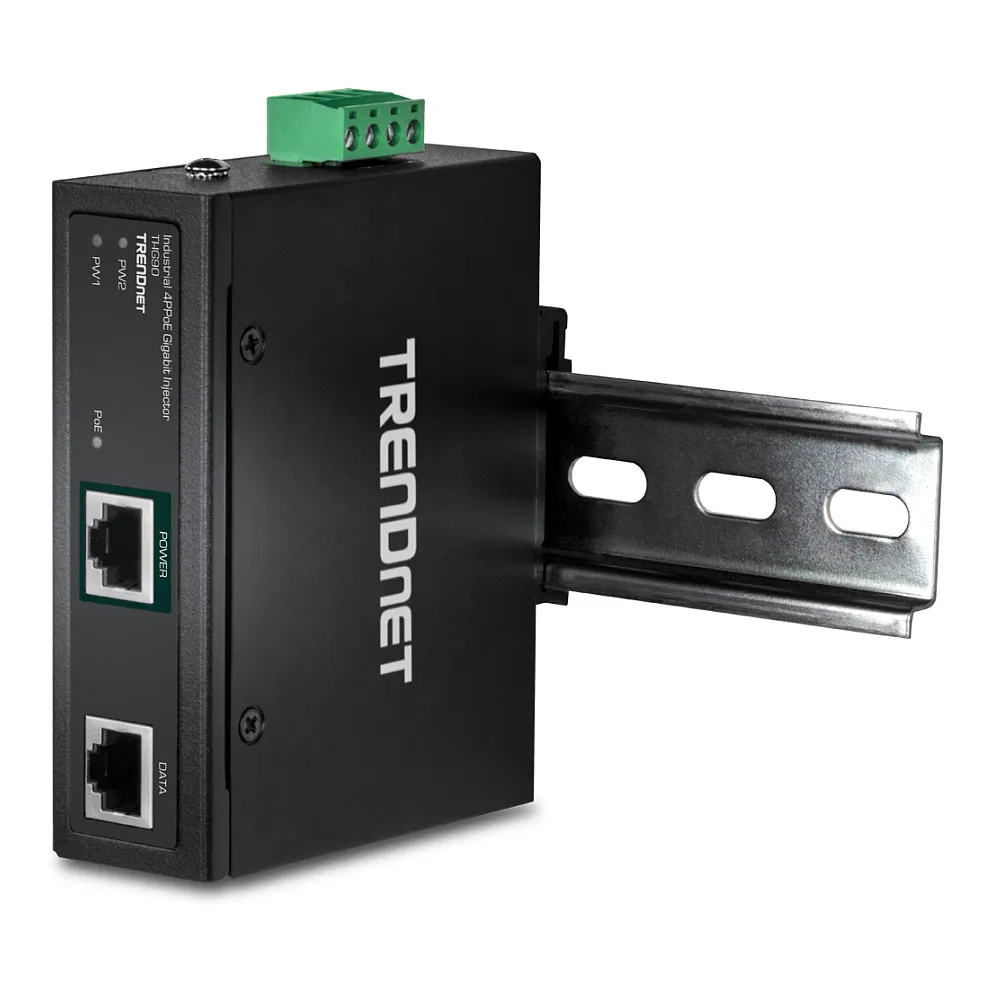

TRENDnet’s TI-IG90 is a reliable IP30 rated Industrial Gigabit 4PPoE Injector with hardened components rated for extreme and rugged industrial environments. Connect the TI-IG90 industrial PoE injector to a non-PoE Gigabit switch, and then run an Ethernet cable up to 100 meters (328 ft.) to network a PoE device. The TI-IG90 industrial PoE injector supplies power to a PoE, PoE+, UPoE, or 4PPoE (up to 90W) device. This industrial PoE injector features redundant power inputs with overload current protection to support zero downtime applications. Both DIN-rail and wall mount hardware are included with the industrial PoE injector.
– 1 x Gigabit port
– 1 x 4PPoE Gigabit port
– 1 x Gigabit port
– 1 x 4PPoE Gigabit port
Network
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Power over Ethernet (PoE)
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u
Duplex system: Full, Half
Features
Product colour: Black
Feature: Wall mountable
Feature: Surge protection
Maximum operating distance: 100 m
LED indicators: Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
Feature: DC-in jack
Power
Input voltage: 52 – 56
Total Power over Ethernet (PoE) budget: 90 W
Certificates
Certification: CEFCCIEC EN60950-1Shock (IEC 60068-2-27)Freefall (IEC 60068-2-32)Vibration (IEC 60068-2-6)
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Weight & dimensions
Width: 104 mm
Depth: 82 mm
Height: 32 mm
Weight: 154 g
Packaging content
Number of products included: 1 pc(s)
Feature: Wall mounting kit
Feature: Quick installation guide
Logistics data
Harmonized System (HS) code: 85044095
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Power over Ethernet (PoE)
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u
Duplex system: Full, Half
Features
Product colour: Black
Feature: Wall mountable
Feature: Surge protection
Maximum operating distance: 100 m
LED indicators: Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
Feature: DC-in jack
Power
Input voltage: 52 – 56
Total Power over Ethernet (PoE) budget: 90 W
Certificates
Certification: CEFCCIEC EN60950-1Shock (IEC 60068-2-27)Freefall (IEC 60068-2-32)Vibration (IEC 60068-2-6)
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Weight & dimensions
Width: 104 mm
Depth: 82 mm
Height: 32 mm
Weight: 154 g
Packaging content
Number of products included: 1 pc(s)
Feature: Wall mounting kit
Feature: Quick installation guide
Logistics data
Harmonized System (HS) code: 85044095
