Trendnet TI-IG30. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u. Product colour: Black, Power protection features: Overload. Power requirements: DC, Input voltage: 48 – 56 V, Power consumption (max): 36 W. Certification: FCC, CE. Weight: 134 g, Dimensions (WxDxH): 104 x 82 x 32 mm

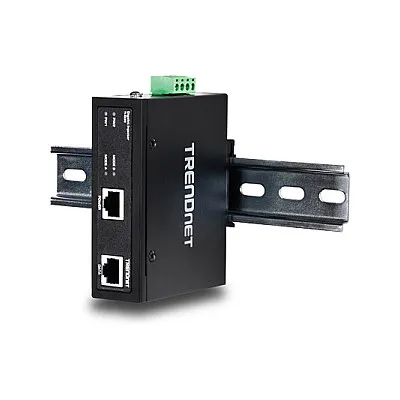

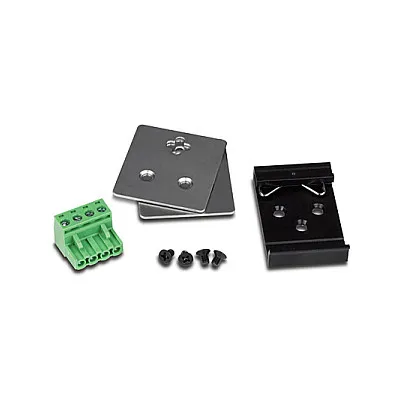

TRENDnet’s TI-IG30 is a reliable IP30 rated Industrial Gigabit PoE+ Injector with hardened components rated for extreme industrial environments. Connect the TI-IG30 to a non-PoE Gigabit switch and then run an Ethernet cable up to 100 meters (328 ft.) to network a PoE, PoE+, or high power PoE+ device. Dual redundant power inputs (power supply sold separately: TI-S12048) with overload current protection support zero downtime applications. Both DIN-rail and wall mount hardware is included.
Network
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Power over Ethernet (PoE)
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Duplex system: Full, Half
Features
Product colour: Black
Feature: Wall mountable
Feature: Surge protection
LED indicators: Yes
Power protection features: Overload
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
Power
Power requirements: DC
Input voltage: 48 – 56 V
Power consumption (max): 36 W
Total Power over Ethernet (PoE) budget: 30 W
Certificates
Certification: FCC, CE
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Weight & dimensions
Weight: 134 g
Dimensions (WxDxH): 104 x 82 x 32 mm
Packaging content
Number of products included: 1 pc(s)
Logistics data
Harmonized System (HS) code: 85044095
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Power over Ethernet (PoE)
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Duplex system: Full, Half
Features
Product colour: Black
Feature: Wall mountable
Feature: Surge protection
LED indicators: Yes
Power protection features: Overload
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
Power
Power requirements: DC
Input voltage: 48 – 56 V
Power consumption (max): 36 W
Total Power over Ethernet (PoE) budget: 30 W
Certificates
Certification: FCC, CE
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Weight & dimensions
Weight: 134 g
Dimensions (WxDxH): 104 x 82 x 32 mm
Packaging content
Number of products included: 1 pc(s)
Logistics data
Harmonized System (HS) code: 85044095
