Trendnet TI-IG290. Ethernet interface type: 2.5 Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000,2500 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u,…. Product colour: Black, Mean time between failures (MTBF): 716685 h. Output power: 96 W, Input voltage: 52 – 56, Power consumption (max): 95 W. Compliance certificates: CE, Certification: FCC IEC EN60950-1 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6. Width: 81 mm, Depth: 30 mm, Height: 103 mm

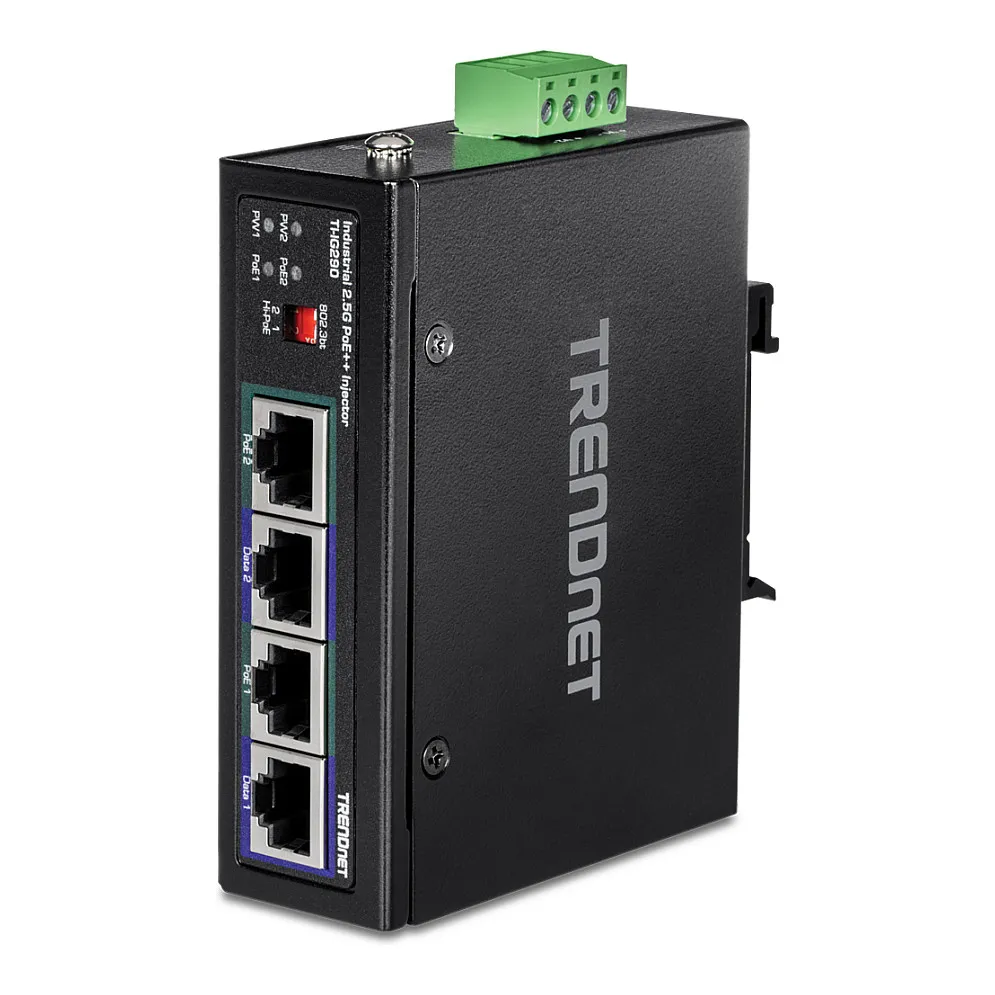

TRENDnet’s 95W 2-Port Industrial 2.5G PoE++ Injector, model TI-IG290, allows users to add PoE++ power to a non-PoE 2.5G switch. Connect the 2-port industrial 2.5G PoE++ injector to a non-PoE 2.5G switch, and then run Ethernet cables up to 100 meters (328 ft.) to network two PoE/PoE++ devices. This multi-port industrial 2.5G PoE++ injector supplies up to 95W of power to two PoE devices with a total PoE budget of 180W. The fanless design conveniently eliminates operating noise and lowers unnecessary energy consumption. The dual port industrial 2.5G PoE++ injector is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 70° C (-40° – 167° F) for harsh industrial environments.
Network
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Duplex system: Full, Half
Features
Product colour: Black
Feature: Wall mountable
Mean time between failures (MTBF): 716685 h
Feature: Auto-negotiation
Ports & interfaces
Ethernet LAN (RJ-45) ports: 4
RJ-45 input ports: 2
RJ-45 output ports: 2
Power
Output power: 96 W
Input voltage: 52 – 56
Power consumption (max): 95 W
Total Power over Ethernet (PoE) budget: 180 W
Certificates
Compliance certificates: CE
Certification: FCCIEC EN60950-1IEC 60068-2-27IEC 60068-2-32IEC 60068-2-6
Sustainability
Feature: Sustainability compliance
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Weight & dimensions
Width: 81 mm
Depth: 30 mm
Height: 103 mm
Weight: 170 g
Packaging content
Number of products included: 1 pc(s)
Feature: Wall mounting kit
Feature: Quick installation guide
Packaging content: Wall
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Duplex system: Full, Half
Features
Product colour: Black
Feature: Wall mountable
Mean time between failures (MTBF): 716685 h
Feature: Auto-negotiation
Ports & interfaces
Ethernet LAN (RJ-45) ports: 4
RJ-45 input ports: 2
RJ-45 output ports: 2
Power
Output power: 96 W
Input voltage: 52 – 56
Power consumption (max): 95 W
Total Power over Ethernet (PoE) budget: 180 W
Certificates
Compliance certificates: CE
Certification: FCCIEC EN60950-1IEC 60068-2-27IEC 60068-2-32IEC 60068-2-6
Sustainability
Feature: Sustainability compliance
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Weight & dimensions
Width: 81 mm
Depth: 30 mm
Height: 103 mm
Weight: 170 g
Packaging content
Number of products included: 1 pc(s)
Feature: Wall mounting kit
Feature: Quick installation guide
Packaging content: Wall
