Trendnet TI-GLC50. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. DC input voltage: 9.6 – 60 V. Wall mountable

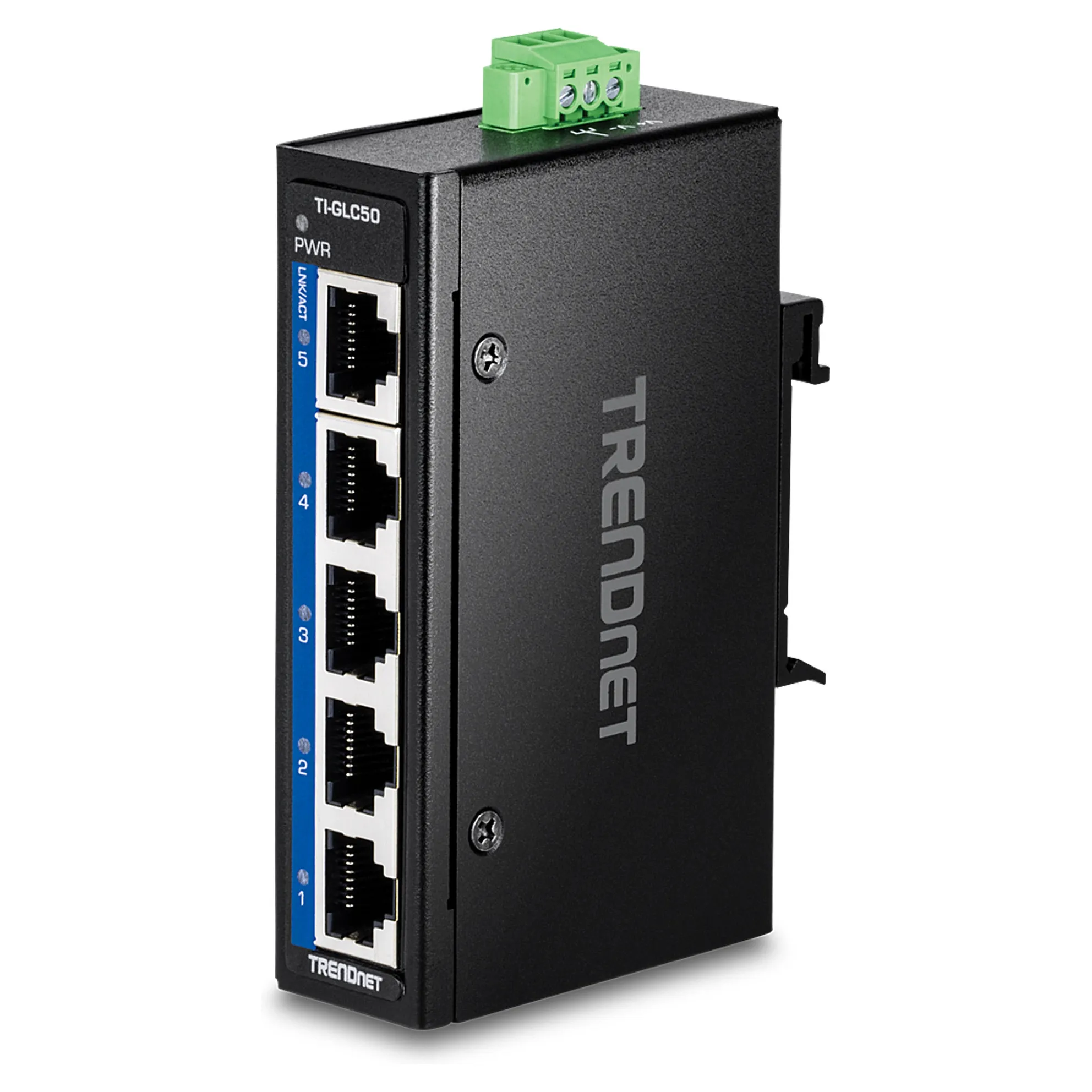

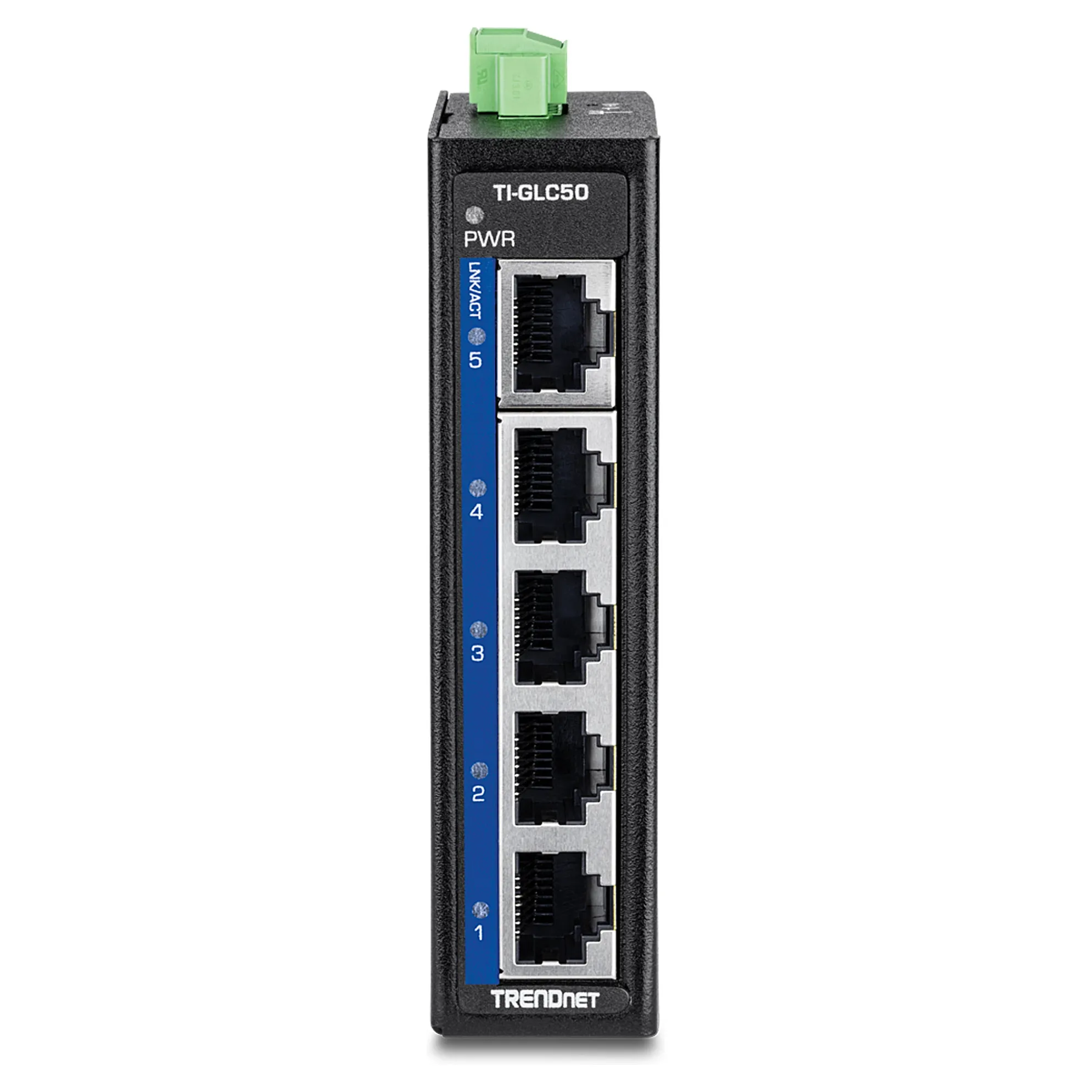

TRENDnet’s 5-Port Industrial Gigabit DIN-Rail Mini Switch, model TI-GLC50, is a reliable and rugged networking solution designed for use in both extreme and demanding environments. This Industrial Gigabit DIN-Rail Mini Switch features a rugged IP30 rated metal enclosure, and is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). The hardened industrial switch features five copper gigabit ports for high-speed device connections. The mini-sized housing is designed to fit into most compact installation areas.
Management features
Switch type: Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Feature: Full duplex
Feature: Half duplex
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Auto-negotiation
Data transmission
Switching capacity: 10 Gbit/s
Forwarding rate: 7.44 Mpps
MAC address table: 2000 entries
Feature: Jumbo frames support
Jumbo frames: 9000
Design
Product colour: Black
Housing material: Metal
International Protection (IP) code: IP30
Feature: Wall mountable

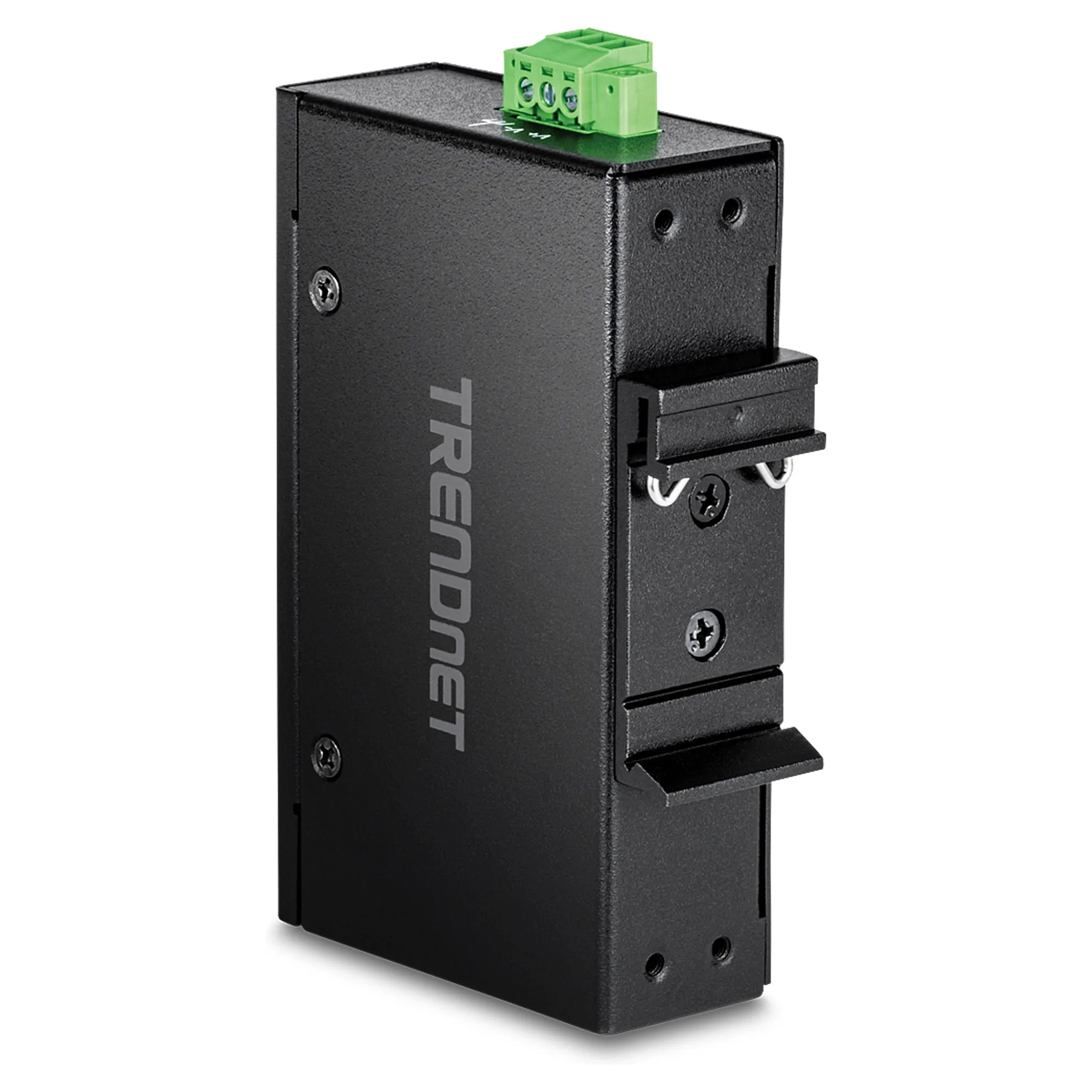

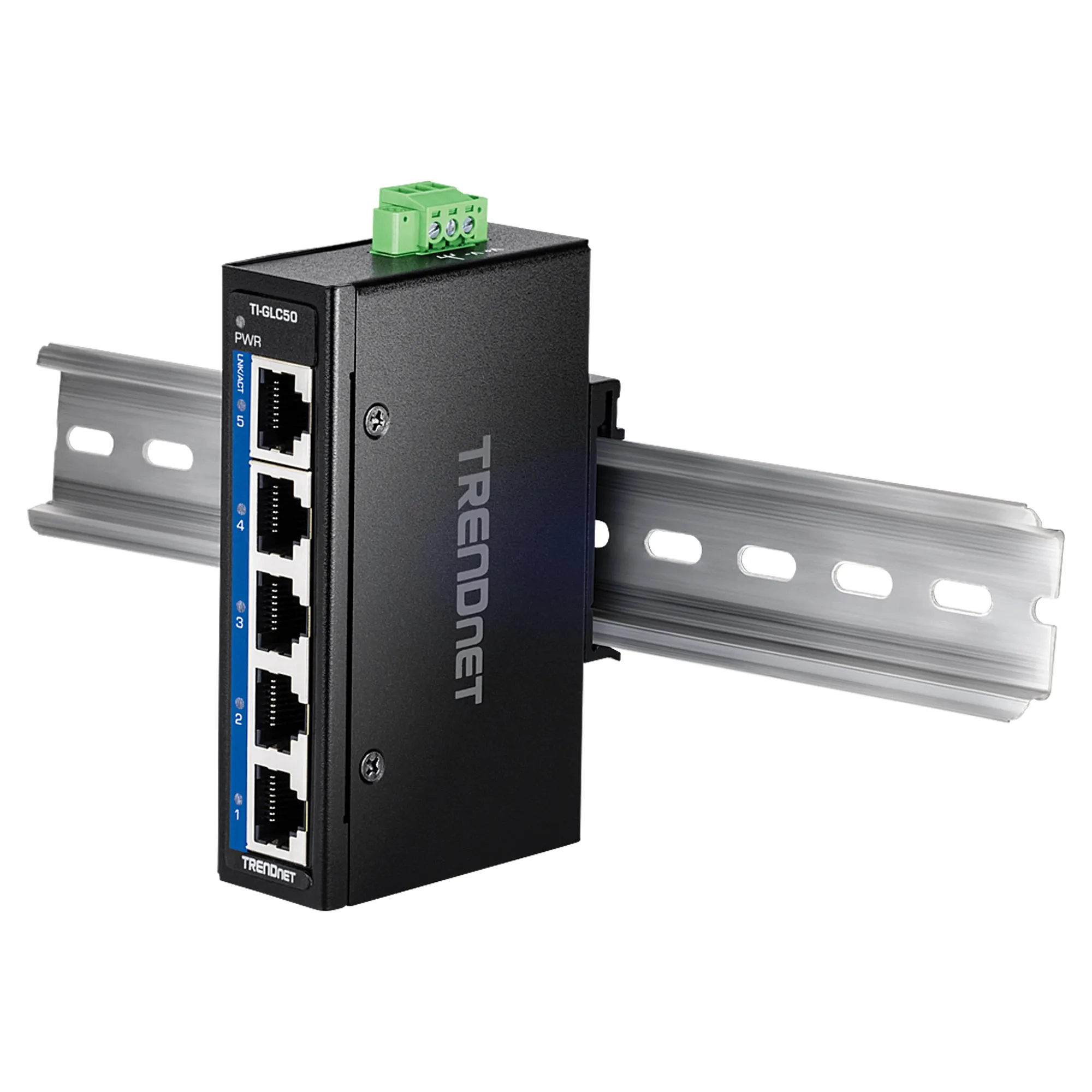

Feature: DIN rail mounting
Performance
Mean time between failures (MTBF): 556710 h
Power
Power source: DC

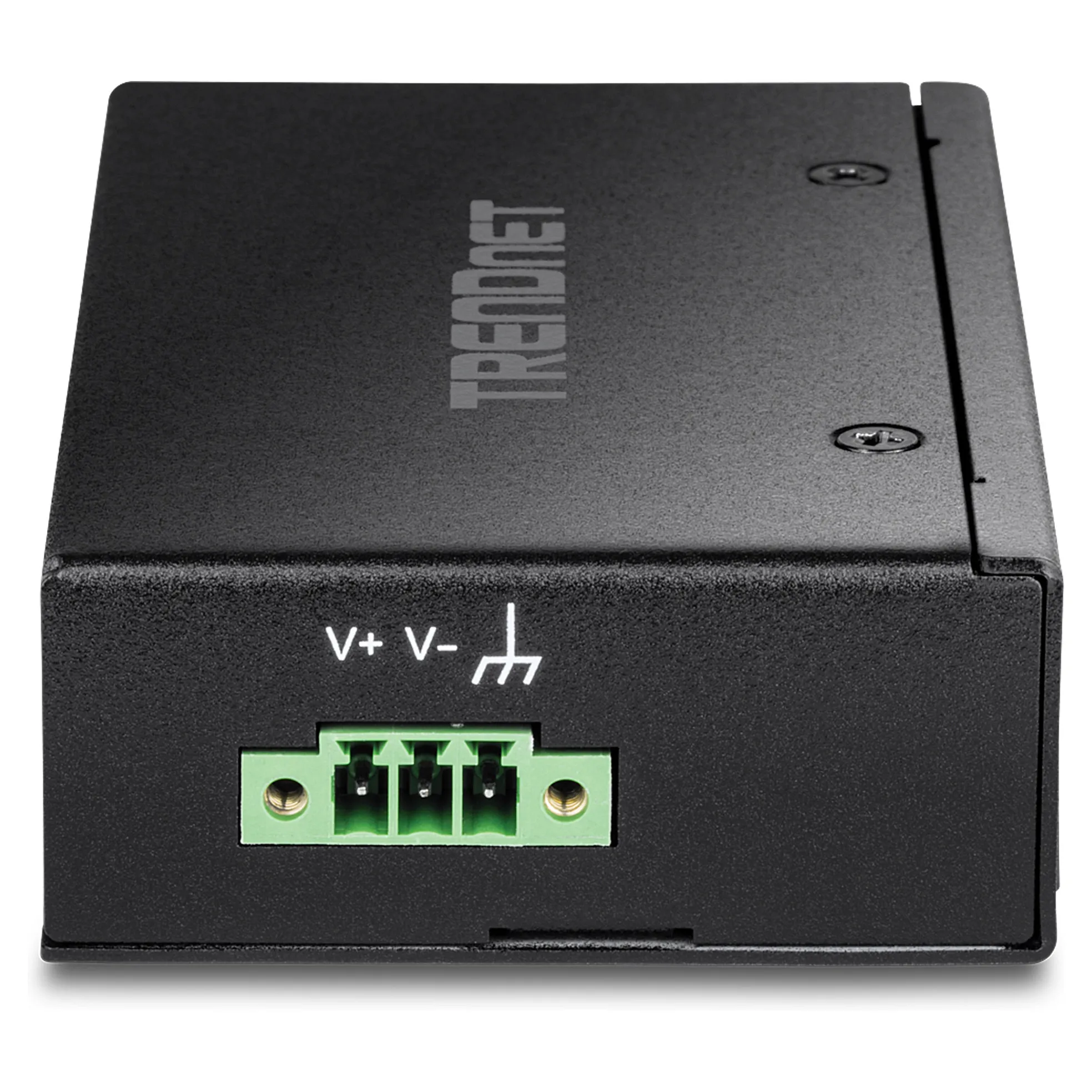

DC input voltage: 9.6 – 60 V
Power consumption (max): 2.688 W
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Weight & dimensions
Width: 100.5 mm
Depth: 60 mm
Height: 25.5 mm
Weight: 220 g
Certificates
Certification: CEFCC
