Trendnet TI-G80. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Wall mountable

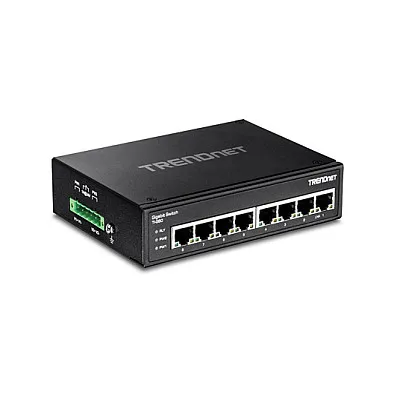

TRENDnet’s TI-G80 is a reliable IP30 unmanaged DIN-rail switch with hardened components rated for extreme industrial environments. It offers 8 Gigabit ports and a 16 Gbps switching capacity. Dual redundant power inputs (power adapter sold separately: TI-M6024) and a power failure alarm output trigger support zero downtime applications.
Management features
Switch type: Unmanaged
Switch layer: L2
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 8
Network
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Data transmission
Switching capacity: 16 Gbit/s
MAC address table: 8000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Design
Product colour: Black
Housing material: Metal
LED indicators: Yes
International Protection (IP) code: IP30
Feature: Wall mountable
Performance
Buffer size: 1024 KB
Mean time between failures (MTBF): 510304 h
Power
Feature: Redundant power supply (RPS) support
Power consumption (max): 5 W
Other features
Power requirements: 12 – 56 VDC
Weight & dimensions
Width: 143 mm
Depth: 104 mm
Height: 36 mm
Weight: 512 g
Packaging content
Feature: Quick start guide
Packaging data

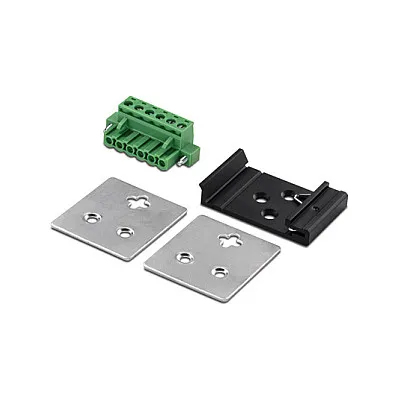

Feature: Wall mounting kit
Feature: Terminal block included
Certificates
Certification: FCCCE
Logistics data
Harmonized System (HS) code: 85176990
