Trendnet TI-G5091. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4000 entries, Switching capacity: 60 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. DC input voltage: 9 – 60 V. Wall mountable

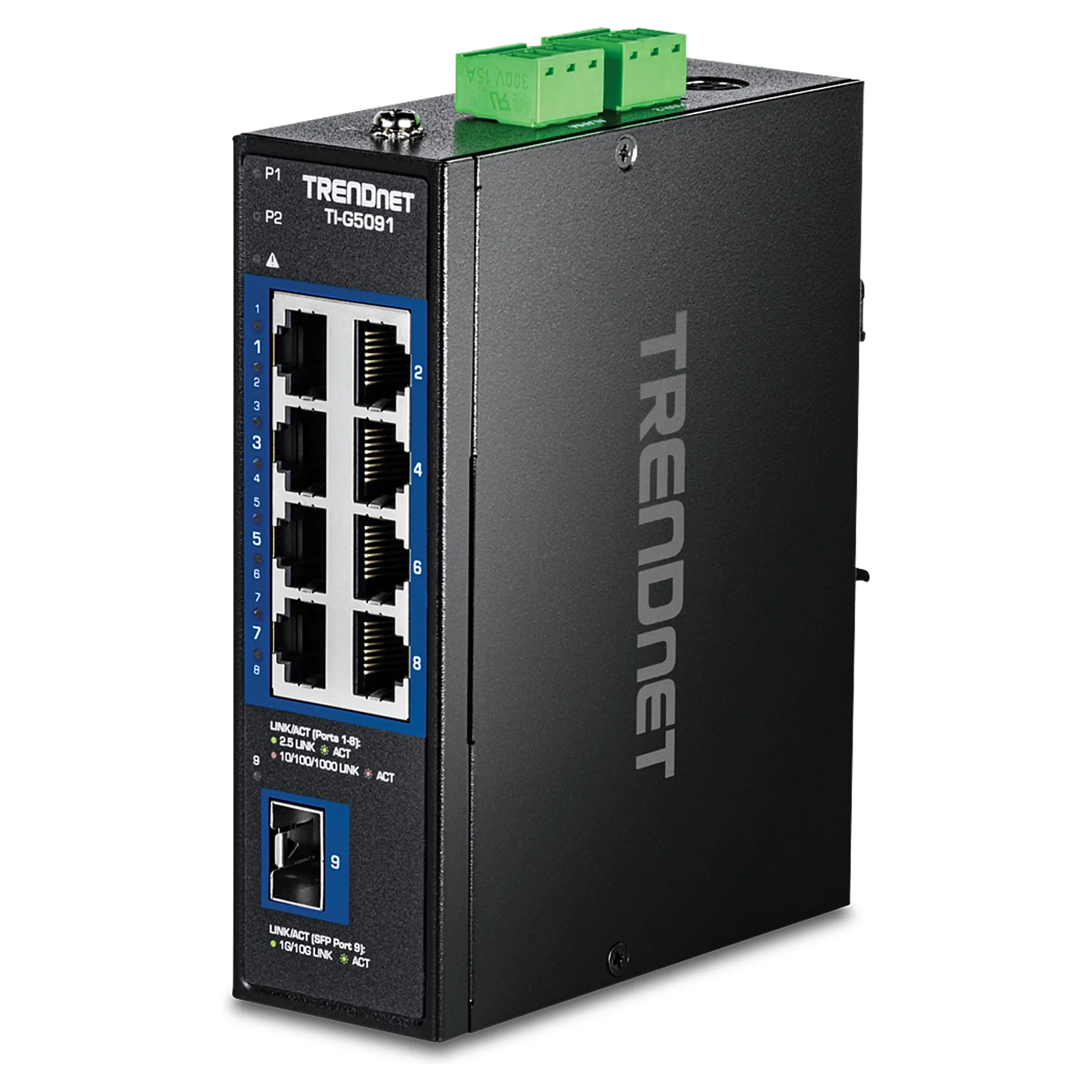

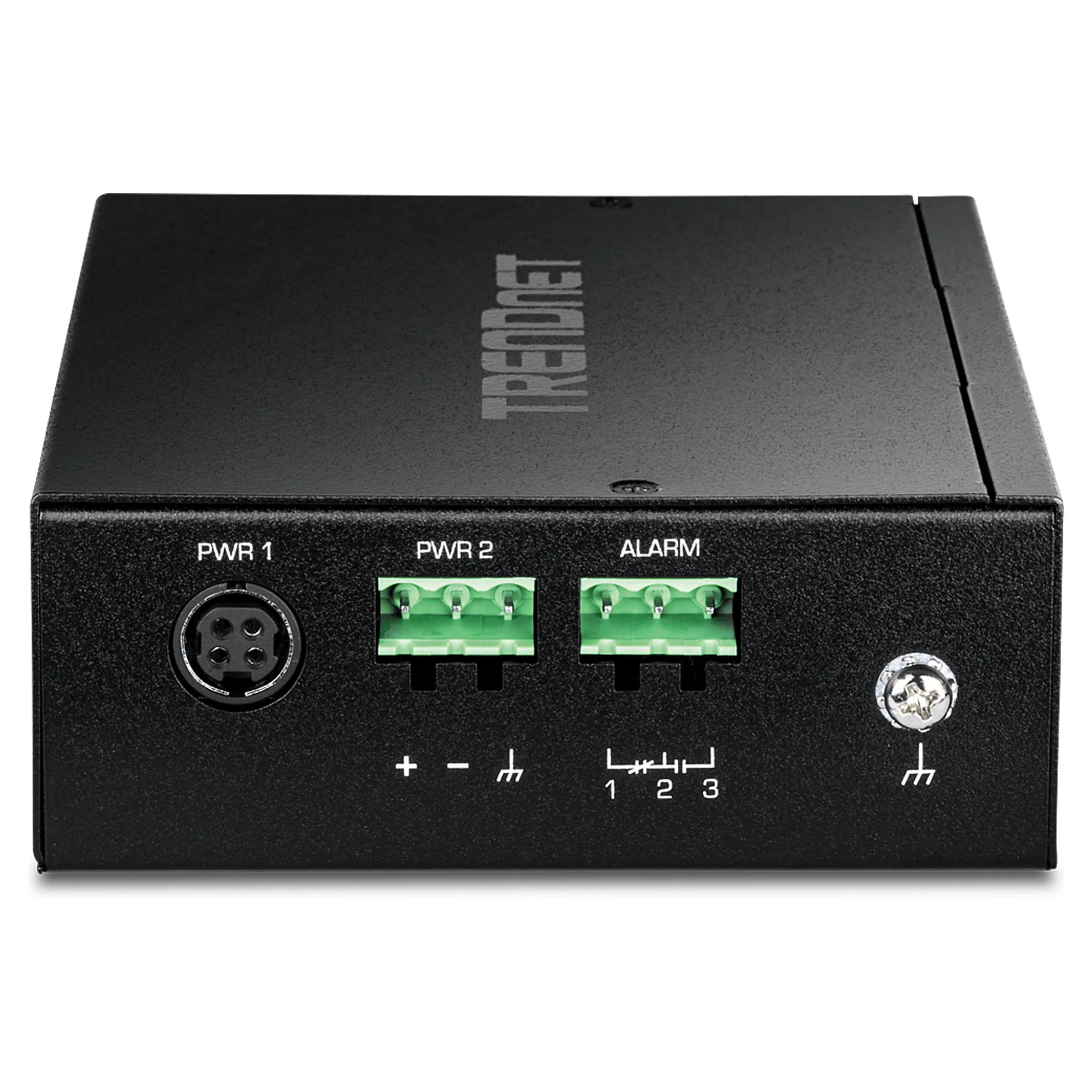

TRENDnet’s 9-Port Industrial 2.5G DIN-Rail Switch with 10G SFP+ Port, model TI-G5091, features a rugged IP50 rated metal enclosure and is designed to work in the harshest networking environments. This industrial 2.5G switch is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). Redundant power inputs with overload current protection, and a power failure alarm relay minimize network downtime. This industrial multi-gig switch features 2.5G RJ-45 ports for high-speed device connections, and a 10G SFP+ port for backbone fiber networking applications.
Management features
Switch type: Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity: 8
SFP+ module slots quantity: 1
Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Feature: 10G support
Feature: Full duplex
Feature: Half duplex
Data transmission
Switching capacity: 60 Gbit/s
Forwarding rate: 44.64 Mpps
MAC address table: 4000 entries
Feature: Jumbo frames support
Jumbo frames: 12000
Packet buffer memory: 1 MB
Design
International Protection (IP) code: IP50
Feature: Wall mountable

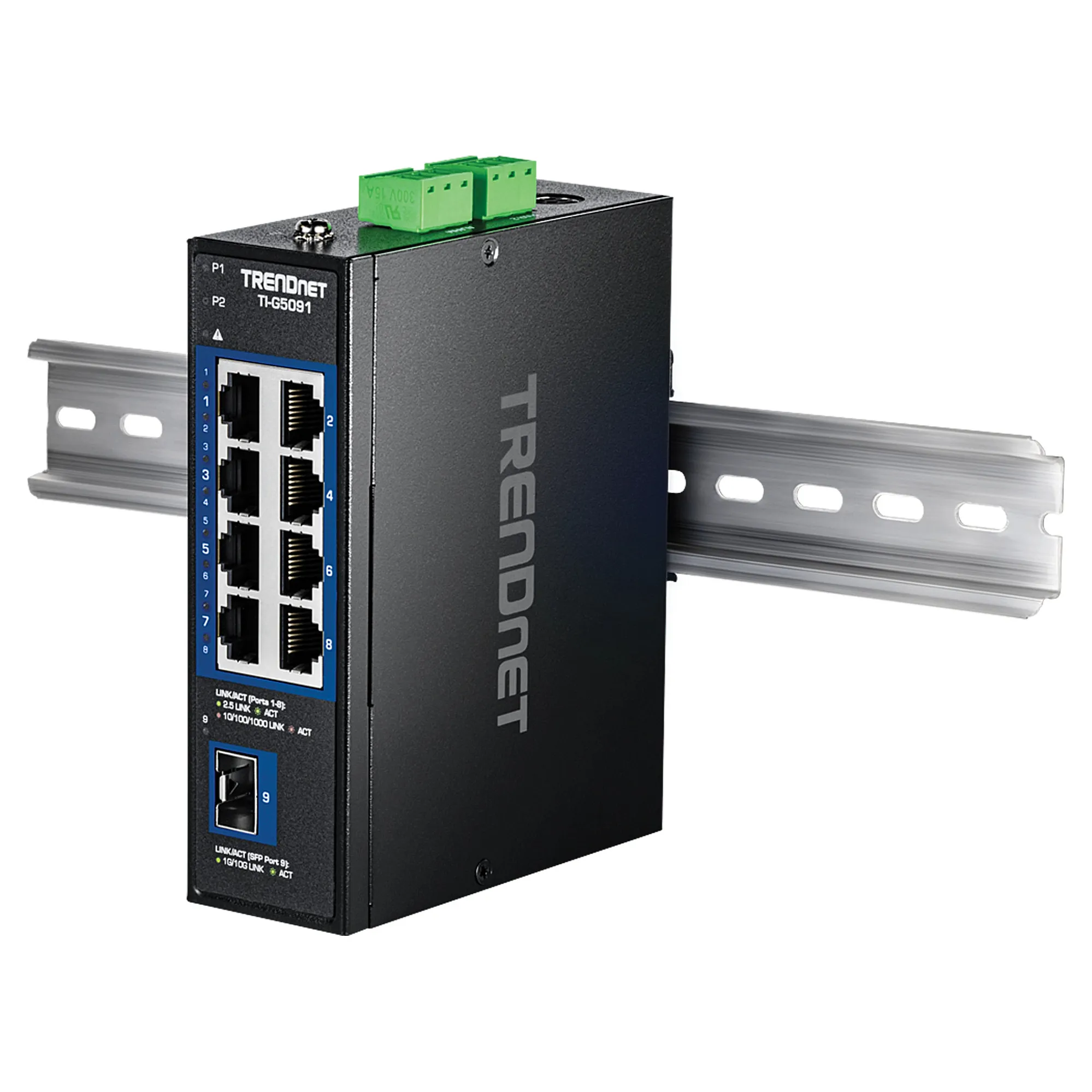

Feature: DIN rail mounting
Performance
Mean time between failures (MTBF): 615965 h
Power
Power source: DC
DC input voltage: 9 – 60 V
Power consumption (max): 14 W
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Weight & dimensions
Width: 120 mm
Depth: 100 mm
Height: 40 mm
Weight: 574 g
Certificates
Certification: CEFCCLVD
Switch type: Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity: 8
SFP+ module slots quantity: 1
Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Feature: 10G support
Feature: Full duplex
Feature: Half duplex
Data transmission
Switching capacity: 60 Gbit/s
Forwarding rate: 44.64 Mpps
MAC address table: 4000 entries
Feature: Jumbo frames support
Jumbo frames: 12000
Packet buffer memory: 1 MB
Design
International Protection (IP) code: IP50
Feature: Wall mountable
Feature: DIN rail mounting
Performance
Mean time between failures (MTBF): 615965 h
Power
Power source: DC
DC input voltage: 9 – 60 V
Power consumption (max): 14 W
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Weight & dimensions
Width: 120 mm
Depth: 100 mm
Height: 40 mm
Weight: 574 g
Certificates
Certification: CEFCCLVD
