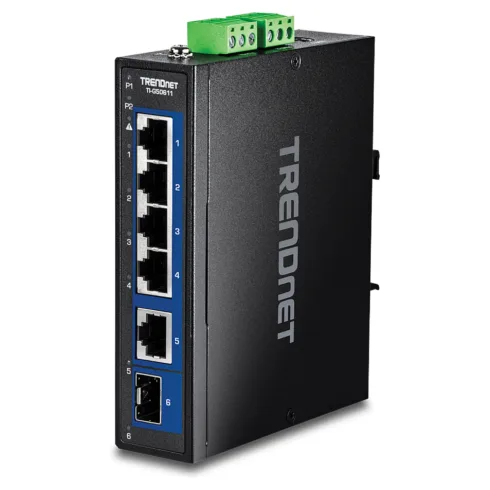

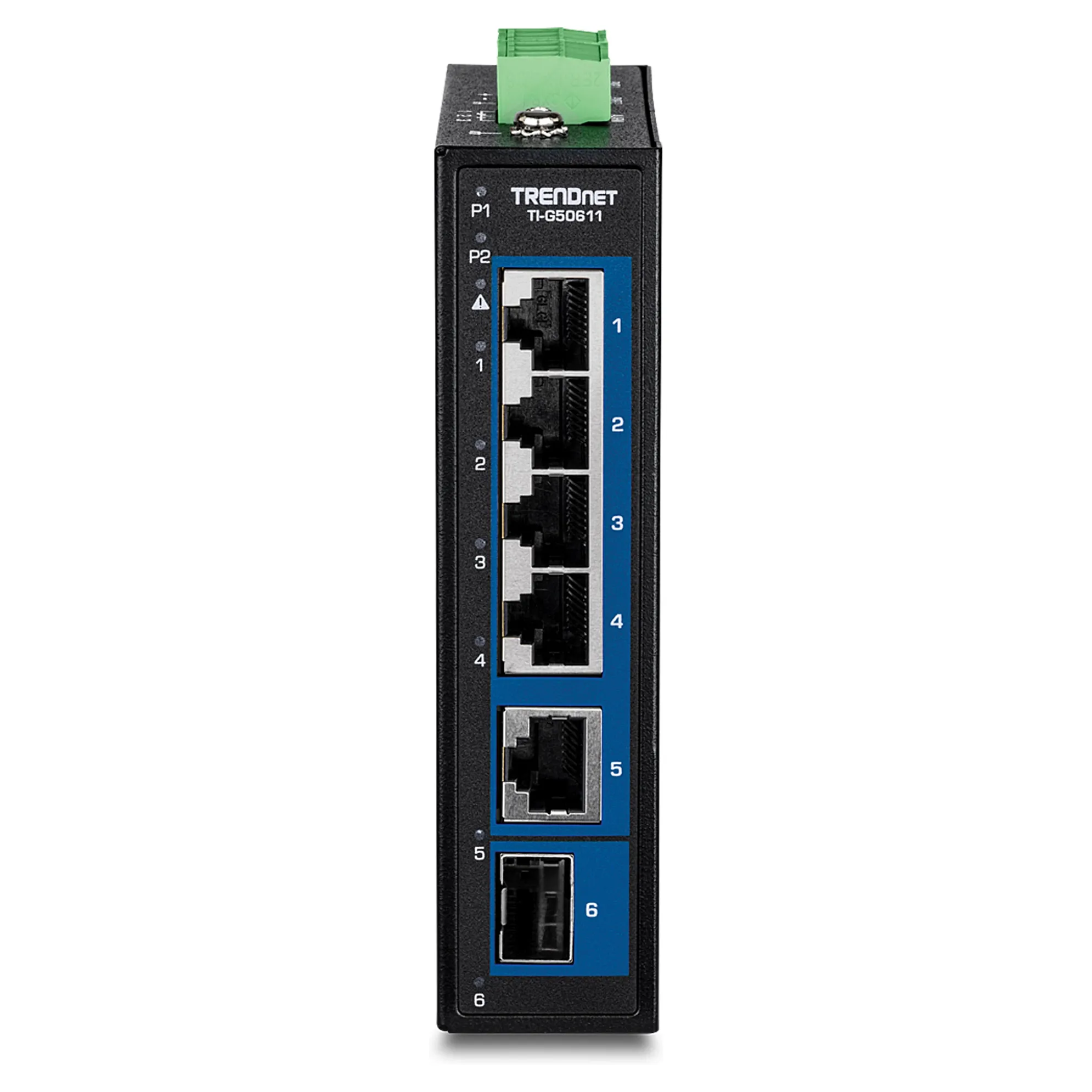

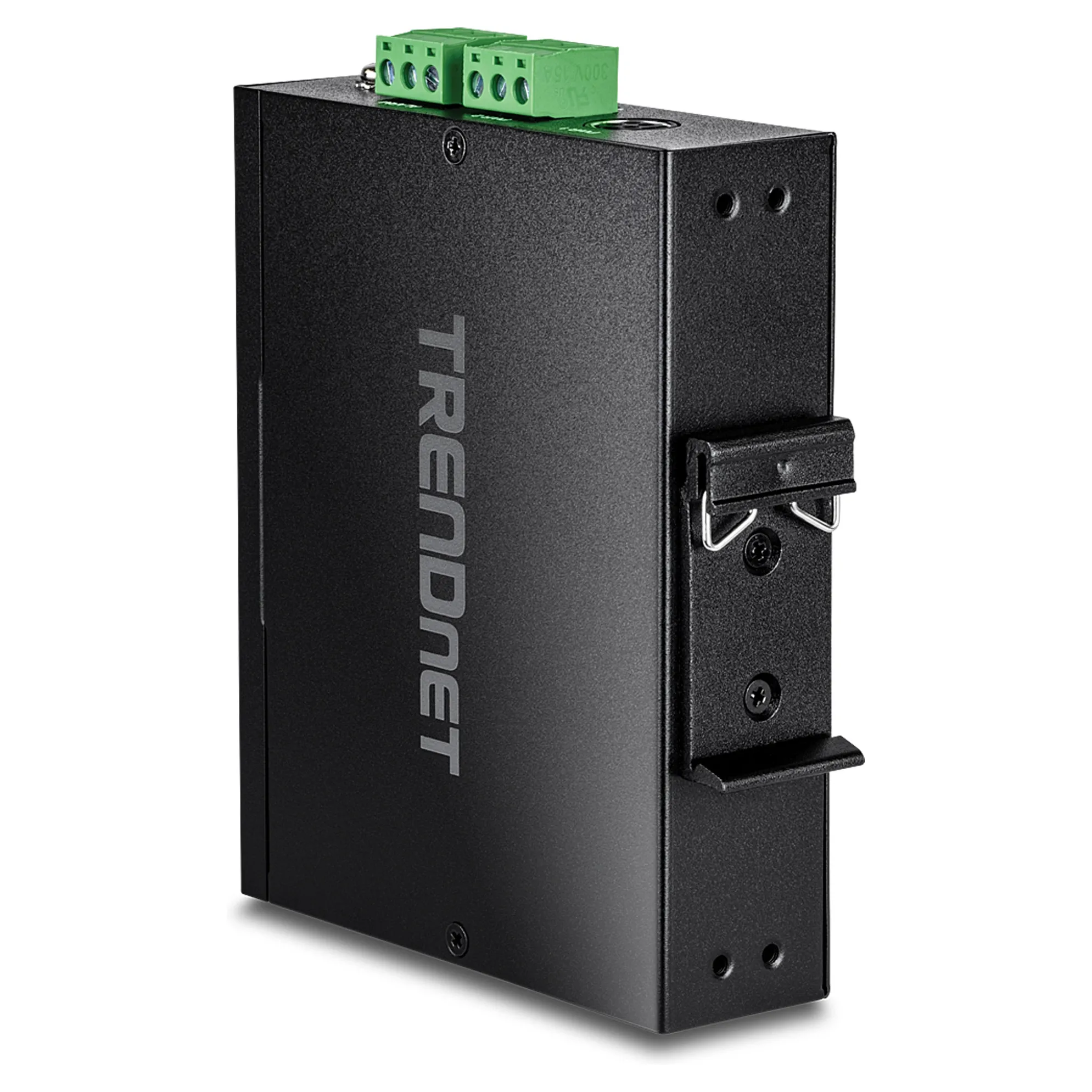

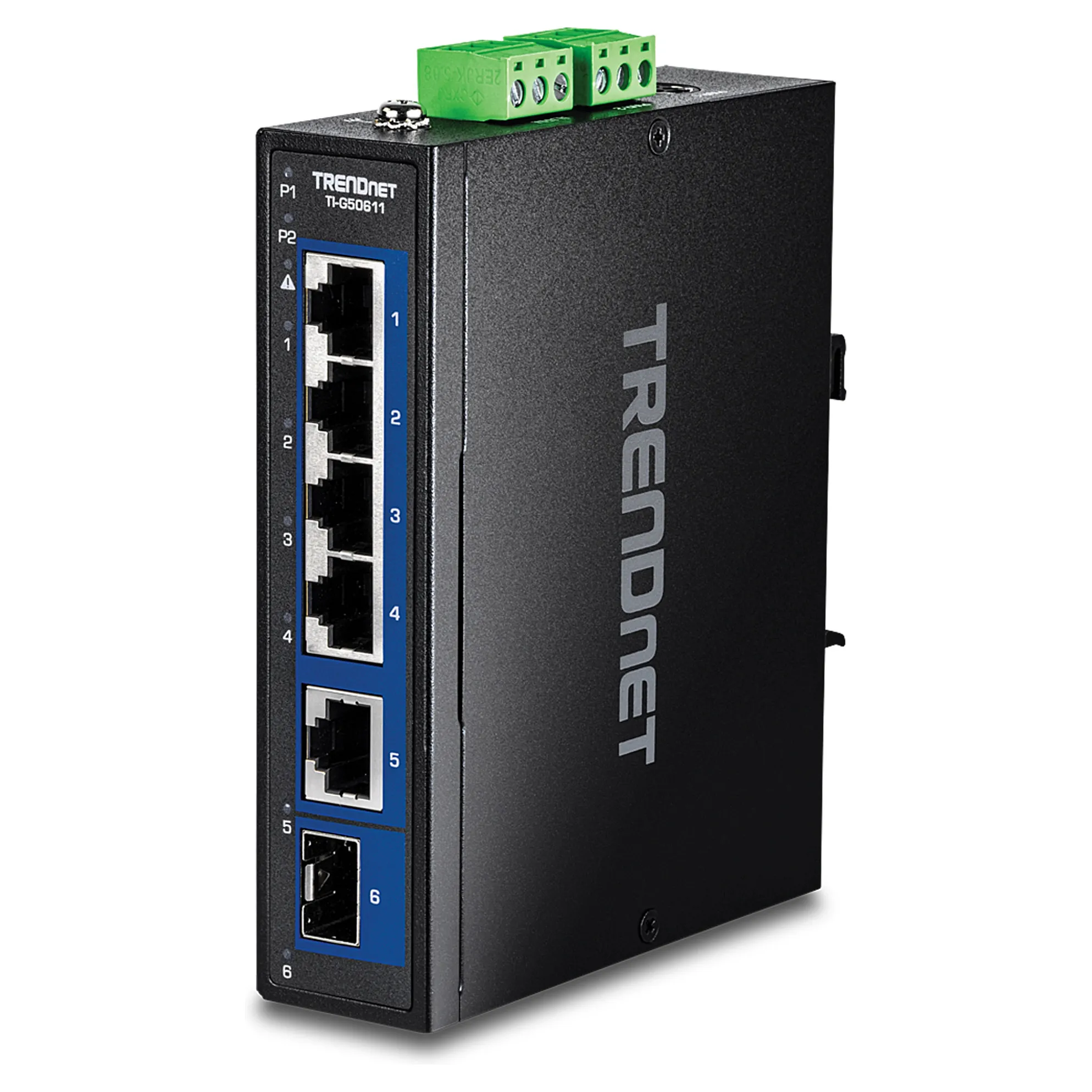

Trendnet TI-G50611. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 4, Installed SFP modules quantity: 1. Full duplex. MAC address table: 4000 entries, Switching capacity: 60 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE…. DC input voltage: 9 – 60 V. Wall mountable

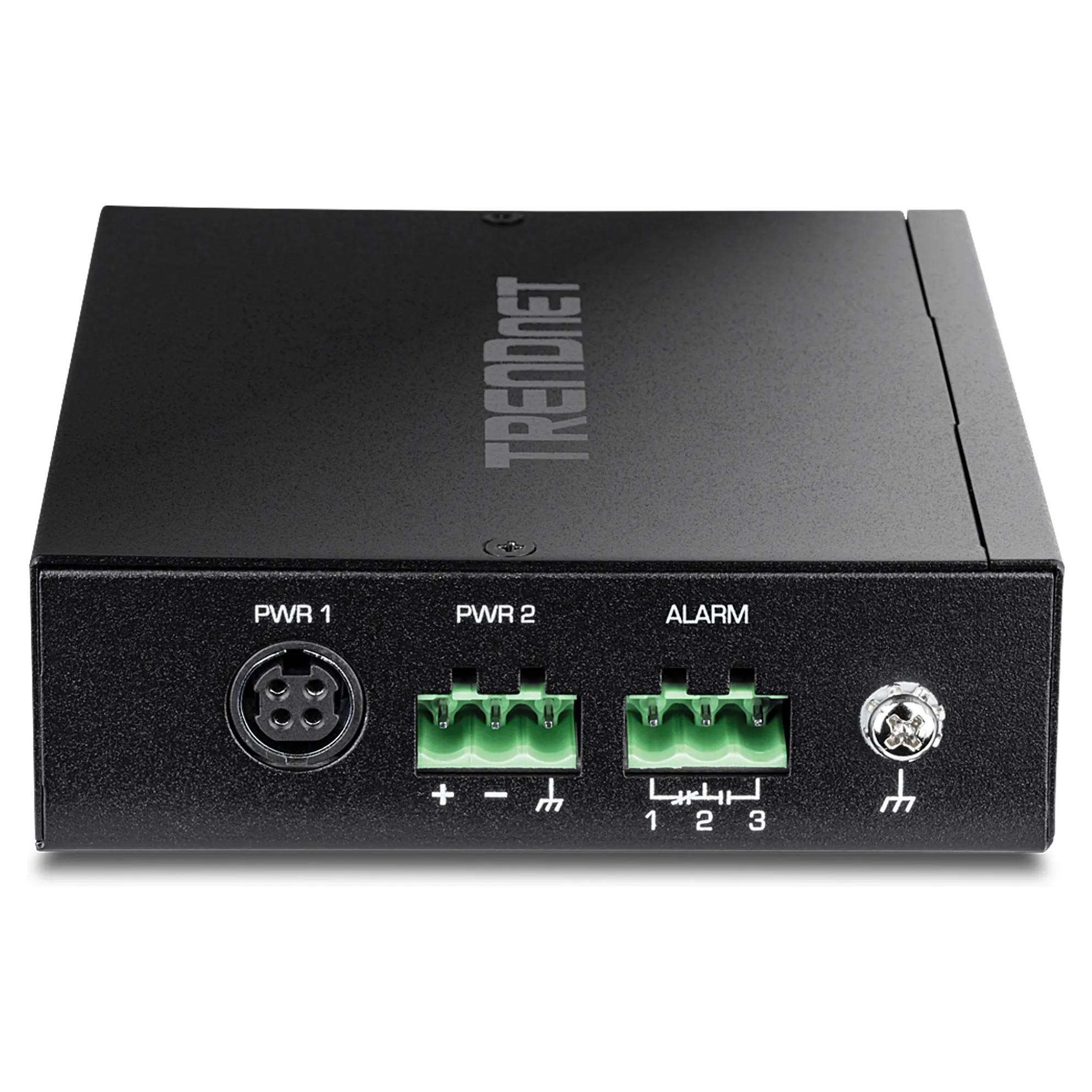

TRENDnet’s 6-Port Industrial 2.5G DIN-Rail Switch with 1 x 10G Port , model TI-G50611, features a rugged IP50 rated metal enclosure and is designed to work in the harshest networking environments. This industrial multi-gigabit switch is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). Redundant power inputs with overload current protection, and a power failure alarm relay minimize network downtime. This multi-gig DIN-Rail network switch features 2.5G and 10G copper ports for high-speed device connections, and a 10G SFP+ port for backbone fiber networking applications.
Management features
Switch type: Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 4
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity: 4
10G Ethernet (copper) ports quantity: 1
Installed SFP modules quantity: 1
SFP+ module slots quantity: 1
Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Feature: 10G support
Feature: Full duplex
Feature: Half duplex
Data transmission
Switching capacity: 60 Gbit/s
Forwarding rate: 44.64 Mpps
MAC address table: 4000 entries
Feature: Jumbo frames support
Jumbo frames: 12000
Packet buffer memory: 1 MB
Design
Product colour: Black
International Protection (IP) code: IP50
Feature: Wall mountable

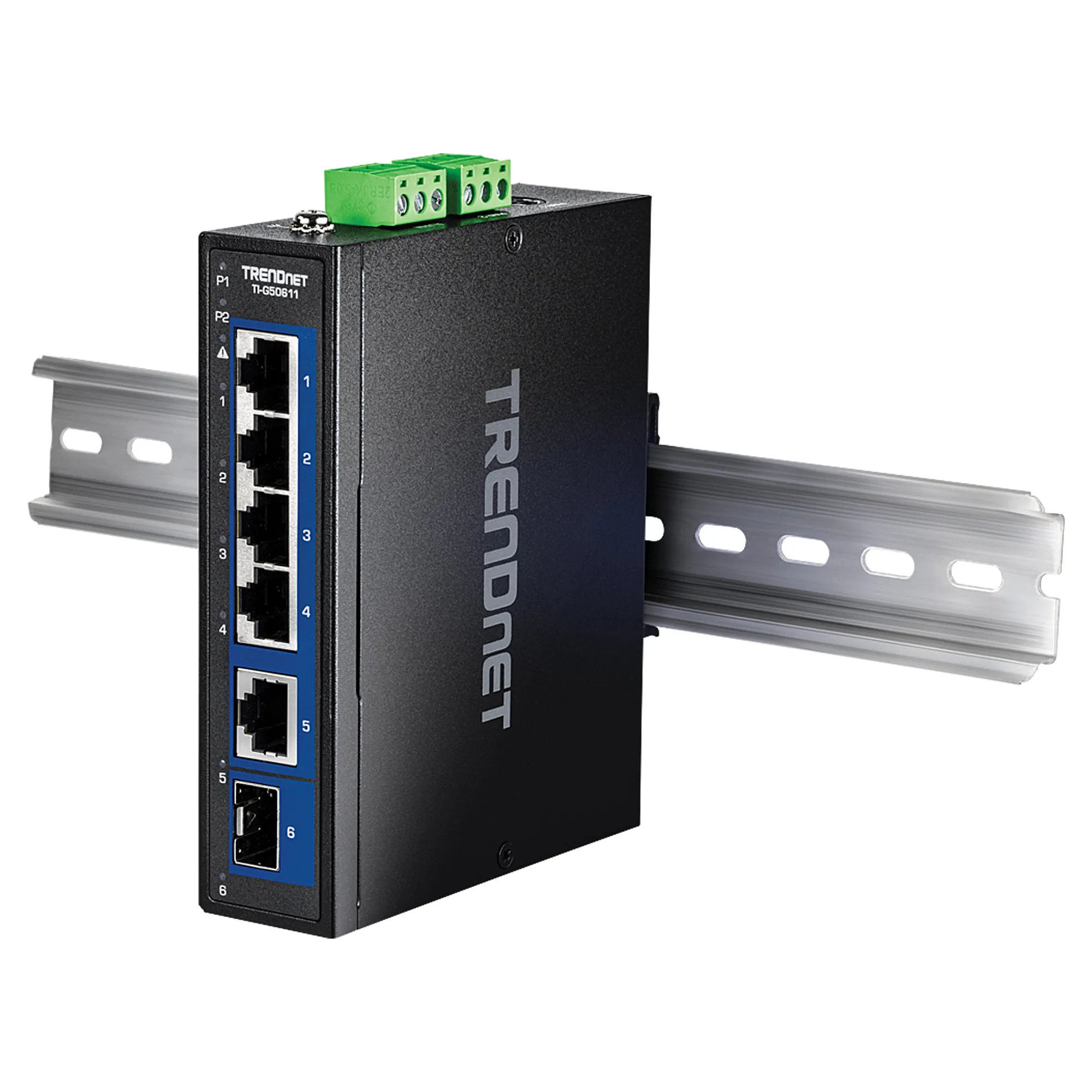

Feature: DIN rail mounting
Performance
Mean time between failures (MTBF): 798907 h
Power
Power source: DC
DC input voltage: 9 – 60 V
Power consumption (max): 12.8 W
Weight & dimensions
Width: 120 mm
Depth: 98 mm
Height: 30 mm
Weight: 496 g
Certificates
Certification: CEFCCLVD
Switch type: Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 4
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity: 4
10G Ethernet (copper) ports quantity: 1
Installed SFP modules quantity: 1
SFP+ module slots quantity: 1
Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Feature: 10G support
Feature: Full duplex
Feature: Half duplex
Data transmission
Switching capacity: 60 Gbit/s
Forwarding rate: 44.64 Mpps
MAC address table: 4000 entries
Feature: Jumbo frames support
Jumbo frames: 12000
Packet buffer memory: 1 MB
Design
Product colour: Black
International Protection (IP) code: IP50
Feature: Wall mountable
Feature: DIN rail mounting
Performance
Mean time between failures (MTBF): 798907 h
Power
Power source: DC
DC input voltage: 9 – 60 V
Power consumption (max): 12.8 W
Weight & dimensions
Width: 120 mm
Depth: 98 mm
Height: 30 mm
Weight: 496 g
Certificates
Certification: CEFCCLVD
