Trendnet TI-G50. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 8000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3u, IEEE 802.3x, IEEE 802.3, IEEE 802.3ab

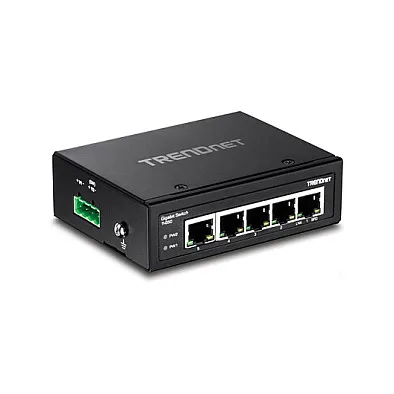

TRENDnet’s TI-G50 is a reliable IP30 unmanaged DIN-rail switch with hardened components rated for extreme industrial environments. It offers 5 Gigabit ports and a 10 Gbps switching capacity. Dual redundant power inputs (power adapter sold separately: TI-M6024) with overload current protection support zero downtime applications.
Management features
Switch type: Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 5
Network
Networking standards: IEEE 802.3u, IEEE 802.3x, IEEE 802.3, IEEE 802.3ab
Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T
Feature: Full duplex
Feature: Flow control support
Data transmission
Switching capacity: 10 Gbit/s
MAC address table: 8000 entries
Feature: Store-and-forward
Design
Housing material: Metal
International Protection (IP) code: IP30
Performance
Buffer size: 1024 KB
Mean time between failures (MTBF): 510304 h
Power
Feature: Redundant power supply (RPS) support
Power consumption (max): 2.76 W
Other features
Power requirements: 12 – 56 VDC / 18 – 36 VAC
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Weight & dimensions
Width: 113 mm
Depth: 82 mm
Height: 31 mm
Weight: 168 g
Packaging content
Feature: User guide
Packaging data

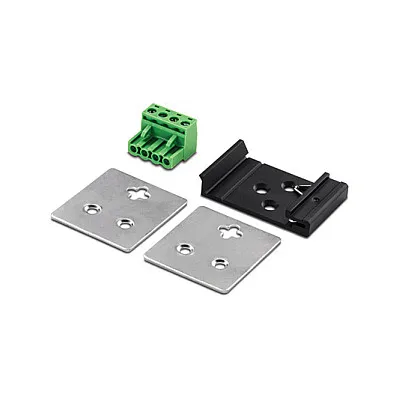

Feature: Wall mounting kit
Feature: Terminal block included
Certificates
Certification: FCCCE
Logistics data
Harmonized System (HS) code: 85176990
Switch type: Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 5
Network
Networking standards: IEEE 802.3u, IEEE 802.3x, IEEE 802.3, IEEE 802.3ab
Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T
Feature: Full duplex
Feature: Flow control support
Data transmission
Switching capacity: 10 Gbit/s
MAC address table: 8000 entries
Feature: Store-and-forward
Design
Housing material: Metal
International Protection (IP) code: IP30
Performance
Buffer size: 1024 KB
Mean time between failures (MTBF): 510304 h
Power
Feature: Redundant power supply (RPS) support
Power consumption (max): 2.76 W
Other features
Power requirements: 12 – 56 VDC / 18 – 36 VAC
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Weight & dimensions
Width: 113 mm
Depth: 82 mm
Height: 31 mm
Weight: 168 g
Packaging content
Feature: User guide
Packaging data
Feature: Wall mounting kit
Feature: Terminal block included
Certificates
Certification: FCCCE
Logistics data
Harmonized System (HS) code: 85176990
