Trendnet TI-G162. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 14. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. DC input voltage: 48 – 56 V. Wall mountable
TRENDnet’s Industrial Gigabit DIN-Rail Switches are reliable and rugged networking solutions that are designed for use in both extreme and demanding environments. Each Industrial Gigabit DIN-Rail Switch features a rugged IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). Our hardened industrial switch models feature copper Gigabit ports for high-speed device connections, and Gigabit SFP slots that supports 1000Base-FX modules for long distance fiber networking applications.
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 14
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 2
Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Feature: Full duplex
Data transmission
Switching capacity: 32 Gbit/s
Forwarding rate: 23.8 Mpps
MAC address table: 8000 entries
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 0.5 MB
Design
Product colour: Black
Housing material: Metal
LED indicators: Yes
International Protection (IP) code: IP30

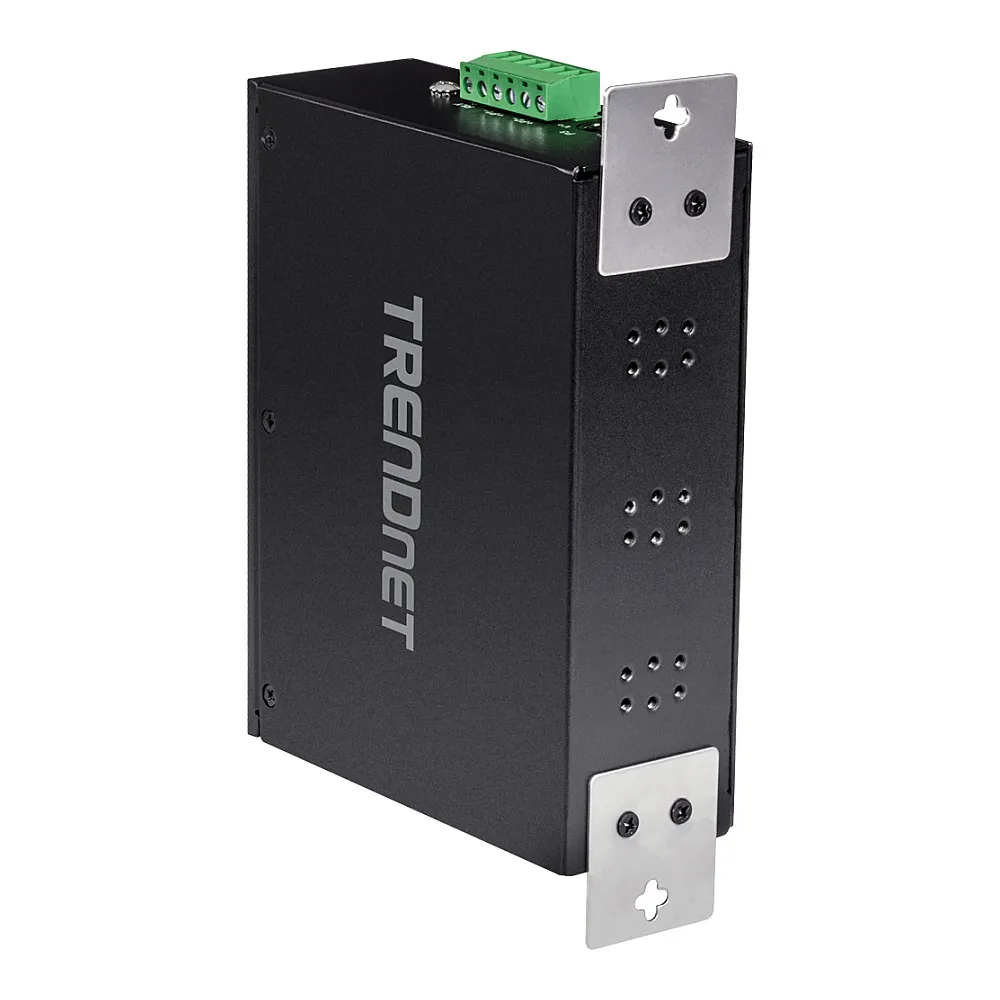

Feature: Wall mountable

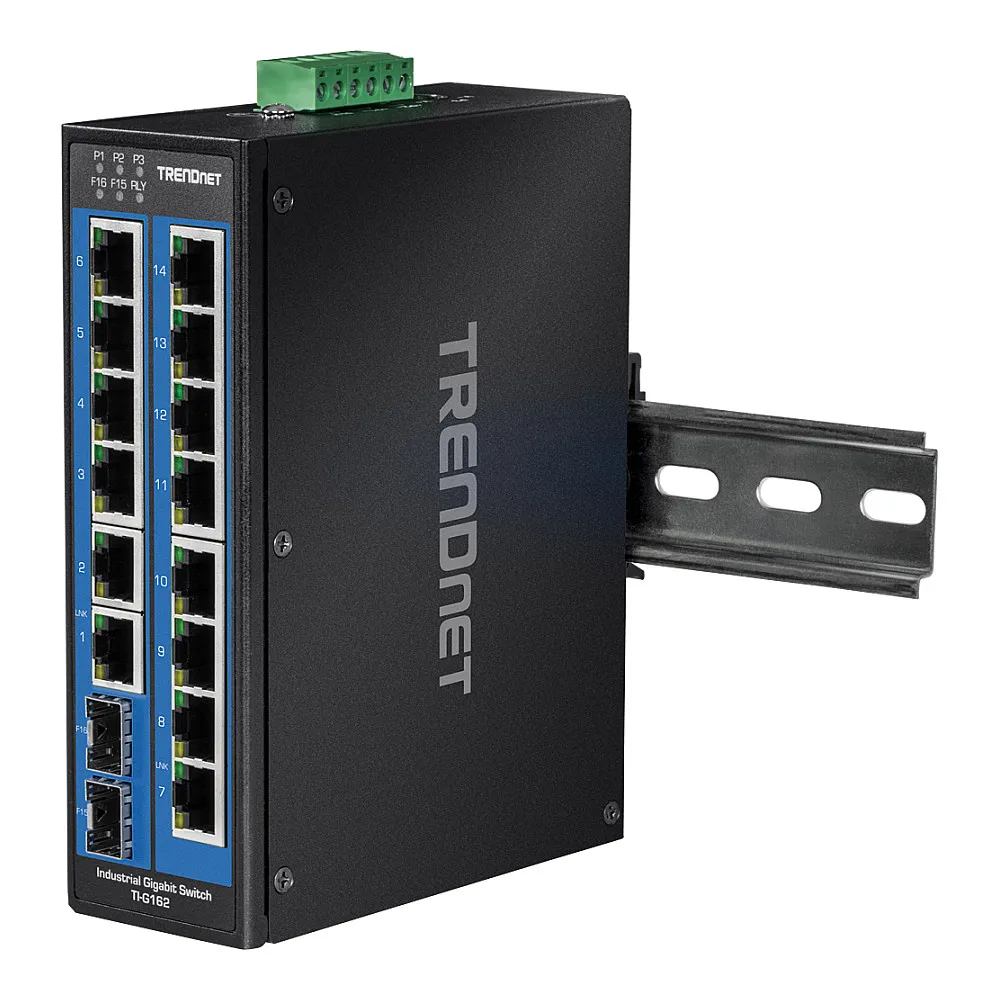

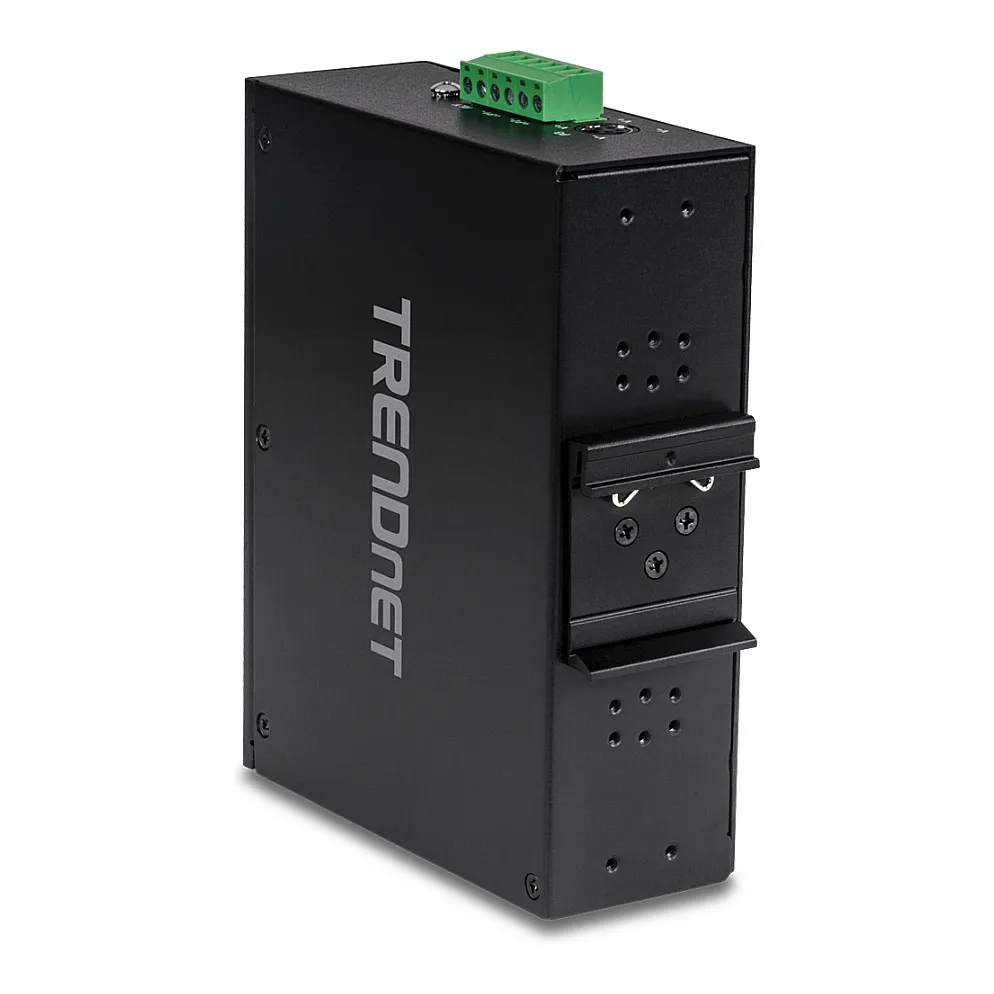

Feature: DIN rail mounting
Performance
Mean time between failures (MTBF): 514167 h
Power
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
DC input voltage: 48 – 56 V
Input current: 2 A
Power consumption (max): 13 W
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Operating relative humidity (H-H): 0 – 95%
Weight & dimensions
Width: 120 mm
Depth: 155 mm
Height: 48 mm
Weight: 536 g
Packaging content
Feature: Quick start guide
Certificates
Certification: CEFCCMETIEC 60068-2-27IEC 60068-2-32IEC 60068-2-6
Logistics data
Harmonized System (HS) code: 85176990
Basic switching RJ-45 Ethernet ports quantity: 14
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 2
Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Feature: Full duplex
Data transmission
Switching capacity: 32 Gbit/s
Forwarding rate: 23.8 Mpps
MAC address table: 8000 entries
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 0.5 MB
Design
Product colour: Black
Housing material: Metal
LED indicators: Yes
International Protection (IP) code: IP30
Feature: Wall mountable
Feature: DIN rail mounting
Performance
Mean time between failures (MTBF): 514167 h
Power
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
DC input voltage: 48 – 56 V
Input current: 2 A
Power consumption (max): 13 W
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Operating relative humidity (H-H): 0 – 95%
Weight & dimensions
Width: 120 mm
Depth: 155 mm
Height: 48 mm
Weight: 536 g
Packaging content
Feature: Quick start guide
Certificates
Certification: CEFCCMETIEC 60068-2-27IEC 60068-2-32IEC 60068-2-6
Logistics data
Harmonized System (HS) code: 85176990
