Trendnet TI-G160i. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE…. DC input voltage: 12 – 60 V
Shock and Vibration Resistant
The industrial layer 2 managed switches are rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6).
Integration Flexibility
Managed layer 2 features include VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.
Industrial Design
Equipped with an IP30 rated metal enclosure, the industrial layer 2 managed switch operates within a wide temperature range of -40° – 75° C (-40° – 167° F).

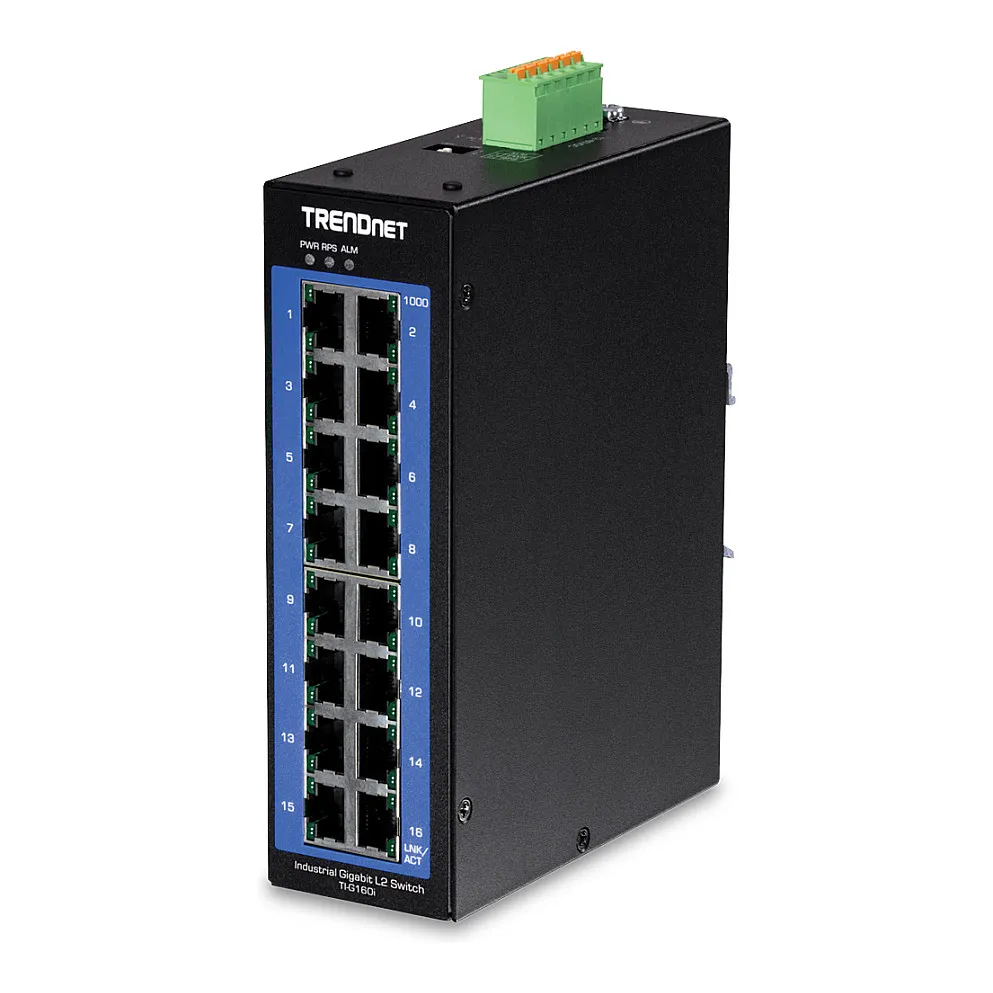

Network Ports
16 Gigabit Ports
Traffic Management
A broad range of network configurations are supported by: 802.3ad link aggregation, Private VLAN, 802.1Q VLAN, RTSP, Loopback Detection, 802.1p Class of Service (CoS), port bandwidth management, and QoS queue scheduling
Access Control
Features such as ACL, MAC/port filtering, 802.1X, and RADIUS are compatible with layered access controls
Monitoring
RMON, SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions

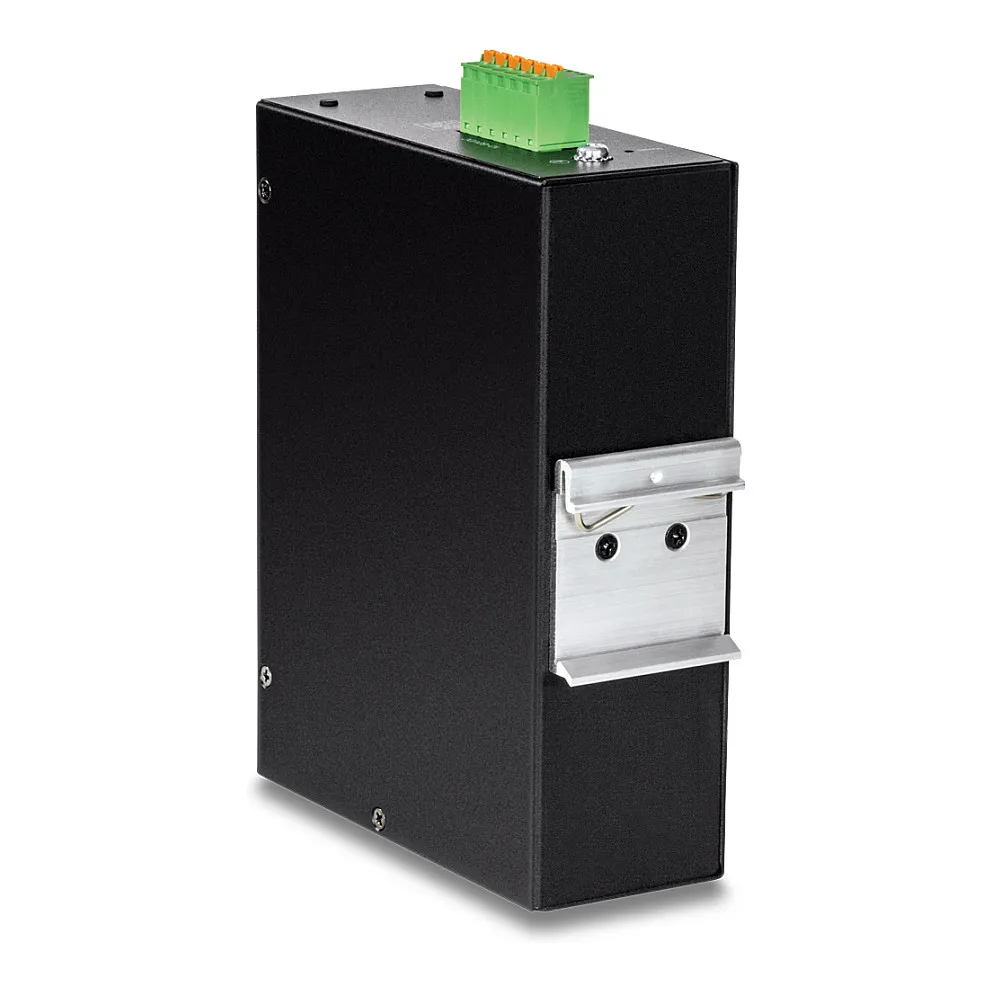

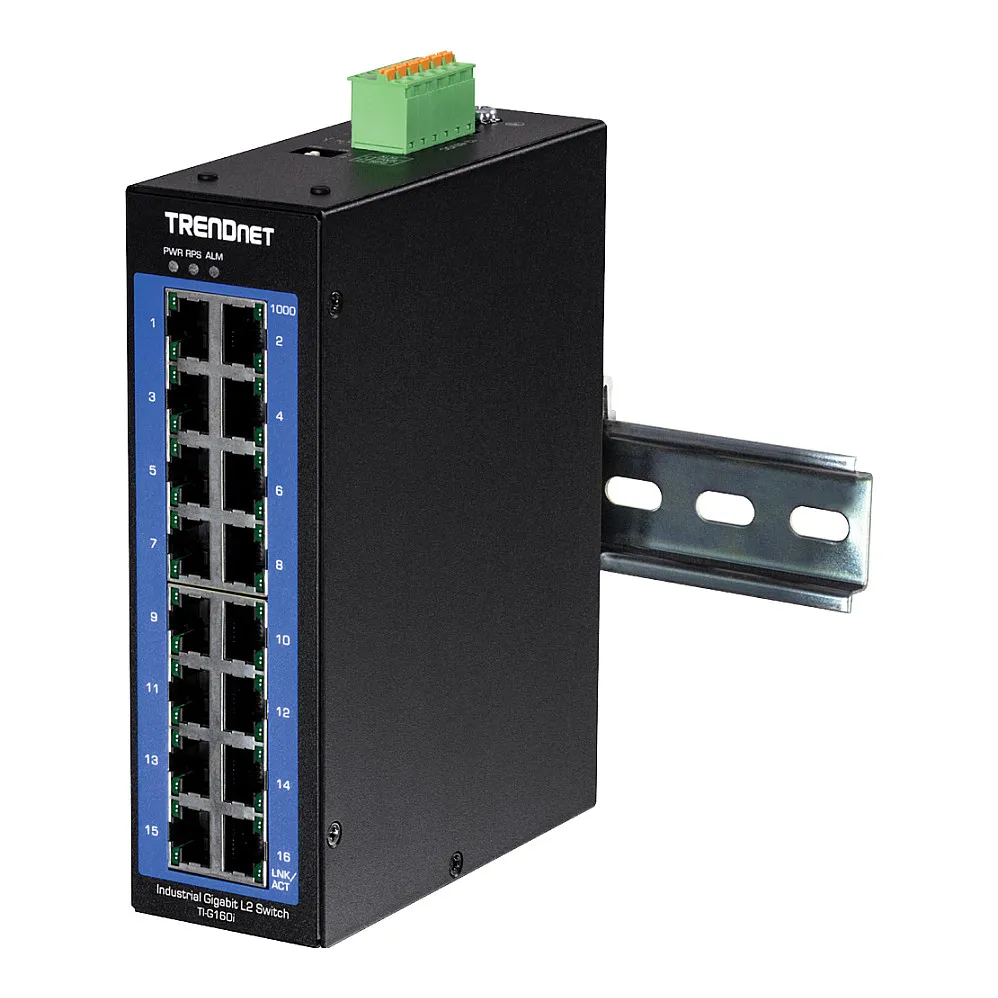

DIN-Rail Mount
IP30 rated metal enclosure includes DIN-rail mounting bracket
Switching Capacity
32Gbps switching capacity

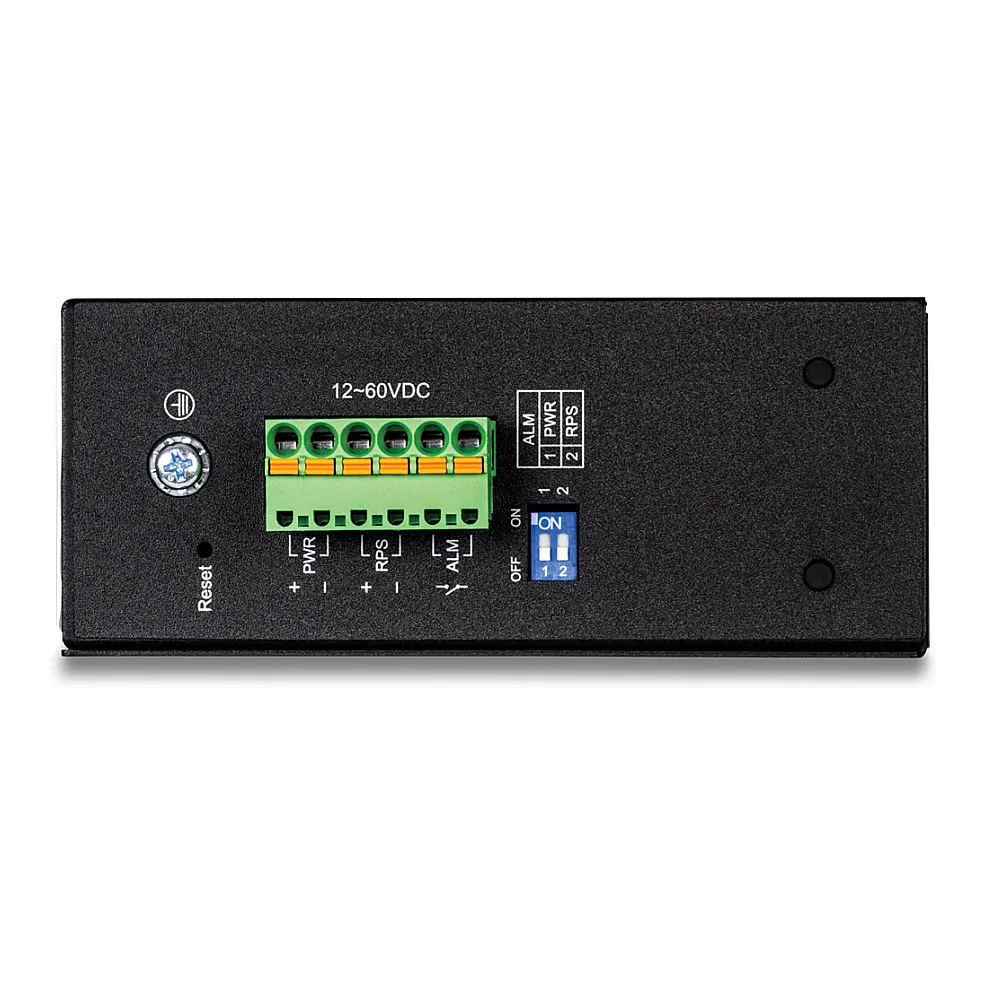

Redundant Power
Redundant power inputs with overload current protection (power supply sold separately: TI-M6024)
Alarm Relay
Alarm relay triggered by power failure of primary and/or redundant power
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 10KB), for increased performance
Extreme Temperatures
Industrial switch is rated for a wide operating temperature range of -40 – 75° C (-40 – 167° F)
Shock and Vibration Resistant
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
Grounding Point
Grounding point protects equipment from external electrical surges
Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: System event log
MIB support: II RFC 1213, RFC 1493
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
Feature: Port mirroring
Feature: Full duplex
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Spanning tree protocol
Feature: VLAN support
Virtual LAN features: MAC address-based VLAN, Tagged VLAN
Number of VLANs: 4094
Data transmission
Switching capacity: 32 Gbit/s
Forwarding rate: 23.8 Mpps
MAC address table: 8000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 10000
Packet buffer memory: 128 MB
Security
DHCP features: DHCP relay, DHCP server, DHCP snooping
Feature: Access Control List (ACL)
Feature: IGMP snooping
Security algorithms: SNMP, SNMPv3, SSH-2
Feature: BPDU filtering/protection
Queue scheduling algorithms: SP, WFQ, Weighted Round Robin (WRR)
Multicast features
Feature: Multicast support
Multicast MAC address table: 256 entries
Design
Product colour: Black
Housing material: Metal
LED indicators: Yes
International Protection (IP) code: IP30
Feature: DIN rail mounting
Performance
Mean time between failures (MTBF): 1072674 h
Power
DC input voltage: 12 – 60 V
Power consumption (max): 12 W
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Operating relative humidity (H-H): 0 – 95%
Weight & dimensions
Width: 160 mm
Depth: 120 mm
Height: 50 mm
Weight: 884 g
Packaging content
Feature: Quick start guide
Certificates
Certification: CE, FCCIEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6
Logistics data
Harmonized System (HS) code: 85176990
