Name: Trendnet TI-G102 network switch
Brand: TRENDNET
SKU: K-TI-G102
Price: 240.80 EUR
Availability: InStock

Trendnet TI-G102 network switch

Produkto kodas: K-TI-G102

Barkodas: 0710931160925

240,80 €

Atsiėmimas parduotuvėje – 8 d.d.

Pristatymas kurjeriu – 12 d.d.

Garantija – 24 mėn.

Pridėkite likusią sumą (300,00 €) ir pristatysime nemokamai!

Trendnet TI-G102. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 10. Full duplex. MAC address table: 16000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. DC input voltage: 12 – 56 V. Power connector: DC-in jack. Wall mountable

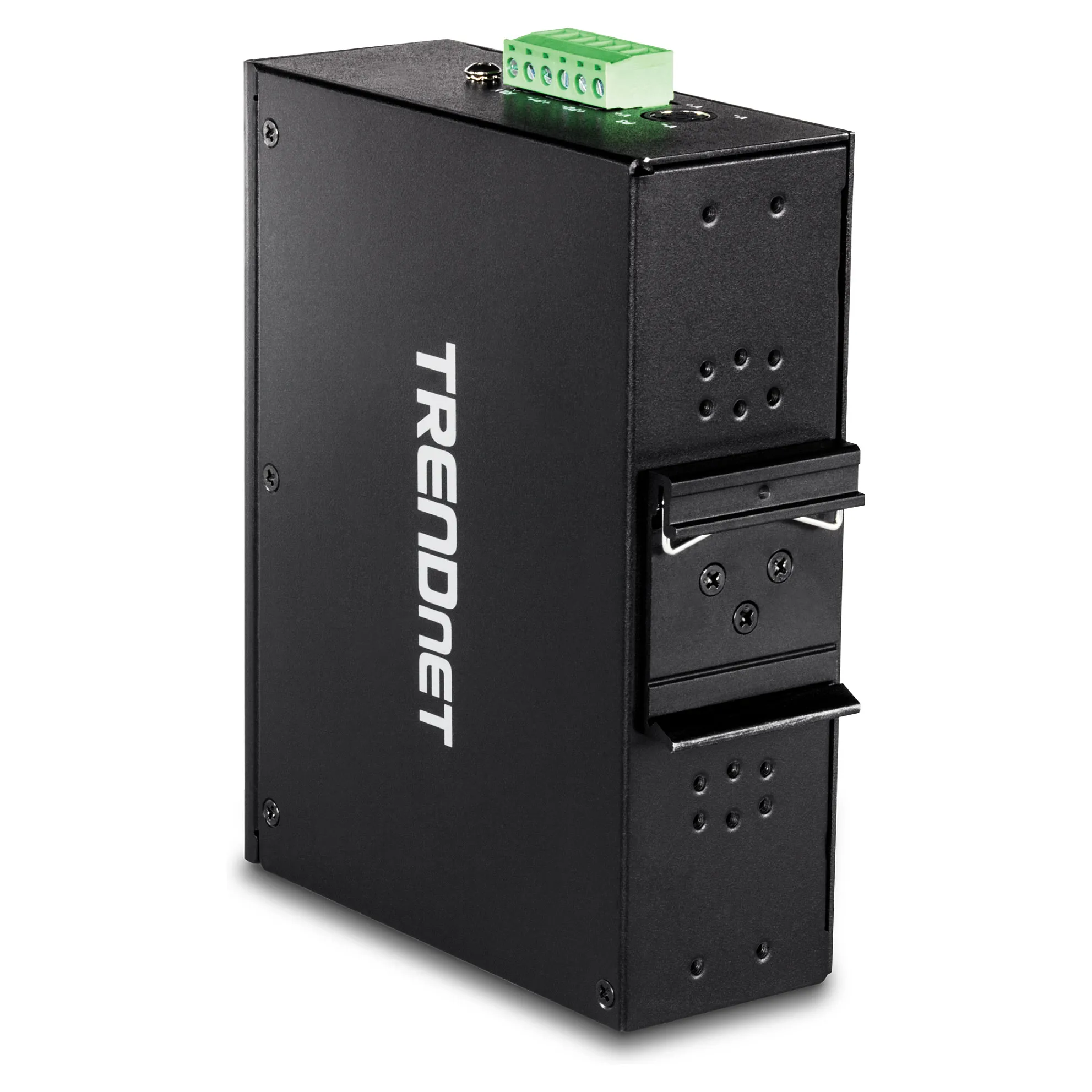

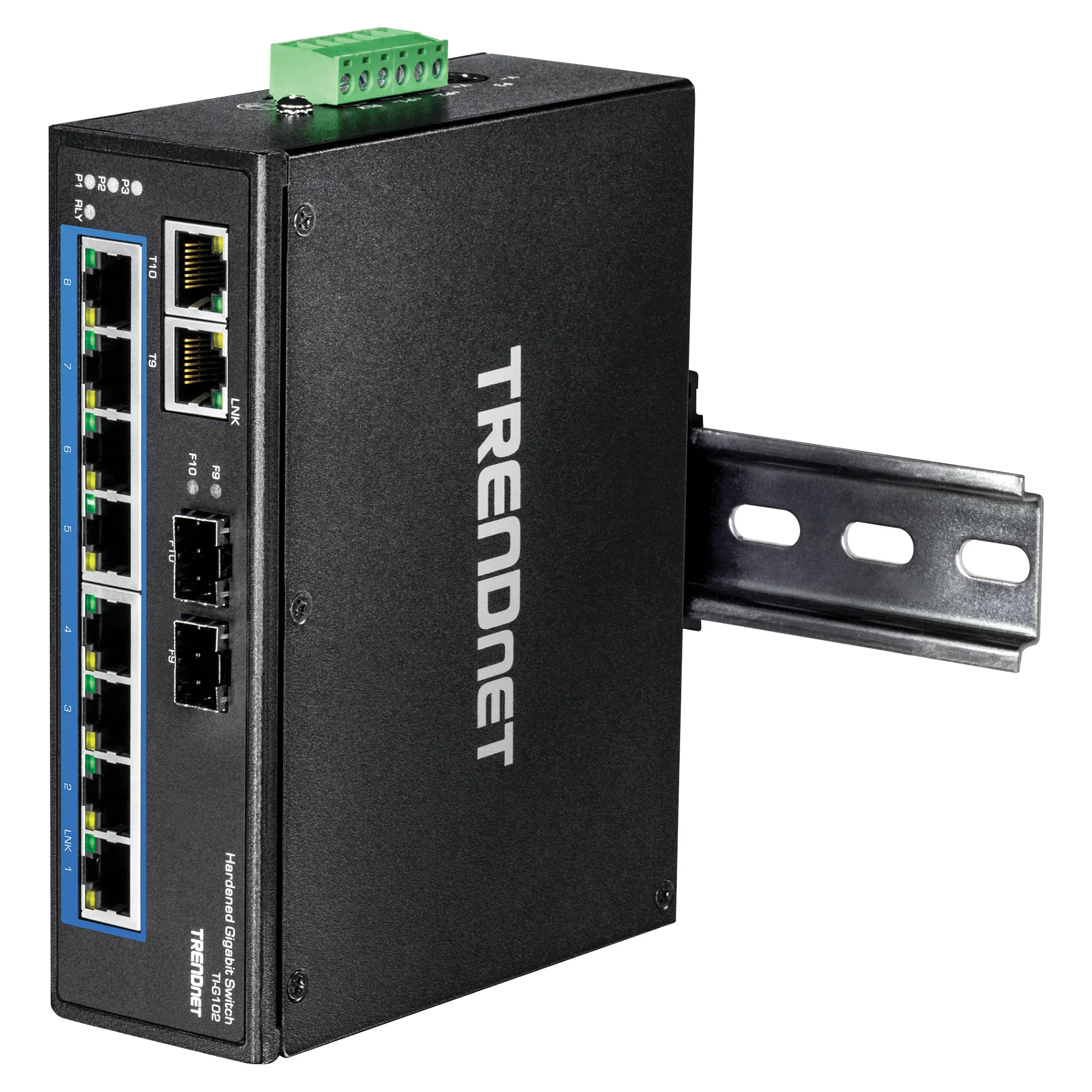

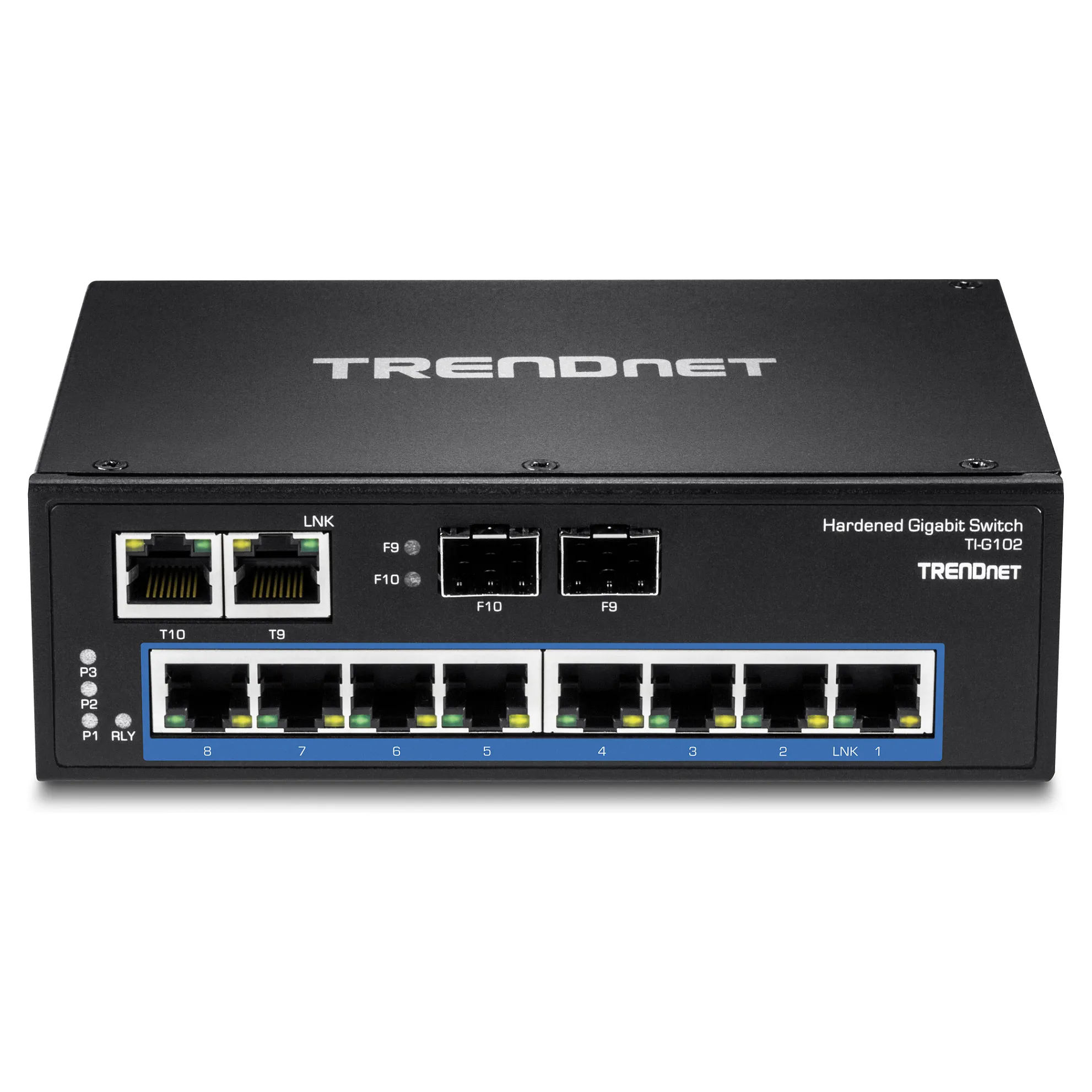

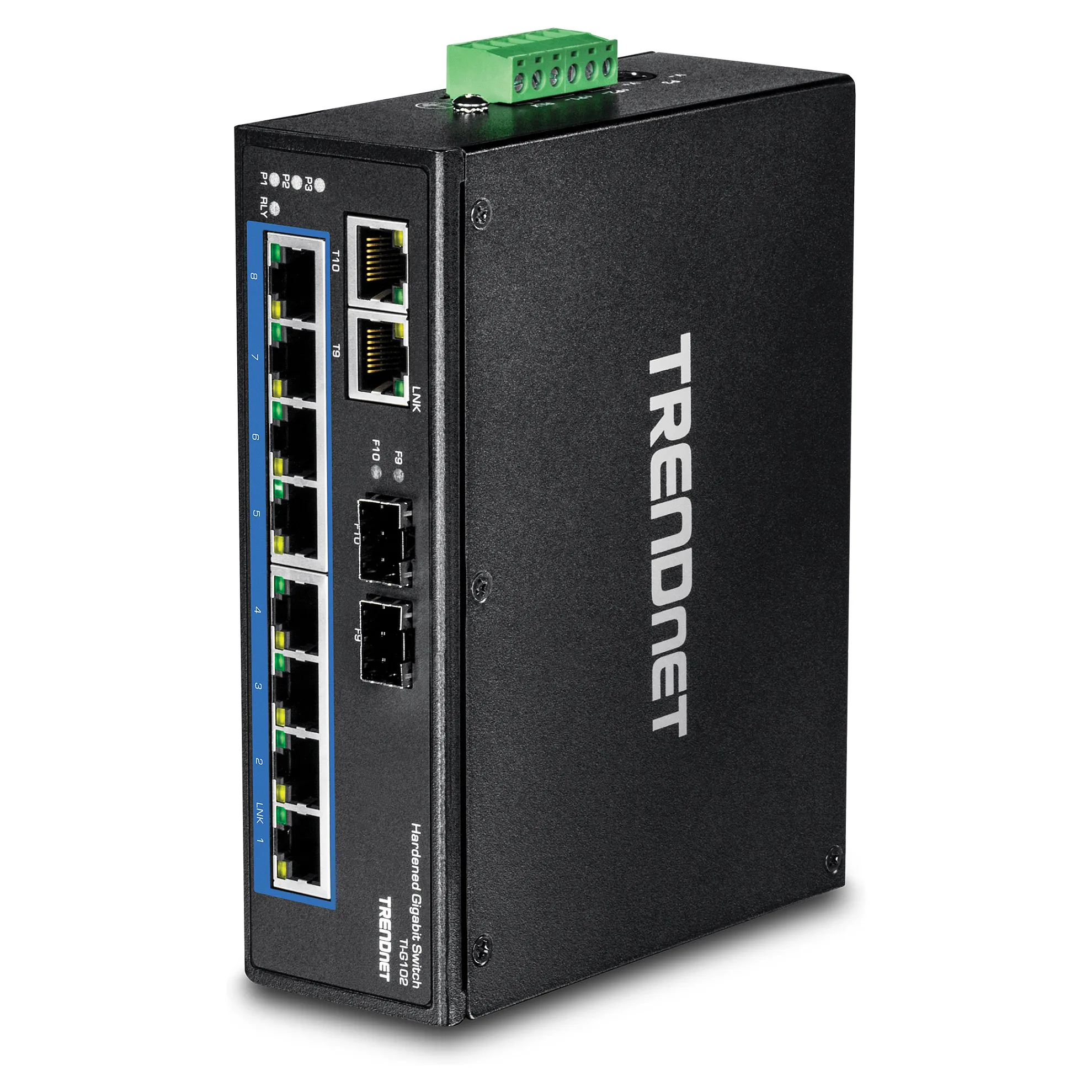

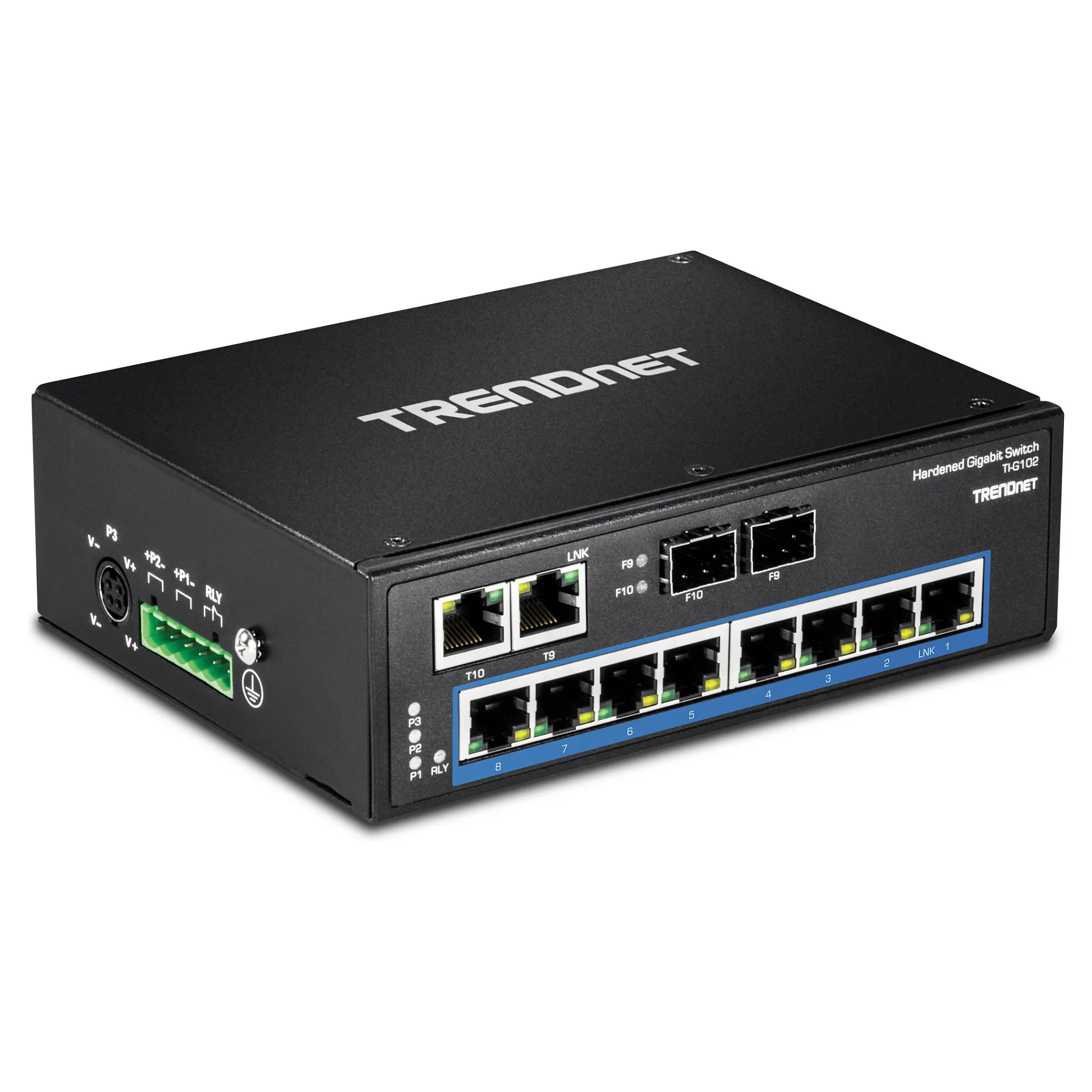

TRENDnet’s 10-Port Hardened Industrial Gigabit DIN-Rail Switch, model TI-G102, has eight dedicated gigabit ports, plus two gigabit RJ-45 / SFP shared ports. Users are able to connect eight devices to the switch, while still providing two gigabit ports for additional network connections. The switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75°C (-40° – 167°F) for industrial environments.

Gigabit Speeds
Ten gigabit ports provide high-speed network connections to devices, and a 20 Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.

Tolerance

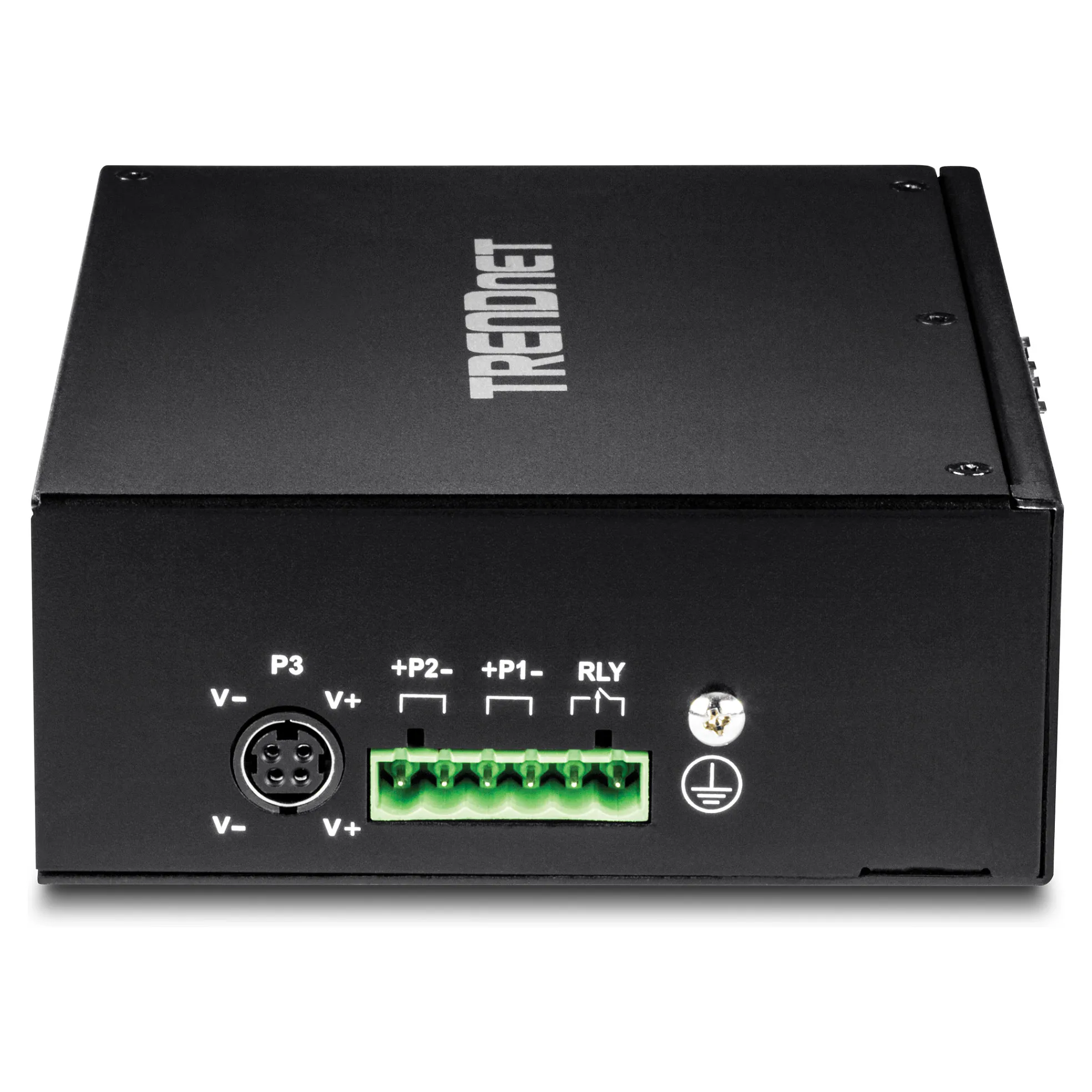

Features dual redundant power inputs with output alarm relay.

Design
Equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75°C (-40° – 167°F) for industrial environments.

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 10
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 2
Power connector: DC-in jack
Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Feature: Full duplex
Feature: Auto-negotiation
Feature: MAC address auto-learning supported
Feature: MAC address auto-aging supported
Data transmission
Switching capacity: 20 Gbit/s
Forwarding rate: 14.8 Mpps
MAC address table: 16000 entries
Feature: Store-and-forward
Design
Product colour: Black
Housing material: Metal
LED indicators: Yes
International Protection (IP) code: IP30
Feature: Wall mountable
Feature: DIN rail mounting
Performance
Buffer size: 2048 KB
Mean time between failures (MTBF): 510400 h
Power
Feature: Redundant power supply (RPS) support
DC input voltage: 12 – 56 V
Input voltage: 12/56 V
Power consumption (max): 5.76 W
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Operating relative humidity (H-H): 0 – 95%
Weight & dimensions
Width: 155 mm
Depth: 120 mm
Height: 48 mm
Weight: 415 g
Packaging data

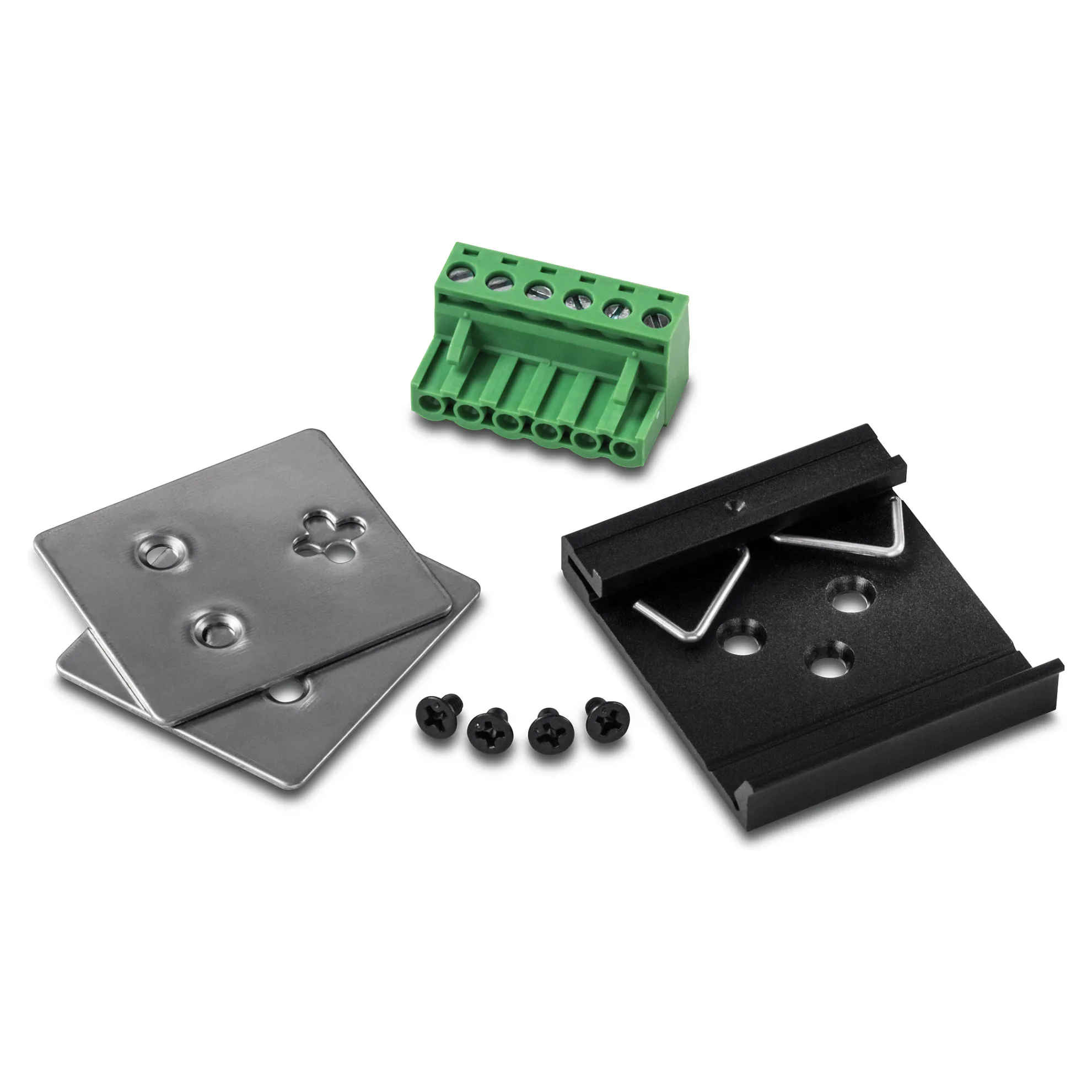

Feature: Wall mounting kit
Feature: Terminal block included
Certificates
Certification: CE, FCC
Logistics data
Harmonized System (HS) code: 85176990
