Trendnet TI-F11SFP. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 1000Base-T, Networking standards: IEEE 802.3u, IEEE 802.3. Maximum transfer distance: 80000 m, Buffer size: 1024 KB, Mean time between failures (MTBF): 510304 h. Product colour: Black, Housing material: Metal. Connectivity technology: Wired. Width: 113 mm, Depth: 82 mm, Height: 31 mm

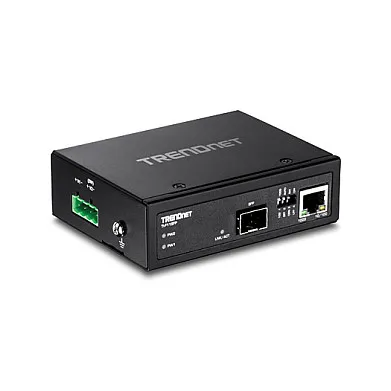

TRENDnet’s TI-F11SFP is a reliable IP30 rated 100/1000 Base-T to SFP media converter with hardened components rated for extreme industrial environments. Set 100 or 1000 Mbps throughput speeds, Auto Negotiation, and Link Fault Pass Through (LFP) using the front panel dip switches. Dual redundant power inputs (power supply sold separately: TI-M6024) with overload current protection support zero downtime applications.
Network
Maximum data transfer rate: 1000 Mbit/s
Converter input interface: 1000Base-T
Networking standards: IEEE 802.3u, IEEE 802.3
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Jumbo frames support
Duplex system: Full, Half
Performance
Maximum transfer distance: 80000 m
Buffer size: 1024 KB
Mean time between failures (MTBF): 510304 h
Features
LED indicators: Yes
Product colour: Black
Housing material: Metal
Ports & interfaces
Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Weight & dimensions
Width: 113 mm
Depth: 82 mm
Height: 31 mm
Weight: 152 g
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Certificates
Certification: FCCCE
Logistics data
Harmonized System (HS) code: 85176990
Other features
Power requirements: 12 – 56 VDC / 18 – 36 VAC
Maximum data transfer rate: 1000 Mbit/s
Converter input interface: 1000Base-T
Networking standards: IEEE 802.3u, IEEE 802.3
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Jumbo frames support
Duplex system: Full, Half
Performance
Maximum transfer distance: 80000 m
Buffer size: 1024 KB
Mean time between failures (MTBF): 510304 h
Features
LED indicators: Yes
Product colour: Black
Housing material: Metal
Ports & interfaces
Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Weight & dimensions
Width: 113 mm
Depth: 82 mm
Height: 31 mm
Weight: 152 g
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Certificates
Certification: FCCCE
Logistics data
Harmonized System (HS) code: 85176990
Other features
Power requirements: 12 – 56 VDC / 18 – 36 VAC
