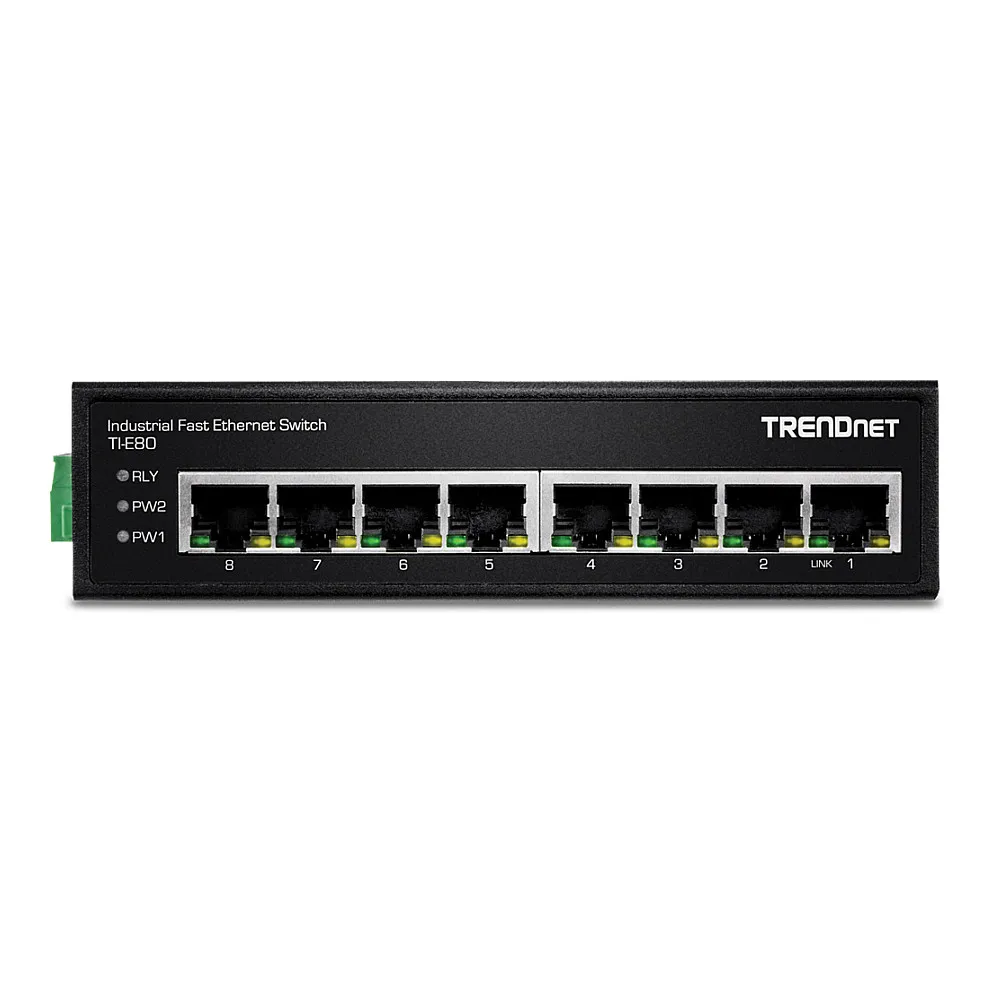

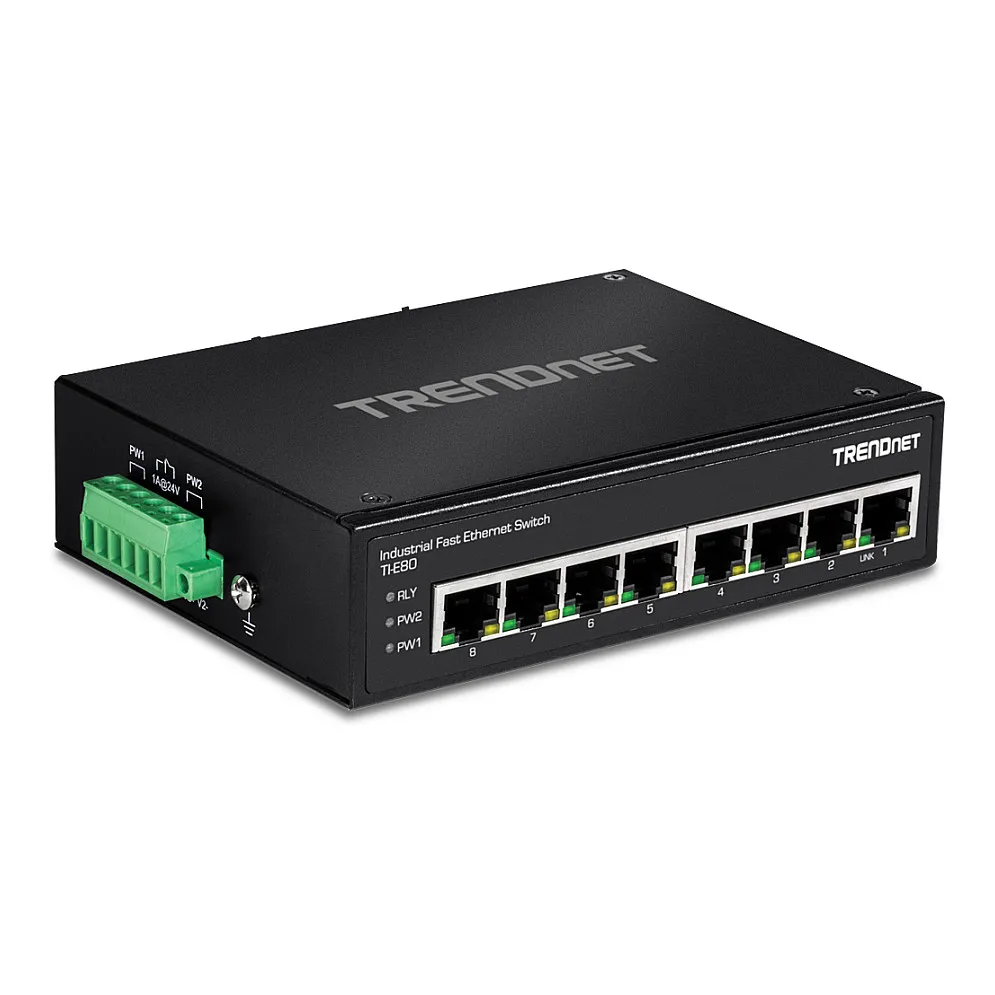

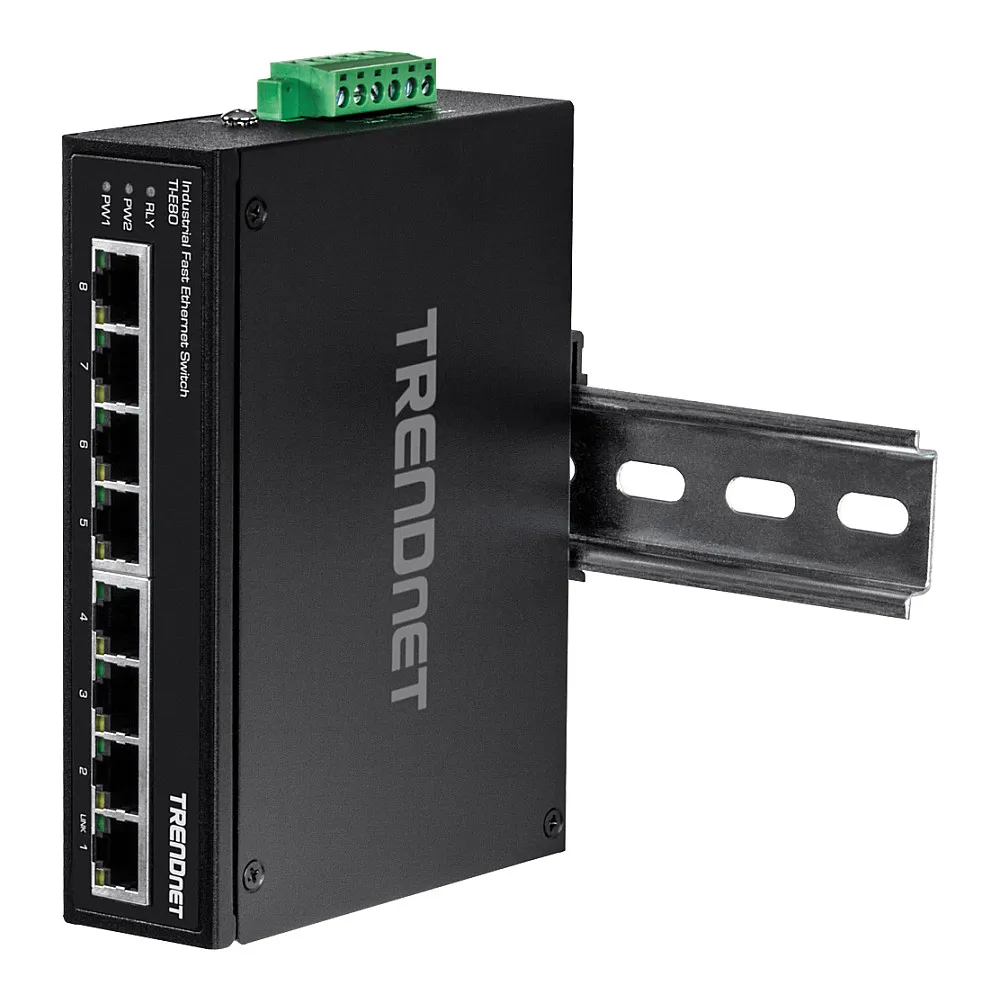

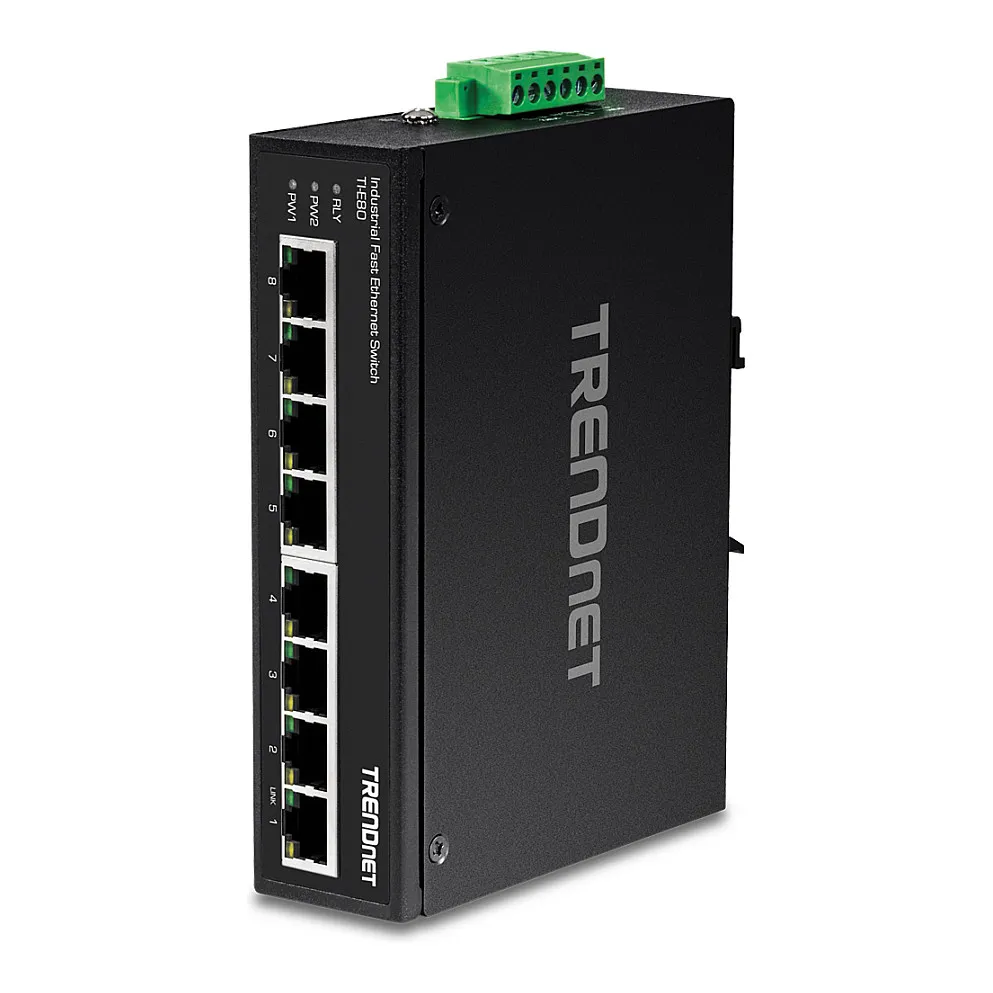

Trendnet TI-E80. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 1000 entries, Switching capacity: 1.6 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. DC input voltage: 12 – 56 V. Wall mountable
TRENDnet’s Industrial Fast Ethernet DIN-Rail Switches feature a rugged IP30 rated metal enclosure. These industrial Ethernet switches are designed to withstand high levels of vibration and shock, operate in both low and high temperatures for industrial environments within a -40° – 75° C (-40° – 167° F) wide-temperature range. Redundant power inputs with overload current protection on each industrial Ethernet switch minimizes network downtime.
Management features
Switch type: Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Feature: Full duplex
Data transmission
Switching capacity: 1.6 Gbit/s
Forwarding rate: 1.19 Mpps
MAC address table: 1000 entries
Packet buffer memory: 0.056 MB
Design
Product colour: Black
Housing material: Metal
LED indicators: Yes
International Protection (IP) code: IP30
Feature: Wall mountable
Feature: DIN rail mounting
Performance
Mean time between failures (MTBF): 510304 h
Power
Feature: Redundant power supply (RPS) support
DC input voltage: 12 – 56 V
Power consumption (max): 3 W
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Operating relative humidity (H-H): 0 – 95%
Weight & dimensions
Width: 142 mm
Depth: 105 mm
Height: 37 mm
Weight: 486 g
Packaging content
Feature: Quick start guide
Certificates
Certification: CEFCCULIEC 60068-2-27IEC 60068-2-32IEC 60068-2-6IEC 61000-4-2IEC 61000-4-4IEC 61000-4-5
Logistics data
Harmonized System (HS) code: 85176990
Switch type: Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Feature: Full duplex
Data transmission
Switching capacity: 1.6 Gbit/s
Forwarding rate: 1.19 Mpps
MAC address table: 1000 entries
Packet buffer memory: 0.056 MB
Design
Product colour: Black
Housing material: Metal
LED indicators: Yes
International Protection (IP) code: IP30
Feature: Wall mountable
Feature: DIN rail mounting
Performance
Mean time between failures (MTBF): 510304 h
Power
Feature: Redundant power supply (RPS) support
DC input voltage: 12 – 56 V
Power consumption (max): 3 W
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Operating relative humidity (H-H): 0 – 95%
Weight & dimensions
Width: 142 mm
Depth: 105 mm
Height: 37 mm
Weight: 486 g
Packaging content
Feature: Quick start guide
Certificates
Certification: CEFCCULIEC 60068-2-27IEC 60068-2-32IEC 60068-2-6IEC 61000-4-2IEC 61000-4-4IEC 61000-4-5
Logistics data
Harmonized System (HS) code: 85176990
