Trendnet TI-B541. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE…. Power over Ethernet (PoE). Wall mountable

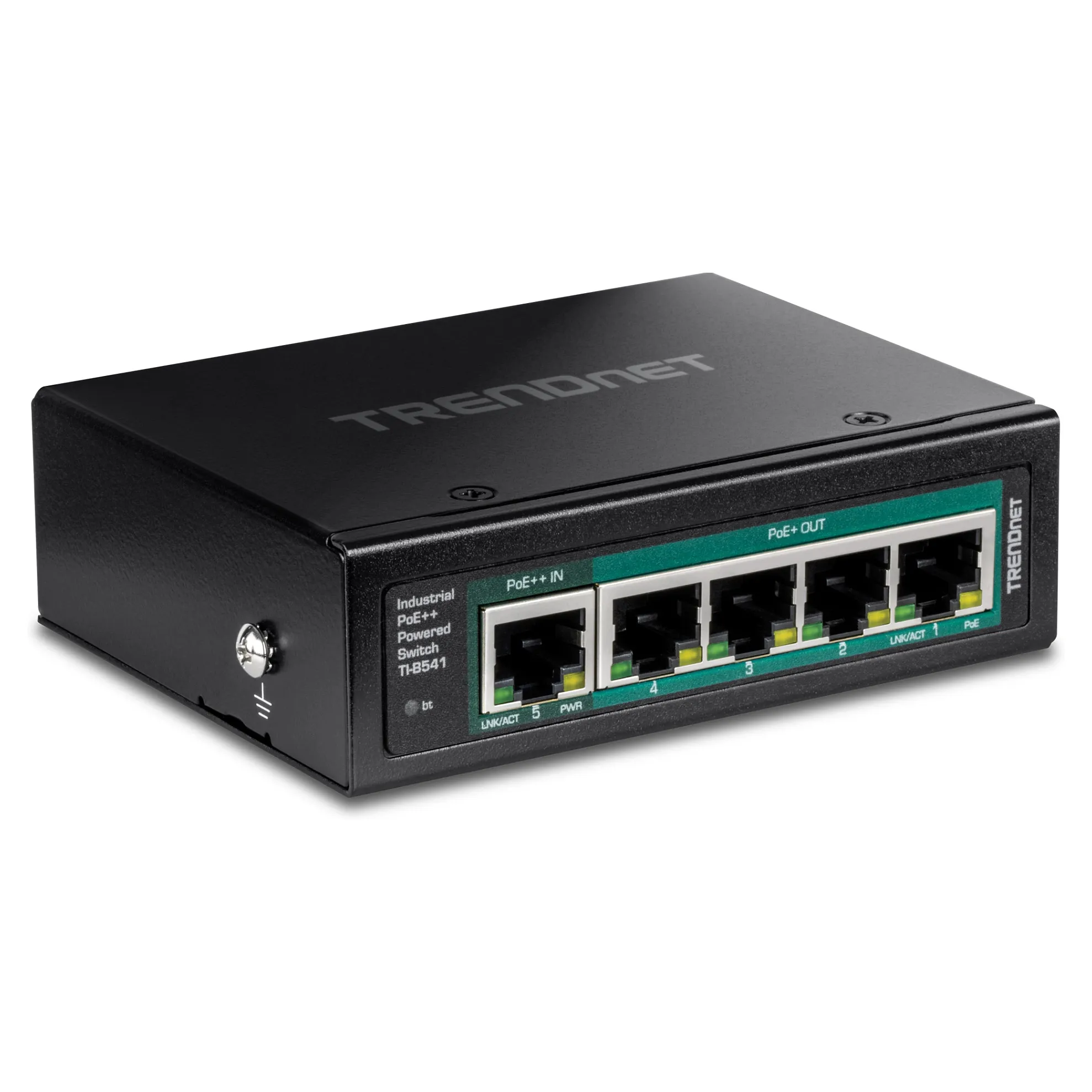

TRENDnet’s 5-Port Industrial Gigabit PoE++ Powered DIN-Rail Switch with PoE Pass-Through, model TI-B541, is powered by a PoE++ switch or injector, no AC adapter is required. The PoE-powered industrial switch features four gigabit PoE+ ports to power devices such as IP cameras, VoIP handsets, and wireless access points. The switch’s PoE++ powered feature allows it to be installed in a place where there is no power source nearby. With an operating temperature range of -40°– 75 °C (-40° – 167 °F), the hardened IP30 rated housing is suitable for extreme industrial environments.
Management features
Switch type: Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Feature: Full duplex
Feature: Half duplex
Data transmission
Switching capacity: 10 Gbit/s
Forwarding rate: 7.44 Mpps
MAC address table: 2000 entries
Feature: Jumbo frames support
Jumbo frames: 9000
Design
Product colour: Black
Housing material: Metal
International Protection (IP) code: IP30
Feature: Wall mountable
Feature: DIN rail mounting
Performance
Mean time between failures (MTBF): 537083 h
Power
Power source: DC/PoE
Power consumption (max): 3.9 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: PoE+, PoE++ (4PPoE)
Power over Ethernet plus (PoE+) ports quantity: 4
Power over Ethernet 4PPoE (PoE++) ports quantity: 1
Total Power over Ethernet (PoE) budget: 65 W
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Weight & dimensions
Width: 102 mm
Depth: 80 mm
Height: 31 mm
Weight: 160 g
Certificates
Certification: CEFCCLVD
Switch type: Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Feature: Full duplex
Feature: Half duplex
Data transmission
Switching capacity: 10 Gbit/s
Forwarding rate: 7.44 Mpps
MAC address table: 2000 entries
Feature: Jumbo frames support
Jumbo frames: 9000
Design
Product colour: Black
Housing material: Metal
International Protection (IP) code: IP30
Feature: Wall mountable
Feature: DIN rail mounting
Performance
Mean time between failures (MTBF): 537083 h
Power
Power source: DC/PoE
Power consumption (max): 3.9 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: PoE+, PoE++ (4PPoE)
Power over Ethernet plus (PoE+) ports quantity: 4
Power over Ethernet 4PPoE (PoE++) ports quantity: 1
Total Power over Ethernet (PoE) budget: 65 W
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Weight & dimensions
Width: 102 mm
Depth: 80 mm
Height: 31 mm
Weight: 160 g
Certificates
Certification: CEFCCLVD
