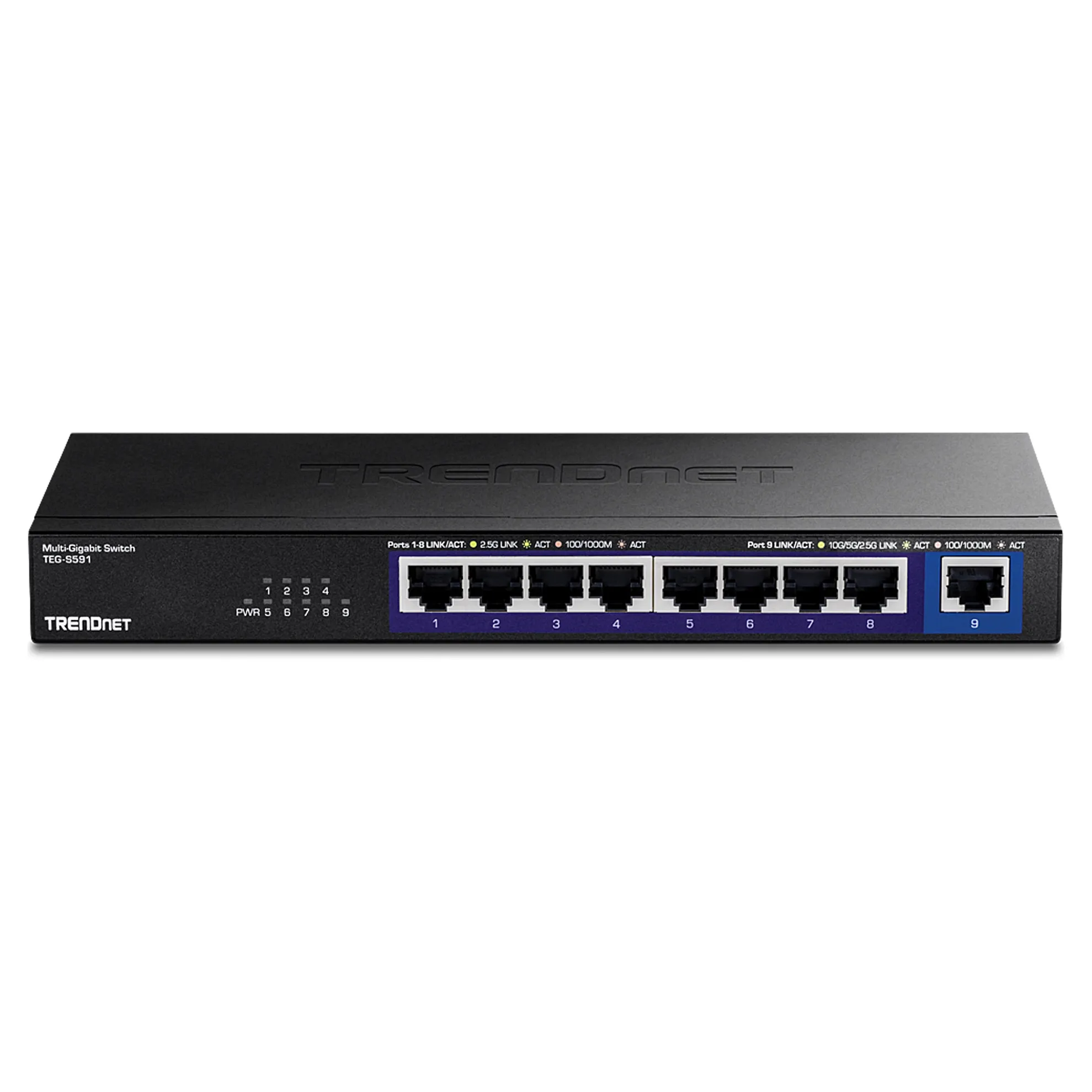

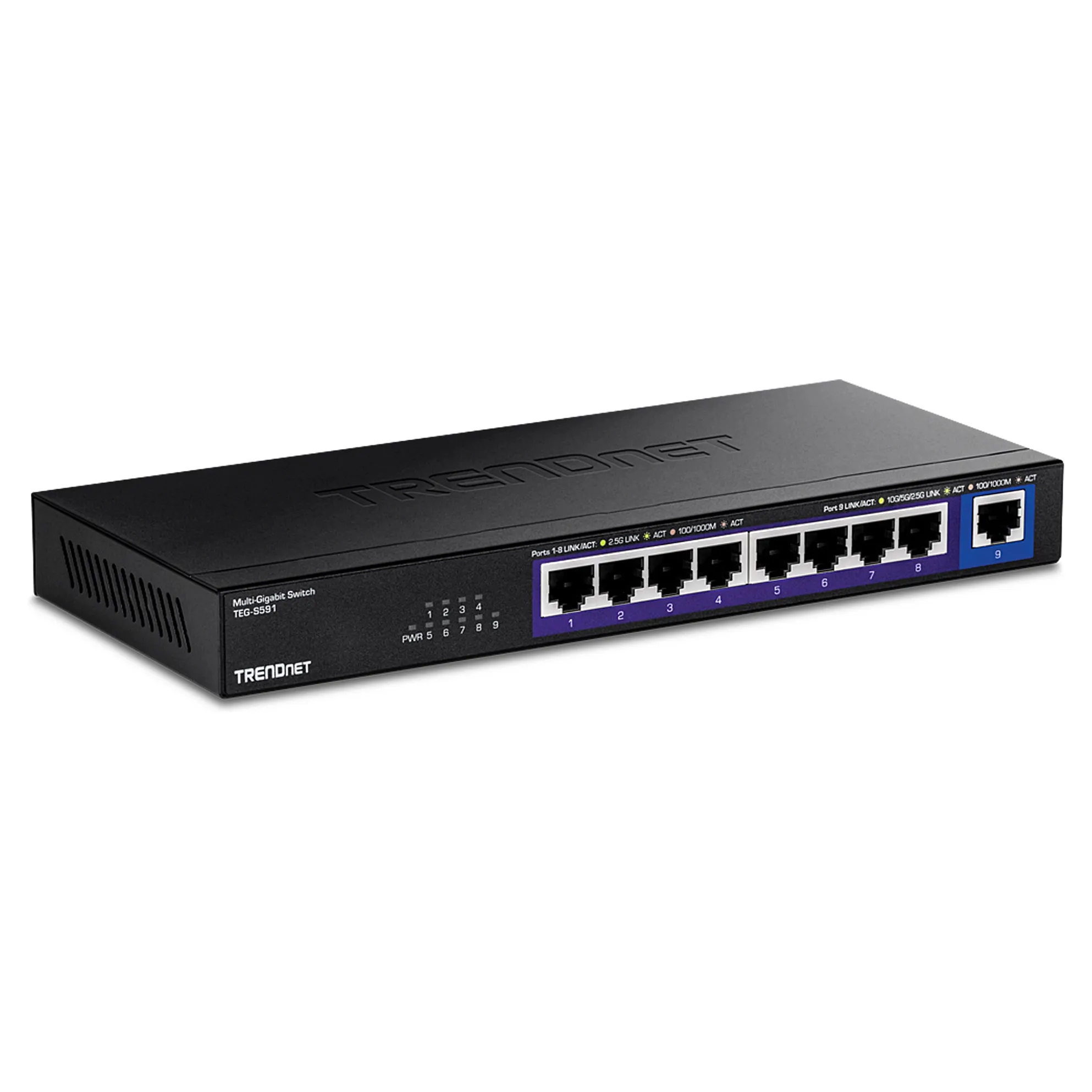

Trendnet TEG-S591. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4000 entries, Switching capacity: 60 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x. Wall mountable
Expand your network’s bandwidth and reduce traffic bottlenecks with TRENDnet’s high-speed and reliable Multi-Gigabit Switch. This multi-gig 2.5G / 10G switch comes equipped with 2.5G RJ-45 ports that provide speeds capable of up to 2.5Gbps over existing Cat5e or better cabling. It also offers one dedicated 10G RJ-45 port for an ultra-fast network connection, providing a cost-effective solution in adding 10G link capability to any SMB network. The fanless design on this multi-gigabit 2.5G / 10G switch lowers energy consumption and eliminates distracting operating noise. TRENDnet’s reliable multi-gigabit switches are cost-effective solutions to increase your network’s throughput.
Management features
Switch type: Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity: 8
10G Ethernet (copper) ports quantity: 1
Network
Networking standards: IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Feature: 10G support
Feature: Full duplex
Data transmission
Switching capacity: 60 Gbit/s
Forwarding rate: 44.64 Mpps
MAC address table: 4000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 12000
Packet buffer memory: 1 MB
Design
LED indicators: Yes

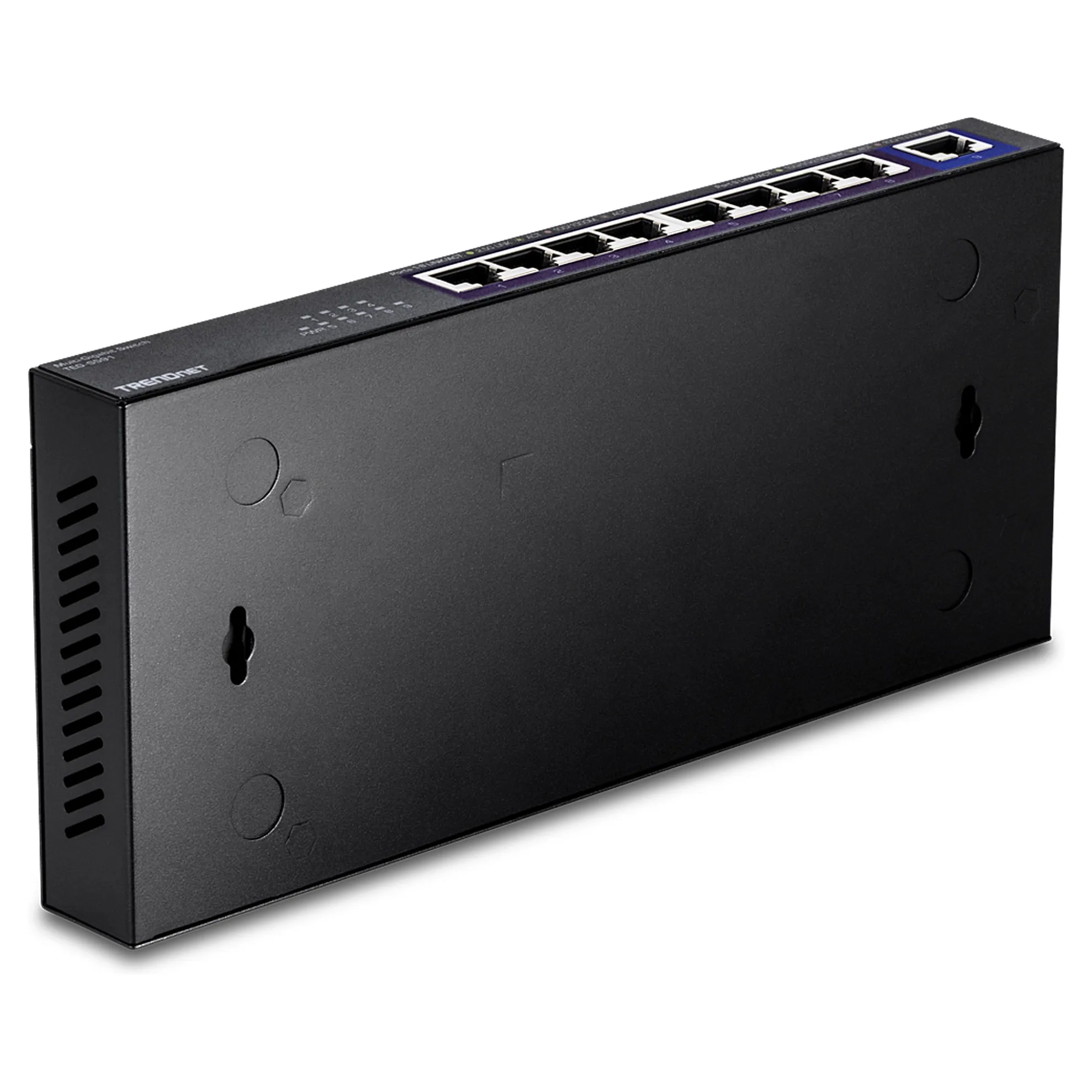

Feature: Wall mountable
Performance
Feature: Fanless
Mean time between failures (MTBF): 518151 h
Power
Power source: AC
AC input voltage: 90 – 264 V
AC input frequency: 47/63 Hz
Power consumption (max): 11.9 W
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Weight & dimensions
Width: 240 mm
Depth: 105 mm
Height: 27 mm
Weight: 720 g
Certificates
Certification: CEFCCLVD
Switch type: Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity: 8
10G Ethernet (copper) ports quantity: 1
Network
Networking standards: IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Feature: 10G support
Feature: Full duplex
Data transmission
Switching capacity: 60 Gbit/s
Forwarding rate: 44.64 Mpps
MAC address table: 4000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 12000
Packet buffer memory: 1 MB
Design
LED indicators: Yes
Feature: Wall mountable
Performance
Feature: Fanless
Mean time between failures (MTBF): 518151 h
Power
Power source: AC
AC input voltage: 90 – 264 V
AC input frequency: 47/63 Hz
Power consumption (max): 11.9 W
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Weight & dimensions
Width: 240 mm
Depth: 105 mm
Height: 27 mm
Weight: 720 g
Certificates
Certification: CEFCCLVD
