Trendnet TEG-S51SFP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Power connector: DC-in jack. Wall mountable
– 1 x SFP slot
– 10 Gbps switching fabric
– Quality of Service traffic prioritization (802.1p QoS)
– Jumbo Frame support
– Fanless design
– Metal housing
– Magnet Mount
– Limited Lifetime Warranty
TRENDnet’s metal housing 4-Port Gigabit Switch with SFP Slot, model TEG-S51SFP, provides performance, proven reliability, and flexible extension of your Gigabit network. This fanless unmanaged desktop switch offers a total switching capacity of 10 Gbps combined with the flexibility of fiber networking. 802.1p QoS maintains your voice and video priority throughout the network. Magnetic mounting kit for easy and flexible setups.
Plug and Play
Simply power up the switch and plug in connected devices

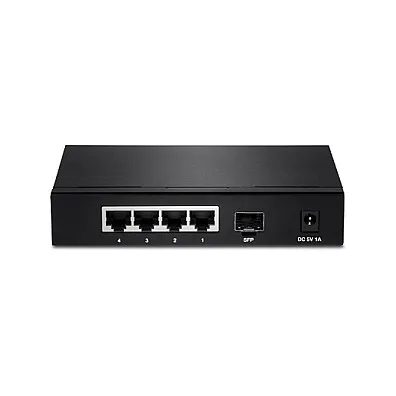

Rear Facing Ports
4 x Gigabit Ethernet ports and 1 x SFP slot
Switching Capacity
10 Gbps switching capacity
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9 KB), for increased performance
LED Indicators
LED indicators convey port status
Fanless
Fanless design lowers energy consumption and eliminates operating noise
Housing
Rugged metal enclosure with magnet mount
Switch type: Unmanaged
Feature: Quality of Service (QoS) support
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 4
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 1
Power connector: DC-in jack
Network
Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Feature: Full duplex
Data transmission
Switching capacity: 10 Gbit/s
Design
Product colour: Black
Housing material: Metal
LED indicators: Yes
Feature: Wall mountable
Performance
Feature: Plug and Play
Mean time between failures (MTBF): 1033343 h
Power
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Power consumption (max): 0.8 W
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Weight & dimensions
Width: 147 mm
Depth: 105 mm
Height: 28 mm
Weight: 434 g
Certificates
Certification: CE, FCC
Logistics data
Harmonized System (HS) code: 85176990
