Trendnet TEG-S5091. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4000 entries, Switching capacity: 60 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z. DC input voltage: 12 V. Wall mountable

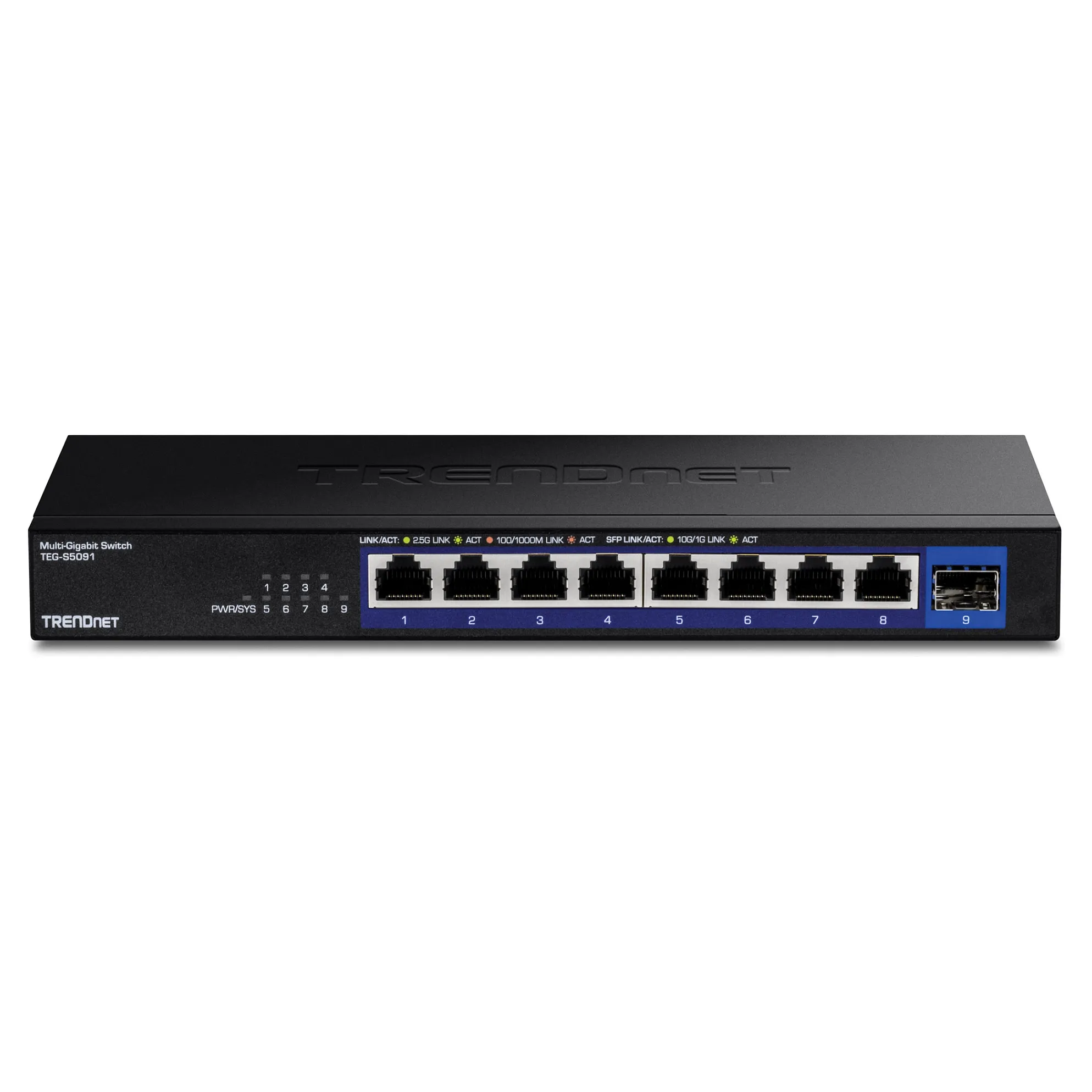

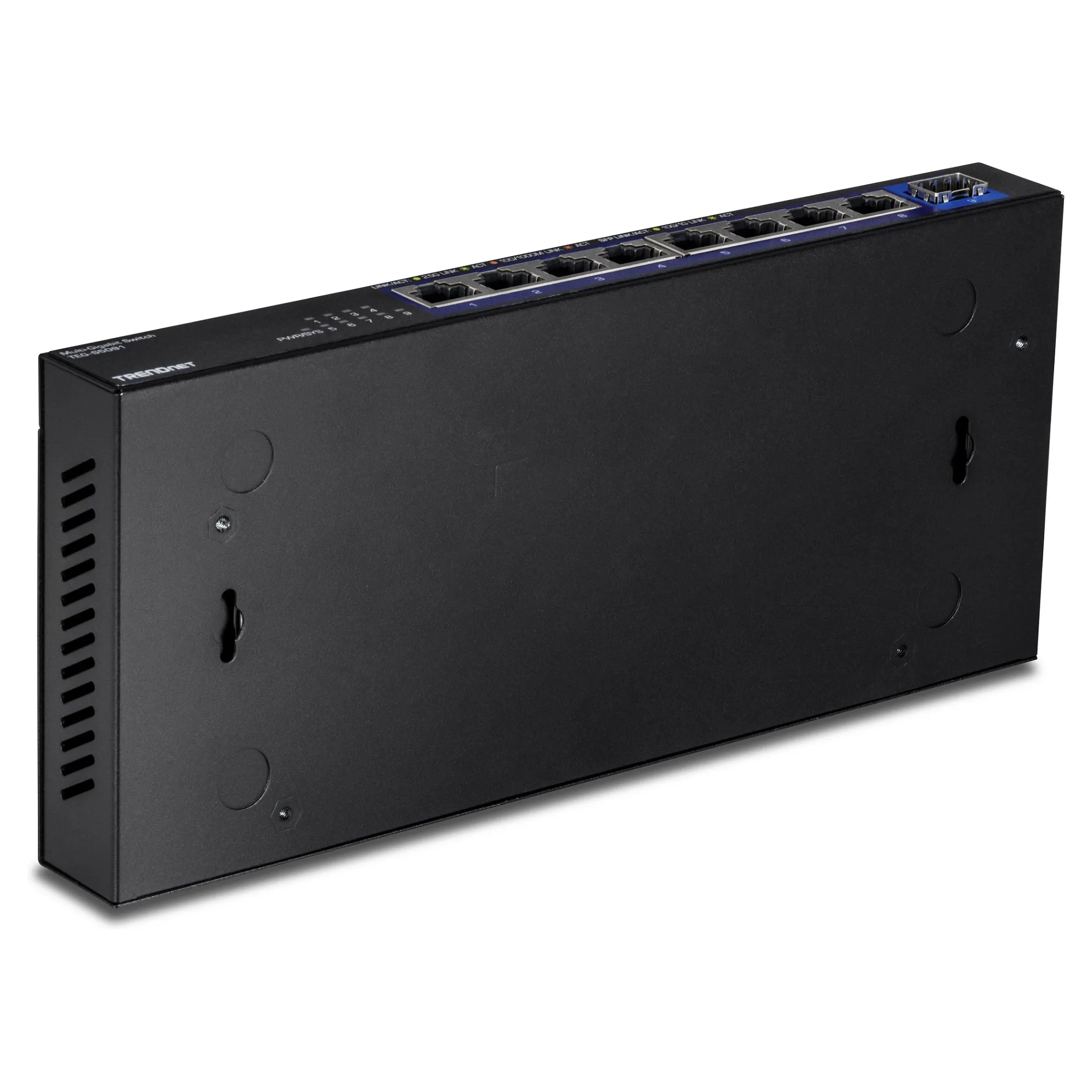

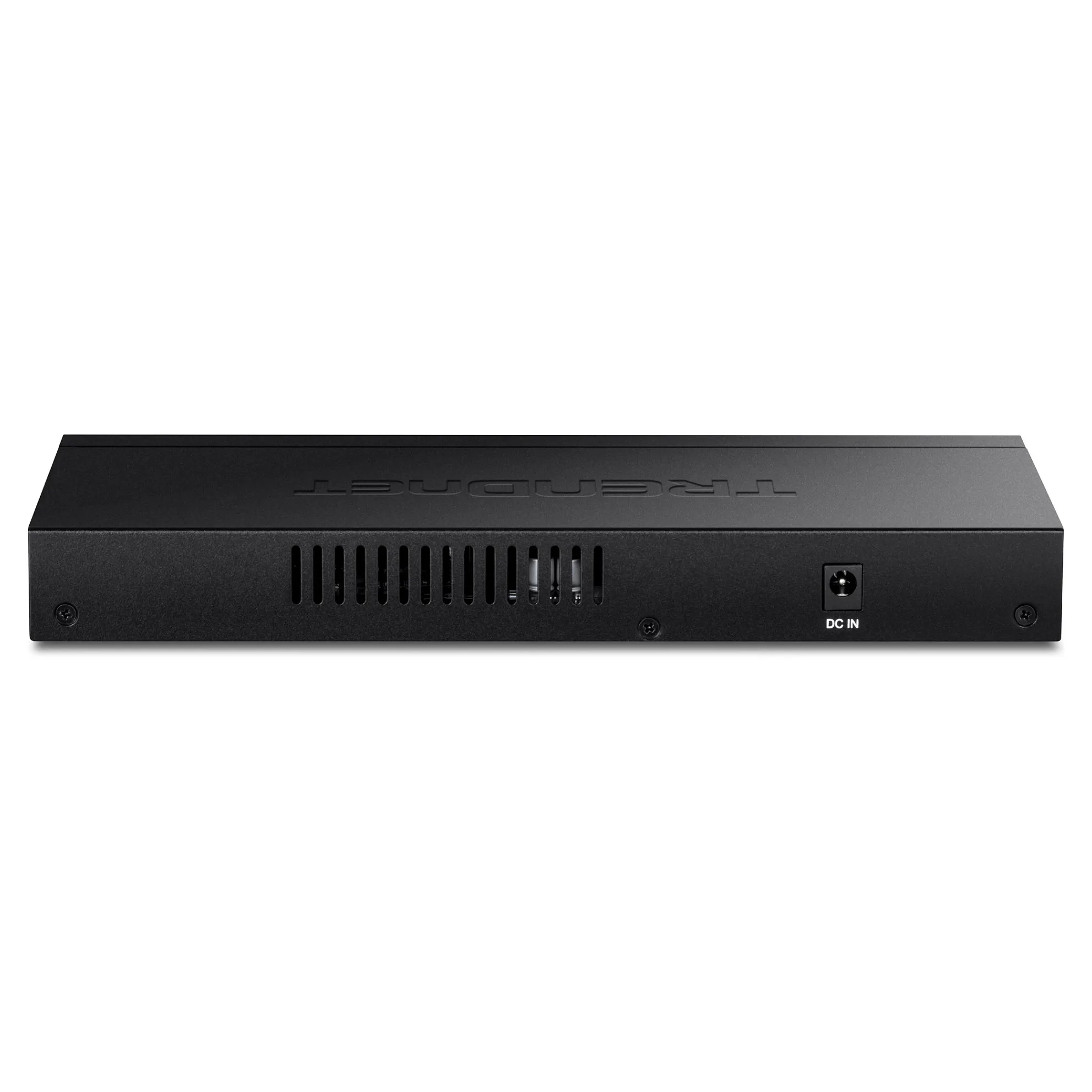

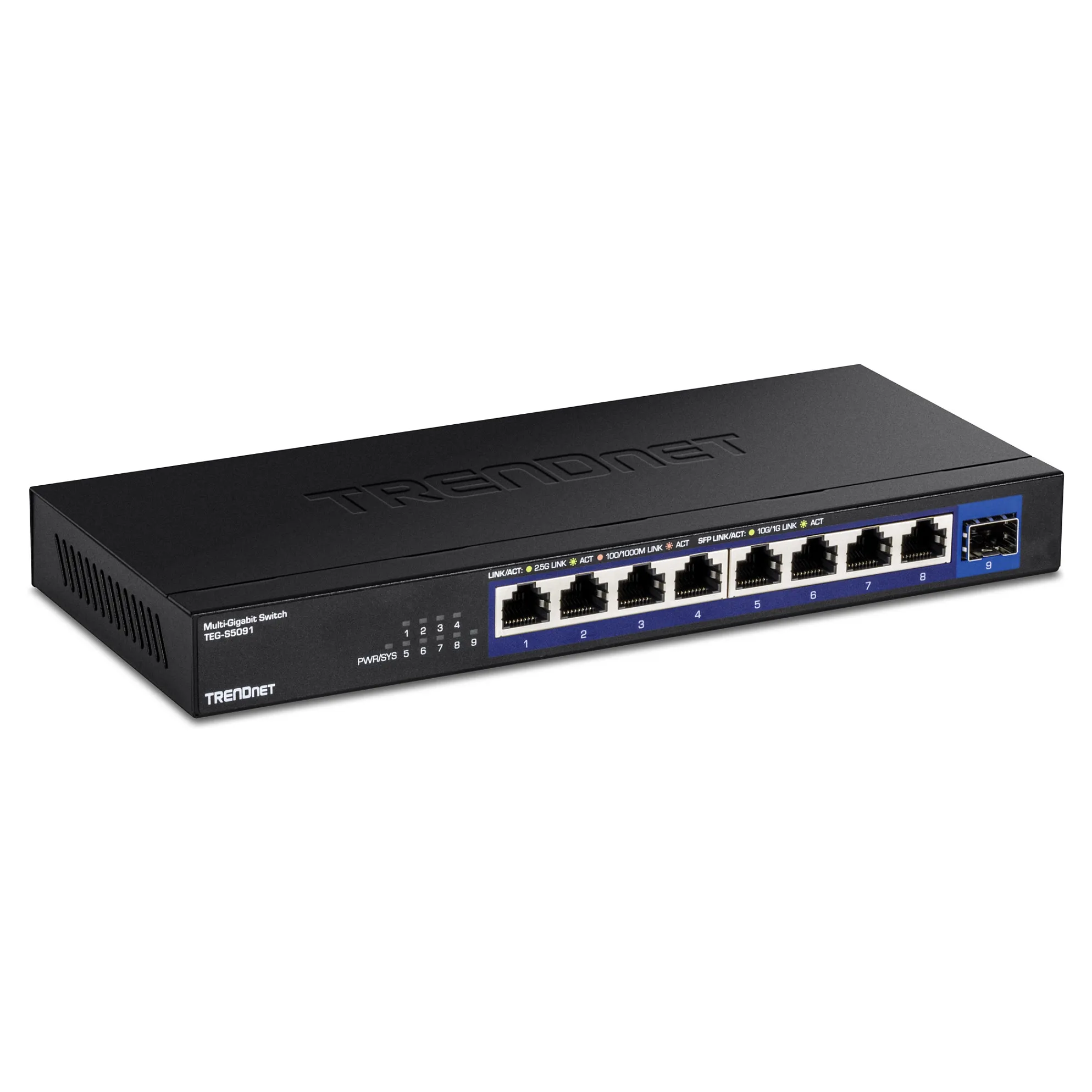

Expand your network’s bandwidth and reduce digital bottlenecks with TRENDnet’s 9-Port 2.5G Unmanaged Switch with 10G SFP+ Port. This 2.5G switch with an SFP+ port comes equipped with 2.5GBASE-T RJ-45 ports that provide speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling, and a 10G SFP+ slot for ultra-fast, long-distance fiber networking. Each 2.5G switch with an SFP+ port features a durable metal enclosure and can be mounted to the wall for setup flexibility. The fanless design lowers energy consumption and eliminates operating noise. TRENDnet’s reliable 2.5G Ethernet switches with a 10G SFP+ port are cost-effective solutions to increase your network’s throughput.
Management features
Switch type: Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity: 8
SFP+ module slots quantity: 1
Network
Networking standards: IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z
Feature: 10G support
Feature: Full duplex
Data transmission
Switching capacity: 60 Gbit/s
Forwarding rate: 44.6 Mpps
MAC address table: 4000 entries
Feature: Jumbo frames support
Jumbo frames: 12000
Design
Feature: Wall mountable
Performance
Feature: Fanless
Mean time between failures (MTBF): 674176 h
Power
Power source: AC/DC
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
DC input voltage: 12 V
Input current: 1 A
Power consumption (max): 9.5 W
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Weight & dimensions
Width: 240 mm
Depth: 105 mm
Height: 27 mm
Certificates
Certification: FCCCE
Switch type: Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity: 8
SFP+ module slots quantity: 1
Network
Networking standards: IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z
Feature: 10G support
Feature: Full duplex
Data transmission
Switching capacity: 60 Gbit/s
Forwarding rate: 44.6 Mpps
MAC address table: 4000 entries
Feature: Jumbo frames support
Jumbo frames: 12000
Design
Feature: Wall mountable
Performance
Feature: Fanless
Mean time between failures (MTBF): 674176 h
Power
Power source: AC/DC
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
DC input voltage: 12 V
Input current: 1 A
Power consumption (max): 9.5 W
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Weight & dimensions
Width: 240 mm
Depth: 105 mm
Height: 27 mm
Certificates
Certification: FCCCE
