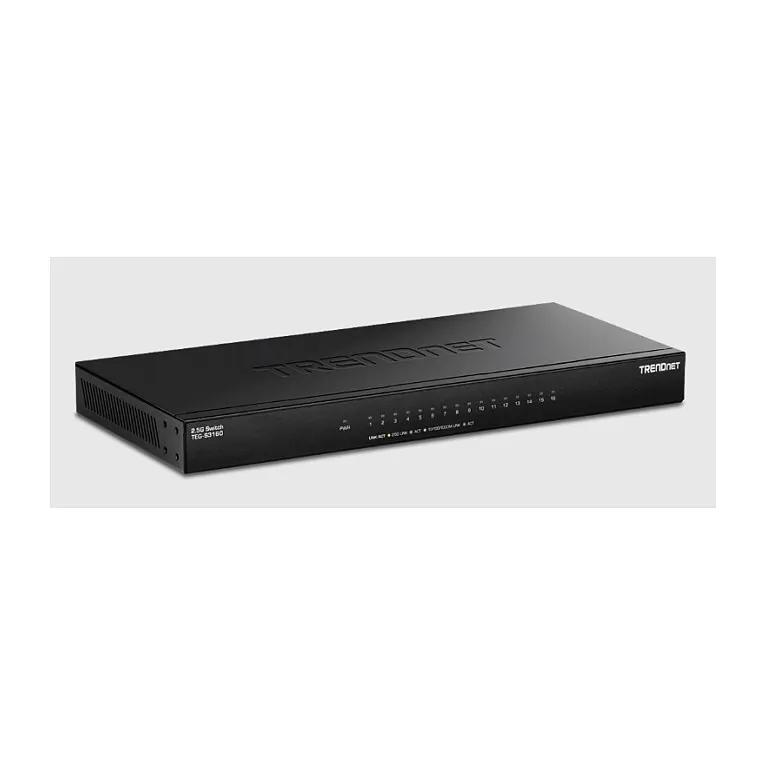

Trendnet TEG-S3160. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 16000 entries, Switching capacity: 80 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Wall mountable, Rack mounting, Form factor: Desktop
2.5G Ports
Equipped with 2.5GBASE-T RJ-45 ports that provide ultra-fast speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.
Wall Mountable
The 2.5G switch features a durable metal housing with a convenient wall mountable design for greater installation flexibility.
Fanless
The fanless design of this 16-port 2.5G switch lowers energy consumption costs and eliminates operating noise.
Easy Installation
No configuration needed, simply connect network devices to the 16-port multi-gig switch
2.5G Ports
This 16-port multi-gigabit switch is equipped with 2.5GBASE-T RJ-45 ports that provide ultra-fast speeds capable of up to 2.5Gbps over existing Cat5e or better cabling
Switching Capacity
80Gbps switching capacity
Fanless
Fanless design on the 16-port 2.5G switch lowers energy consumption and eliminates operating noise
Housing Design
Sturdy desktop metal housing

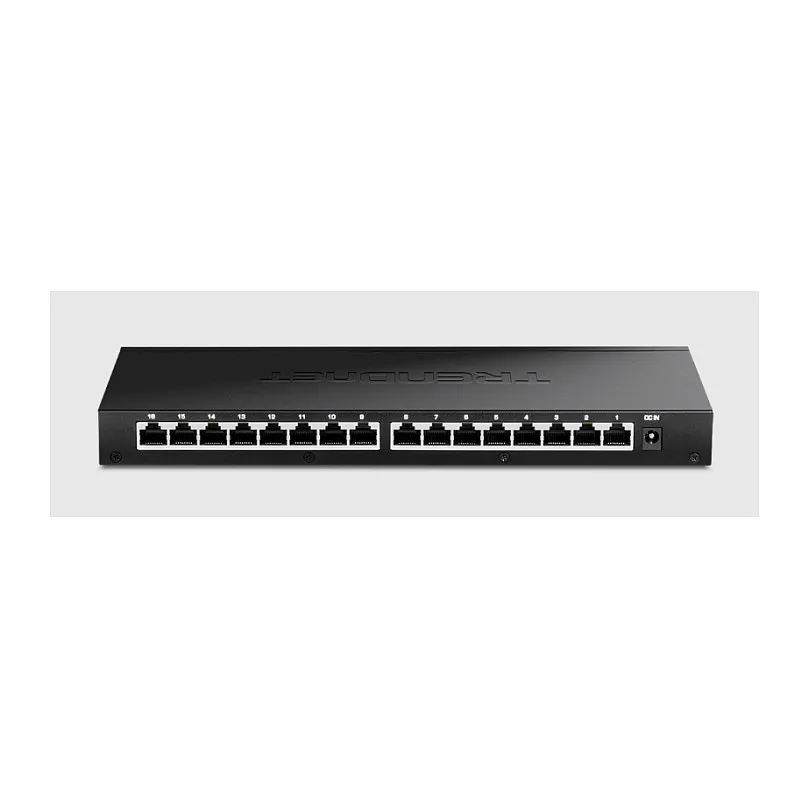

Rear Facing Ports
Hide cable clutter with rear facing ports on your desktop or rack

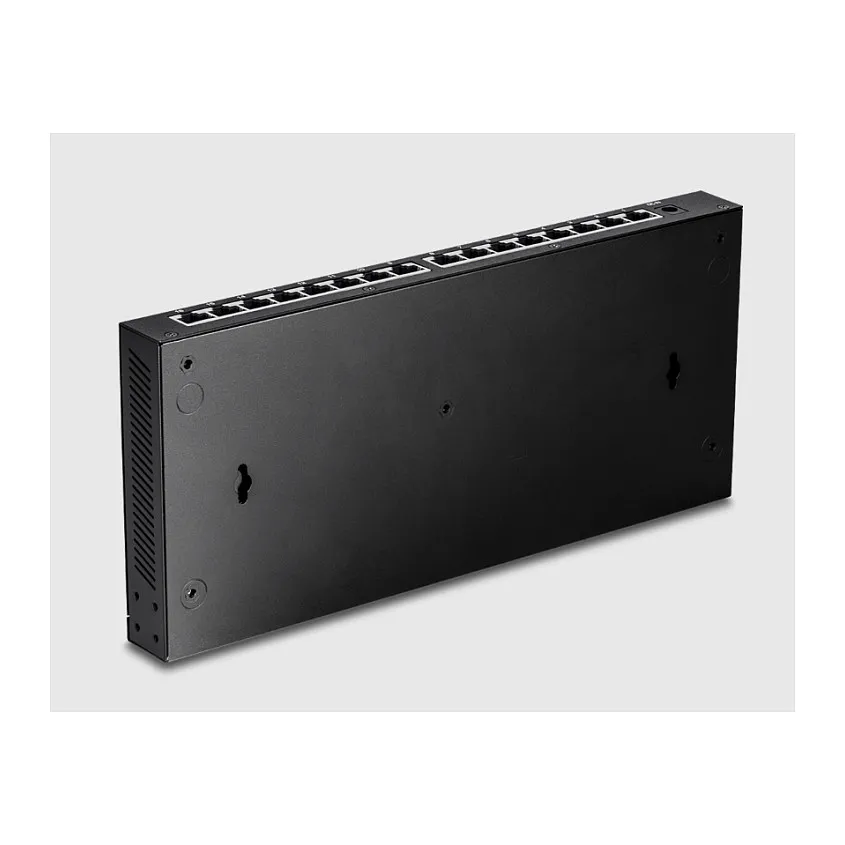

Wall Mountable
The 16-port 2.5G switch features a convenient wall mountable design for greater installation flexibility
19” Rackmount
Sturdy rack mountable metal housing with mounting kit included
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 12KB), for increased performance
LED Indicators
LED indicators on this 16-port 2.5G switch conveniently convey port status
Switch type: Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Cable types supported: Cat5e
Feature: Full duplex
Feature: Half duplex
Ethernet LAN data rates: 100 Mbit/s
Data transmission
Switching capacity: 80 Gbit/s
Forwarding rate: 59.52 Mpps
MAC address table: 16000 entries
Feature: Jumbo frames support
Jumbo frames: 12
Packet buffer memory: 1.5 MB
Design
Feature: Rack mounting
Form factor: Desktop
Product colour: Black
LED indicators: Yes
Feature: Wall mountable
Performance
Feature: Fanless
Mean time between failures (MTBF): 223000 h
Power
Power source: AC/DC
Feature: Power supply included
AC input voltage: 90 – 264 V
AC input frequency: 47/63 Hz
Output voltage: 12 V
Output current: 3 A
Power consumption (max): 7.26 W
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 0 – 90%
Weight & dimensions
Width: 128 mm
Depth: 286 mm
Height: 27 mm
Weight: 982 g
Packaging content
Feature: Quick start guide
Feature: Rack mount kit
Packaging data
Feature: AC adapter included
Certificates
Compliance certificates: CE, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), Trade Agreements Act (TAA)
