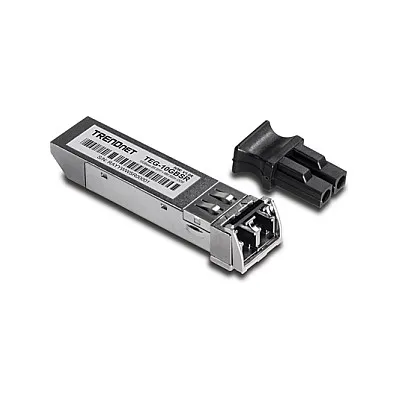

Trendnet TEG-10GBSR. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Power consumption (typical): 0.439 W. Width: 14.8 mm, Depth: 56.5 mm, Height: 11.8 mm
Hot-Pluggable SFP+
Hot-pluggable SFP+ transceiver works with a MSA compliant SFP+ slot
Fiber Wavelength
Compatible with Multi Mode 850 nm transmissions
Fiber Distance
Supports networking for distances up to 550 meters (1,804 feet)
Fiber Port
LC-type duplex connector
DDM Support
Digital Diagnostics Monitoring (DDM) captures critical device parameters such as transmit/receive power, temperature, and voltage
Power Supply
Single 3.3 volt power supply
Operating Temperature
Rated for an operating temperature range of 0 to 70 °C (32 to 158 °F)
Standards
Compliant with SFF-8431, SFF-8432, SFF-8472, FC-PI-4,10G FC, and IEEE802.3ae 10GBASE-SR
SFP transceiver type: Fiber optic
Maximum data transfer rate: 10000 Mbit/s
Interface type: SFP+
Feature: Multi-mode fiber (MMF) supported
Fiber optic connector: LC
SFP transceiver standard: SR
Maximum transfer distance: 550 m
Wavelength: 850 nm
Networking standards: IEEE 802.3ae
Fiber ports quantity: 1
Features
Feature: Hot-Plug support
Power
Power consumption (typical): 0.439 W
Operational conditions
Operating temperature (T-T): 0 – 70 °C
Operating relative humidity (H-H): 0 – 95%
Weight & dimensions
Width: 14.8 mm
Depth: 56.5 mm
Height: 11.8 mm
Weight: 22 g
Logistics data
Harmonized System (HS) code: 85369010
