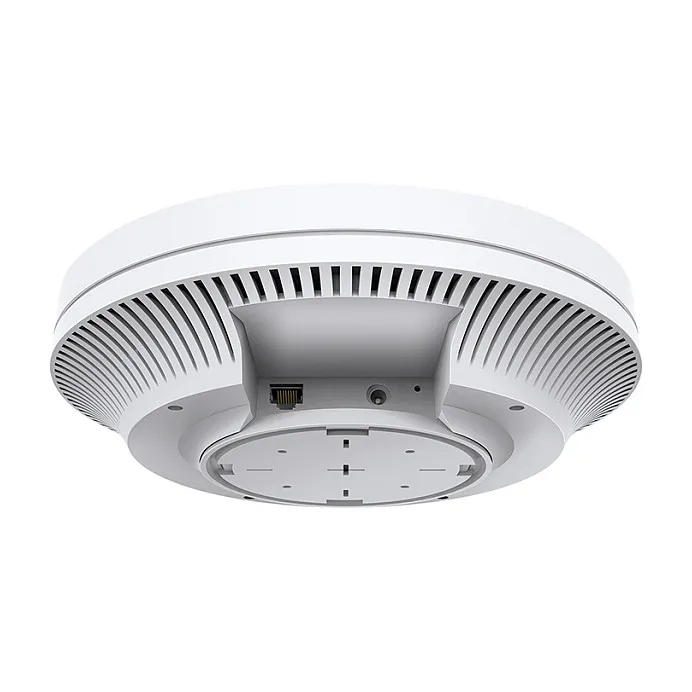

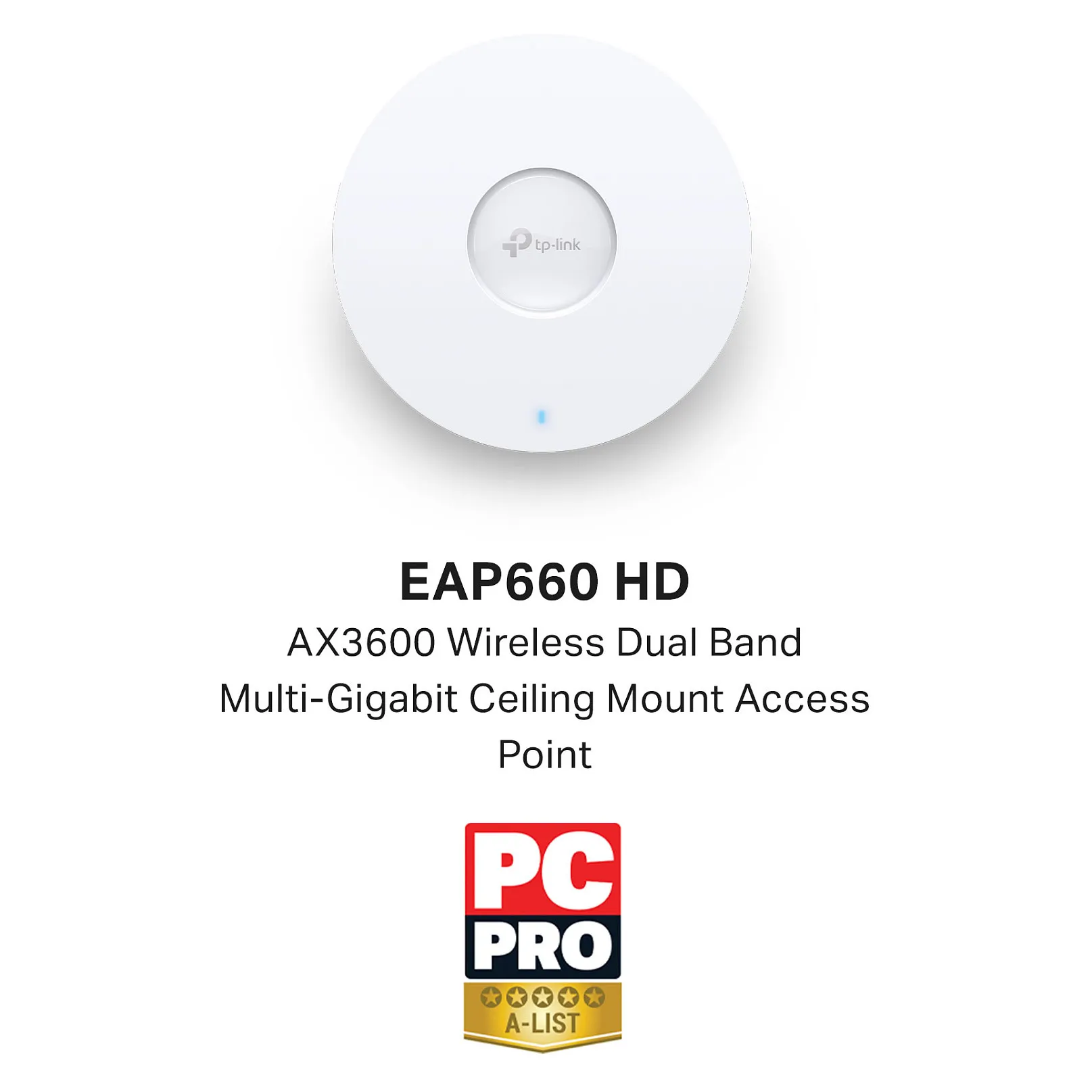

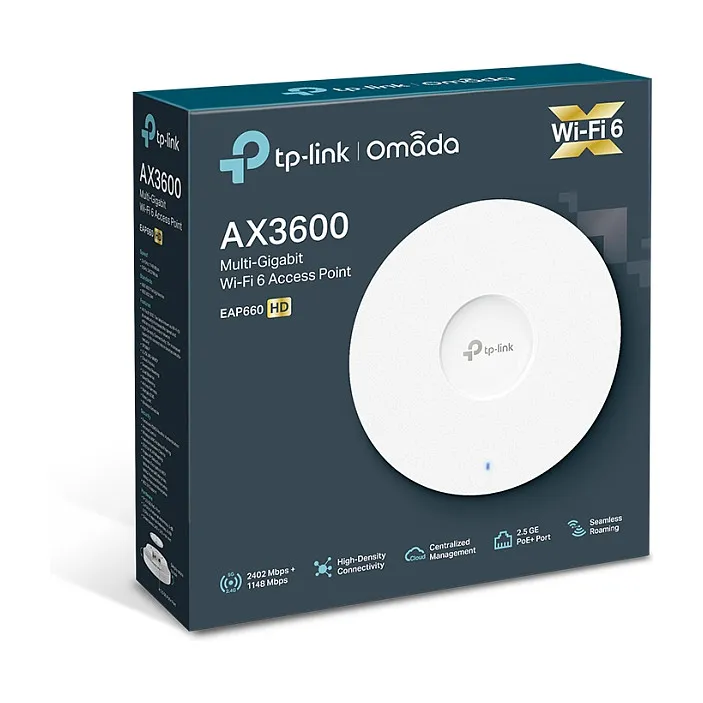

TP-Link Omada AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 2402 Mbit/s. Security algorithms: WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK. Ethernet LAN data rates: 25000 Mbit/s. Power over Ethernet (PoE). Product colour: White
AX3600 Enterprise Wireless for
High-Density Environments
High-Density Connectivity with 4× Increased Capacity
OFDMA* and Uplink & Downlink MU-MIMO** increase network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously‡. Leverage multi-user capabilities and upgrade your business like never before.
Blazing Fast Speed with 8 Spatial Streams
The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 3550 Mbps (2402 Mbps on a 5 GHz band and 1148 Mbps on a 2.4 GHz band)†. With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.
Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Optimized Wired Performance with 2.5 GE PoE+ Port
Armed with a 2.5 Gigabit Ethernet Port, the EAP660 HD delivers exceptional multi-gigabit performance to support the insatiable demand for better and faster Wi-Fi. Compatibility with standard 802.3at PoE+ is ideal for flexible deployment.
Seamless Roaming
802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving.△ This allows sensitive applications like VoIP and video conferences to go uninterrupted.
Boost Network Efficiency in All Aspects
With Rich Advanced Features
Band Steering
Automatically moves dual band devices onto the wider 5GHz band for faster connections.
Load Balance
ensures large numbers of users have smooth network experiences in high-density business networks
Airtime Fairness
Increases average network throughput in heavily congested environments
Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 2402 Mbit/s
Maximum data transfer rate (2.4 GHz): 1148 Mbit/s
Maximum data transfer rate (5 GHz): 2402 Mbit/s
Ethernet LAN data rates: 25000 Mbit/s
Frequency band: 2.4 – 5 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Feature: Automatic channel selection
Feature: Automatic channel scanning
Feature: MIMO
MIMO type: Multi User MIMO
Feature: Wi-Fi Multimedia (WMM)/(WME)
Feature: Wi-Fi roaming
Feature: VLAN support
Feature: Rate limiting
Feature: Wireless isolation
Feature: Airtime Fairness (ATF)
Feature: Quality of Service (QoS) support
Security
Security algorithms: WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK
Feature: MAC address filtering
Service Set Identifier (SSID) features: Multiple SSIDs
Feature: Remote Authentication Dial-In User Service (RADIUS)
Management features
Feature: Web-based management
Feature: Syslog
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Feature: DC-in jack
Power
Feature: Power over Ethernet (PoE)
Output voltage: 12 V
Output current: 2 A
Design
Placement: Ceiling
Product colour: White
Antenna
Antenna type: Internal
Weight & dimensions
Width: 243 mm
Depth: 243 mm
Height: 64 mm
Packaging content
Feature: Mounting kit
Operational conditions
Operating relative humidity (H-H): 10 – 90%
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -40 – 70 °C
Storage relative humidity (H-H): 5 – 90%
Logistics data
Harmonized System (HS) code: 85176990
