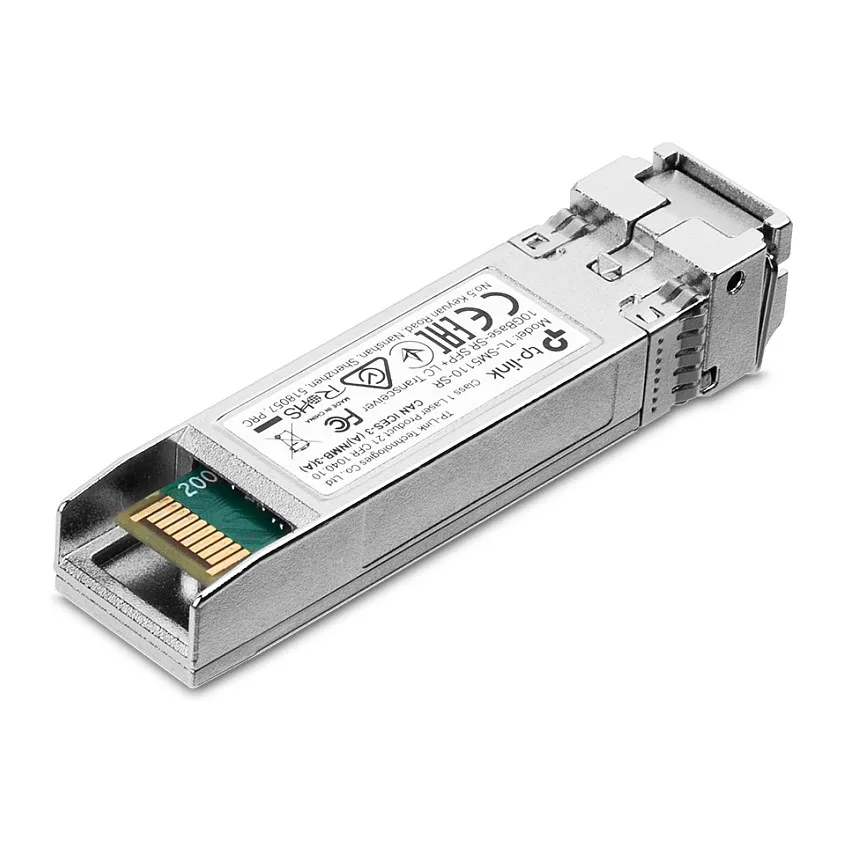

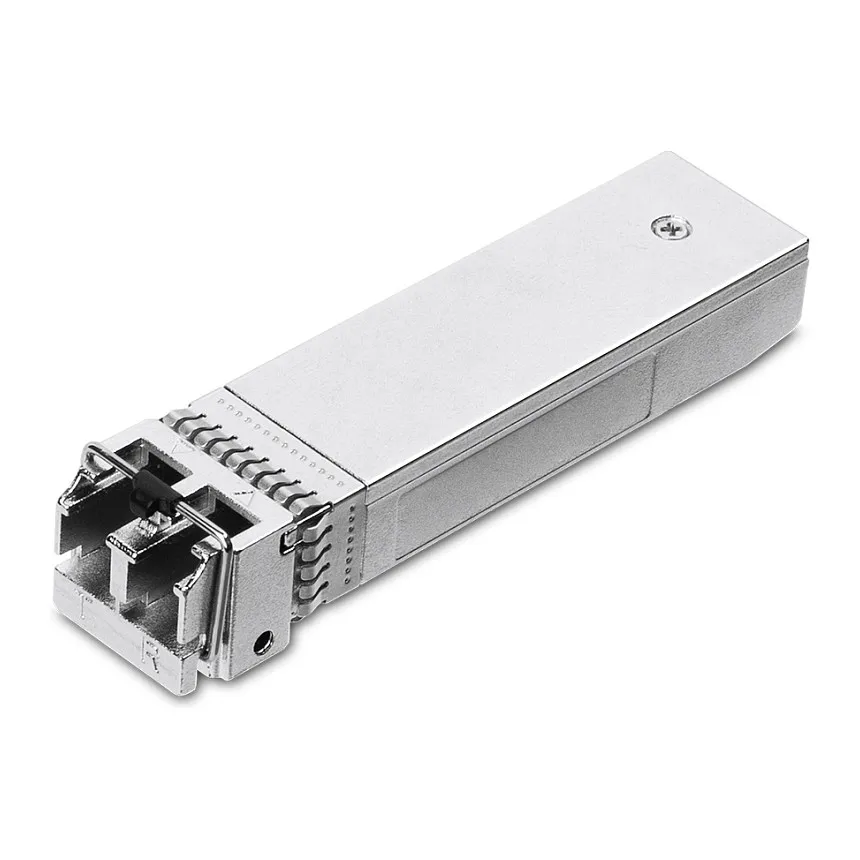

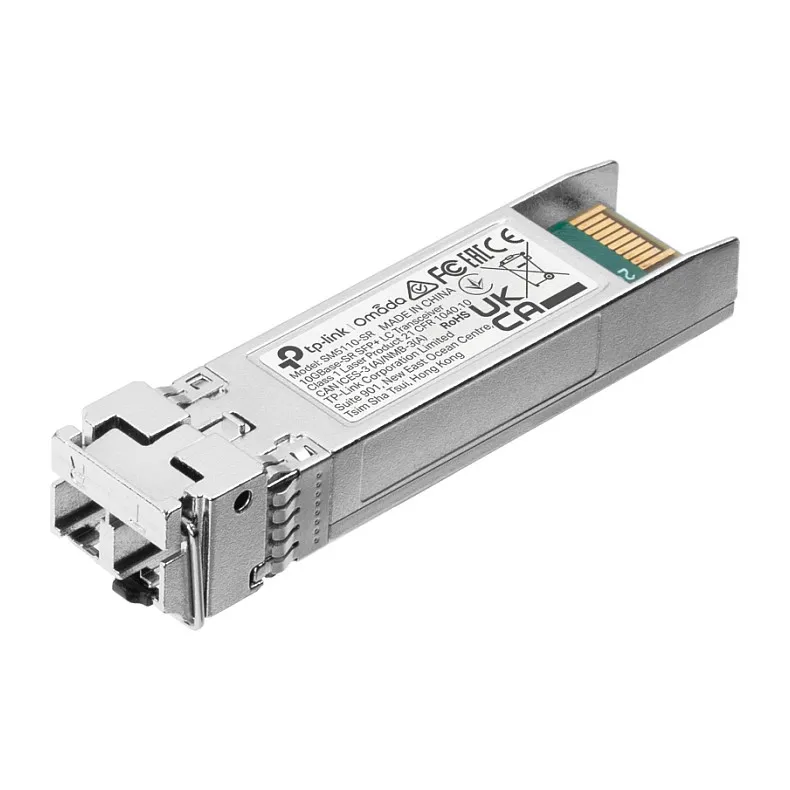

TP-Link 10GBase-SR SFP+ LC Transceiver. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Product colour: Silver. Input voltage: 3.3 V. Certification: FCC, CE. Width: 14.5 mm, Depth: 61.3 mm, Height: 12.2 mm
The TL-SM5110-SR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.
Performance
SFP transceiver type: Fiber optic
Maximum data transfer rate: 10000 Mbit/s
Interface type: SFP+
Feature: Multi-mode fiber (MMF) supported
Fiber optic connector: LC (UPC)
Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm
Maximum transfer distance: 300 m
Wavelength: 850 nm
Feature: Digital Diagnostics Monitoring (DDM)
Features
Product colour: Silver
Feature: Hot-swap
Power
Input voltage: 3.3 V
Certificates
Certification: FCC, CE
Operational conditions
Operating temperature (T-T): 0 – 70 °C
Storage temperature (T-T): -40 – 80 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 90%
Weight & dimensions
Width: 14.5 mm
Depth: 61.3 mm
Height: 12.2 mm
Packaging data
Package width: 81.5 mm
Package depth: 122.5 mm
Package height: 38.5 mm
Package weight: 60 g
Logistics data
Harmonized System (HS) code: 85369010
SFP transceiver type: Fiber optic
Maximum data transfer rate: 10000 Mbit/s
Interface type: SFP+
Feature: Multi-mode fiber (MMF) supported
Fiber optic connector: LC (UPC)
Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm
Maximum transfer distance: 300 m
Wavelength: 850 nm
Feature: Digital Diagnostics Monitoring (DDM)
Features
Product colour: Silver
Feature: Hot-swap
Power
Input voltage: 3.3 V
Certificates
Certification: FCC, CE
Operational conditions
Operating temperature (T-T): 0 – 70 °C
Storage temperature (T-T): -40 – 80 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 90%
Weight & dimensions
Width: 14.5 mm
Depth: 61.3 mm
Height: 12.2 mm
Packaging data
Package width: 81.5 mm
Package depth: 122.5 mm
Package height: 38.5 mm
Package weight: 60 g
Logistics data
Harmonized System (HS) code: 85369010
