TP-Link 1000Base-BX WDM Bi-Directional SFP Module. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Product colour: Metallic. Input voltage: 3.3 V. Certification: FCC, CE. Width: 55.4 mm, Depth: 12.9 mm, Height: 12.9 mm
– WDM Bi-Directional SFP Module
– Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving

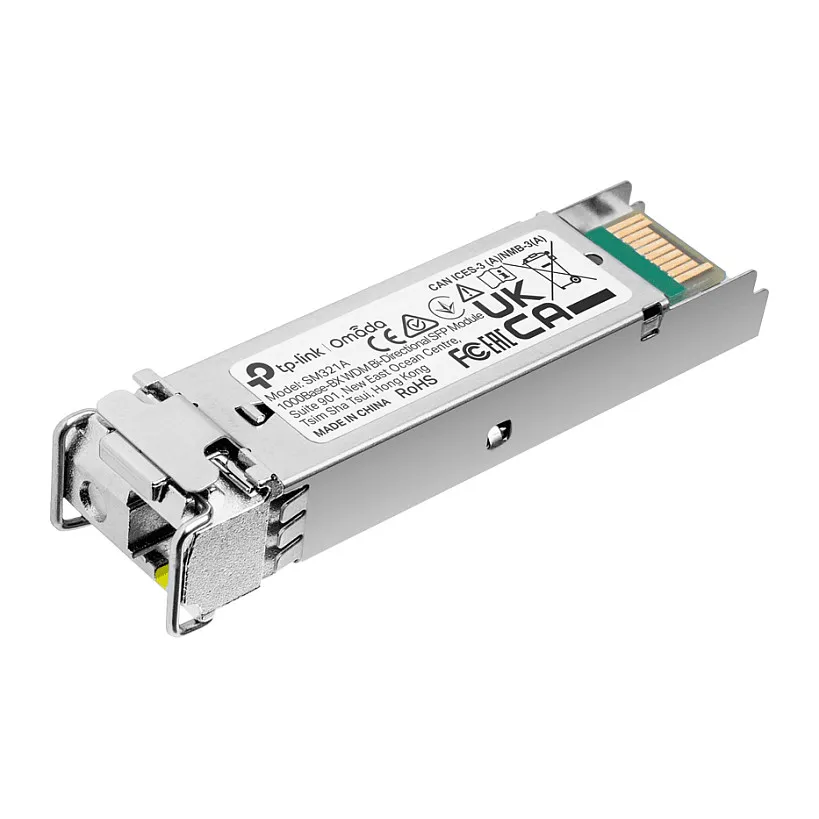

TP-LINK´s TL-SM321A adopts the latest standard 1000Base-BX, transmission over a single strand of fiber, with one different wavelength going in each direction. You can extend the network distance up to 10Km with TP-LINK´s Routers, Switches, Media Converters to provide high speed and stability.
– Supports WDM Bi-Directional technology, using a single strand of fiber
– TX: 1550nm / RX: 1310nm
– Internal +3.3V Power Supply
– In pairs with TL-SM321B
– Plug-and-Play
– Suitable: MC220L, TL-R4199G/4299G, TL-SG3109, TL-SL3428/3452, TL-SG2109WEB/2216WEB/2224WEB,TL-SL2210WEB/2218WEB/2428WEB/2452WEB, TL-SL1351 and the other equivalent devices
SFP transceiver type: Fiber optic
Maximum data transfer rate: 1250 Mbit/s
Interface type: SFP
Feature: Single-mode fiber (SMF) supported
Fiber optic connector: LC (UPC)
Fiber cable diameters supported (core/cladding): 9/125 µm
Maximum transfer distance: 10000 m
Tx wavelength (max): 1550 nm
Rx wavelength (max): 1310 nm
Networking standards: IEEE 802.3z
Features
Product colour: Metallic
Feature: Plug and Play
Power
Input voltage: 3.3 V
Certificates
Certification: FCC, CE
Operational conditions
Operating temperature (T-T): 0 – 70 °C
Storage temperature (T-T): -40 – 80 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 90%
Weight & dimensions
Width: 55.4 mm
Depth: 12.9 mm
Height: 12.9 mm
Packaging content
Quantity per pack: 1 pc(s)
Packaging data
Package width: 81.5 mm
Package depth: 122.5 mm
Package height: 38.5 mm
Package weight: 60 g
