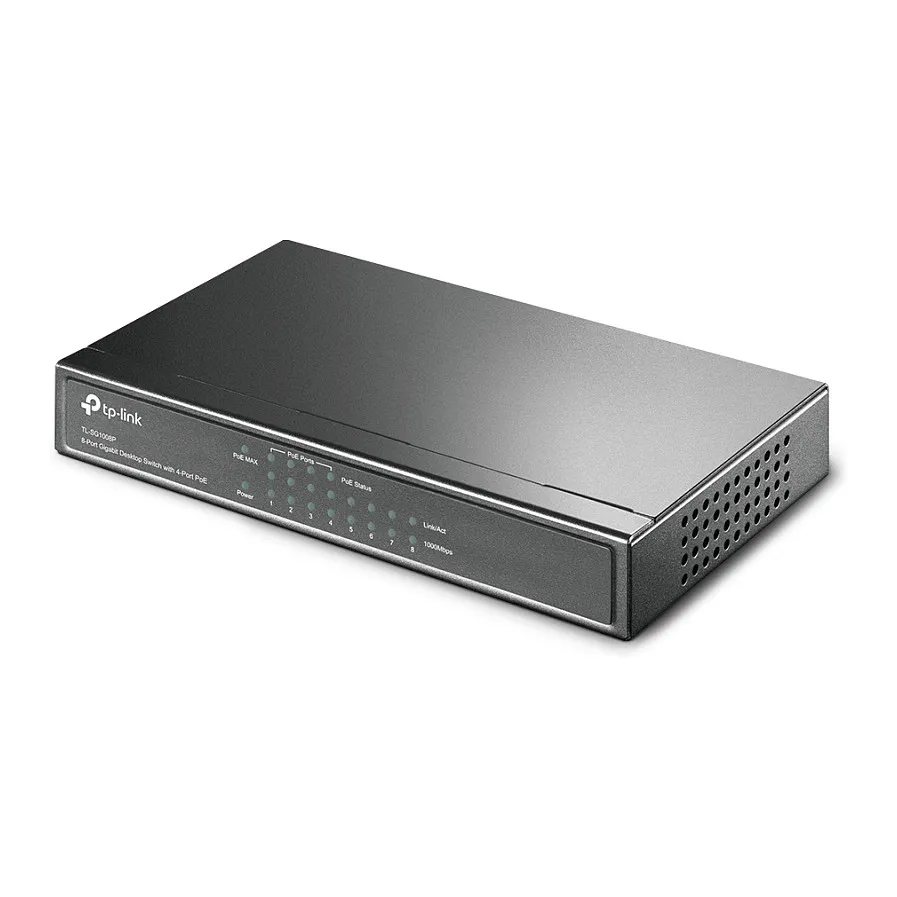

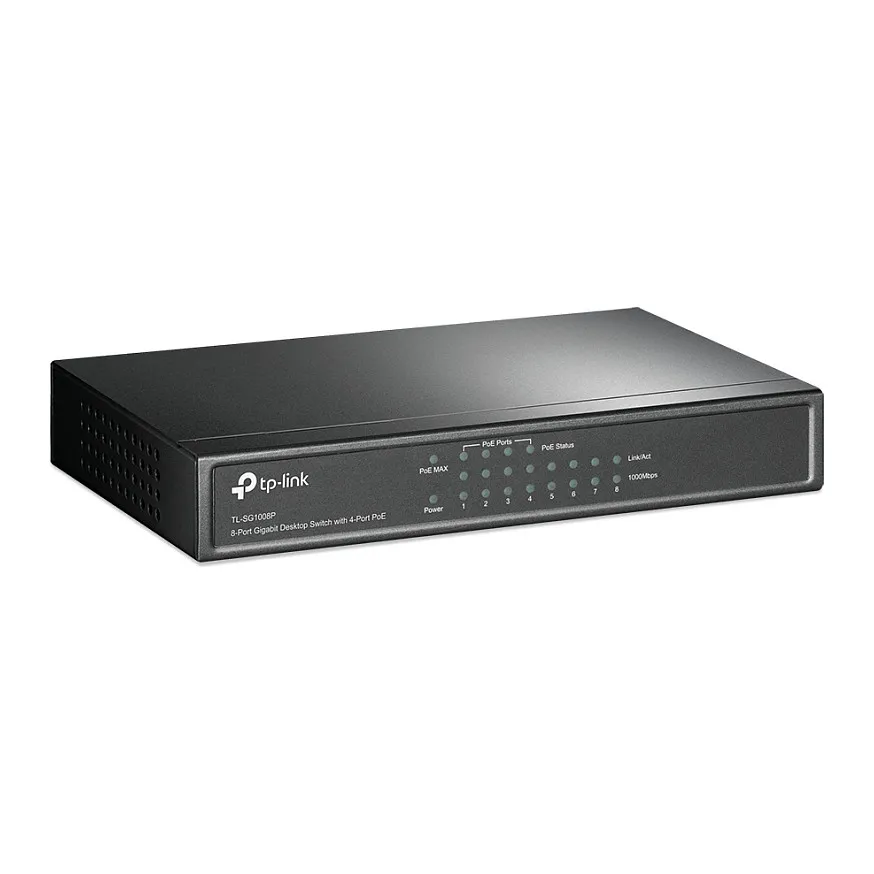

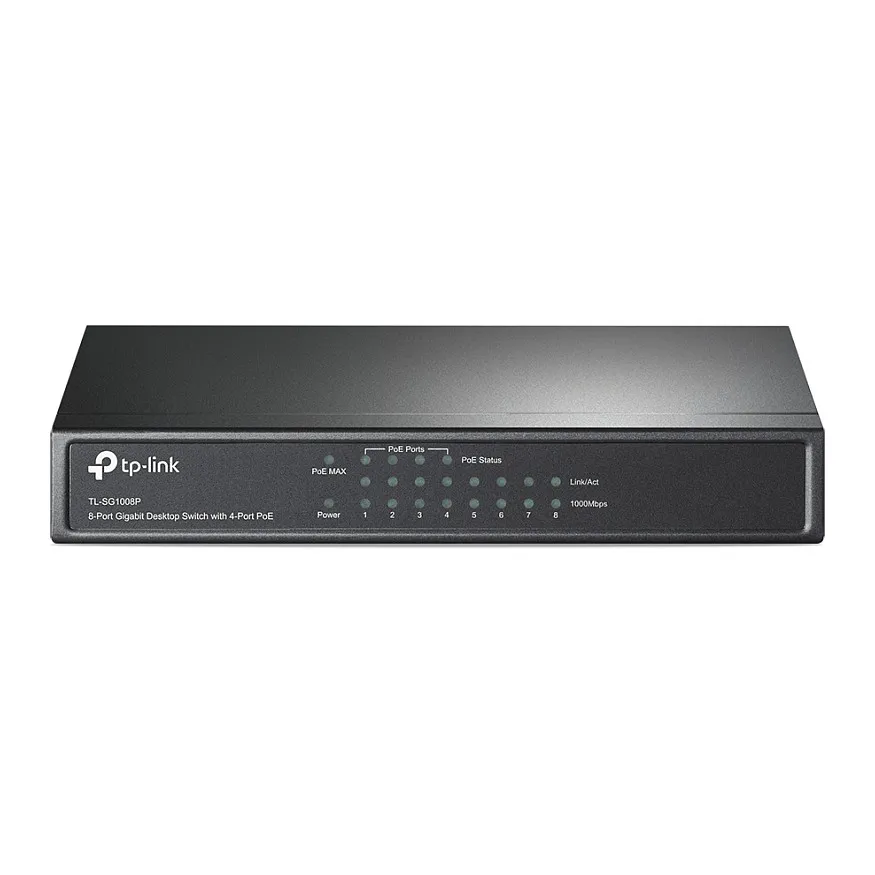

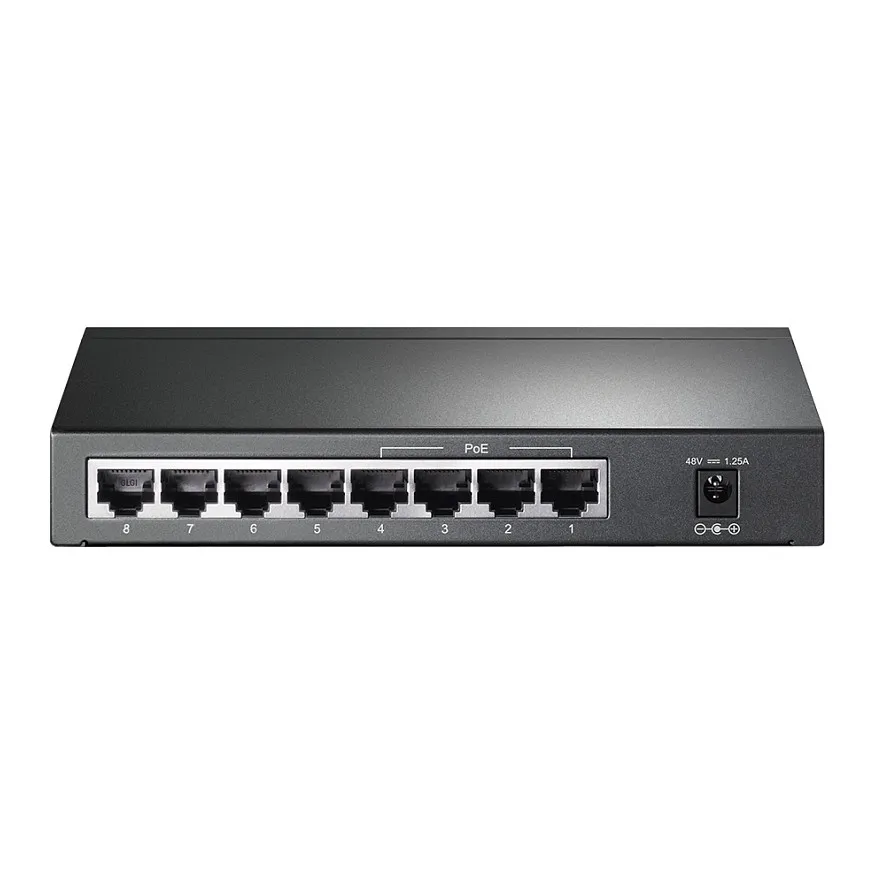

TP-Link 8-Port Gigabit Desktop PoE Switch with 4-Port. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 53.5 V. Power connector: DC-in jack. Power over Ethernet (PoE)
8-Port Gigabit Desktop Switch with 4-Port PoE
Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Intelligent Power Management
When total power consumption excels 55W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
Switch type: Managed
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 8
Power connector: DC-in jack
Network
Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T
Cable types supported: Cat3, Cat4, Cat5, Cat5e
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Feature: MAC address auto-learning supported
Feature: MAC address auto-aging supported
Data transmission
Switching capacity: 16 Gbit/s
Forwarding rate: 11.904 Mpps
MAC address table: 4000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 16000
Security
Feature: IGMP snooping
Design
Product colour: Grey
Housing material: Metal
LED indicators: Yes
Performance
Maximum cable length: 100 m
Feature: Fanless
Power
Power source: DC/PoE
Feature: Power supply included
Number of power supply units: 1
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
DC input voltage: 53.5 V
Input current: 1.31 A
Power consumption (max): 75 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 4
Total Power over Ethernet (PoE) budget: 64 W
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 90%
Heat dissipation: 225.75 BTU/h
Weight & dimensions
Width: 171 mm
Depth: 98 mm
Height: 27 mm
Packaging content
Cables included: AC
Feature: User guide
Packaging data
Package type: Box
Package width: 223 mm
Package depth: 280 mm
Package height: 68 mm
Package weight: 1.25 kg
Sustainability
Feature: Sustainability compliance
Certificates
Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
