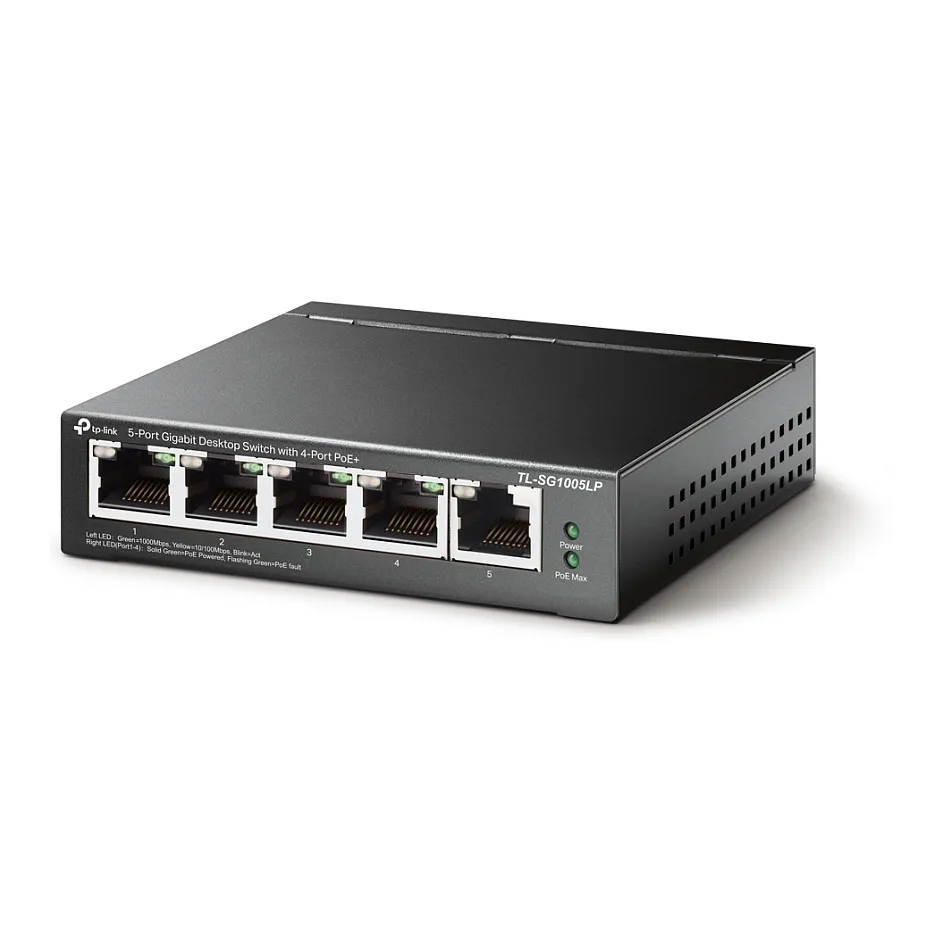

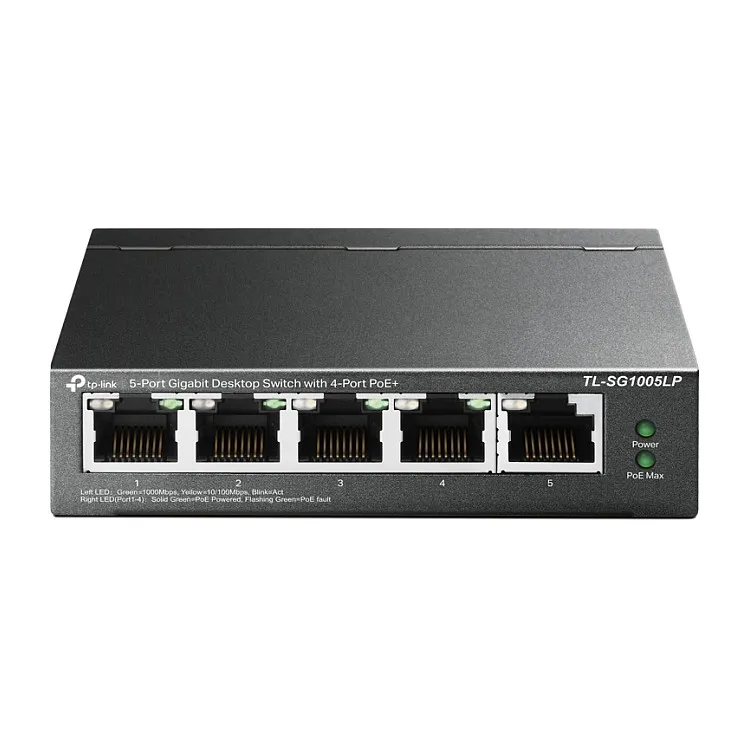

TP-Link TL-SG1005LP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 53.5 V. Power over Ethernet (PoE). Wall mountable
Plug and Play, with PoE power supply which meets the needs of diverse devices.
Dedicated 4-Port PoE+ Switch (40 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 40 W PoE power budget for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Intelligent Power Management
When total power consumption exceeds 40 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Advanced Functions for Higher Performance
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.
IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.
Durable Metal Casing
The interior components of TL-SG1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005LP delivers switching performance you can depend on.
Switch type: Unmanaged
Feature: Quality of Service (QoS) support
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 5
Network
Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Feature: MAC address auto-learning supported
Feature: MAC address auto-aging supported
Data transmission
Switching capacity: 10 Gbit/s
Forwarding rate: 7.44 Mpps
MAC address table: 2000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 16000
Security
Feature: IGMP snooping
Design
Product colour: Black
LED indicators: Yes
Feature: Wall mountable
Performance
Maximum cable length: 100 m
Feature: Fanless
Power
Power source: DC/PoE
Feature: Power supply included
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
DC input voltage: 53.5 V
Input current: 0.81 A
Power consumption (max): 47.5 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 4
Total Power over Ethernet (PoE) budget: 40 W
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 90%
Heat dissipation: 161.98 BTU/h
Weight & dimensions
Width: 99.8 mm
Depth: 98 mm
Height: 25 mm
Packaging content
Feature: User guide
Packaging data
Package type: Box
Package width: 131 mm
Package depth: 196 mm
Package height: 121 mm
Package weight: 730 g
Sustainability
Feature: Sustainability compliance
Certificates
Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
Certification: FCC, CE, RoHS
Logistics data
Harmonized System (HS) code: 85176990
