TP-Link PoE+ Injector. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000. Product colour: Black, Maximum operating distance: 100 m, LED indicators: Power. Output power: 30 W, AC adapter input voltage: 100 – 240 V, AC adapter frequency: 50/60 Hz. Certification: FCC, CE, RoHS. Width: 125 mm, Depth: 59.4 mm, Height: 36.8 mm

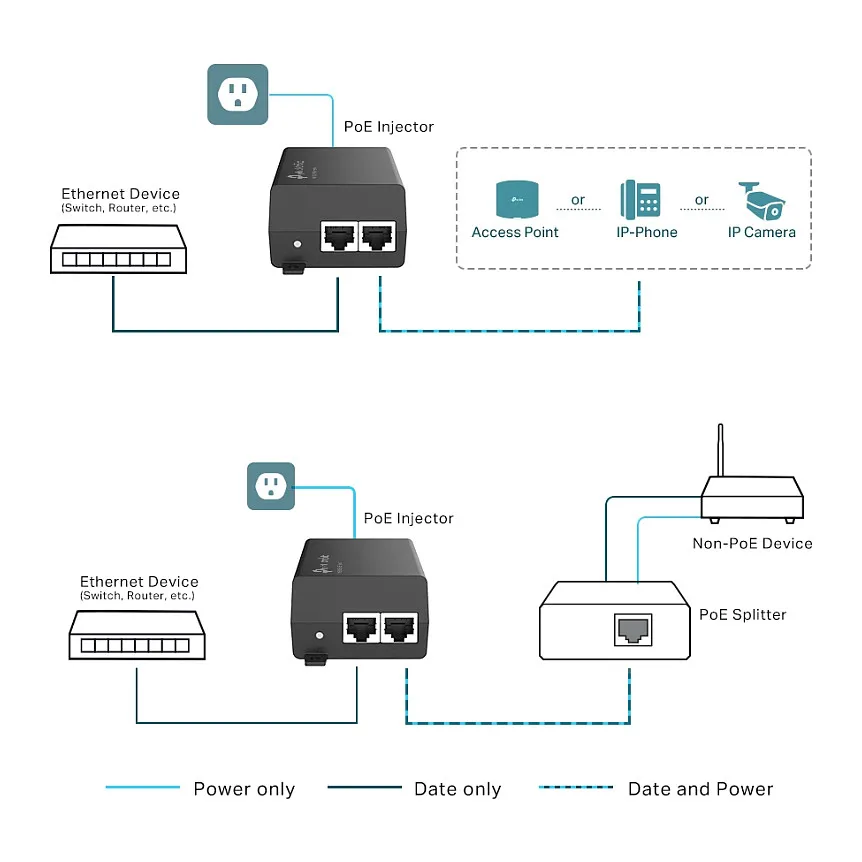

The PoE+ Injector TL-POE160S fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-Link’s TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
Network
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000
Feature: Power over Ethernet (PoE)
Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u
Cable types supported: Cat3, Cat4, Cat5, Cat5e
Features
Product colour: Black
Feature: Wall mountable
Feature: Plug and Play
Maximum operating distance: 100 m
LED indicators: Power
Ports & interfaces

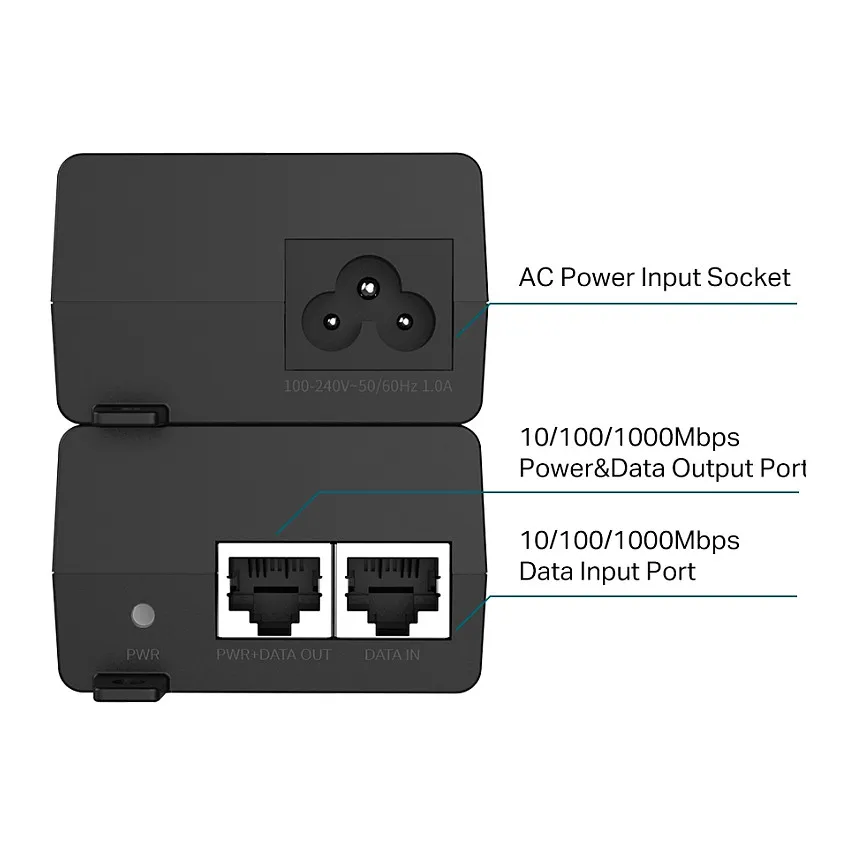

Ethernet LAN (RJ-45) ports: 2
RJ-45 input ports: 1
RJ-45 output ports: 1
Power
Output power: 30 W
AC adapter input voltage: 100 – 240 V
AC adapter frequency: 50/60 Hz
Certificates
Certification: FCC, CE, RoHS
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 10 – 90%
Storage temperature (T-T): -40 – 70 °C
Storage relative humidity (H-H): 5 – 90%
Weight & dimensions
Width: 125 mm
Depth: 59.4 mm
Height: 36.8 mm
Packaging content
Number of products included: 1 pc(s)
Feature: Wall mounting kit
Feature: Power cord included
Feature: Quick installation guide
Packaging content: TL-POE160S, power cord, RJ45 cable, installation guide, wall-mounting kits
Packaging data
Package width: 170 mm
Package depth: 230 mm
Package height: 80 mm
Package weight: 460 g
Package type: Box
Logistics data
Harmonized System (HS) code: 85044095
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000
Feature: Power over Ethernet (PoE)
Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u
Cable types supported: Cat3, Cat4, Cat5, Cat5e
Features
Product colour: Black
Feature: Wall mountable
Feature: Plug and Play
Maximum operating distance: 100 m
LED indicators: Power
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
RJ-45 input ports: 1
RJ-45 output ports: 1
Power
Output power: 30 W
AC adapter input voltage: 100 – 240 V
AC adapter frequency: 50/60 Hz
Certificates
Certification: FCC, CE, RoHS
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 10 – 90%
Storage temperature (T-T): -40 – 70 °C
Storage relative humidity (H-H): 5 – 90%
Weight & dimensions
Width: 125 mm
Depth: 59.4 mm
Height: 36.8 mm
Packaging content
Number of products included: 1 pc(s)
Feature: Wall mounting kit
Feature: Power cord included
Feature: Quick installation guide
Packaging content: TL-POE160S, power cord, RJ45 cable, installation guide, wall-mounting kits
Packaging data
Package width: 170 mm
Package depth: 230 mm
Package height: 80 mm
Package weight: 460 g
Package type: Box
Logistics data
Harmonized System (HS) code: 85044095
