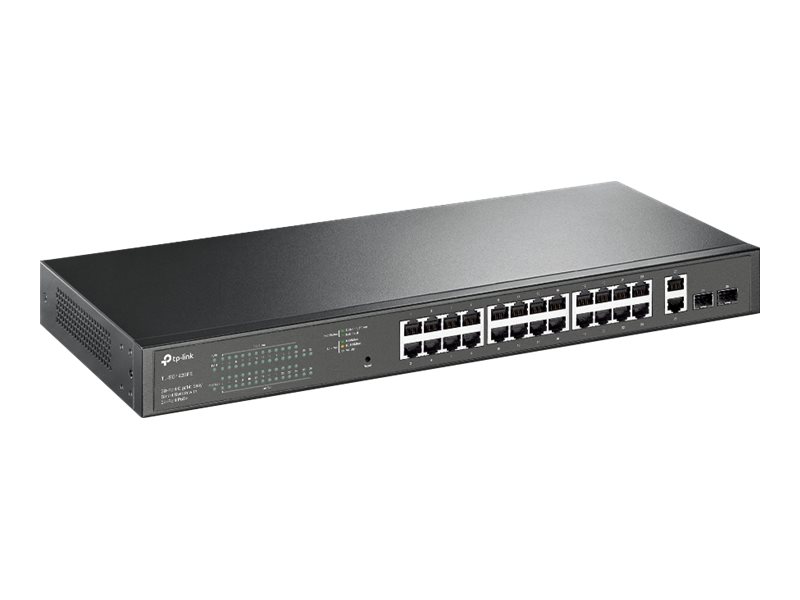

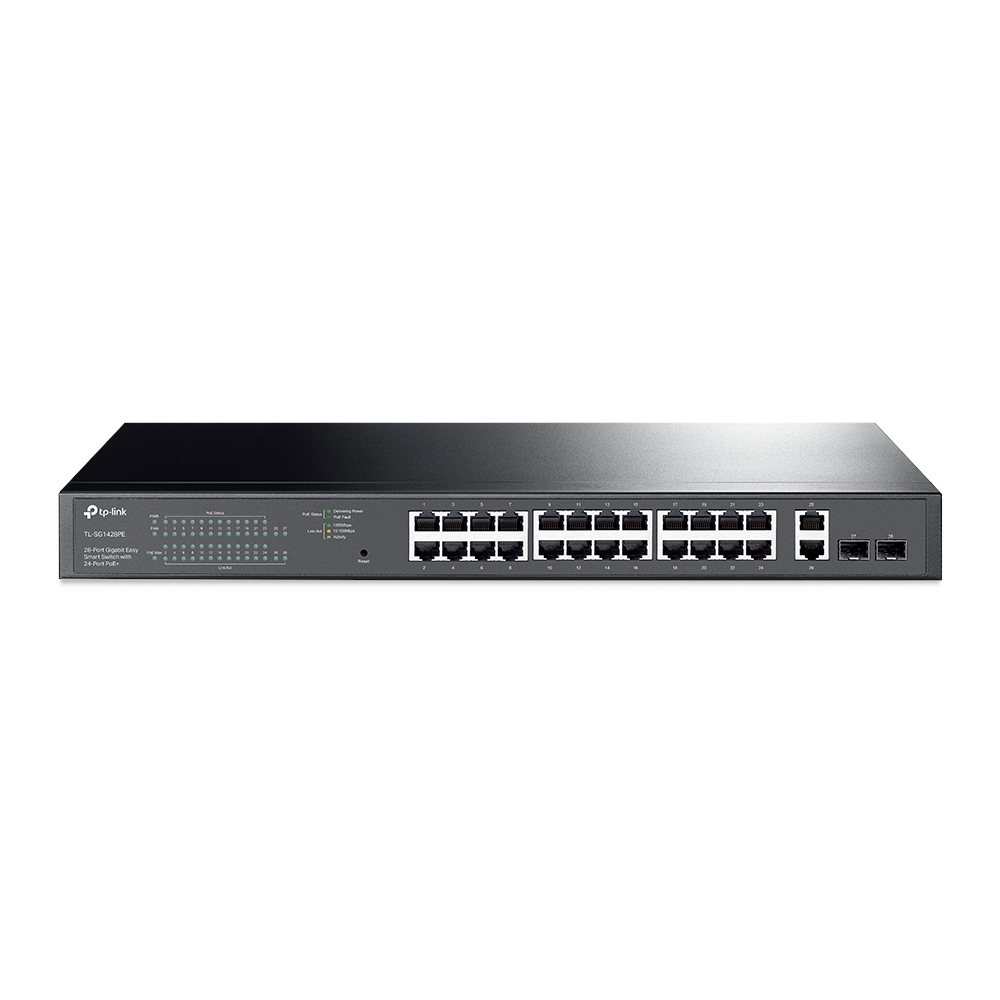

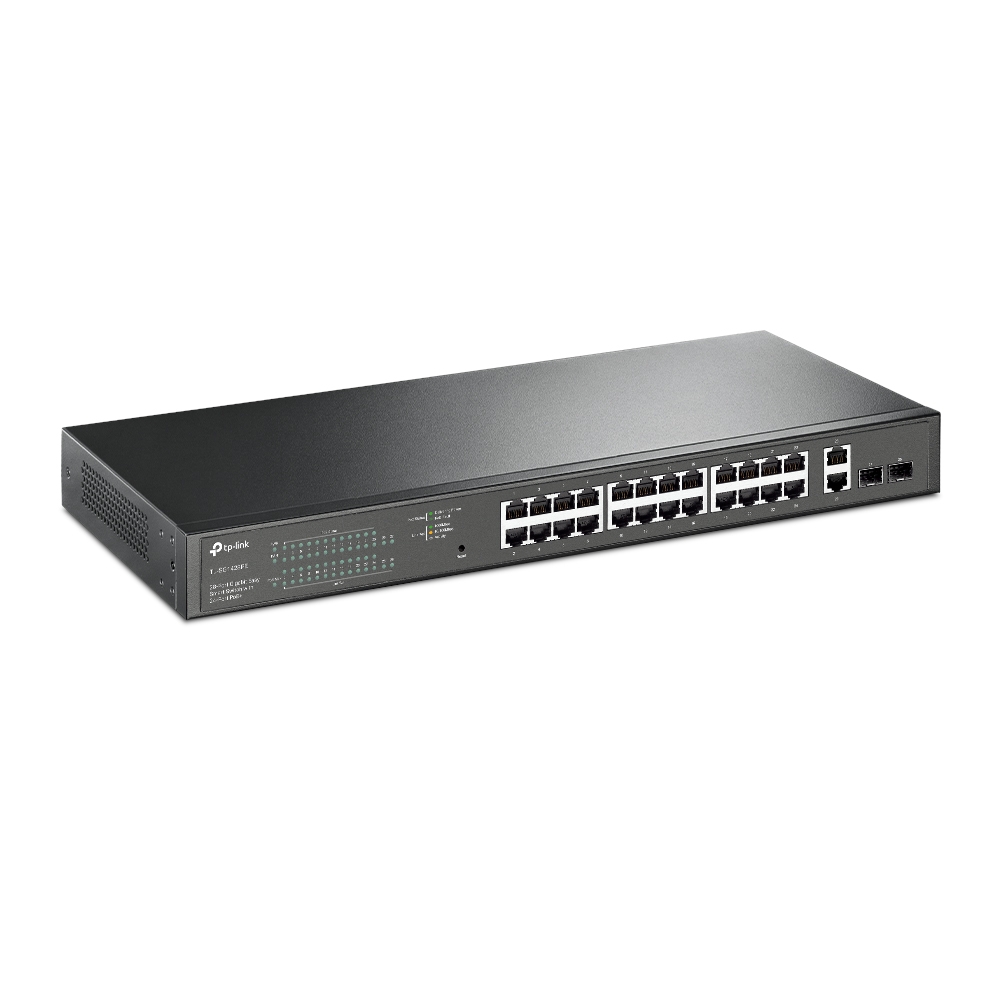

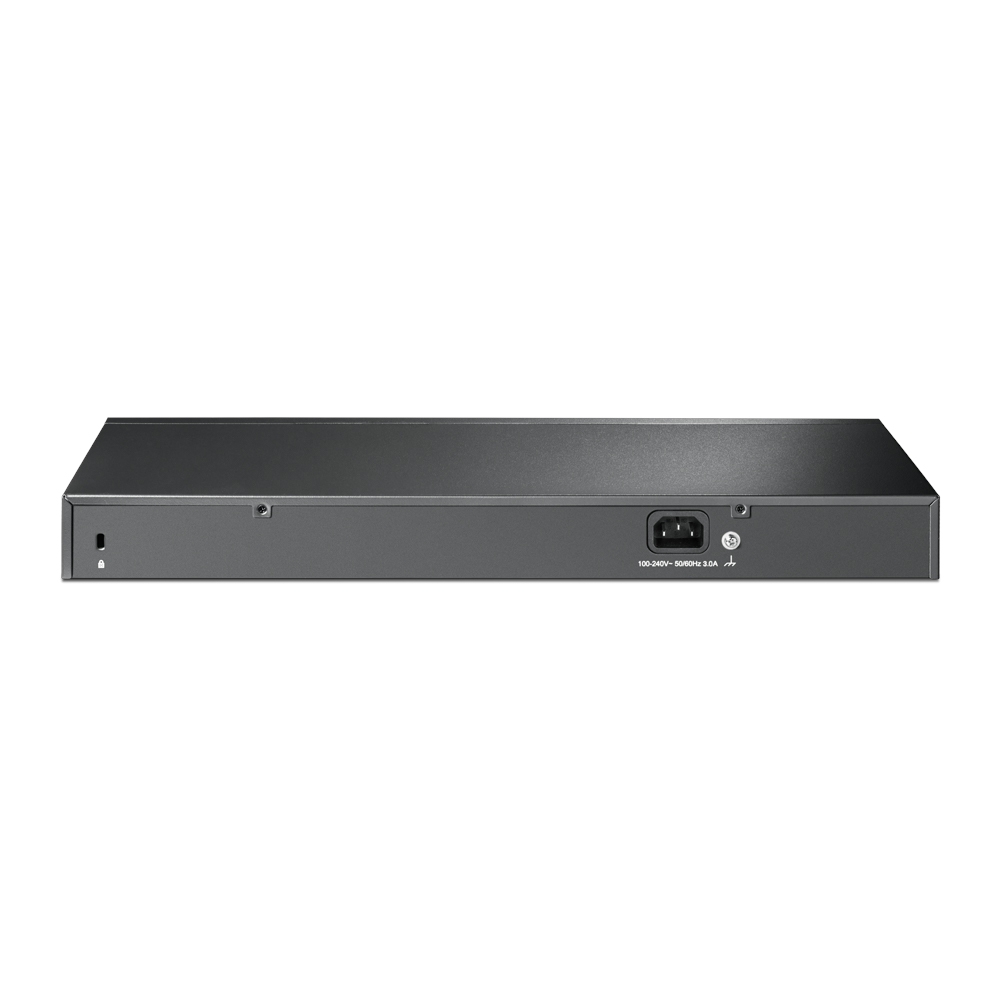

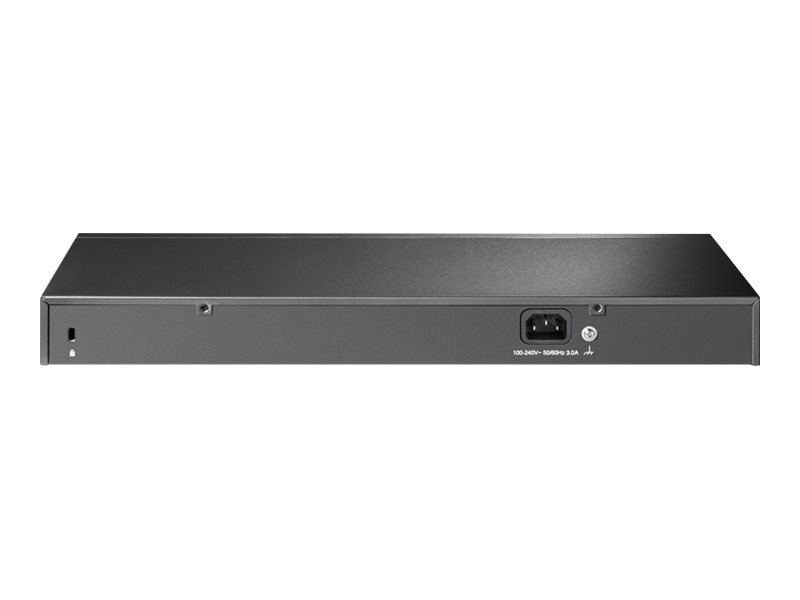

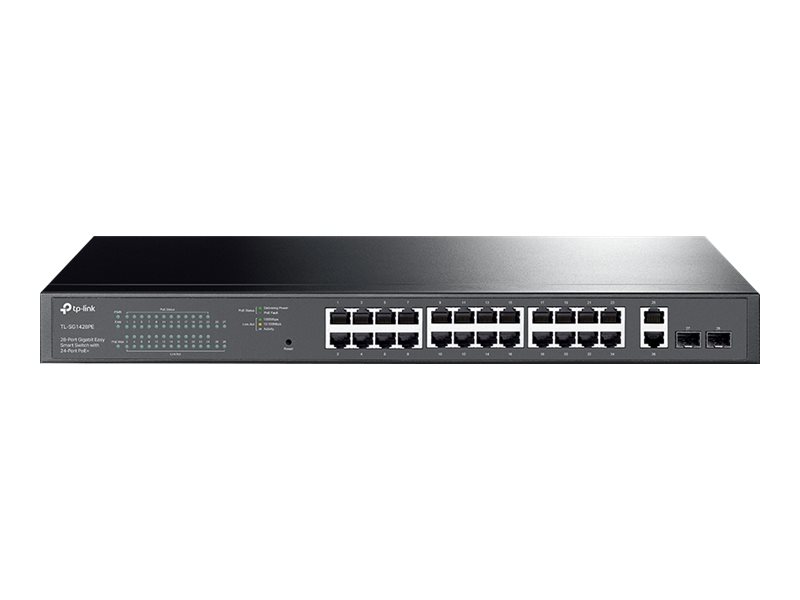

TP-Link 28-Port Gigabit Easy Smart Switch with 24-Port PoE+. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 26. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE…. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Easy to Use, Multi-Purpose PoE Switch with Powerful Performance
Multiple Application Scenarios
The TL-SG1428PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.
Dedicated 24 PoE+ Ports (250 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget for the 24× gigabit PoE+ ports makes it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.
Easy to Use
Value-Added Features Bring Unexpected Experiences
QoS for a Lag-Free Experience
Ensures smooth traffic for latency-sensitive applications, such as voice and video.
IGMP Snooping for Multicast Optimization
Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.
VLAN for Security
Helps to create a network with higher security and better overall performance by dividing the network into smaller groups.
Making Management Easy
TL-SG1428PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1428PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
Multiple Factors Guarantee Stable Operation
System Self-Healing with PoE Auto Recovery
The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.
Intelligent Power Management to Prevent Power Overload
Automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply when the total PoE power consumption exceeds 250 W. This protects the device from power overload operation.
Great Compatibility with PD Detection
Automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

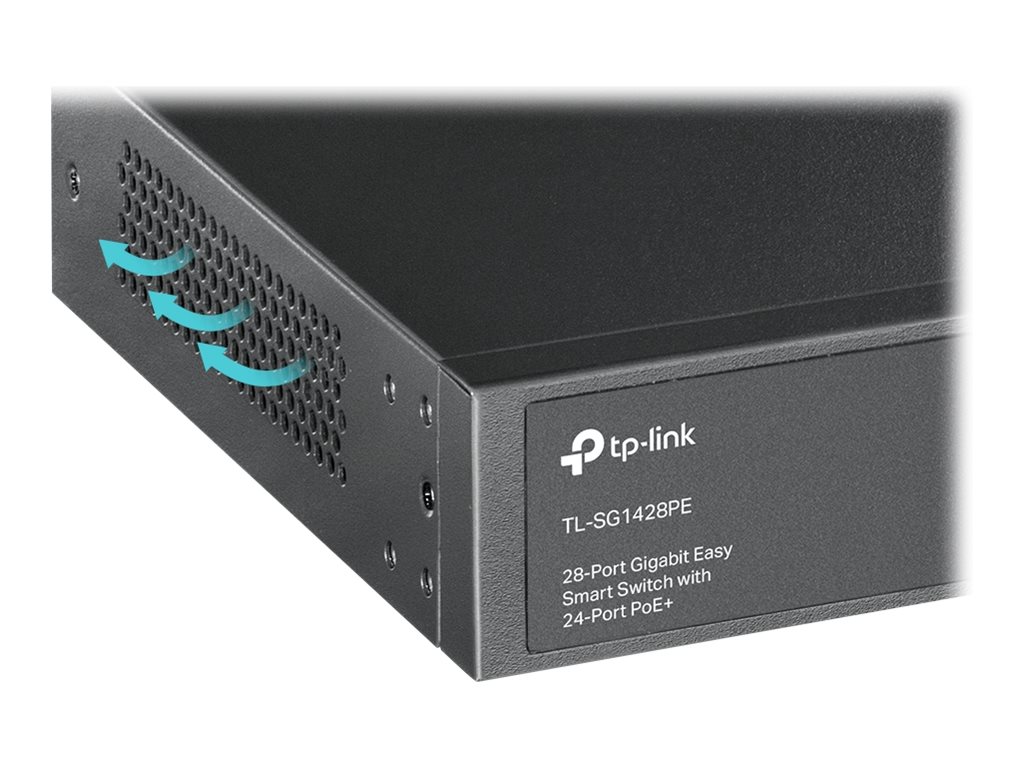

Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.
Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 26
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 26
SFP module slots quantity: 2
Network
Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6
Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Feature: VLAN support
Virtual LAN features: Port-based VLAN, Tagged VLAN
Number of VLANs: 32
Optical fiber
Fiber ethernet cabling technology: 1000BASE-X
Data transmission
Switching capacity: 56 Gbit/s
Forwarding rate: 41.7 Mpps
MAC address table: 8000 entries
Feature: Store-and-forward
Number of queues: 4
Feature: Jumbo frames support
Jumbo frames: 10000
Packet buffer memory: 4.1 MB
Security
Feature: IGMP snooping
Security algorithms: SNMP, SNMPv2, SNMPv3
Multicast features
Feature: Multicast support
Design
Feature: Rack mounting
Form factor: 1U
Product colour: Black
Number of fans: 2 fan(s)
Power
Power source: AC
Feature: Power supply included
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Power consumption (max): 1039.03 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 24
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 250 W
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 90%
Weight & dimensions
Width: 440 mm
Depth: 220 mm
Height: 44 mm
Packaging content
Cables included: AC
Feature: User guide
Feature: Rack mount kit
Packaging data
Package width: 336 mm
Package depth: 528 mm
Package height: 100 mm
Package weight: 2.29 kg
Certificates
Certification: CE, FCC, RoHS
Logistics data
Harmonized System (HS) code: 85176990
