TP-Link PSM500-AC. Purpose: Network switch, Power supply type: Indoor, Input voltage: 100 – 240 V. Product colour: Metallic, Housing material: Metal. Width: 185 mm, Depth: 73.5 mm, Height: 40 mm. Quantity per pack: 1 pc(s)

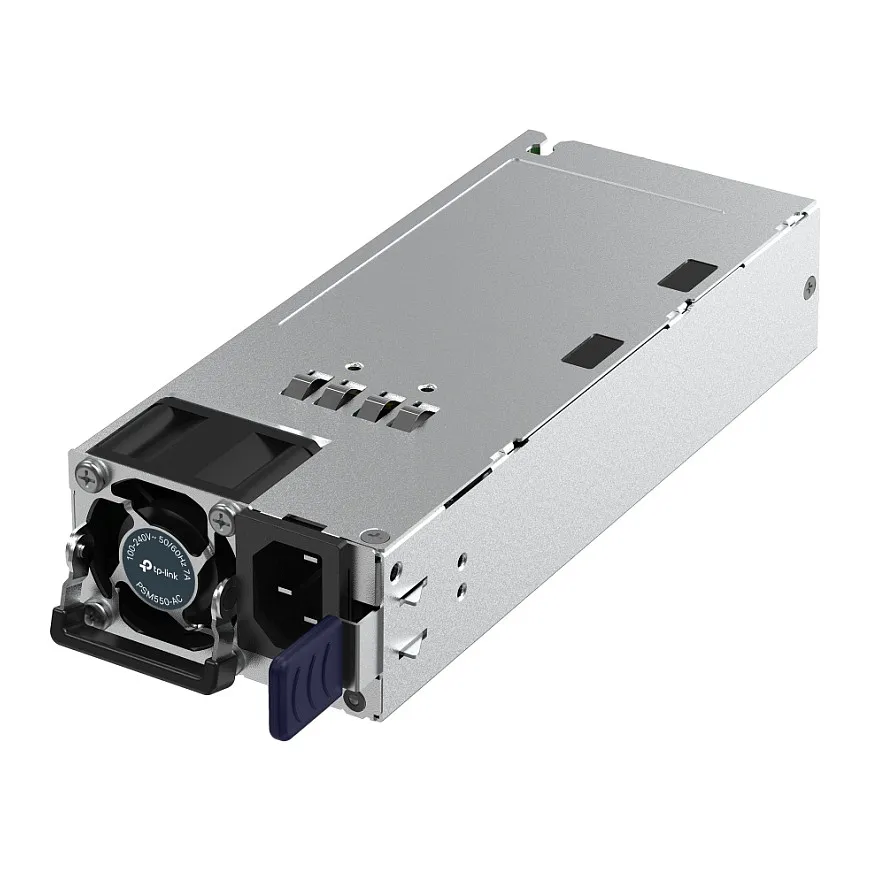

The TP-Link Power Supply Module PSM550-AC is an AC-input and DC-output power supply module. It can convert the input voltage to 12 Volts with a maximum output power of 550 Watts. The power supply module is fully hot-swappable, helping to ensure no system interruption during installation or replacement. The TP-Link Power Supply Module is applicable to multiple Omada and Omada Pro switch models, such as SX6632YF, S7500-26XF6Y.
Features
Purpose: Network switch
Power supply type: Indoor
Power current type: AC-to-DC
Input voltage: 100 – 240 V
Input frequency: 50/60 Hz
Input current: 7 A
Output power: 550 W
Output voltage: 12 V
Output current: 45 A
Power protection features: Over current, Over voltage, Overheating, Short circuit
Compatibility: TP-Link SX6632YF, S7500-26XF6Y
Design
Product colour: Metallic
Housing material: Metal
Feature: Suitable for indoor use
Operational conditions
Operating temperature (T-T): 0 – 45 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 5 – 90%
Storage relative humidity (H-H): 5 – 95%
Weight & dimensions
Width: 185 mm
Depth: 73.5 mm
Height: 40 mm
Packaging content
Quantity per pack: 1 pc(s)
Purpose: Network switch
Power supply type: Indoor
Power current type: AC-to-DC
Input voltage: 100 – 240 V
Input frequency: 50/60 Hz
Input current: 7 A
Output power: 550 W
Output voltage: 12 V
Output current: 45 A
Power protection features: Over current, Over voltage, Overheating, Short circuit
Compatibility: TP-Link SX6632YF, S7500-26XF6Y
Design
Product colour: Metallic
Housing material: Metal
Feature: Suitable for indoor use
Operational conditions
Operating temperature (T-T): 0 – 45 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 5 – 90%
Storage relative humidity (H-H): 5 – 95%
Weight & dimensions
Width: 185 mm
Depth: 73.5 mm
Height: 40 mm
Packaging content
Quantity per pack: 1 pc(s)
