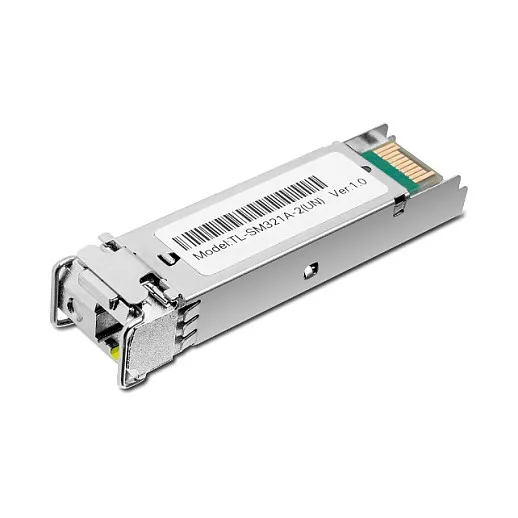

TP-Link Omada Gigabit Single-Mode WDM Bi-Directional SFP Module. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Product colour: Metallic. Input voltage: 3.3 V. Compliance certificates: RoHS, Certification: CE, FCC. Quantity per pack: 1 pc(s)

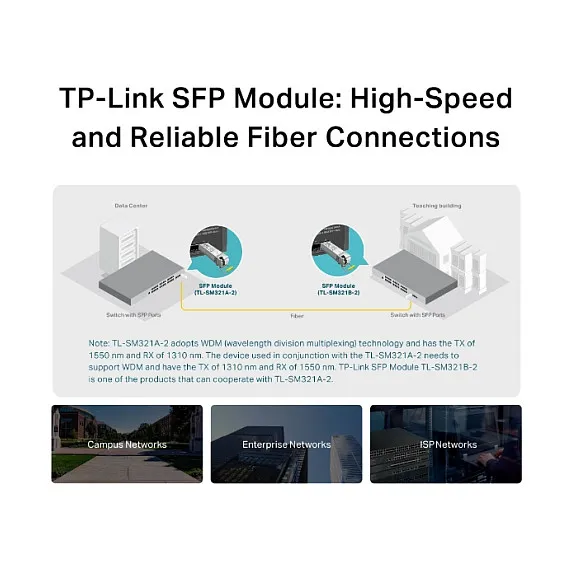

TP-LINK´s TL-SM321A adopts the latest standard 1000Base-BX, transmission over a single strand of fiber, with one different wavelength going in each direction. You can extend the network distance up to 10Km (6.2 miles) paired with TP-LINK TL-SM321A, MC112CS, or compatible third-party WDM module.
Performance
SFP transceiver type: Fiber optic
Maximum data transfer rate: 1250 Mbit/s
Interface type: SFP
Feature: Single-mode fiber (SMF) supported
Fiber optic connector: LC (UPC)
Fiber cable diameters supported (core/cladding): 9/125 µm
SFP transceiver standard: BX
Maximum transfer distance: 1000 m
Tx wavelength (max): 1550 nm
Rx wavelength (max): 1310 nm
Networking standards: IEEE 802.3z
Fiber ethernet cabling technology: 1000BASE
Feature: Wavelength-division multiplexing (WDM)
Features
Product colour: Metallic
Feature: Hot-swap
Power
Input voltage: 3.3 V
Certificates
Compliance certificates: RoHS
Certification: CE, FCC
Operational conditions
Operating temperature (T-T): 0 – 70 °C
Storage temperature (T-T): -40 – 80 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 90%
Packaging content
Quantity per pack: 1 pc(s)
Packaging data
Package width: 81.5 mm
Package depth: 122.5 mm
Package height: 38.5 mm
Package weight: 60 g
Logistics data
Harmonized System (HS) code: 85369010
SFP transceiver type: Fiber optic
Maximum data transfer rate: 1250 Mbit/s
Interface type: SFP
Feature: Single-mode fiber (SMF) supported
Fiber optic connector: LC (UPC)
Fiber cable diameters supported (core/cladding): 9/125 µm
SFP transceiver standard: BX
Maximum transfer distance: 1000 m
Tx wavelength (max): 1550 nm
Rx wavelength (max): 1310 nm
Networking standards: IEEE 802.3z
Fiber ethernet cabling technology: 1000BASE
Feature: Wavelength-division multiplexing (WDM)
Features
Product colour: Metallic
Feature: Hot-swap
Power
Input voltage: 3.3 V
Certificates
Compliance certificates: RoHS
Certification: CE, FCC
Operational conditions
Operating temperature (T-T): 0 – 70 °C
Storage temperature (T-T): -40 – 80 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 90%
Packaging content
Quantity per pack: 1 pc(s)
Packaging data
Package width: 81.5 mm
Package depth: 122.5 mm
Package height: 38.5 mm
Package weight: 60 g
Logistics data
Harmonized System (HS) code: 85369010
