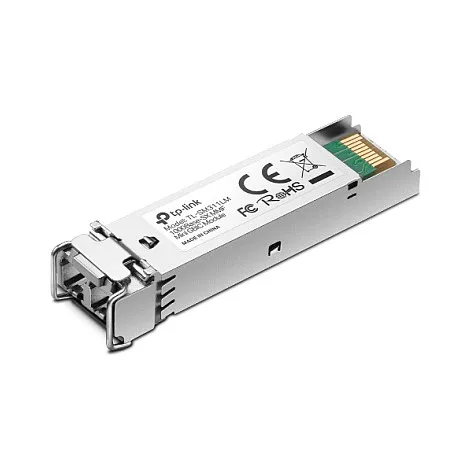

TP-Link Omada SFP 1000BASE-SX LC MiniGBIC Mm. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: mini-GBIC/SFP. Product colour: Metallic. Input voltage: 3.3 V. Compliance certificates: RoHS, Certification: FCC, CE. Width: 55.4 mm, Depth: 13.7 mm, Height: 12.9 mm
What This Product Does

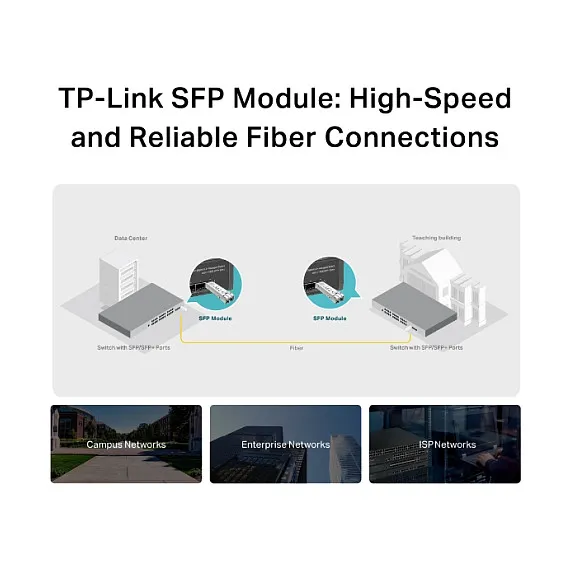

The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
Performance
SFP transceiver type: Fiber optic
Maximum data transfer rate: 1250 Mbit/s
Interface type: mini-GBIC/SFP
Feature: Multi-mode fiber (MMF) supported
Fiber optic connector: LC (UPC)
Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm

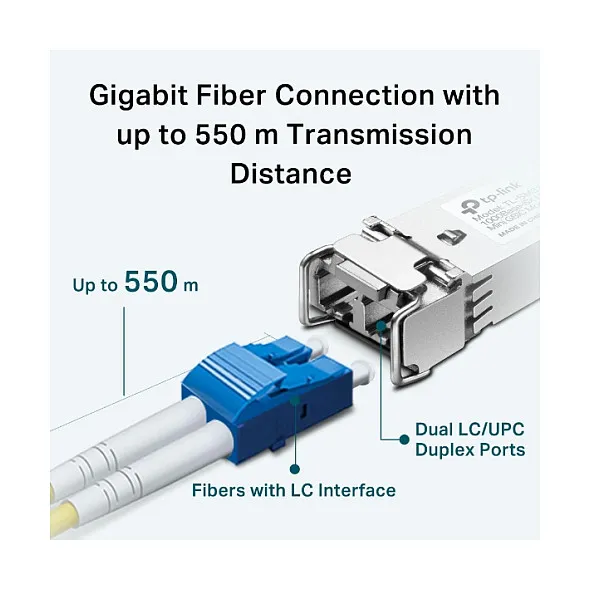

Maximum transfer distance: 550 m
Wavelength: 850 nm
Networking standards: IEEE 802.3z
Features
Product colour: Metallic
Power
Input voltage: 3.3 V
Certificates
Compliance certificates: RoHS
Certification: FCC, CE
Operational conditions
Minimum operating temperature: 0 °C
Maximum operating temperature: 70 °C
Operating temperature (T-T): 0 – 70 °C
Storage temperature (T-T): -40 – 80 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 90%
Weight & dimensions
Width: 55.4 mm
Depth: 13.7 mm
Height: 12.9 mm
Packaging content
Quantity per pack: 1 pc(s)
Packaging data
Feature: User guide
Package width: 38 mm
Package depth: 207 mm
Package height: 38 mm
Package weight: 110 g
Logistics data
Harmonized System (HS) code: 85369010
SFP transceiver type: Fiber optic
Maximum data transfer rate: 1250 Mbit/s
Interface type: mini-GBIC/SFP
Feature: Multi-mode fiber (MMF) supported
Fiber optic connector: LC (UPC)
Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm
Maximum transfer distance: 550 m
Wavelength: 850 nm
Networking standards: IEEE 802.3z
Features
Product colour: Metallic
Power
Input voltage: 3.3 V
Certificates
Compliance certificates: RoHS
Certification: FCC, CE
Operational conditions
Minimum operating temperature: 0 °C
Maximum operating temperature: 70 °C
Operating temperature (T-T): 0 – 70 °C
Storage temperature (T-T): -40 – 80 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 90%
Weight & dimensions
Width: 55.4 mm
Depth: 13.7 mm
Height: 12.9 mm
Packaging content
Quantity per pack: 1 pc(s)
Packaging data
Feature: User guide
Package width: 38 mm
Package depth: 207 mm
Package height: 38 mm
Package weight: 110 g
Logistics data
Harmonized System (HS) code: 85369010
