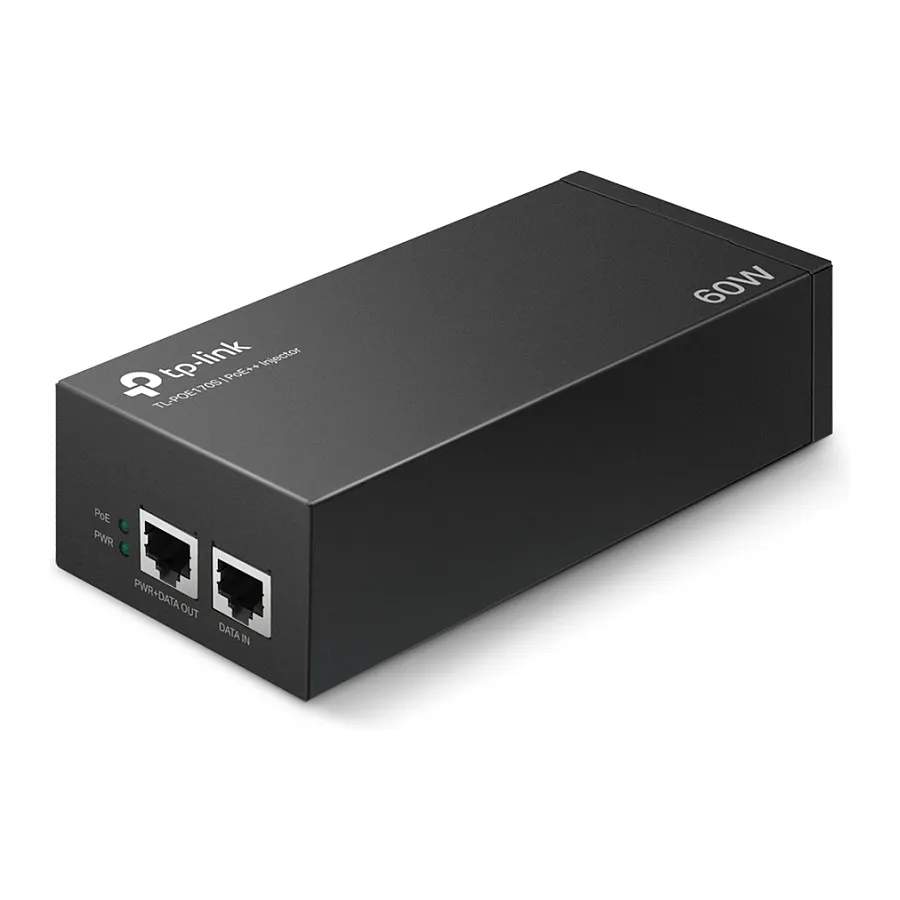

TP-Link Omada PoE++ Injector Adapter. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000. Product colour: Black, Housing material: Metal. Output power: 60 W, AC adapter input voltage: 100 – 240 V, AC adapter frequency: 50/60 Hz. Certification: FCC, CE, RoHS. Width: 155 mm, Depth: 70 mm, Height: 42 mm
What This Product Does

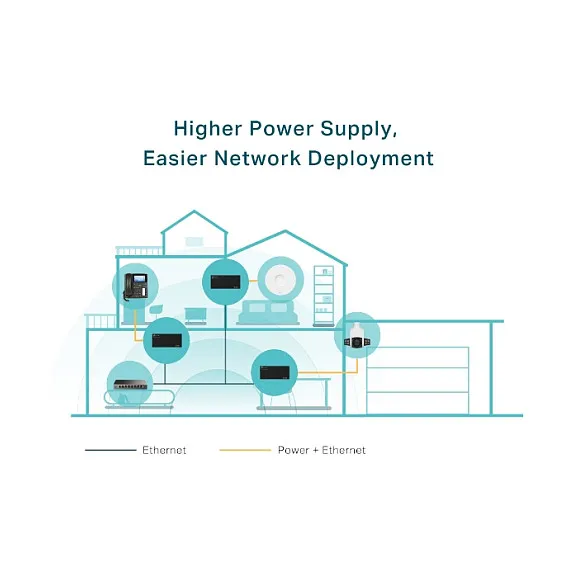

The PoE++ Injector TL-POE170S fully complies with IEEE 802.3af/at/bt standards with up to 60 W power supply. It can easily expand your network to where there are no power lines or outlets, where you wish to fix devices such as PTZ IP Cameras, LED, etc.
The PoE++ Injector TL-POE170S fully complies with IEEE 802.3af/at/bt standards with up to 60 W power supply. It can easily expand your network to where there are no power lines or outlets, where you wish to fix devices such as PTZ IP Cameras, LED, etc.
Network
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000
Feature: Power over Ethernet (PoE)
Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u
Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6
Features
Product colour: Black
Housing material: Metal
Feature: Wall mountable
Feature: Plug and Play
Ports & interfaces
RJ-45 input ports: 1
RJ-45 output ports: 1
Power
Output power: 60 W
AC adapter input voltage: 100 – 240 V
AC adapter frequency: 50/60 Hz
Certificates
Certification: FCC, CE, RoHS
Operational conditions
Operating temperature (T-T): 0 – 45 °C
Operating relative humidity (H-H): 10 – 90%
Storage temperature (T-T): -40 – 70 °C
Storage relative humidity (H-H): 5 – 90%

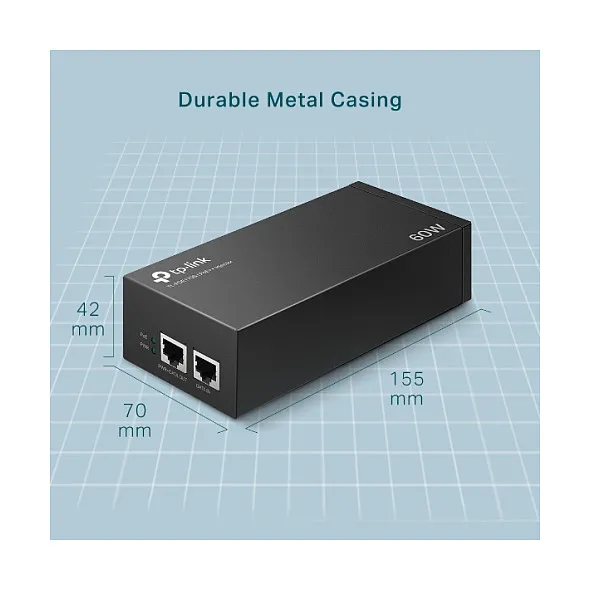

Weight & dimensions
Width: 155 mm
Depth: 70 mm
Height: 42 mm
Packaging content
Number of products included: 1 pc(s)
Feature: Quick installation guide
Packaging data
Package width: 190 mm
Package depth: 250 mm
Package height: 95 mm
Package weight: 920 g
Package type: Box
Logistics data
Harmonized System (HS) code: 85044095
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000
Feature: Power over Ethernet (PoE)
Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u
Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6
Features
Product colour: Black
Housing material: Metal
Feature: Wall mountable
Feature: Plug and Play
Ports & interfaces
RJ-45 input ports: 1
RJ-45 output ports: 1
Power
Output power: 60 W
AC adapter input voltage: 100 – 240 V
AC adapter frequency: 50/60 Hz
Certificates
Certification: FCC, CE, RoHS
Operational conditions
Operating temperature (T-T): 0 – 45 °C
Operating relative humidity (H-H): 10 – 90%
Storage temperature (T-T): -40 – 70 °C
Storage relative humidity (H-H): 5 – 90%
Weight & dimensions
Width: 155 mm
Depth: 70 mm
Height: 42 mm
Packaging content
Number of products included: 1 pc(s)
Feature: Quick installation guide
Packaging data
Package width: 190 mm
Package depth: 250 mm
Package height: 95 mm
Package weight: 920 g
Package type: Box
Logistics data
Harmonized System (HS) code: 85044095
