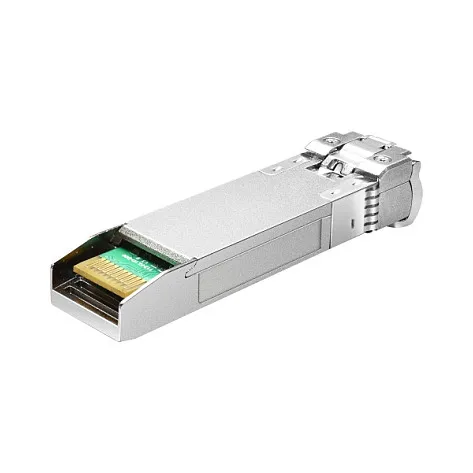

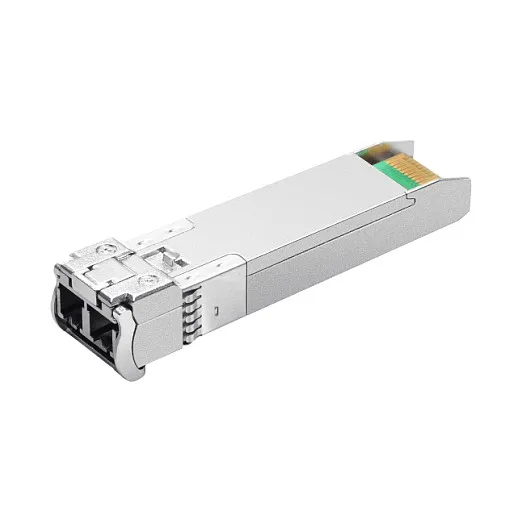

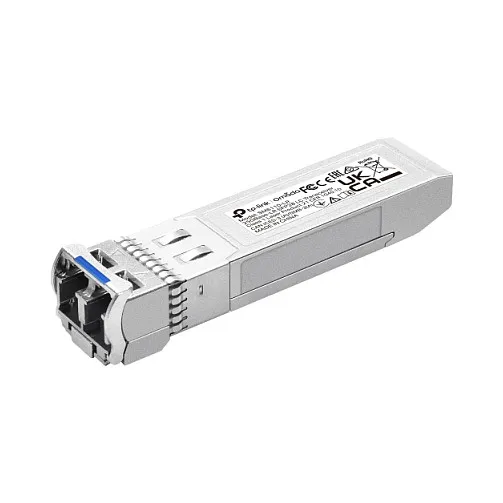

TP-Link Omada SM6110-LR. SFP transceiver type: Fiber optic, Maximum data transfer rate: 25780 Mbit/s, Interface type: SFP+. Product colour: Grey. Input voltage: 3.3 V. Width: 57 mm, Depth: 14 mm, Height: 12 mm. Quantity per pack: 1 pc(s)
The SM6110-LR is designed to extend transfer distances based on 10G/25G Ethernet connectivity. It is a 10G/25GBASE-LR high performance 1310 nm single-mode SFP+/SFP28 transceiver. It supports full duplex, 10G/25G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.
Performance
SFP transceiver type: Fiber optic
Maximum data transfer rate: 25780 Mbit/s
Interface type: SFP+
Fiber cable diameters supported (core/cladding): 9/125 µm
Maximum transfer distance: 10000 m
Wavelength: 1310 nm
Features
Product colour: Grey
Feature: Hot-Plug support
Feature: Hot-swap
Power
Input voltage: 3.3 V
Operational conditions
Minimum operating temperature: 0 °C
Maximum operating temperature: 70 °C
Storage temperature (T-T): -40 – 85 °C
Storage relative humidity (H-H): 5 – 90%
Weight & dimensions
Width: 57 mm
Depth: 14 mm
Height: 12 mm
Packaging content
Quantity per pack: 1 pc(s)
SFP transceiver type: Fiber optic
Maximum data transfer rate: 25780 Mbit/s
Interface type: SFP+
Fiber cable diameters supported (core/cladding): 9/125 µm
Maximum transfer distance: 10000 m
Wavelength: 1310 nm
Features
Product colour: Grey
Feature: Hot-Plug support
Feature: Hot-swap
Power
Input voltage: 3.3 V
Operational conditions
Minimum operating temperature: 0 °C
Maximum operating temperature: 70 °C
Storage temperature (T-T): -40 – 85 °C
Storage relative humidity (H-H): 5 – 90%
Weight & dimensions
Width: 57 mm
Depth: 14 mm
Height: 12 mm
Packaging content
Quantity per pack: 1 pc(s)
