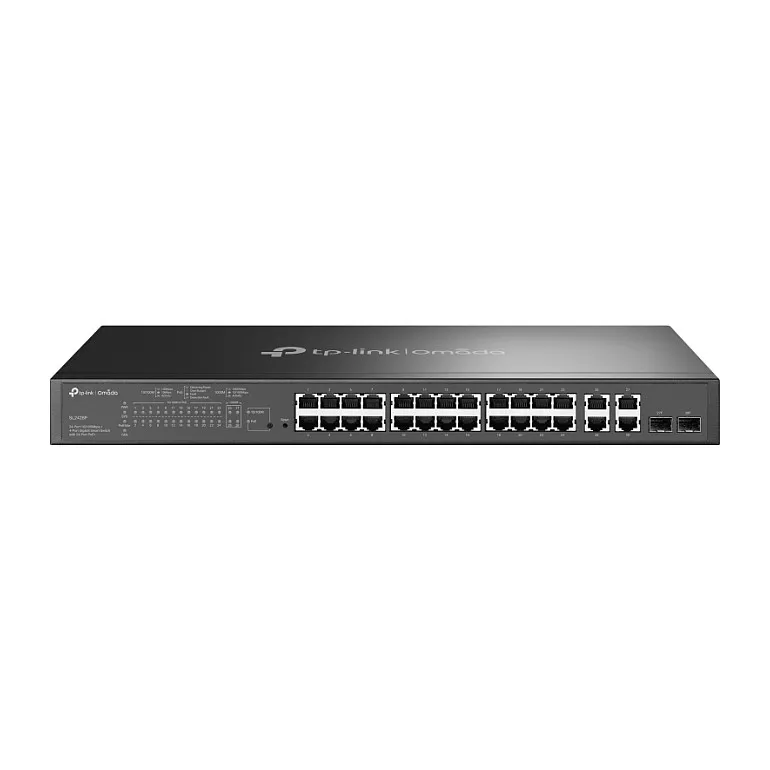

TP-Link Omada SL2428P. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 12.8 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE…. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
Management features
Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: ARP inspection
Feature: Configuring Location Settings (CLI)
Feature: System event log
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity: 24
Gigabit Ethernet (copper) ports quantity: 4
Combo SFP ports quantity: 2
Network
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported: Cat5, Cat5e
Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Auto MDI/MDI-X
Feature: Spanning tree protocol
Feature: VLAN support
Number of VLANs: 512
Data transmission
Switching capacity: 12.8 Gbit/s
Throughput: 9.5 Mpps
MAC address table: 8000 entries
Number of queues: 4
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 4.1 MB
Security
Feature: Access Control List (ACL)
Feature: IGMP snooping
Security algorithms: SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS
Feature: SSH/SSL support
Multicast features
Feature: Multicast support
Protocols
Management protocols: SNMP v1/v2c/v3, RMON, SNTP, TFTP
Design
Feature: Rack mounting
Form factor: 1U
Product colour: Black
Number of fans: 2 fan(s)
Performance
Compatible operating systems: Microsoft Windows XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux
Feature: Firmware upgradeable
Power
Power source: AC
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 291.6 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 24
Total Power over Ethernet (PoE) budget: 250 W
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 90%
Heat dissipation: 995.09 BTU/h
Weight & dimensions
Width: 440 mm
Depth: 180 mm
Height: 44 mm
Packaging content
Cables included: AC
Feature: Quick start guide
Feature: Rack mount kit
Certificates
Certification: CE, FCC, RoHS
Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: ARP inspection
Feature: Configuring Location Settings (CLI)
Feature: System event log
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity: 24
Gigabit Ethernet (copper) ports quantity: 4
Combo SFP ports quantity: 2
Network
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported: Cat5, Cat5e
Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Auto MDI/MDI-X
Feature: Spanning tree protocol
Feature: VLAN support
Number of VLANs: 512
Data transmission
Switching capacity: 12.8 Gbit/s
Throughput: 9.5 Mpps
MAC address table: 8000 entries
Number of queues: 4
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 4.1 MB
Security
Feature: Access Control List (ACL)
Feature: IGMP snooping
Security algorithms: SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS
Feature: SSH/SSL support
Multicast features
Feature: Multicast support
Protocols
Management protocols: SNMP v1/v2c/v3, RMON, SNTP, TFTP
Design
Feature: Rack mounting
Form factor: 1U
Product colour: Black
Number of fans: 2 fan(s)
Performance
Compatible operating systems: Microsoft Windows XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux
Feature: Firmware upgradeable
Power
Power source: AC
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 291.6 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 24
Total Power over Ethernet (PoE) budget: 250 W
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 90%
Heat dissipation: 995.09 BTU/h
Weight & dimensions
Width: 440 mm
Depth: 180 mm
Height: 44 mm
Packaging content
Cables included: AC
Feature: Quick start guide
Feature: Rack mount kit
Certificates
Certification: CE, FCC, RoHS
