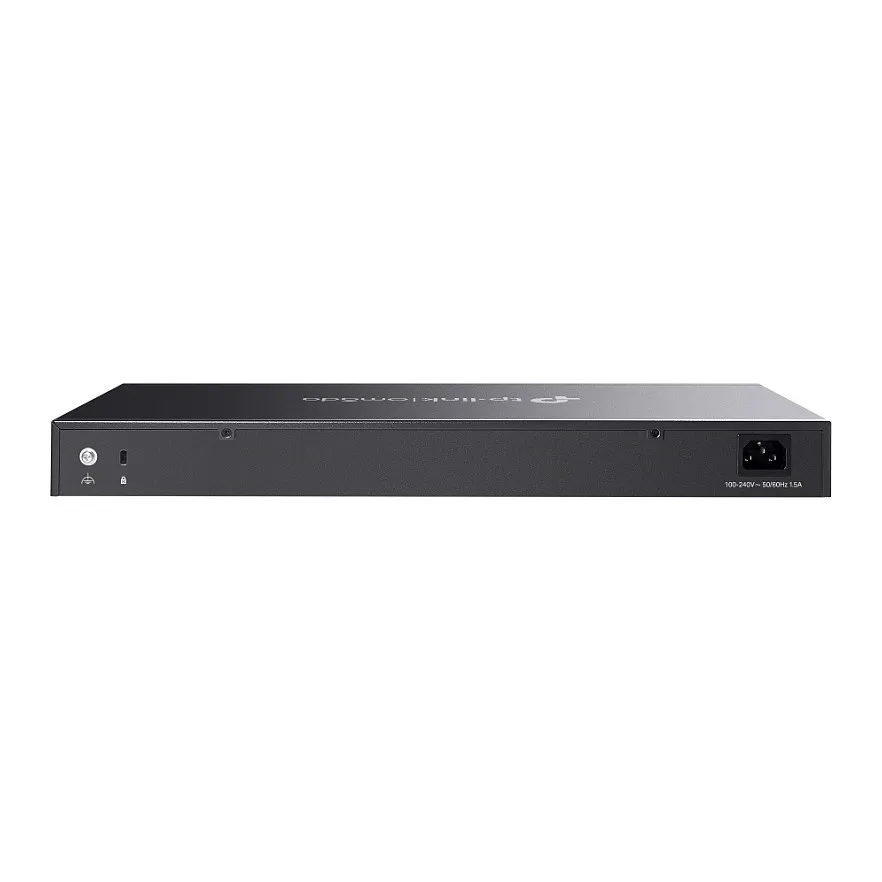

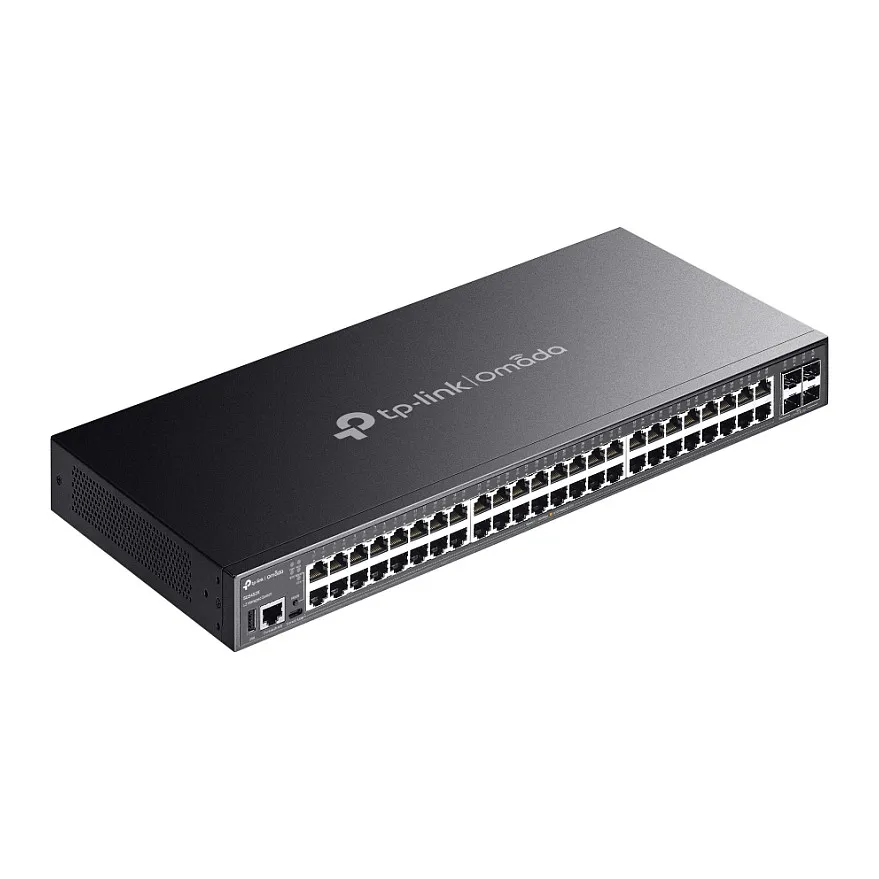

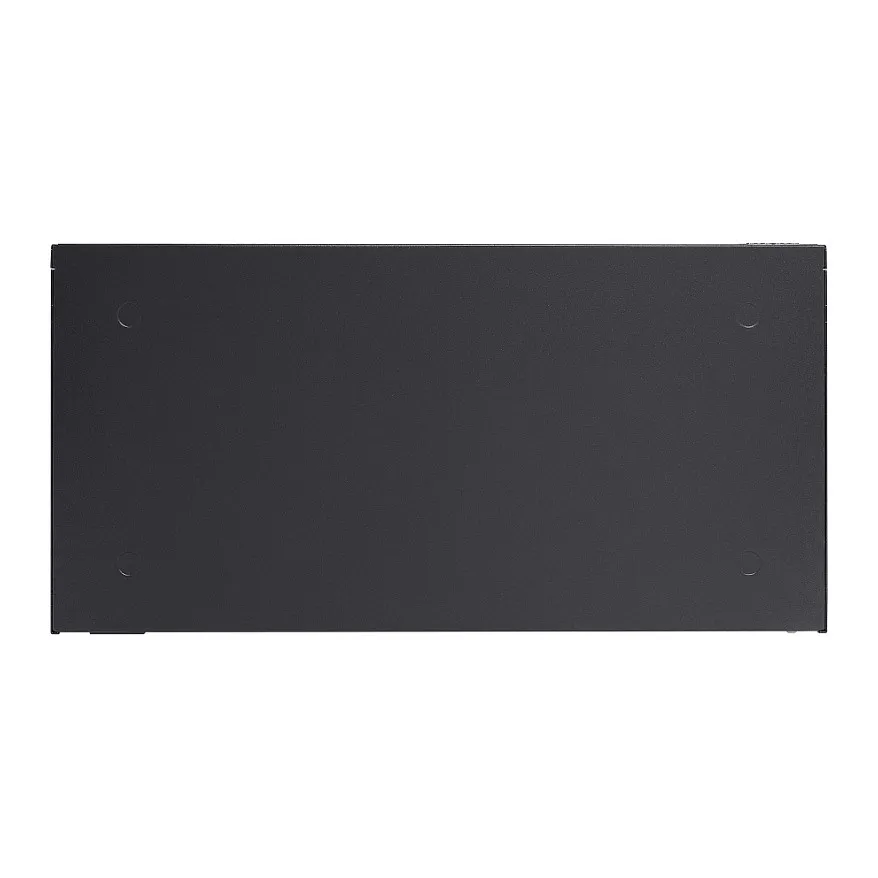

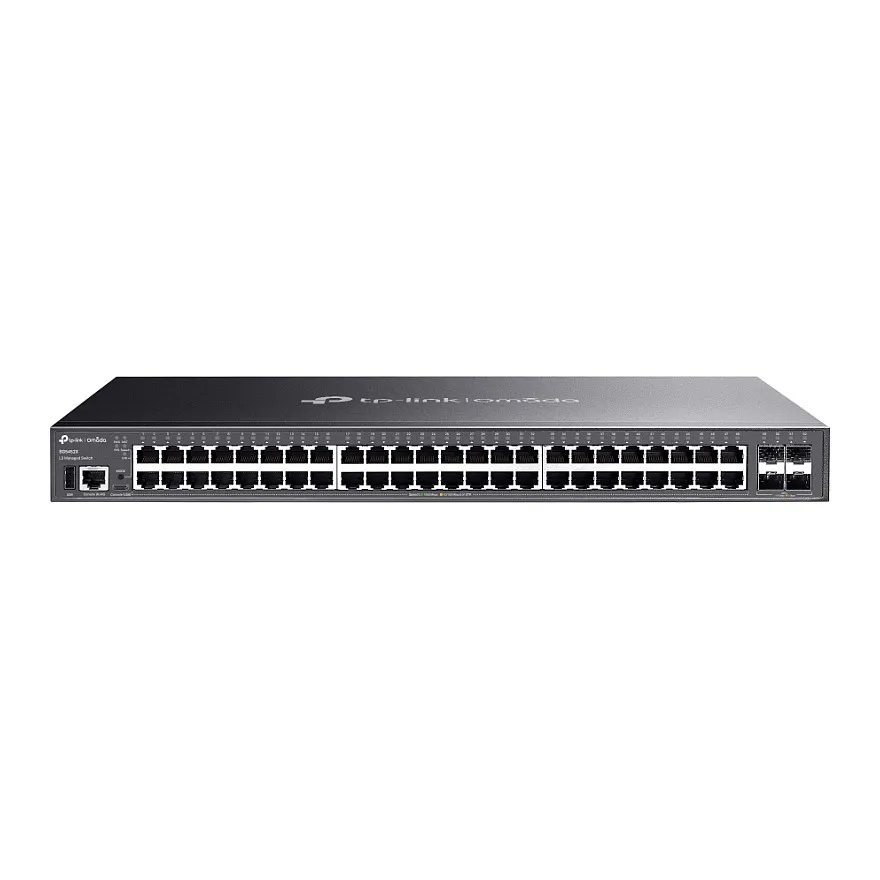

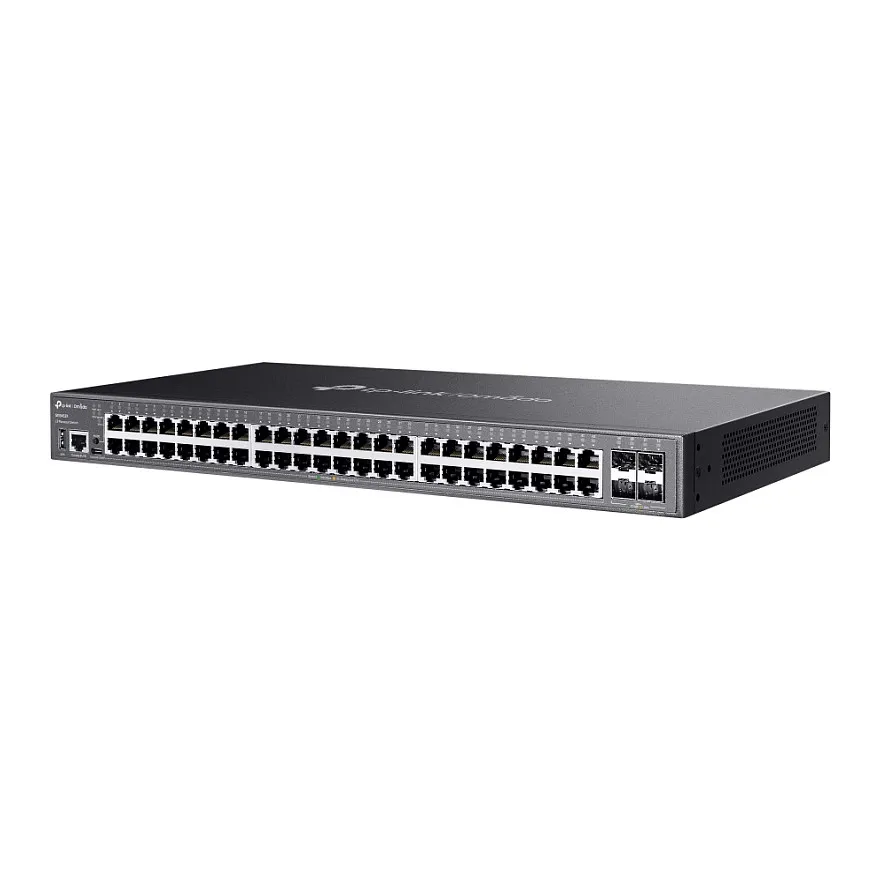

TP-Link Omada SG5452X. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, USB 2.0 ports quantity: 1, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt. Rack mounting
Omada SG5452X is a dependable entry-level L3 switch tailored for the access layer, featuring L3 routing, fast 10 Gbps wired speeds, and stacking options. It includes 48× gigabit RJ45 ports, 4× 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security and extensive management features, the SG5452X offers a reliable networking solution for SMEs, and ISPs.
High-speed Connectivity and Powerful Stacking
48× gigabit RJ45 ports and 4× 10 Gbps SFP+ slots provide up to 176 Gbps switching capacity per unit. Up to 4 units of physical stacking empower the networking structure with built-in redundancy and performance.
Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, DHCP Server, and DHCP Relay are supported.
Highly Available
ERPS (Ethernet Ring Protection Switching) ensures rapid protection and recovery in ring topologies, which is essential for maintaining network uptime in medium business environments.
Enhanced Security Functions
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.
Omada SDN
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).† The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management—all controlled from a single interface.
Apart from the ability to be centrally managed via the web or the Omada app, SG5452X is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.
Switch type: Managed
Switch layer: L3
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Cloud-managed
Feature: ARP inspection
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 48
SFP+ module slots quantity: 4
USB Type-C ports quantity: 1
Console port: RJ-45
USB 2.0 ports quantity: 1
Network
Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Feature: 10G support
Feature: Port mirroring
Feature: Link aggregation
Feature: Broadcast storm control
Feature: VLAN support
Virtual LAN features: MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Number of VLANs: 4000
Data transmission
Switching capacity: 176 Gbit/s
Forwarding rate: 130.94 Mpps
MAC address table: 16000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 12 MB
Security
DHCP features: DHCP relay, DHCP server
Feature: Access Control List (ACL)
Feature: IGMP snooping
Security algorithms: SNMP, SNMPv2, SNMPv3
Feature: MAC address filtering
Feature: Static port security
Feature: SSH/SSL support
Feature: IP-MAC-Port binding
Feature: Password protection
Multicast features
Feature: Multicast support
Design
Feature: Rack mounting
Feature: Stackable
Product colour: Black
LED indicators: Yes
Performance
Physical stacking (units): 4
Feature: Built-in processor
Processor manufacturer: ARM
Processor frequency: 1200 MHz
Memory type: DRAM
Internal memory: 2000 MB
Flash memory: 512 MB
Feature: Firmware upgradeable
Feature: Telnet
Feature: Fanless
Mean time between failures (MTBF): 211.644 h
Power
Power source: AC
Feature: Power supply included
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 34.1 W
Feature: Surge protection
Surge protection voltage: 6 kV
Other features
Management level: 4
Bandwidth: 88 Gbit/s
Operational conditions
Operating temperature (T-T): -5 – 45 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 90%
Heat dissipation: 116.42 BTU/h
Weight & dimensions
Width: 440 mm
Depth: 220 mm
Height: 44 mm
Packaging content
Cables included: AC
Feature: Quick start guide
Feature: Rack mount kit
Certificates
Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
