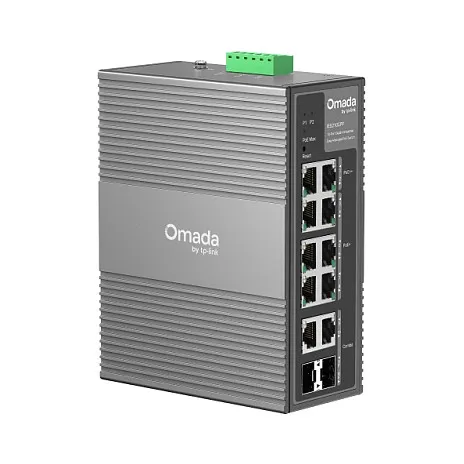

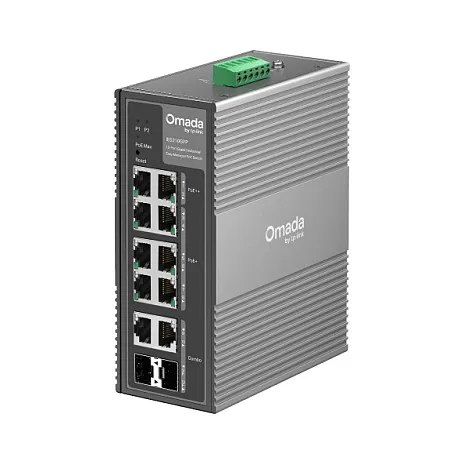

TP-Link Omada 10-Port Gigabit Industrial Easy Managed Switch with 6-Port PoE+ and 2-Port PoE++. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt. DC input voltage: 12 – 57 V. Power over Ethernet (PoE). Rack mounting, Form factor: DIN rail
Gigabit Easy Managed
PoE++ Switch
Industrial-Grade Protection Built for Harsh Environments

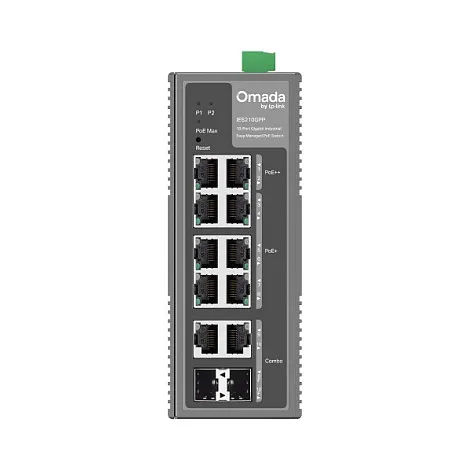

– 10× Gigabit Ports (2× PoE++, 6× PoE+, 2× RJ45/SFP Combo)
– 240W Total PoE Budget
– 40°C to 75°C Operating Temperature

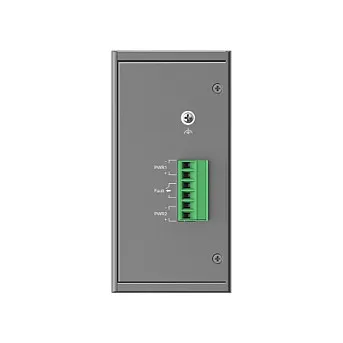

– 12~57VDC 1+1 Redundant Power Input
– Industrial-Grade IP40 Aluminum Casing
– Abundant Functions for CCTV Networking
– Easy Centralised Management

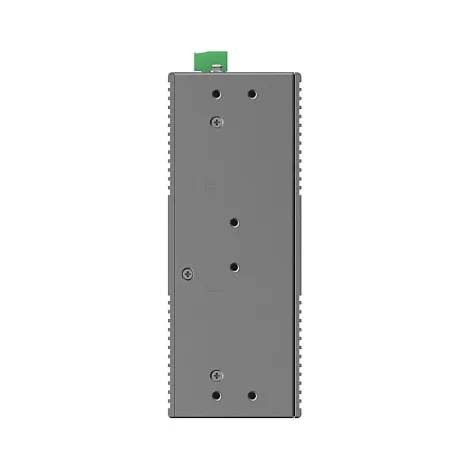

– DIN-Rail & Wall Mounting
Switch type: Managed
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Cloud-managed
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity: 2
Network
Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Auto MDI/MDI-X
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Auto-negotiation
Feature: VLAN support
Number of VLANs: 4000
Data transmission
Switching capacity: 20 Gbit/s
Forwarding rate: 14.88 Mpps
MAC address table: 8000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 15000
Packet buffer memory: 4000 MB
Security
DHCP features: DHCP client
Feature: IGMP snooping
Feature: Loop protection
Multicast features
Feature: Multicast support
Design
Feature: Rack mounting
Form factor: DIN rail
Product colour: Grey
LED indicators: Yes
Power
Power source: DC
DC input voltage: 12 – 57 V
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 6
Power over Ethernet 4PPoE (PoE++) ports quantity: 2
Total Power over Ethernet (PoE) budget: 240 W
Weight & dimensions
Width: 155 mm
Depth: 120 mm
Height: 60 mm
