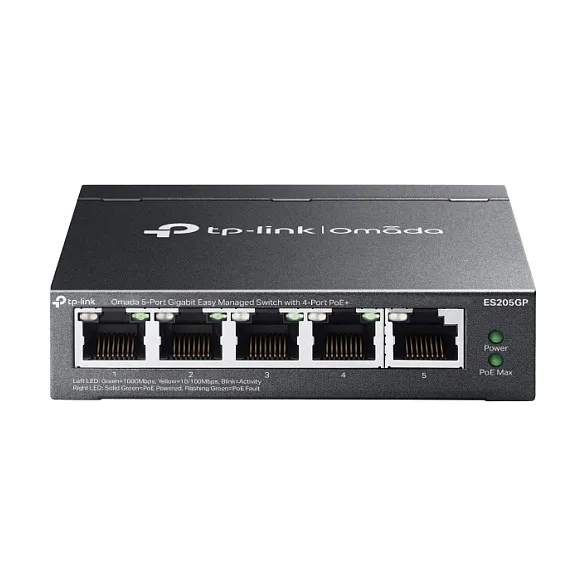

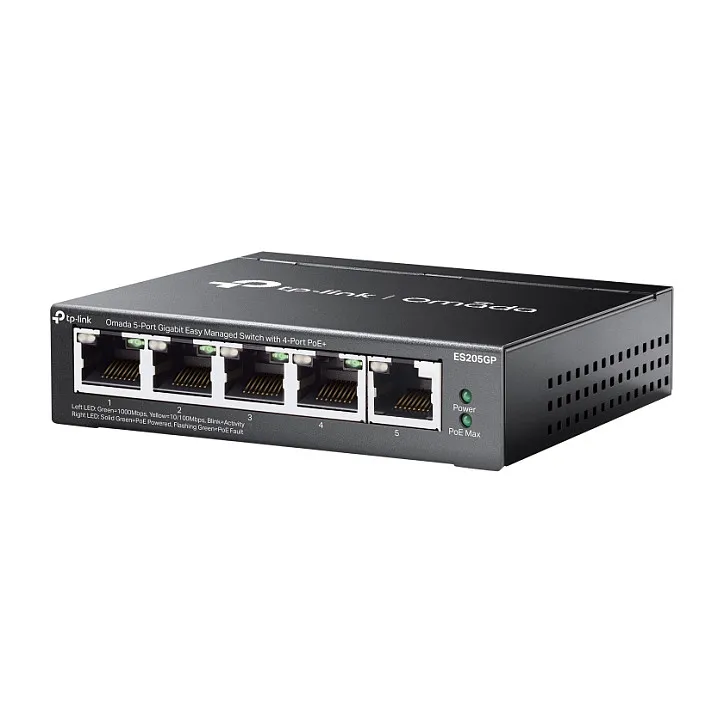

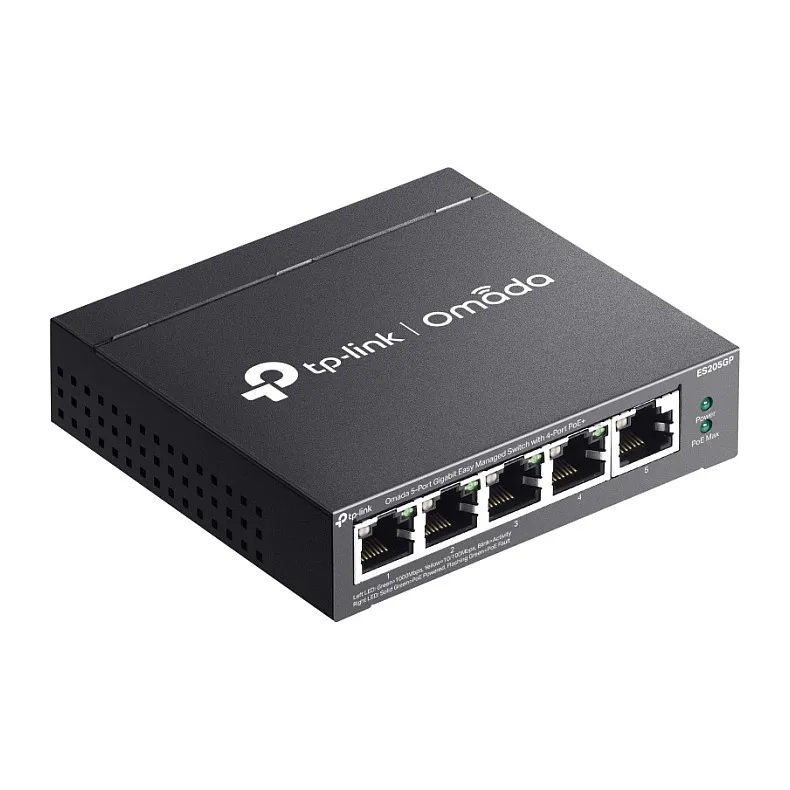

TP-Link Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 8000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x. DC input voltage: 53.5 V. Power over Ethernet (PoE). Wall mountable
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
– Easy to Use
– Hardware, Software, or Cloud-Based Controllers
– Centralized Management via Web or Omada App
– Zero-Touch Provisioning (ZTP)
Abundant Functions for Reliable Surveillance Networking
– Transmission Distance up to 250 m
– Priority Video Quality Guaranteed
– Secure Traffic Separation via Port Isolation
– PoE Auto Recovery
Multiple Application Scenarios
Surveillance
Works with IP Cameras
Conference Call
Works with IP Phones
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design
Switch type: Managed
Feature: Quality of Service (QoS) support
Feature: Cloud-managed
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x
Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Feature: VLAN support
Virtual LAN features: MTU VLAN, Port-based VLAN, Tagged VLAN
Optical fiber
Transmission distance (max): 0.25 km
Data transmission
Switching capacity: 10 Gbit/s
Forwarding rate: 7.4 Mpps
MAC address table: 8000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 15
Packet buffer memory: 4 MB
Security
DHCP features: DHCP client
Feature: IGMP snooping
Feature: Loop protection
Design
Product colour: Black
Feature: Reset button
LED indicators: Yes

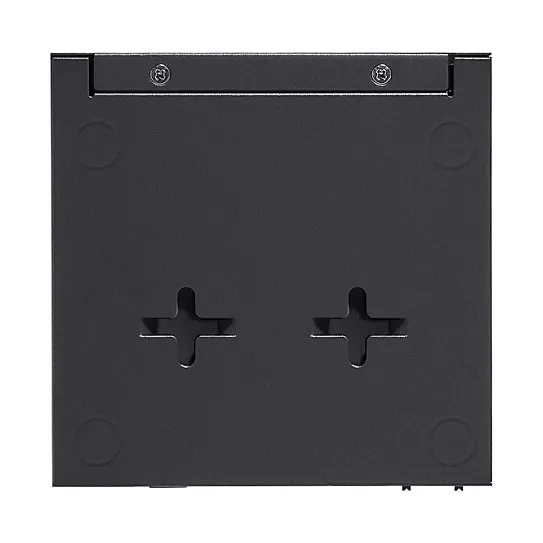

Feature: Wall mountable
Performance
Feature: Fanless
Power
Power source: AC/DC
Feature: Power supply included

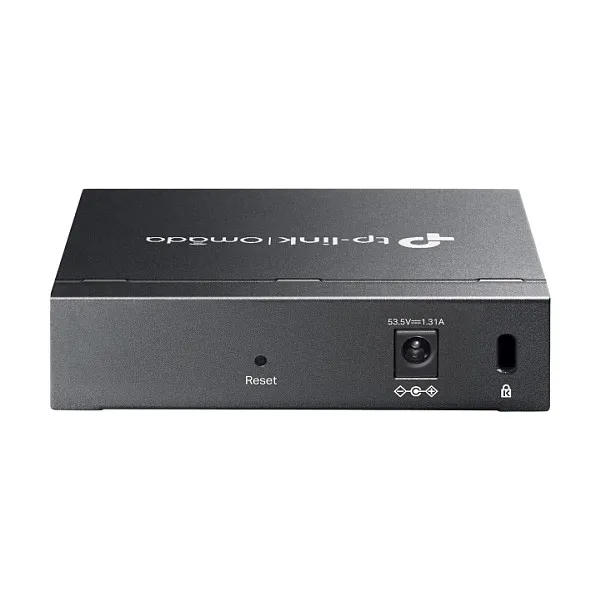

DC input voltage: 53.5 V
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 4
Power over Ethernet plus (PoE+) ports quantity: 4
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 65 W
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 90%
Weight & dimensions
Width: 100 mm
Depth: 98 mm
Height: 25 mm
Packaging content
Feature: User guide
Packaging data
Package type: Box
Certificates
Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
