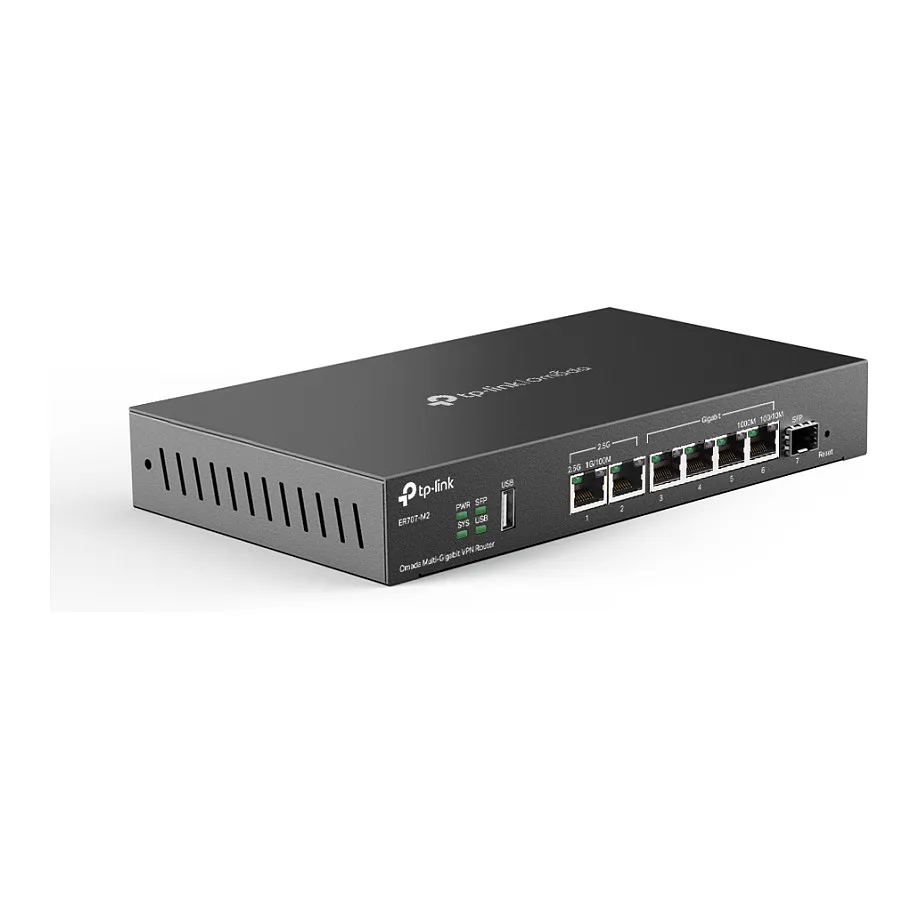

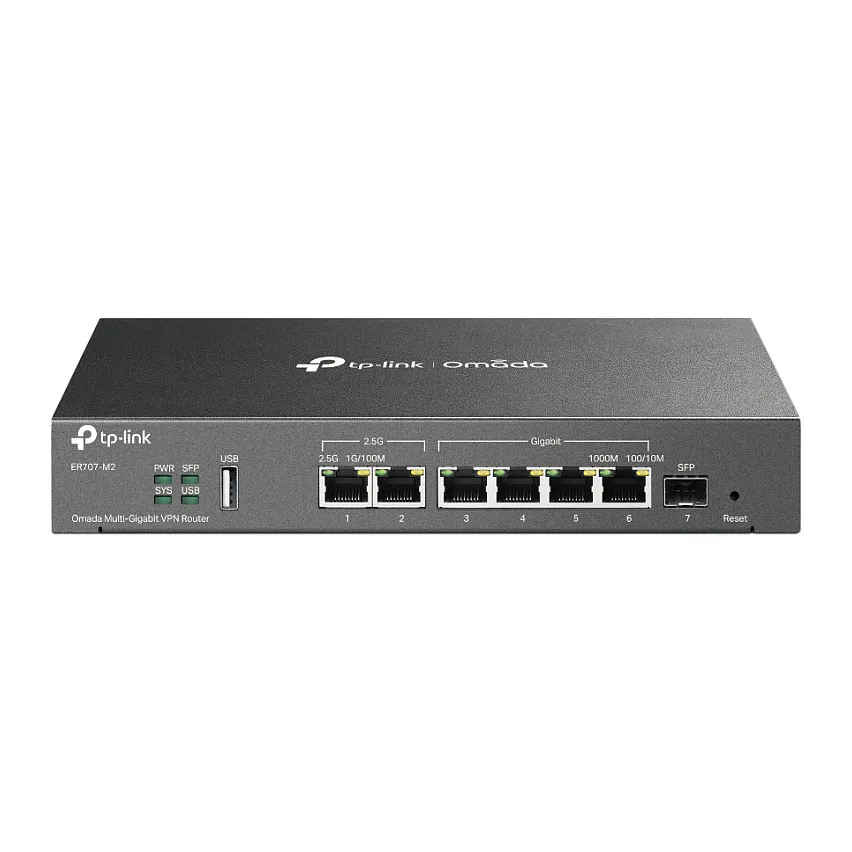

TP-Link Omada Multi-Gigabit VPN Router. Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3q, IEEE 802.3u, IEEE 802.3x, Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Supported network protocols: TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP. Security algorithms: 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, SNMP, SNMPv2, SNMPv3. Compliance certificates: CE, Federal Communications Commission (FCC), RoHS. Flash memory: 128 MB, Internal memory: 1000 MB, Internal memory type: DDR4
Delivering high-speed transmissions through dual 2.5 Gbps ports, ER707-M2 is designed for multi-person environments such as retail stores, hotels, and offices. Enjoy a blazing-fast network experience while working from home.
6× WAN Ports & 1 USB WAN for Mobile Broadband
Empowered with up to 6× WAN SFP and RJ45 ports, ER707-M2 supports various internet access.△ Multi-WAN Load Balancing distributes data streams based on the bandwidth proportion of every WAN port to increase the utilization rate of multi-line broadband.
Connect a 4G/3G modem to the USB 2.0 port for a LTE WAN backup.
High-Security VPN
Pass-through traffic and a variety of VPN protocols, such as SSL, GRE§, IPSec, PPTP, and L2TP, are available on ER707-M2, giving consumers versatile options. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment.* The router also features a built-in hardware engine to boost VPN performance.
Internet Access Management Strategy
Standardize users’ online behavior and easily specify the internet access rights and strategies of employees via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.
Omada SDN—The Smarter Cloud Solution for Business Networking
As the router that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER707-M2 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Feature: Ethernet WAN
Feature: SFP WAN
Network
Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3q, IEEE 802.3u, IEEE 802.3x
Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Throughput: 1.44 Gbit/s
Feature: Static route
Feature: VLAN support
Feature: Policy-based routing
Management features
Feature: Web-based management
Feature: Universal Plug and Play (UPnP)
Feature: Reset button
Ports & interfaces
Ethernet LAN (RJ-45) ports: 6
WAN/Ethernet LAN ports quantity: 6
WAN ports quantity: 1
Installed SFP modules quantity: 1
USB ports quantity: 1
USB version: 2.0
Protocols
Feature: DMZ support
Feature: DHCP client
Feature: DHCP server
Supported network protocols: TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
Security
Security algorithms: 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, SNMP, SNMPv2, SNMPv3
Feature: URL filtering
Feature: ICMP attack prevention
Feature: Access Control List (ACL)
Feature: Network address translation (NAT)
Feature: System event log
VPN tunnels quantity: 66
Certificates
Feature: Sustainability compliance
Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
Packaging content
Feature: AC adapter included
Feature: Quick installation guide
Features
Flash memory: 128 MB
Internal memory: 1000 MB
Internal memory type: DDR4
Windows operating systems supported: Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
Mac operating systems supported: Yes
Linux operating systems supported: Yes
Design
Product colour: Black
Housing material: Steel
Feature: Wall mountable
LED indicators: LAN, Link, Power, Speed, System, USB, WAN

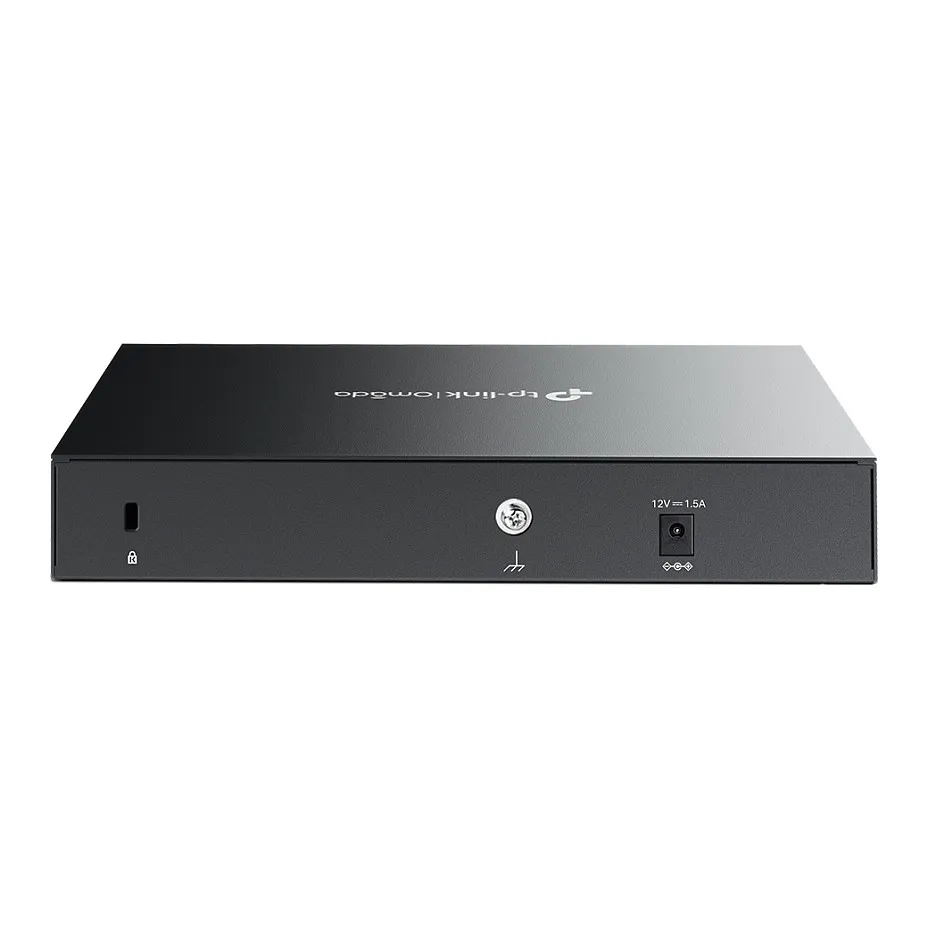

Power
Power source type: DC
Output voltage: 12 V
Output current: 1.5 A
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 90%
Weight & dimensions
Width: 226 mm
Depth: 131 mm
Height: 35 mm
Packaging data
Package width: 242 mm
Package depth: 323 mm
Package height: 73 mm
Package weight: 1.1 kg
