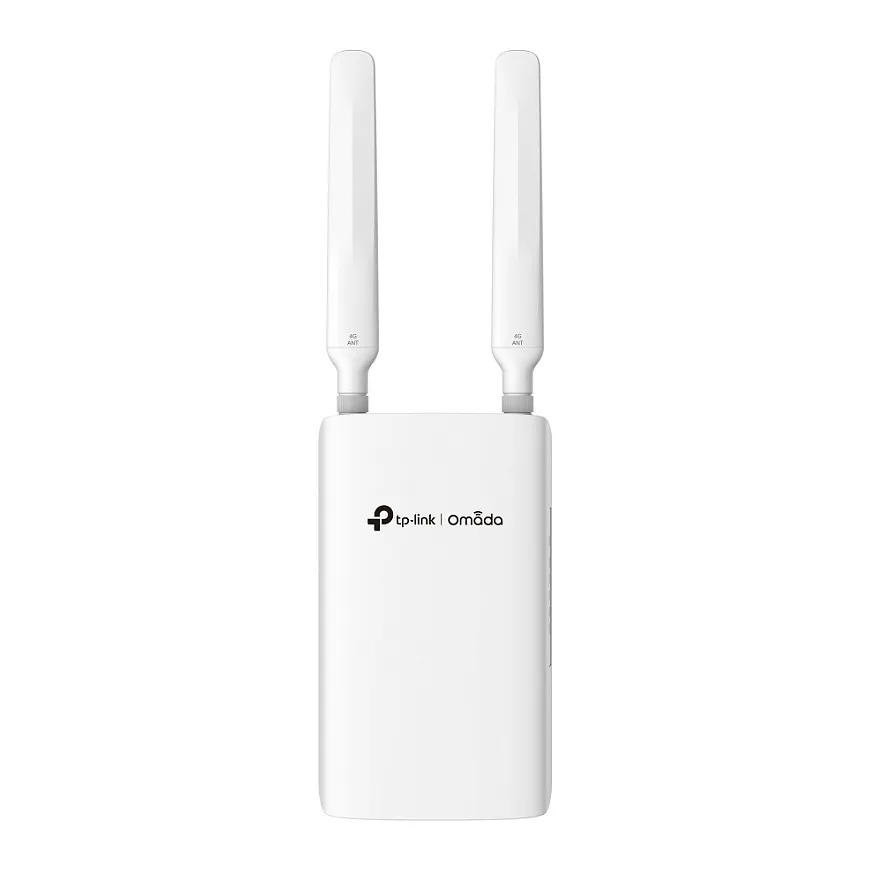

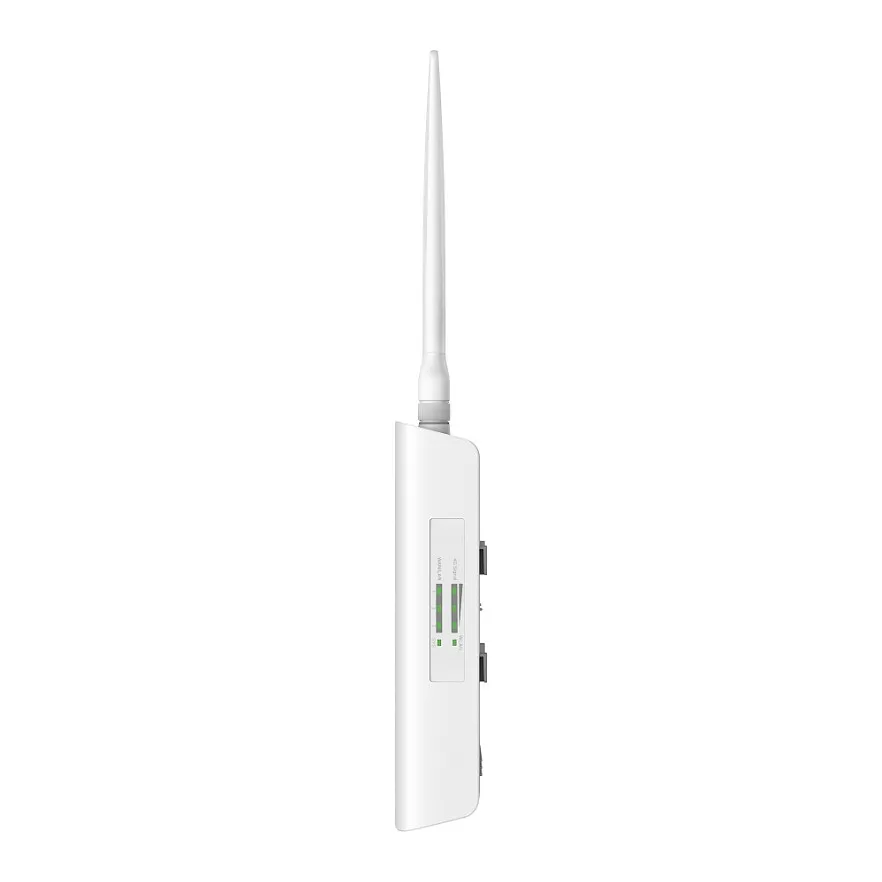

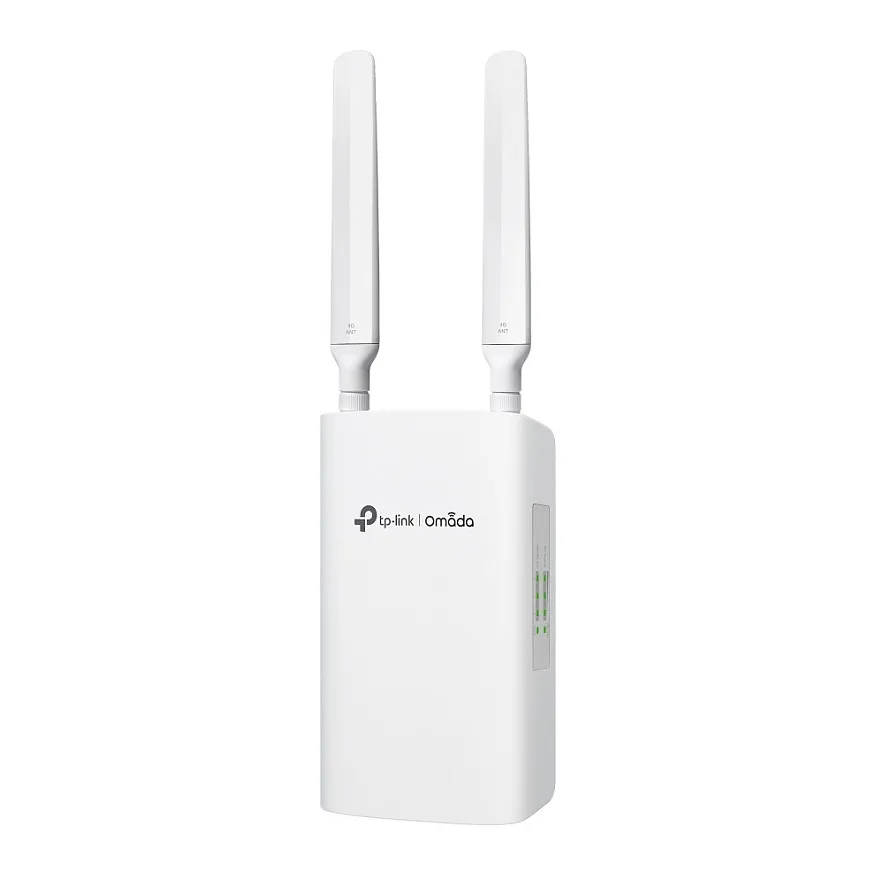

TP-Link Omada ER703WP-4G-Outdoor. Product colour: White, Mounting type: Wall mounting, LED indicators: Status. Antenna type: External, Antenna gain level (max): 4 dBi. Internal memory: 512 MB, Internal memory type: DDR4, Flash memory: 256 MB. Ethernet LAN data rates: 10,100,1000 Mbit/s, Forwarding rate: 1453489 Mpps, Networking standards: IEEE 802.3at, IEEE 802.3bt. Security algorithms: SSID, WPA2, WPA3
Combines 4G Internet access, Wi-Fi 6 wireless technology and 3 Gigabit PoE in/out ports all in one device, and automatic back up and load balancing between 4G and wired WAN can be reached. Enjoyed a powerful and versatile gateway with easy deployment.
Specially Designed Weatherproof Enclosure for Outdoors
Rated as IP55 during Ingress Protection testing, a resilient weatherproof enclosure protects the gateway against harsh outdoor conditions.
Multiple Power Supply Options
Powered by PoE or DC (compatible with solar panels) to overcome mains access limitations.
Plug and Play
Insert a Nano SIM card or connect to an Ethernet WAN Port to get gigabit Wi-Fi. Enjoy hassle-free connect to surveillance cameras via cable or wireless.
Centralized Management
Enables to easy network setup across multiple sites without sending engineer for on-site configuration. Remotely manage via Omada app or web, offering the Essentials version of cloud services for free, reducing maintenance costs for MSP/SI.

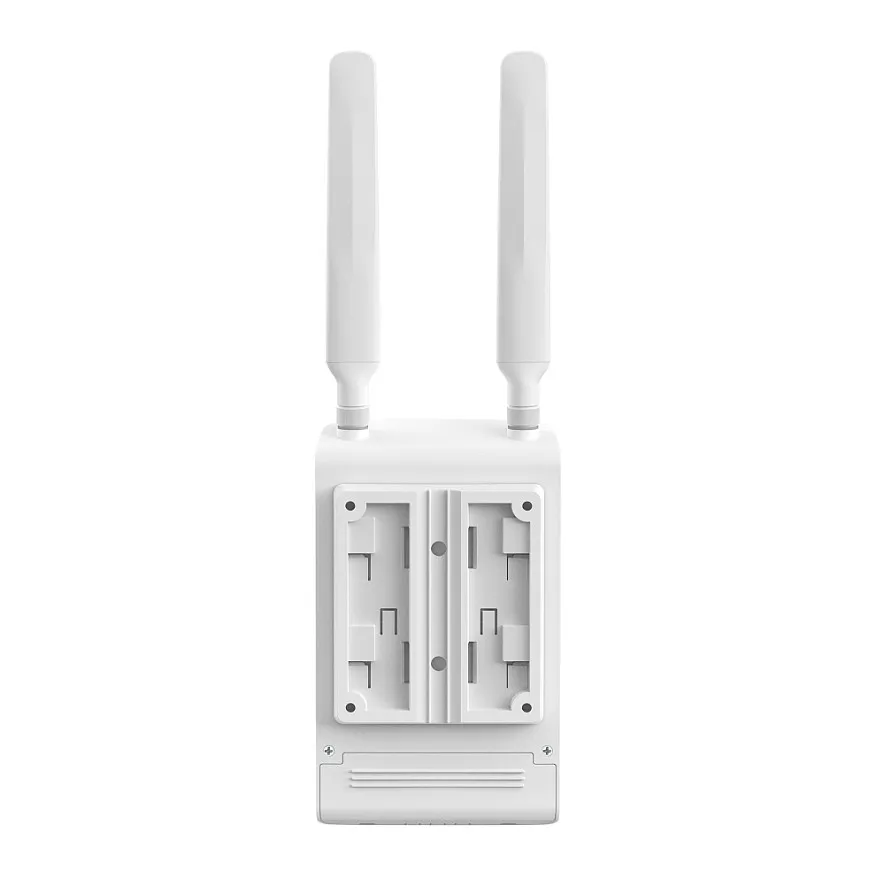

Easy Installation
Easy to mount to a wall or pole with the provided mounting kits. Its compact design allows you to place the gateway flexibly.
Product colour: White
Mounting type: Wall mounting
LED indicators: Status
Features
Antenna type: External
Antenna gain level (max): 4 dBi
Antennas quantity: 2
Feature: Short Message Service (SMS)
Performance
Internal memory: 512 MB
Internal memory type: DDR4
Flash memory: 256 MB
Protocols
Feature: DHCP server
Network
Ethernet LAN data rates: 10,100,1000 Mbit/s
Forwarding rate: 1453489 Mpps
Networking standards: IEEE 802.3at, IEEE 802.3bt
Feature: Wi-Fi
Mobile network generation: 4G
Data network: LTE
Downlink/uplink speed: 300/50 Mbit/s
GSM bands supported: 850,900,1800,2100 MHz
Frequency band: 2.4/5 GHz
All services ready time: 3.8 s
SSL VPN throughput: 0.0866 Gbit/s
PPTP/L2TP VPN tunnels (max): 50
SSL VPN tunnels (max): 50
Security
Feature: MAC address filtering
Security algorithms: SSID, WPA2, WPA3

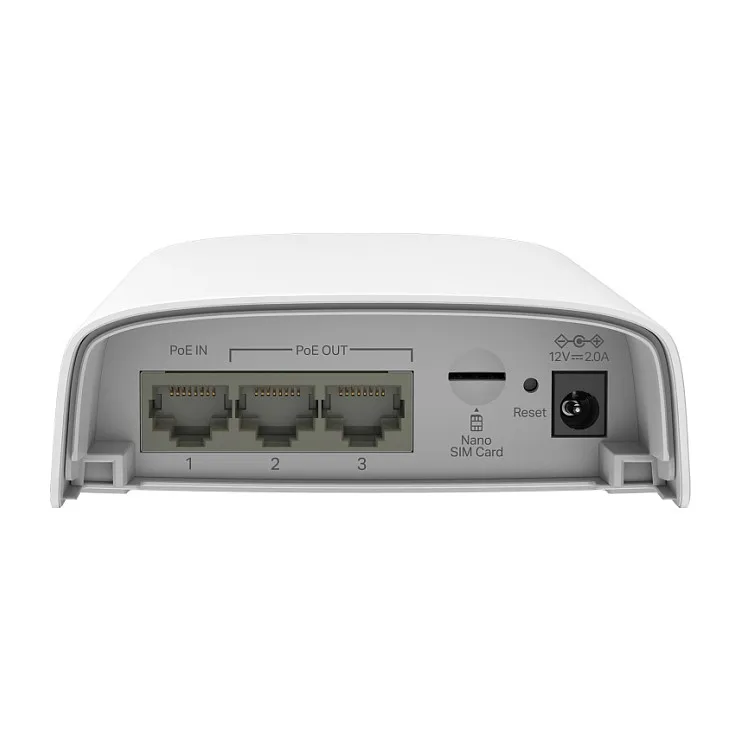

Ports & interfaces
Feature: SIM card slot
SIM card type: NanoSIM
Feature: DC-in jack
Management features
Feature: Web-based management
Power
Power consumption (max): 16.6 W
Feature: Power over Ethernet (PoE)
Weight & dimensions
Width: 174 mm
Depth: 100.4 mm
Height: 38.7 mm
Operational conditions
Operating temperature (T-T): -30 – 60 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 5 – 95%
Storage relative humidity (H-H): 5 – 90%
Certificates
Certification: CE, FCC, RoHS
