TP-Link Omada Gigabit VPN Router. Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X). Routing protocols: RIP-1, RIP-2, Management protocols: Telnet, Supported network protocols: TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP. Security algorithms: 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, Authentication method: SHA-1, MD5, VPN support: • 20 IPsec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode •…. Compliance certificates: RoHS. Cables included: AC
Professional, Secure, and Reliable Gigabit VPN Router
Omada SDN—The Smarter Cloud Solution for Business Networking
As the gateway that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER605 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience.

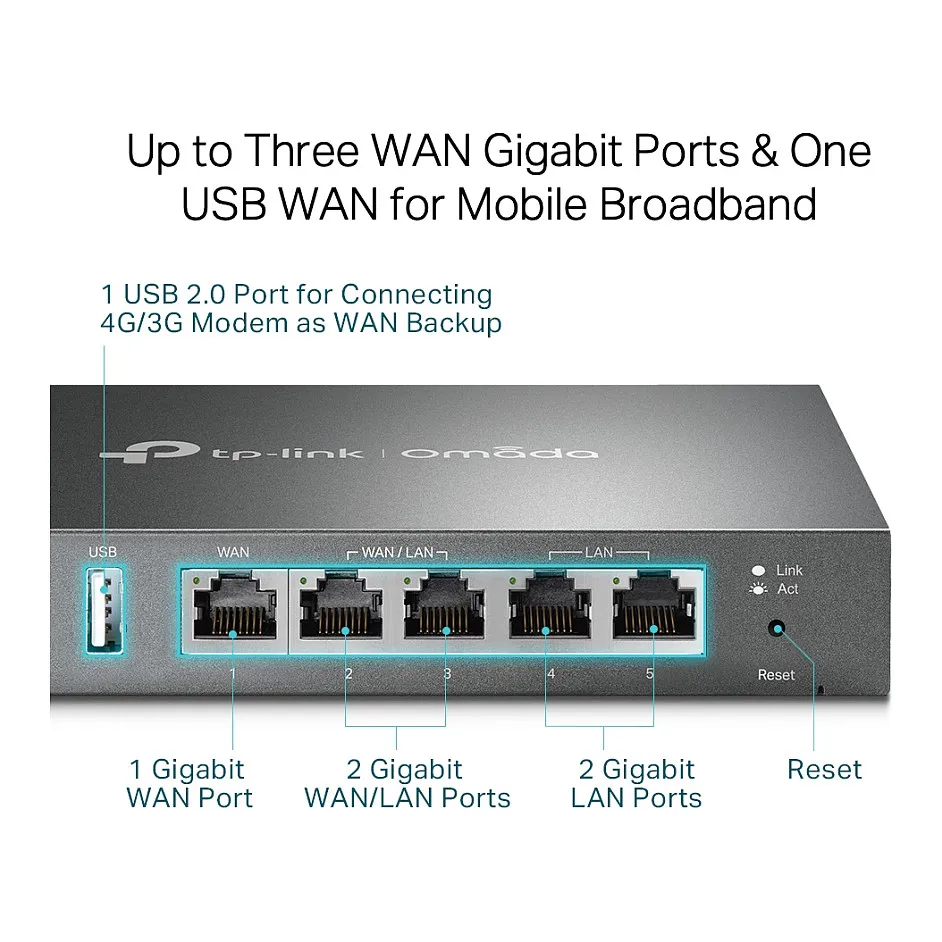

Up to Three WAN Gigabit Ports & One USB WAN for Mobile Broadband
Two freely interchangeable ports allow the router to support up to three WAN ports for various Internet access requirements. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.
Mobile broadband via 4G/3G modem by connecting to the USB port is also supported for WAN backup.

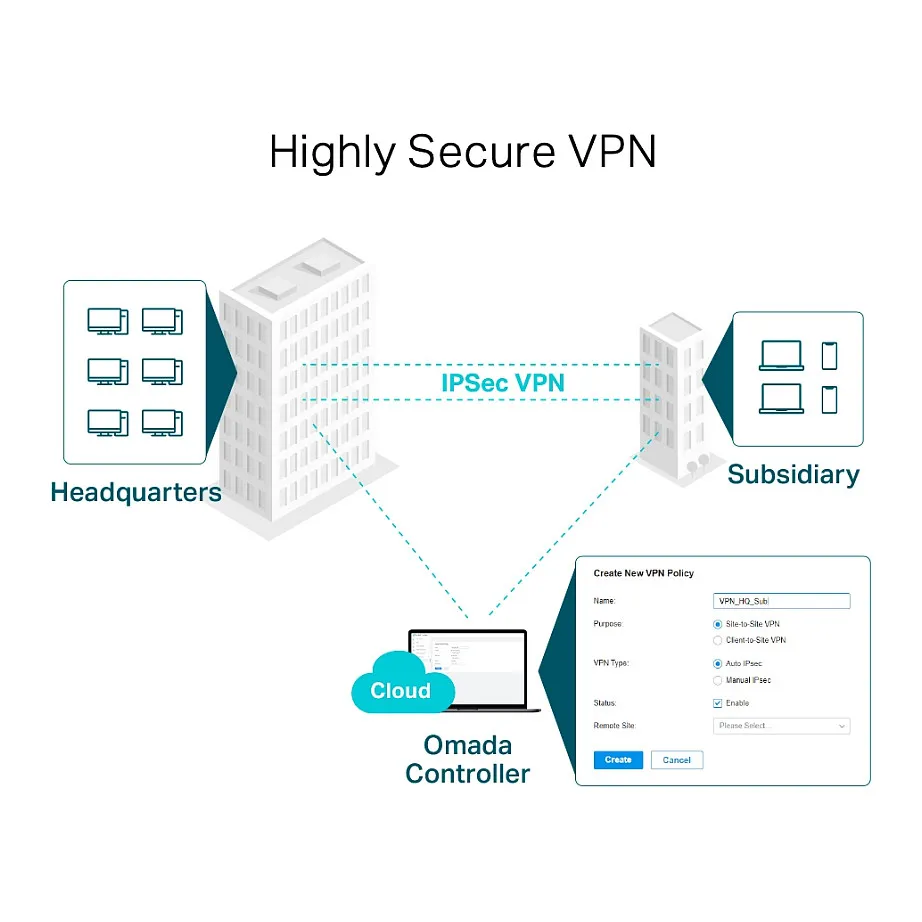

High-Security and High-Performance VPN
ER605 supports IPSec/PPTP/L2TP VPN over IPSec/SSL protocols. One-click auto IPSec VPN* greatly simplifies VPN configuration and facilitates network management and deployment. It also secures and encrypts private site-to-site data communications traveling over the internet. This version improves VPN performance by 4–5 times thanks to the open line of communication with Omada’s user base.

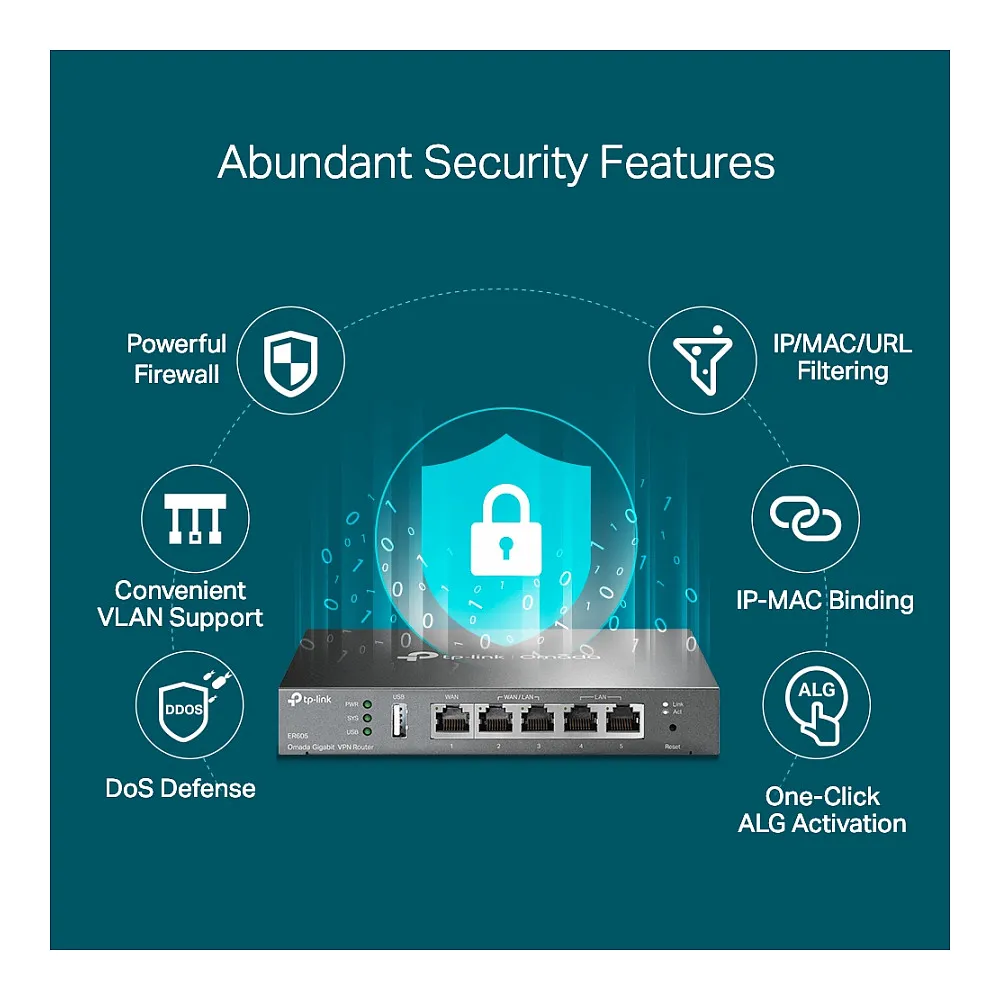

Abundant Security Features
Powerful Firewall
Advanced firewall policies protect your network and data.
Convenient VLAN Support
Create virtual network segments for enhanced security and simplified network management.
DoS Defense
Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.
IP/MAC/URL Filtering
Forcefully prevent viruses and attacks from intruders.
IP-MAC Binding
Reserves static IP assignment for clients to defend against ARP attacks and spoofing.
One-Click ALG Activation
One-Click ALG Activation for applications such as FTP, H323, SIP, IPSec and PPTP.
Internet Access Management Strategy
Administrators can moderate users’ online behavior and easily specify employees’ internet access rights and strategies via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status, and manage clients, all from the convenience of a mobile device.
Feature: Ethernet WAN
Network
Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Ethernet interface type: Gigabit Ethernet
Cabling technology: 10/100/1000Base-T(X)
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: VLAN support
Feature: Traffic control
Feature: Policy-based routing
Concurrent connections: 150000
Management features
Feature: Web-based management
Feature: Universal Plug and Play (UPnP)
Feature: Reset button
Ports & interfaces
Ethernet LAN (RJ-45) ports: 5
USB ports quantity: 1
Protocols
Feature: DMZ support
Routing protocols: RIP-1, RIP-2
Management protocols: Telnet
Feature: DHCP client
Feature: DHCP server
Supported network protocols: TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP
Supported protocols: IPsec/PPTP/L2TP
Security
Security algorithms: 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1
Feature: Firewall
Authentication method: SHA-1, MD5
Feature: URL filtering
Feature: DoS attack prevention
Feature: ARP attack prevention
Feature: Network address translation (NAT)
Feature: System event log
VPN tunnels quantity: 20
NAT functionality: • One-to-One NAT• Multi-Net NAT• Virtual Server• Port Triggering• NAT-DMZ• FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
Certificates
Compliance certificates: RoHS
Packaging content
Cables included: AC
Feature: Manual
Feature: Quick start guide
Feature: Quick installation guide
Features
Flash memory: 128 MB
Internal memory: 256 MB
Internal memory type: DRAM
Windows operating systems supported: Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
Mac operating systems supported: MacOS
Linux operating systems supported: Yes
Certification: CE, FCC, RoHS
Design
Product colour: Black
Feature: Rack mounting
Rack capacity: 1U
LED indicators: Activity, LAN, System, USB, WAN
Power
Power consumption (typical): 7.94 W
Power source type: AC
AC input voltage: 120 – 240 V
AC input frequency: 50 – 60 Hz
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 90%
Weight & dimensions
Width: 158 mm
Depth: 101 mm
Height: 25 mm
Packaging data
Package width: 190 mm
Package depth: 254 mm
Package height: 60 mm
Package weight: 650 g
