TP-Link Omada AX3000 Wall Plate WiFi 6 Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 2402 Mbit/s. Security algorithms: HTTPS, SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA2-Enterprise, WPA3-Enterprise. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White
with AX3000 WiFi 6
AX3000 Wall Plate WiFi 6 Access Point
AX3000 WiFi 6 Speed
2402 Mbps on 5 GHz + 574 Mbps on 2.4 GHz
High-Efficiency WiFi 6
More connected devices enjoy faster speeds
Centralized Cloud Management
Manage the whole network locally or from the cloud
160 MHz Channel
Double the data at peak transmission times on a
single stream with HE160
Enhanced Security
With guest networks, Captive Portal, and WPA3 encryption
Seamless Roaming
Uninterrupted streaming when moving between APs
Four Gigabit Ports
Three downlink gigabit ports, one with PoE pass-through
802.3af/at PoE Support
Flexible and convenient deployment
Quick, Simplified Installation
Compatible with 86 mm & EU & US standard junction box

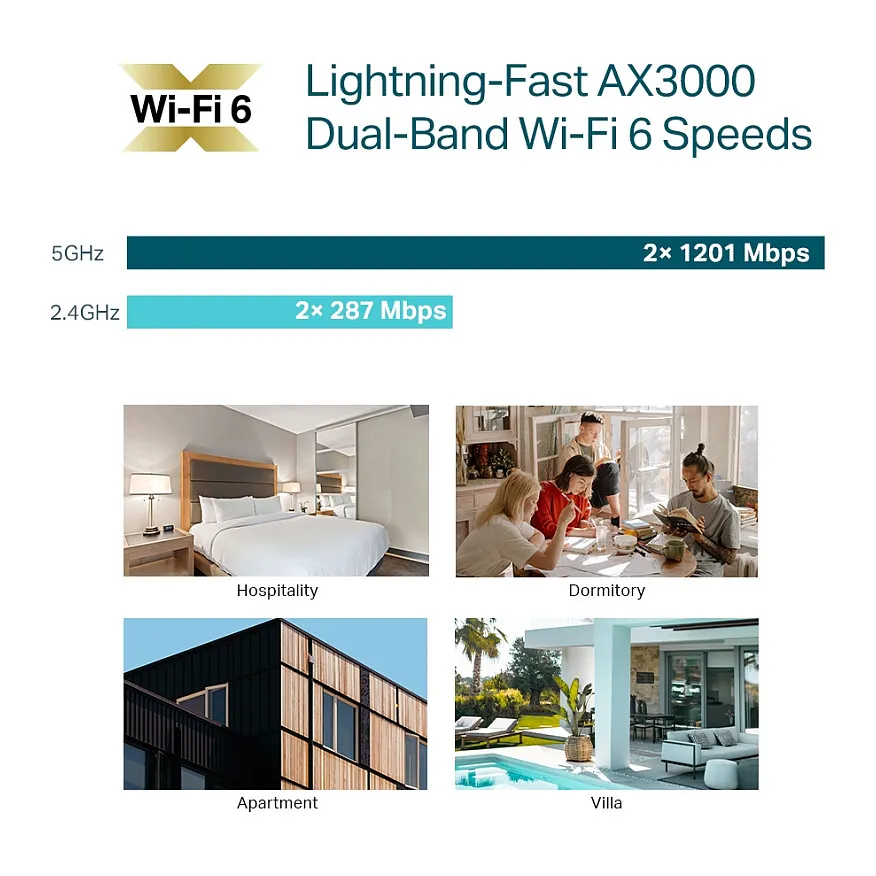

Lightning-Fast AX3000 WiFi 6 Speeds
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity. Enjoy more than twice the speed of WiFi 5 with new-era business WiFi 6 with speeds up to 2976 Mbps
Better User Experience with High-Performance
WiFi 6 Connectivity
The latest WiFi 6 features and advanced wireless techniques guarantee higher network efficiency and lower latency.
More than Speed, Security Matters
Safeguard your network against brute force attack and snooping with WPA3 enterprise-grade security protection, portal authentication, and segregated guest networks.
Secure Guest Network with Up to 16 SSIDs
Guest networks provide enhanced security. Different SSIDs also enable flexible access management.
Boost Business with Facebook WiFi and SMS Login
Captive portals (including SMS, Facebook WiFi, Voucher) and 802.1x authentication ensure authorized guests can access the network. Boost your business with a customized marketing page
WPA3 for Worry-Free Open Public Networks
WPA3 provides more data security for previously unsecured and open WiFi hotspots with advanced enterprise security.

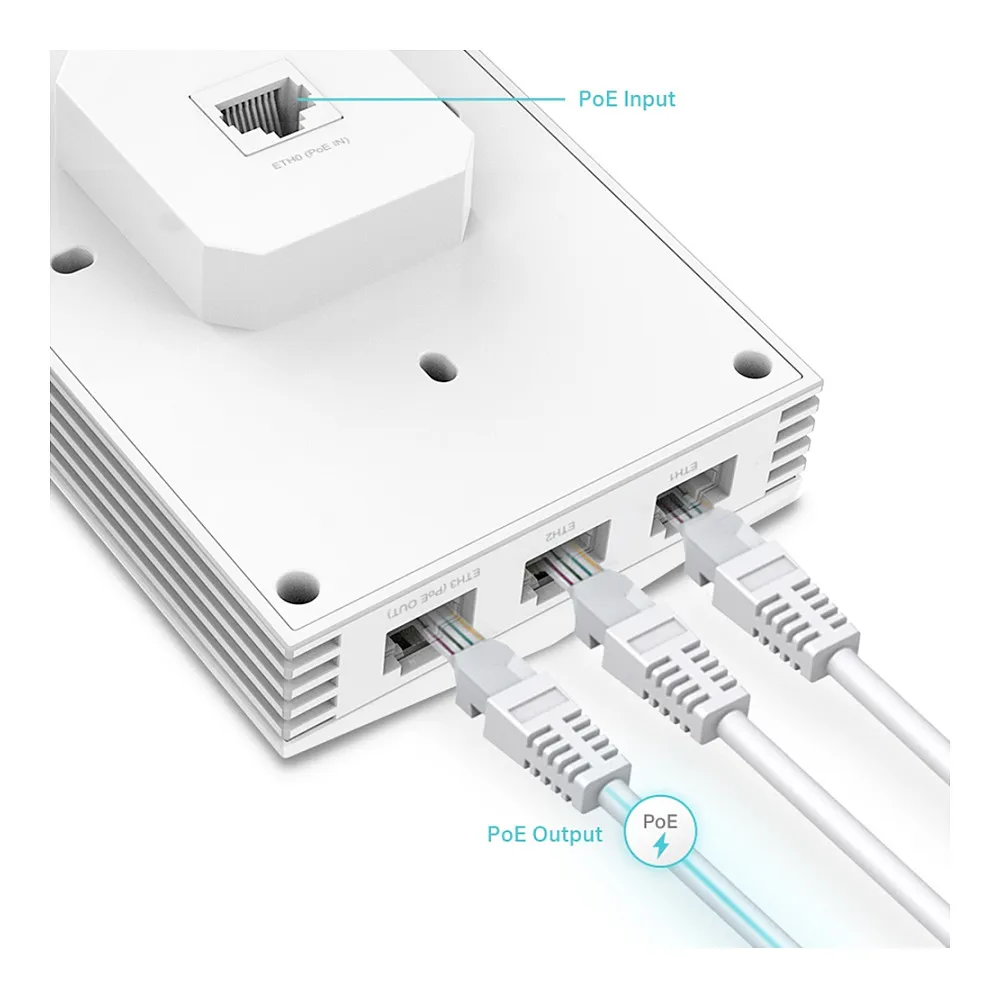

Full Gigabit Ports to Bridge Network
Wired devices like VoIP phones can be powered with no need for extra electrical cables. The four data ports (1 uplink + 3 downlinks) transfer data at multiple gigabits, allowing you to connect several devices to your gigabits network. One of the downlink ports offers PoE pass-through to eliminate the need for that extra power port
Quick, Simplified Installation
With an easy-to-install design, there is no need to bring someone in to install our EAP.
Auto Channel Selection and Power Adjustment to Optimize Overall Performance
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network

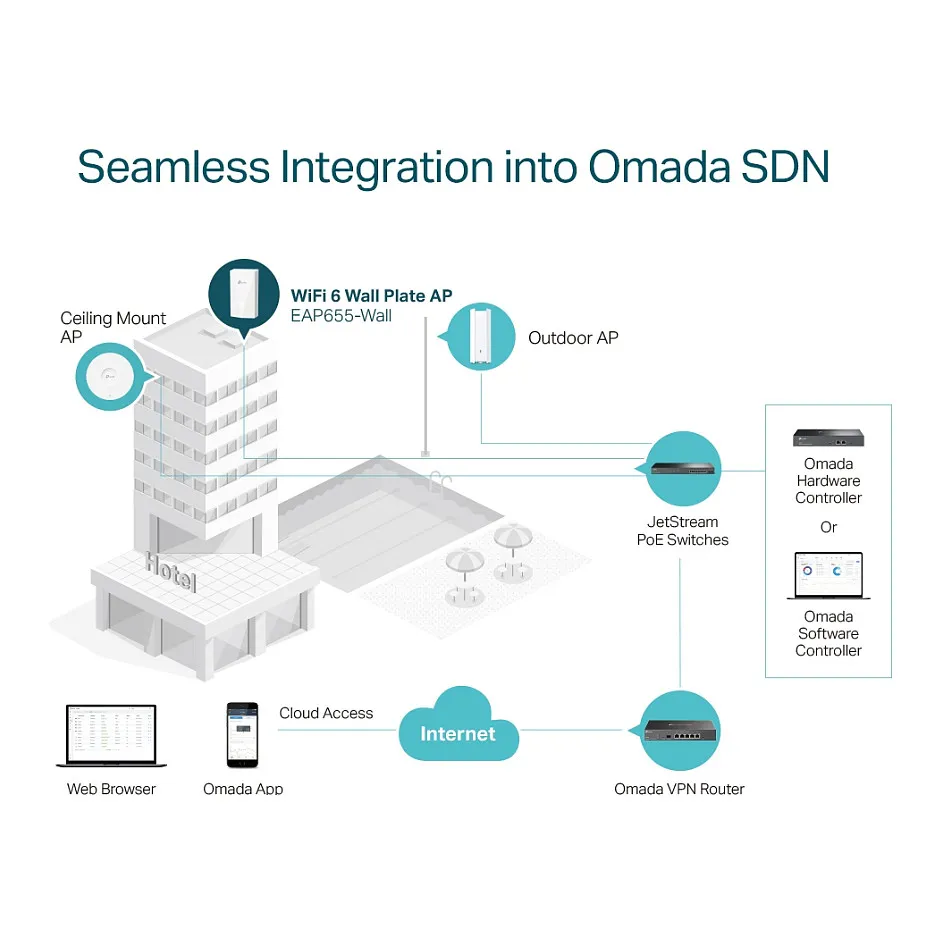

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface
Easy Management with the Omada App
Follow configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status, and manage clients, all from the convenience of your mobile device.
Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 2402 Mbit/s
Maximum data transfer rate (2.4 GHz): 574 Mbit/s
Maximum data transfer rate (5 GHz): 2402 Mbit/s
Ethernet LAN data rates: 10,100,1000 Mbit/s
Frequency band: 2.4, 5 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Cabling technology: 10/100/1000Base-T(X)
Number of users: 100 user(s)
Feature: Automatic channel selection
Feature: Wi-Fi Multimedia (WMM)/(WME)
Feature: VLAN support
Feature: Rate limiting
Feature: Wireless isolation
Feature: Band steering
Feature: Airtime Fairness (ATF)
Feature: Quality of Service (QoS) support
Feature: BeamForming
Transmitting power (CE): 20 – 23 – 26 dBm
Transmitting power (FCC): 21 – 21 dBm
Security
Security algorithms: HTTPS, SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA2-Enterprise, WPA3-Enterprise
Feature: MAC address filtering
Feature: IP address filtering
Service Set Identifier (SSID) features: Multiple SSIDs
Number of SSID supported: 16
Feature: Remote Authentication Dial-In User Service (RADIUS)
Feature: Access Control List (ACL)
Management features
Feature: Web-based management
Feature: Syslog
Feature: Firmware upgradeable
Ports & interfaces
Ethernet LAN (RJ-45) ports: 4
WAN connection: Ethernet (RJ-45)
Feature: DC-in jack
Power
Feature: Power over Ethernet (PoE)
Power consumption (typical): 12 W
Design
Placement: Wall
Product colour: White
Feature: Reset button
LED indicators: Yes
Antenna
Antenna type: Internal
Antennas quantity: 2
Antenna gain level (max): 5 dBi
Performance
Compatible operating systems: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Certificates
Compliance certificates: RoHS
Certification: FCC, RoHS
Weight & dimensions
Width: 143 mm
Depth: 86 mm
Height: 42.6 mm
Packaging data
Package width: 117 mm
Package depth: 184 mm
Package height: 56 mm
Package weight: 400 g
Package type: Box
Packaging content
Quantity per pack: 1 pc(s)
Feature: Mounting kit
Operational conditions
Operating relative humidity (H-H): 10 – 90%
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -40 – 70 °C
Storage relative humidity (H-H): 5 – 90%
