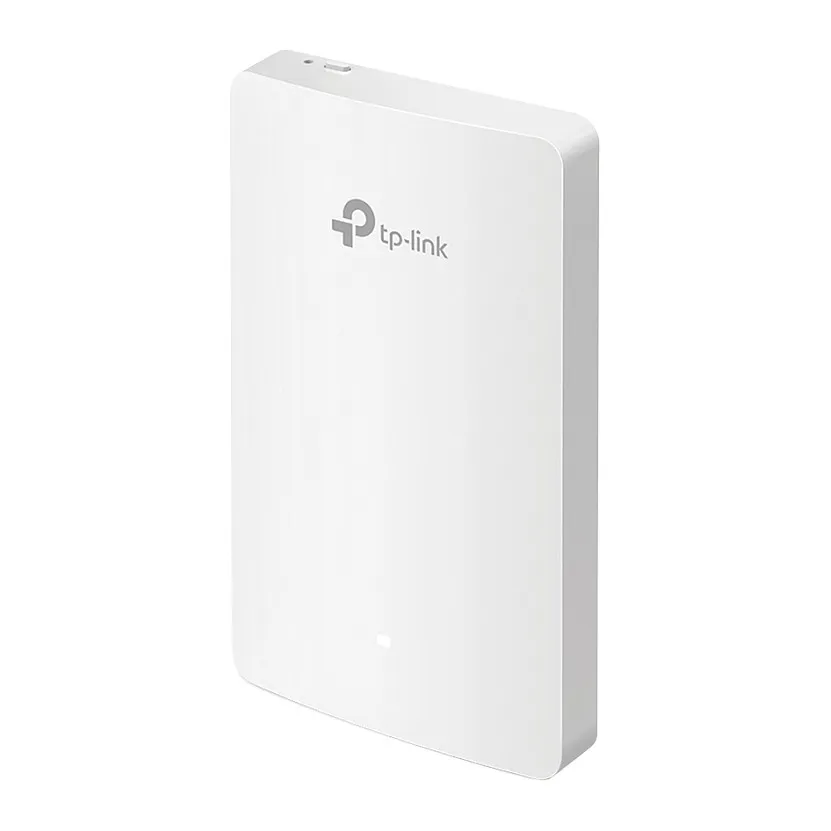

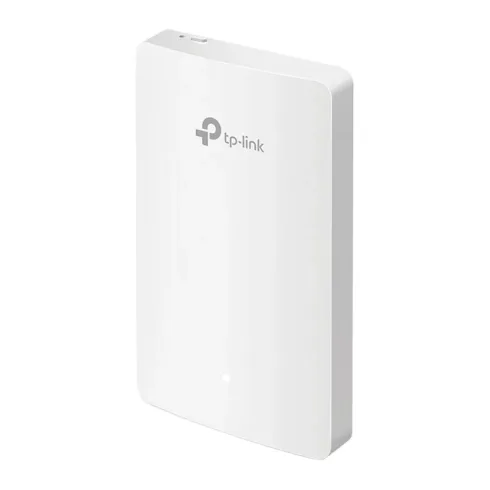

TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1167 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, 802.1x RADIUS, HTTPS, SNMP, SNMPv3, SSH, WPA,…. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White

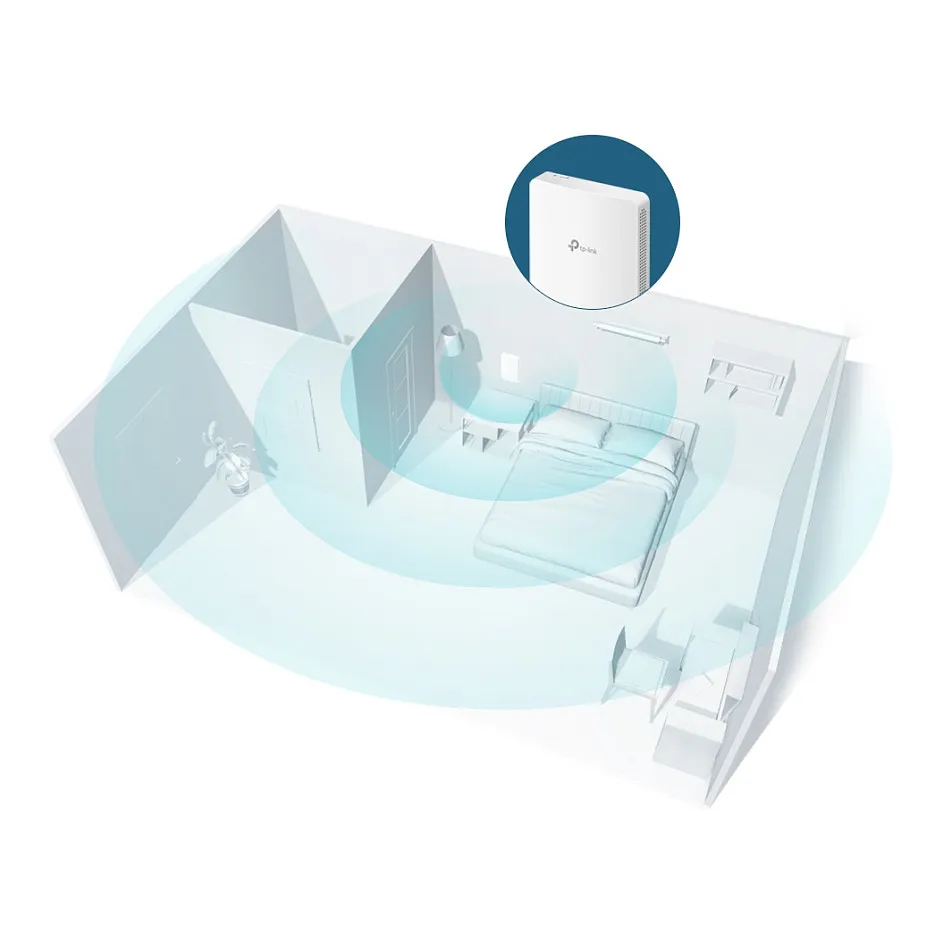

An EAP in each room allows guests to enjoy their own private Wi-Fi network that’s fast, delivering a strong signal, and providing corner to corner coverage.
MU-MIMO + Dual-Band: Connect Faster and More
802.11ac wave 2 MU-MIMO technology enables multiple users to access the Internet simultaneously, which largely boosts up your network speed of up to 1,200 Mbps. Capable of transmitting in both 2.4 GHz and 5 GHz wireless band, it provides greater compatibility to connect varieties of devices.
Absolute Thinnest, Inconspicuous Design

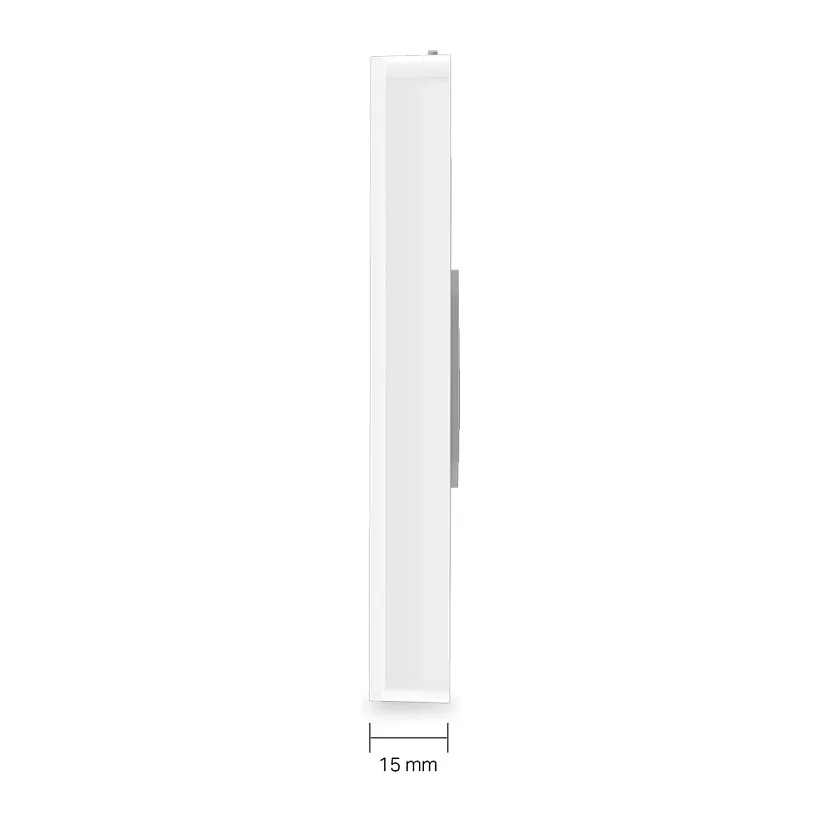

The thinnest wall plate AP available—only 15 mm—featuring a sleek, minimalist appearance. Designed to blend in with the décor of hotel rooms, hospitals, offices and school dormitories, to deliver powerful Wi-Fi without clashing with the room.
Effortless Deployment with PoE Powered
With 802.3af/802.3at Power over Ethernet supported there’s no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you’re ready to go.
Quick, Simplified Installation
EAP235-Wall is easy to install, so extra cost, time, or professional knowledge are completely unnecessary.
Full Gigabit Ports to Bridge Network

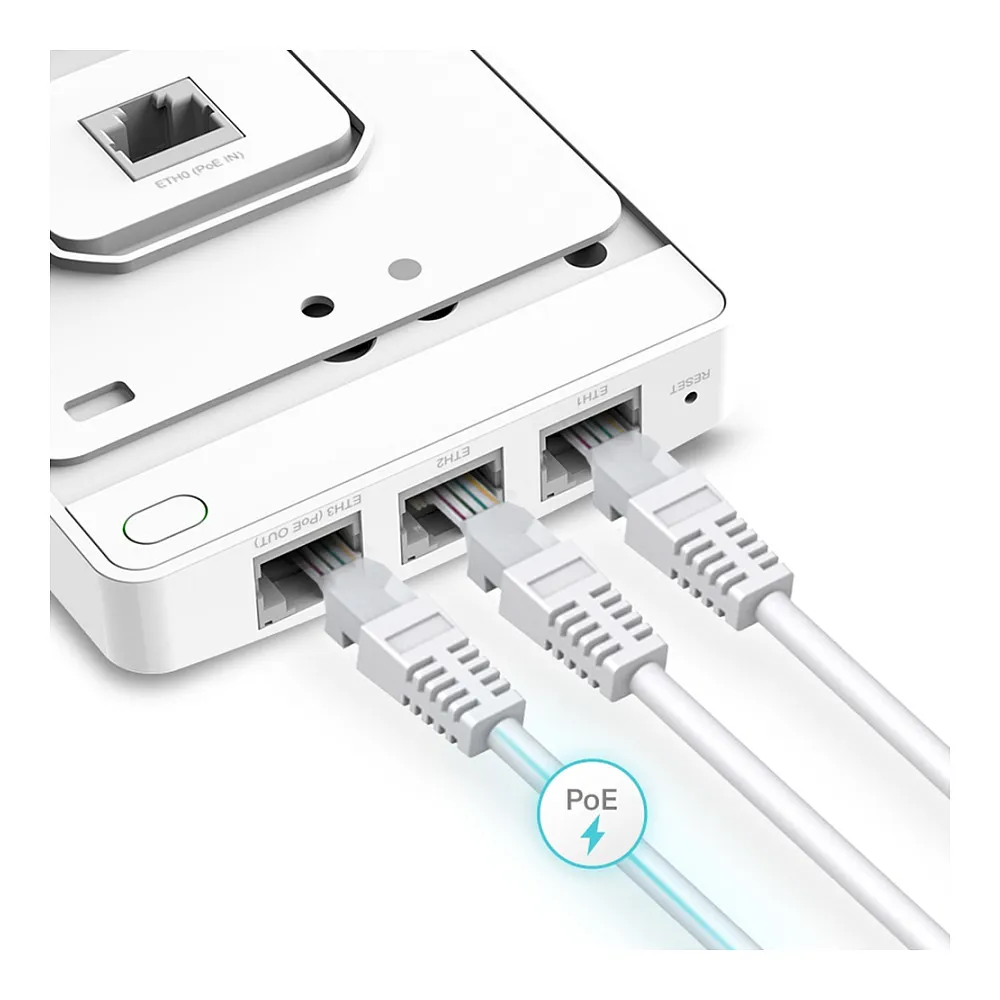

Equipped with four Gigabit data ports (1 uplink + 3 downlink), one downlink port offering PoE pass-through, to connect multiple devices to your gigabit network. Wired devices like VoIP phones can be powered with no need for extra electrical cables.
Cloud Centralized Management Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Easy Management with the Omada App
Follow configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 1167 Mbit/s
Maximum data transfer rate (2.4 GHz): 300 Mbit/s
Maximum data transfer rate (5 GHz): 867 Mbit/s
Ethernet LAN data rates: 10,100,1000 Mbit/s
Frequency band: 2.4 – 5 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Cabling technology: 10/100/1000Base-T(X)
Feature: Automatic channel selection
Feature: Automatic channel scanning
Feature: MIMO
MIMO type: Multi User MIMO
Feature: Wi-Fi Multimedia (WMM)/(WME)
Feature: VLAN support
Virtual LAN features: Port-based VLAN, VLAN mapping
Feature: Rate limiting
Feature: Wireless isolation
Feature: Band steering
Feature: Quality of Service (QoS) support
Feature: BeamForming
Transmitting power (CE): 20 – 23 dBm
Transmitting power (FCC): 21 dBm
Security
Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, 802.1x RADIUS, HTTPS, SNMP, SNMPv3, SSH, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-Enterprise, WPA2-PSK
Feature: MAC address filtering
Service Set Identifier (SSID) features: Multiple SSIDs
Number of SSID supported: 16
Feature: Remote Authentication Dial-In User Service (RADIUS)
Feature: Access Control List (ACL)
Protocols
Feature: Universal Plug and Play (UPnP)
Management features
Feature: Web-based management
Feature: Syslog
Ports & interfaces
Ethernet LAN (RJ-45) ports: 4
WAN connection: Ethernet (RJ-45)
Power
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: Active PoE, Passive PoE
Power consumption (typical): 24.4 W
Design
Placement: Wall
Product colour: White
Feature: Cable lock slot
Feature: Reset button
LED indicators: LAN, Power, Status, WAN, WLAN
Antenna
Antenna type: Internal
Antenna features: Integrated antenna
Antennas quantity: 2
Antenna gain level (max): 4 dBi
Performance
Compatible operating systems: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Certificates
Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
Weight & dimensions
Width: 143 mm
Depth: 86 mm
Height: 20 mm
Packaging data
Package width: 117 mm
Package depth: 184 mm
Package height: 33 mm
Package weight: 300 g
Package type: Box
Packaging content
Quantity per pack: 1 pc(s)
Feature: Mounting kit
Feature: Quick start guide
Operational conditions
Operating relative humidity (H-H): 10 – 90%
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -40 – 70 °C
Storage relative humidity (H-H): 5 – 90%
Sustainability
Feature: Sustainability compliance
Logistics data
Harmonized System (HS) code: 85176990
