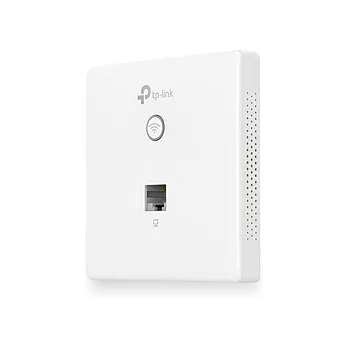

TP-Link Omada 300Mbps Wireless N Wall-Plate Access Point. 2.4 GHz, Maximum data transfer rate: 300 Mbit/s. Security algorithms: 802.1x RADIUS, HTTPS, WPA, WPA-PSK, WPA2, WPA2-PSK. Ethernet LAN data rates: 10,100 Mbit/s. Power over Ethernet (PoE). Product colour: White
– Detach the faceplate of the junction box* with a screwdriver.
– Remove the faceplate of the EAP.

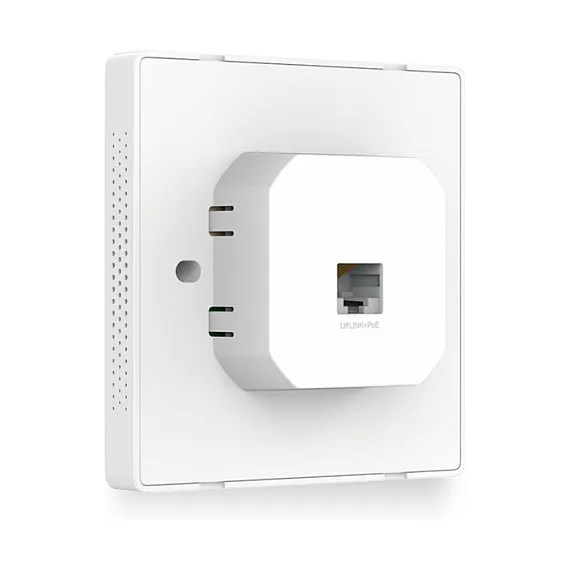

– Connect an in-wall Ethernet cable to the Uplink+POE port.
– Secure the access point to the wall using the nails provided.
– Press the faceplate back into position.
Perfectly Formed
The EAP115-Wall would blend seamlessly into any business setting with a refined, minimalist appearance. A slimline design includes casing that’s just 11 mm in thickness.
Effortless Deployment
With 802.3af Power over Ethernet supported there’s no need for additional wiring. Simply plug in existing Ethernet cables and you’re ready to go.
Complete Wireless Coverage
An EAP in each room guarantees a strong wireless signal and allows guests to enjoy their own private Wi-Fi network.
Cloud Centralized Management
– Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Feature: 2.4 GHz
Maximum data transfer rate: 300 Mbit/s
Maximum data transfer rate (2.4 GHz): 300 Mbit/s
Ethernet LAN data rates: 10,100 Mbit/s
Frequency band: 2.4 – 2.4835 GHz
Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Cabling technology: 10/100Base-T(X)
Feature: Automatic channel selection
Feature: Wi-Fi Multimedia (WMM)/(WME)
Feature: VLAN support
Virtual LAN features: Port-based VLAN, VLAN mapping
Feature: Rate limiting
Feature: Wireless isolation
Feature: Quality of Service (QoS) support
Transmitting power (CE): 20 dBm
Transmitting power: 15 dBmW
Security
Security algorithms: 802.1x RADIUS, HTTPS, WPA, WPA-PSK, WPA2, WPA2-PSK
Feature: MAC address filtering
Service Set Identifier (SSID) features: Multiple SSIDs
Number of SSID supported: 8
Feature: Access Control List (ACL)
Protocols
Management protocols: SNMP, Telnet
Management features
Feature: Web-based management
Feature: Syslog
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
WAN connection: Ethernet (RJ-45)
Power
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: Passive PoE
Power consumption (typical): 2.8 W
Design
Placement: Wall
Product colour: White
Feature: Reset button
LED indicators: Yes
Antenna
Antenna type: Internal
Antenna direction type: Omni-directional
Antenna features: Integrated antenna
Antennas quantity: 2
Antenna gain level (max): 1.8 dBi
Performance
Compatible operating systems: Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10
Certificates
Compliance certificates: CE, RoHS
Weight & dimensions
Width: 86.8 mm
Depth: 86.8 mm
Height: 30.2 mm
Packaging data
Package width: 118 mm
Package depth: 130 mm
Package height: 47 mm
Package weight: 190 g
Packaging content
Quantity per pack: 1 pc(s)
Feature: Mounting kit
Feature: Quick start guide
Operational conditions
Operating relative humidity (H-H): 10 – 90%
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -40 – 70 °C
Storage relative humidity (H-H): 5 – 90%
Sustainability
Feature: Sustainability compliance
Logistics data
Harmonized System (HS) code: 85176990
