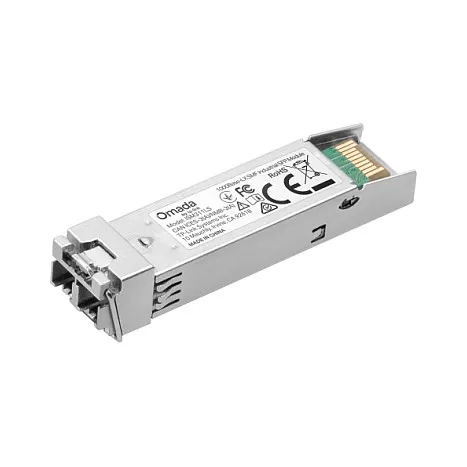

TP-Link ISM311LS. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Product colour: Grey. Input voltage: 3.3 V. Certification: FCC, CE. Width: 56.4 mm, Depth: 13.4 mm, Height: 11 mm
ISM311LS is an industrial SFP Module introduced for extending transfer distance. Attached to our industrial switches, ISM311LS can extend the distance to 20km. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
Performance
SFP transceiver type: Fiber optic
Maximum data transfer rate: 1250 Mbit/s
Interface type: SFP
Feature: Single-mode fiber (SMF) supported
Fiber optic connector: LC
Fiber cable diameters supported (core/cladding): 9/125 µm
Maximum transfer distance: 20000 m
Wavelength: 1310 nm
Ethernet interface type: 1.25 Gigabit Ethernet
Networking standards: IEEE 802.3z
Features
Product colour: Grey
Feature: Hot-swap
Power
Input voltage: 3.3 V
Certificates
Certification: FCC, CE
Operational conditions
Minimum operating temperature: -40 °C
Maximum operating temperature: 85 °C
Storage temperature (T-T): -40 – 85 °C
Operating relative humidity (H-H): 5 – 85%
Storage relative humidity (H-H): 5 – 85%
Weight & dimensions
Width: 56.4 mm
Depth: 13.4 mm
Height: 11 mm
Packaging content
Quantity per pack: 1 pc(s)
SFP transceiver type: Fiber optic
Maximum data transfer rate: 1250 Mbit/s
Interface type: SFP
Feature: Single-mode fiber (SMF) supported
Fiber optic connector: LC
Fiber cable diameters supported (core/cladding): 9/125 µm
Maximum transfer distance: 20000 m
Wavelength: 1310 nm
Ethernet interface type: 1.25 Gigabit Ethernet
Networking standards: IEEE 802.3z
Features
Product colour: Grey
Feature: Hot-swap
Power
Input voltage: 3.3 V
Certificates
Certification: FCC, CE
Operational conditions
Minimum operating temperature: -40 °C
Maximum operating temperature: 85 °C
Storage temperature (T-T): -40 – 85 °C
Operating relative humidity (H-H): 5 – 85%
Storage relative humidity (H-H): 5 – 85%
Weight & dimensions
Width: 56.4 mm
Depth: 13.4 mm
Height: 11 mm
Packaging content
Quantity per pack: 1 pc(s)
