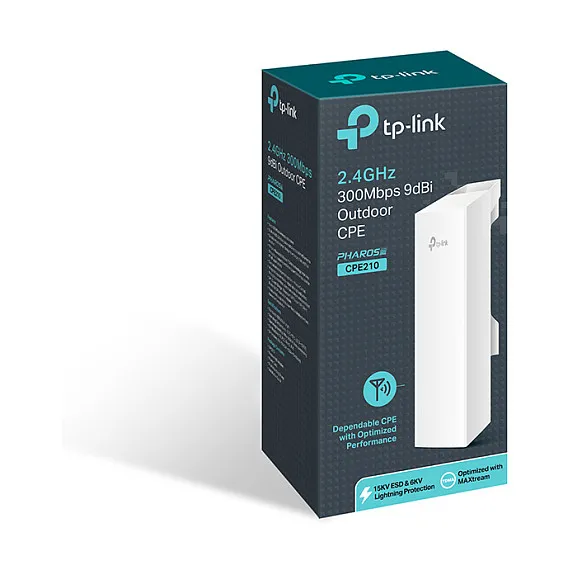

TP-Link CPE210. 2.4 GHz, Maximum data transfer rate: 300 Mbit/s. Security algorithms: AES, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK. Power over Ethernet (PoE). Product colour: White
Enterprise Hardware
With Qualcomm Atheros level chipsets, high gain antennas and high
quality material, specially designed enclosure, and PoE power supply, CPE210 is
specially designed for outdoor use and can operate flawlessly in almost any climate,
with operating temperatures ranging from -40℃ (-40℉) to +70℃ (158℉).
Advanced Antenna System
Built-in High Gain Dual-Polarized Antenna
Dedicated metal reflector ensures higher gain and lower noise interference
5km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission over 5km+, tested in the field.
TP-Link MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be
so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user
experience. To mitigate these effects, the CPE210 uses MAXtream TDMA Technology.
Pharos Control – Centralized Management System
CPE210 also comes equipped with centralized management software that helps users easily
manage all the devices in their network from a single PC – Pharos Control. Functions like device discovery,
status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.
Feature: 2.4 GHz
Maximum data transfer rate: 300 Mbit/s
Frequency band: 2.4 – 2.483 GHz
Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Feature: Automatic channel selection
Feature: Automatic channel scanning
Feature: MIMO
Feature: VLAN support
Feature: Wireless isolation
Feature: Dynamic Frequency Selection (DFS)
Maximum outdoor range: 5000 m
Security
Security algorithms: AES, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
Feature: MAC address filtering
Service Set Identifier (SSID) features: SSID broadcast, SSID broadcast on/off
Feature: IGMP snooping
Feature: Auto Wireless Distribution System (WDS)
Protocols
Feature: Universal Plug and Play (UPnP)
Management features
Feature: Web-based management
Management platform: Pharos Control
Feature: Firmware upgradeable
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
Feature: DC-in jack
Power
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: Passive PoE
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Output voltage: 24 V
Output current: 0.25 A
Design
Placement: Pole
Product colour: White
International Protection (IP) code: IPX5
Feature: Reset button
LED indicators: Status
Antenna
Antenna type: Internal
Antenna direction type: Directional
Antenna gain level (max): 9 dBi
Polarization: Dual polarization
Performance
Feature: Built-in processor
Processor model: Qualcomm Atheros
Processor frequency: 560 MHz
Processor architecture: MIPS 74Kc
Flash memory: 8 MB
Internal memory: 64 MB
Certificates
Certification: CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-markCE, FCC, RoHS
Weight & dimensions
Width: 224 mm
Depth: 79 mm
Height: 60 mm
Packaging data
Package width: 132 mm
Package depth: 270 mm
Package height: 106 mm
Package weight: 760 g
Packaging content
Quantity per pack: 1 pc(s)
Cables included: AC
Feature: Mounting kit
Operational conditions
Operating relative humidity (H-H): 10 – 90%
Operating temperature (T-T): -30 – 70 °C
Storage temperature (T-T): -40 – 70 °C
Storage relative humidity (H-H): 5 – 95%
