Thermaltake TRS-700AH2NK. Total power: 700 W, AC input voltage: 230 V, AC input frequency: 50 – 60 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Certification: CE/CB/TUV
Incorporating various high-quality components, the new TR2 S Series – models are rated from 500W to 700W – saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.

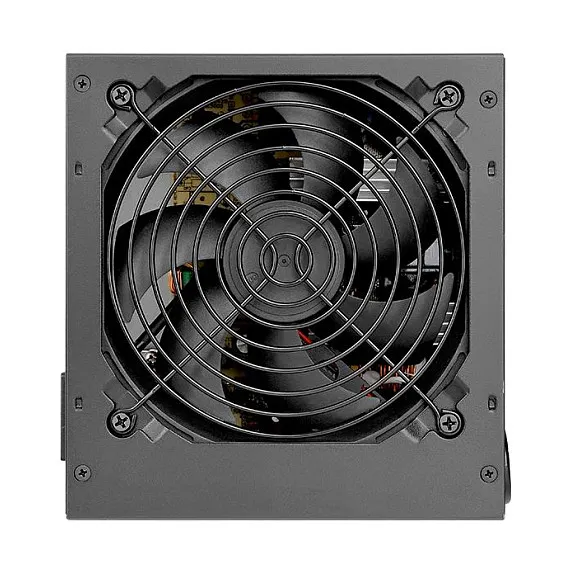

Ultra Quiet 120mm Fan
TR2 S Series adopt 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.
80 PLUS 230V Standard Certified and Haswell Ready
TR2 S Series saves energy through its high energy efficiency of up to 86% and is 80 PLUS® 230V Standard Certified.

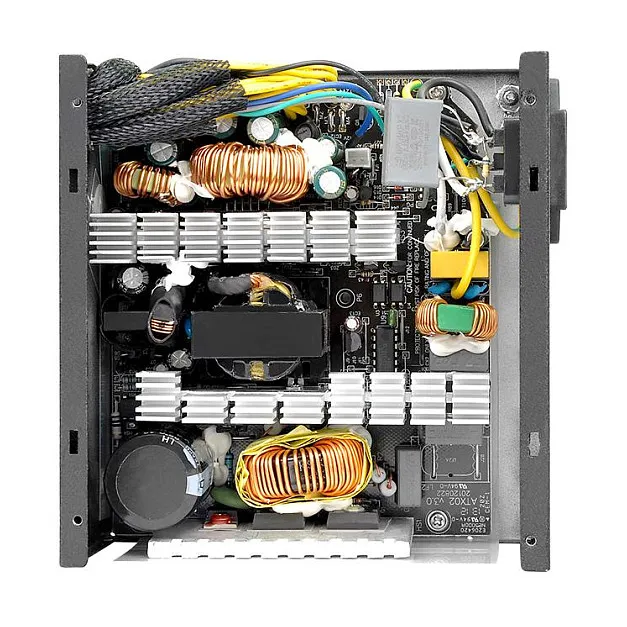

High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.
Single +12V Output
TR2 S Series is equipped with powerful +12V rails, superior performance under all types of system loading.
Total power: 700 W
AC input voltage: 230 V
AC input frequency: 50 – 60 Hz
Input current: 9 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 120 W
Combined power (+12V): 648 W
Combined power (+5V): 120 W
Combined power (-12V): 6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 24 A
Max output current (+12V): 54 A
Max output current (+5V): 17 A
Max output current (-12V): 0.5 A
Max output current (+5Vsb): 2.5 A
Hold time: 16 ms
Efficiency: 86%
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 6
Peripheral (Molex) power connectors (4-pin): 5
PCI Express power connectors (6+2 pin): 2
Feature: CPU power connector (4+4 pin)
Feature: ATX power connector (20+4 pin)
Feature: Floppy disk drive connector
Cabling type: Non-Modular
Performance
80 PLUS certification: 80 PLUS
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.3
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan speed: 1800
Fan location: Top
Operational conditions
Operating temperature (T-T): 5 – 40 °C
Storage temperature (T-T): -40 – 55 °C
Operating relative humidity (H-H): 20 – 85%
Storage relative humidity (H-H): 10 – 95%
Certificates
Certification: CE/CB/TUV
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Packaging data
Package type: Box
Logistics data
Harmonized System (HS) code: 84733020
