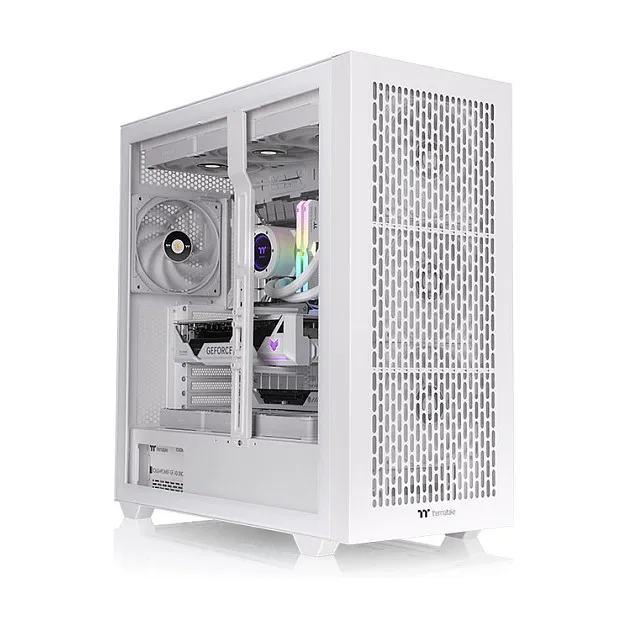

Thermaltake AX500. Form factor: Full Tower, Type: PC, Product colour: White. Front fans installed: 4 x 140 mm, Front fans diameters supported: 120,140 mm, Side fans diameters supported: 120,140 mm. Supported HDD sizes: 2.5,3.5". Width: 550 mm, Depth: 248 mm, Height: 548 mm
The AX500 Snow Full Tower Chassis supports up to one E-ATX/EEB motherboard, and the motherboard tray has cutouts for the latest hidden-connector ATX and micro-ATX motherboards.
Excellent Radiator Support
Users can install dual 420mm/360mm radiators on the top and front of the chassis for superior cooling.
Four 140mm CT140 Fans Pre-installed
Four 140mm CT140 fans come pre-installed in the chassis, providing effective cooling support to ensure optimal system performance.
Superior Cooling Support
Up to fourteen 120mm or nine 140mm fans can be installed. With the fan cover on, it supports one E-ATX/EEB motherboard; with the cover off, it fits three 120mm fans.
GPU Holder
The AX500 series chassis features a built-in graphics card holder for added support, preventing sagging with multiple GPUs.
Storage Support
Two drive cages under the PSU cover hold up to four hard drives, while an additional drive plate behind the motherboard supports one 3.5” or two 2.5” hard drives.
Tidy Cable Management
The AX500 series chassis offers ample cable management clearance with multiple anchor points behind the motherboard, and includes Velcro straps and cable ties for organization.
Superior Hardware Support
The AX500 Snow Full Tower Chassis supports a CPU cooler up to 185mm, a GPU up to 460mm, and a power supply up to 200mm. It comes with four CT140 fans and supports up to fourteen 120mm or nine 140mm fans, along with dual 420mm/360mm radiators on the top and front for superior cooling and premium expansion options.
Perfect Dust Protection
The AX500 Snow Full Tower Chassis features dust filters on the front, top, bottom, and motherboard sides to protect the system.
Handy I/O Ports
The top I/O ports include:
– 1 x USB 3.2 Gen 2 Type-C
– 2 x USB 3.0 Type-A
– HD Audio
– Reset Button
– HDD LED
– Power Button with LED
Material: SPCC, Steel, Tempered glass
Form factor: Full Tower
Type: PC
Product colour: White
Supported motherboard form factors: ATX, EATX, micro ATX, Mini-ITX, SSI CEB, SSI EEB
Number of 3.5″ bays: 5
Number of 2.5″ bays: 1
Number of expansion slots: 8
Maximum CPU cooler height: 18.5 cm
Maximum graphics card length: 46 cm
Maximum PSU length: 20 cm
Ports & interfaces
Audio output: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Cooling
Front fans installed: 4 x 140 mm
Number of front fans supported (max): 4
Front fans diameters supported: 120,140 mm
Number of side fans supported (max): 3
Side fans diameters supported: 120,140 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120,140 mm
Number of top fans supported (max): 3
Top fans diameters supported: 120,140 mm
Fan speed: 0 – 1500 RPM
Front radiator sizes supported: 120,140,240,280,360,420 mm
Rear radiator sizes supported: 120,140 mm
Top radiator sizes supported: 120,140,240,280,360,420 mm
Storage
Supported HDD sizes: 2.5,3.5″
Weight & dimensions
Width: 550 mm
Depth: 248 mm
Height: 548 mm
Material thickness: 4 mm
