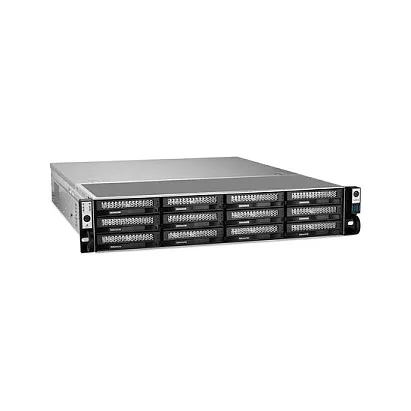

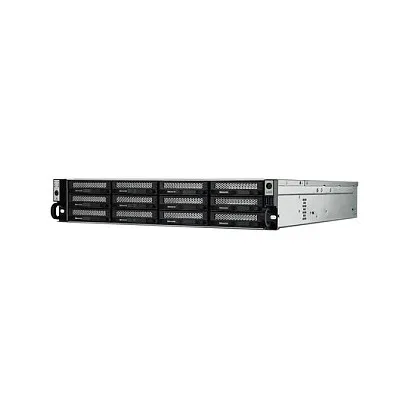

TerraMaster U12-500 Plus. Type: NAS. Chassis type: Rack (2U). Device class: Home & Home Office. Processor family: Intel® Core™ i7. Internal memory: 16 GB, Internal memory type: DDR5. Total installed storage capacity: 0 TB

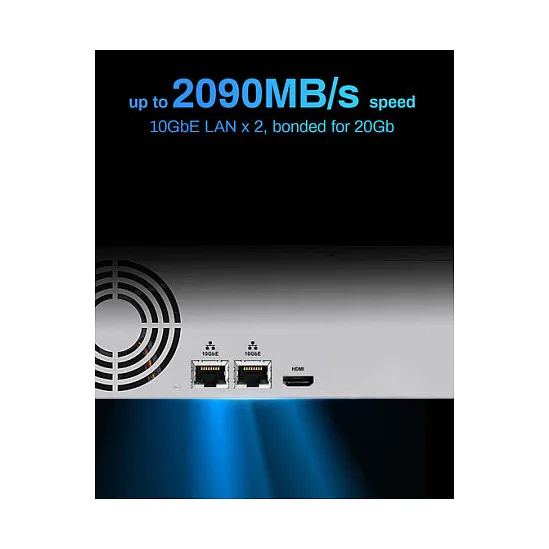

20Gb Lightning-Fast Throughput: The U12-500 Plus NAS server features dual 10GbE Ethernet ports, offering up to 20Gbps bandwidth. With SMB multichannel support, it achieves up to 2090MB/s sequential write speeds and 450MB/s 4K random read/write speeds. This performance ensures seamless image and video handling, making it perfect for film production, post-production, and high-demand virtualized environments.
Flexible Storage Solutions: The U12-500 Plus NAS enclosure supports various RAID configurations, including Single, RAID 0, 1, 5, 6, and 10. The U12-500 Plus 12-bay NAS in 2U rack mount can accommodate up to 12 3.5″ SATA HDDs, 2.5″ SATA HDDs, and 2.5″ SATA SSDs, offering a remarkable maximum storage capacity of up to 288TB (using 24TB HDDs as an example). It features TerraMaster’s TRAID/TRAID+ for online capacity expansion, migration, and redundant disk setups. Users can select between ext4 and Btrfs file systems, and expand storage effortlessly with the TerraMaster USB DAS disk array.
Storage drive capacity: 0 GB
Supported storage drive interfaces: Serial ATA
Storage drive sizes supported: 2.5,3.5″
Maximum supported storage capacity: 288 TB
Feature: RAID support
RAID levels: 0, 1, 6, 10, JBOD
Feature: Online RAID migration
Feature: Hot-swap drive bays
Supported file systems: BTRFS, FAT32, HFS+, NTFS, ext3, ext4
Total installed storage capacity: 0 TB
Number of storage drives supported: 12
Installed storage drive type: No
Supported storage drive types: HDD & SSD
Processor
Processor manufacturer: Intel
Processor family: Intel® Core™ i7
Processor boost frequency: 4.7 GHz
Processor cores: 10
Processor threads: 12
Processor cache: 12 MB
Number of processors supported: 1
Memory
Internal memory: 16 GB
Internal memory type: DDR5

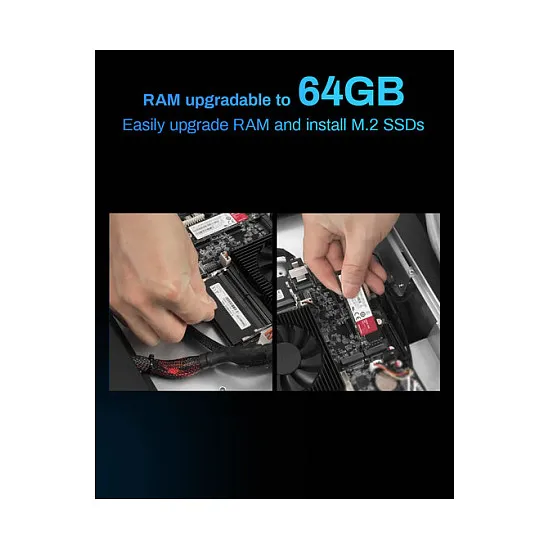

Maximum RAM supported: 64 GB
Memory form factor: SO-DIMM
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 10000 Mbit/s
Ethernet LAN data rate supported (max): 10000 Mbit/s
Feature: iSCSI support
Supported network protocols: CIFS/SAMBA, NFS, FTP, TFTP, HTTPS, SSH, iSCSI, SNMP, SMTP
Feature: Dynamic DNS (DDNS)
Ports & interfaces
Feature: USB port
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
Design

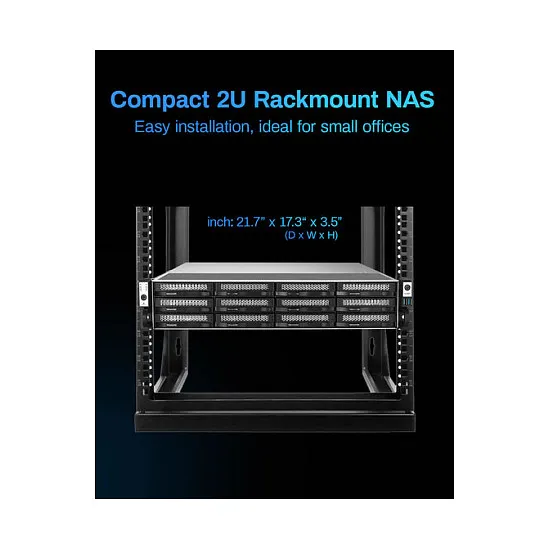

Chassis type: Rack (2U)
Cooling type: Active
Product colour: Grey
Number of fans: 3 fan(s)
Fan diameter: 8 cm
Fan diameter 2: 8 cm

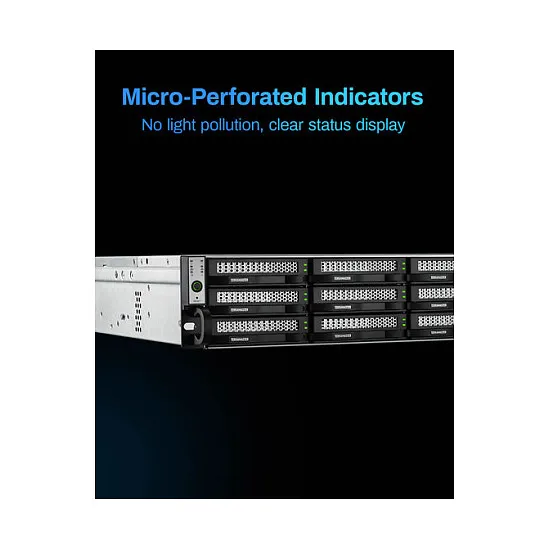

LED indicators: HDD, LAN, Power
Performance
Type: NAS
Device class: Home & Home Office
Feature: Backup function
Backup features: Cloud, USB drive
Feature: Multilingual support
Number of users: 2048 user(s)
Noise level: 39 dB
Feature: Snapshot
Management protocols: SNMP
Feature: Web-based management
Security algorithms: AES, HTTPS, SNMP, SSH
Feature: Access Control List (ACL)
Feature: On/off switch
Browser supported: Google Chrome, Mozilla Firefox, Apple Safari, Microsoft Edge
Feature: System log
Feature: Hot spare
Feature: S.M.A.R.T. support
Share folder: 512
Feature: Universal Plug and Play (UPnP)
Software
Windows operating systems supported: Yes
Linux operating systems supported: Yes
Mac operating systems supported: Yes
Power
Power supply location: Built-in
Power supply unit (PSU) capacity: 550 W
Number of power supply units: 1
Power consumption (max): 120 W
Power consumption (HDD standby): 33 W
AC input voltage: 100-240 V
AC input frequency: 50 / 60 Hz
Weight & dimensions
Width: 440 mm
Depth: 550 mm
Height: 88 mm
Package width: 580 mm
Package depth: 710 mm
Package height: 217 mm
Packaging content
Feature: External power adapter
Cables included: AC, LAN (RJ-45)
Operational conditions
Operating temperature (T-T): 5 – 40 °C
Operating relative humidity (H-H): 5 – 95%
Storage temperature (T-T): -20 – 60 °C
Other features
Warranty period: 3 year(s)
Compliance certificates: CE, China Compulsory Certification (CCC), Federal Communications Commission (FCC), KC, RoHS, WEEE
