TERRAMASTER T9-500 Pro NAS File Server: Intel Core i7-1255U, 16GB RAM, 9 bays

TERRAMASTER T9-500 Pro NAS File Server with Intel Core i7-1255U, 16GB RAM, 9 bays

The TerraMaster T9-500 Pro is an advanced NAS file server designed for small and medium-sized businesses that need a high-performance and secure data storage system. The device is equipped with a 10-core Intel Core i7-1255U processor clocked at up to 4.7 GHz, 16 GB of DDR5 memory expandable to 64 GB, 9 drive bays for HDDs and SSDs, and two 10GbE network ports. Additionally, the server offers two M.2 NVMe PCIe 4.0 slots, support for up to 198 TB of storage, and the comprehensive TerraMaster Business Backup Suite, which integrates tools for backup, data synchronization, and disaster recovery. This solution is designed to centralize corporate data, protect resources, and streamline daily operations.

Performance Designed for Heavy Workloads

The Intel Core i7-1255U processor delivers the high computing power needed to support multiple users, network services, and tasks related to backup and virtualization. With 10 cores, the device efficiently handles parallel operations, resulting in faster data access and greater system responsiveness. The standard 16 GB of 4800 MHz DDR5 memory enables smooth operation in demanding business environments. If necessary, memory can be expanded up to 64 GB, allowing the server to adapt to the organization’s growing needs.

Ample storage space and flexible expansion

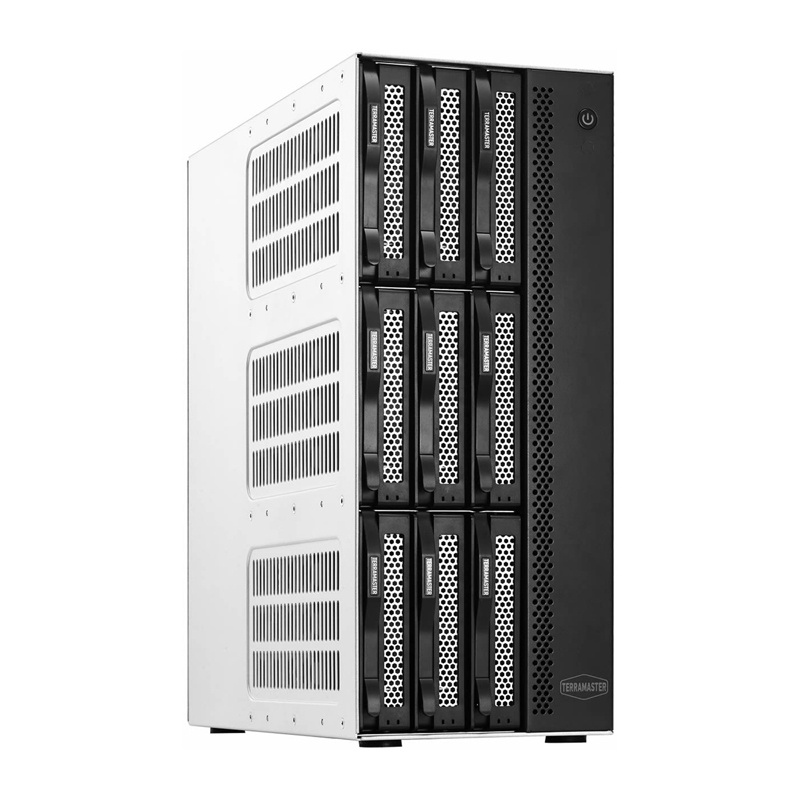

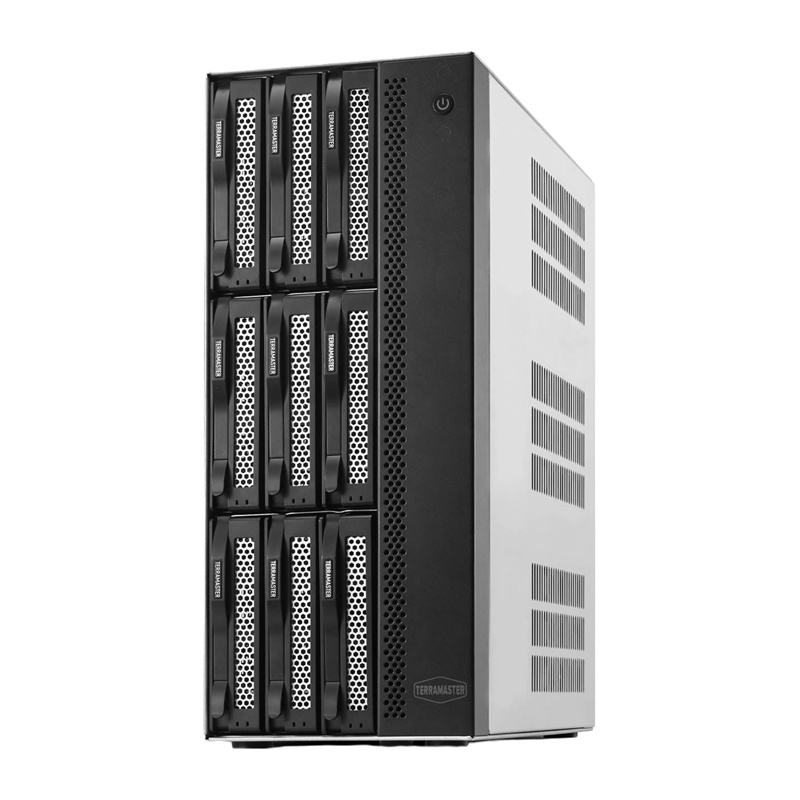

The T9-500 Pro is equipped with 9 bays supporting 3.5-inch HDDs, 2.5-inch HDDs, and 2.5-inch SSDs. The maximum raw capacity can reach up to 198 TB, allowing you to store large amounts of documents, projects, backups, and multimedia files. Two M.2 NVMe PCIe 4.0 slots allow you to use SSDs as high-speed cache, making frequently accessed data available much faster. Support for TRAID, TRAID+, RAID 5, RAID 6, RAID 10, and other popular RAID configurations allows you to easily tailor the level of security and performance to your specific requirements.

Comprehensive Backup System for Businesses

One of the device’s greatest strengths is the Business Backup Suite, which integrates Centralized Backup, Duple Backup, TerraSync, CloudSync, and Snapshot. This allows administrators to create multi-level data protection strategies covering employee computers, file servers, virtual machines, and cloud-based resources. Centralized backup management simplifies administration and reduces the risk of errors resulting from manual configuration. Snapshot and remote disaster recovery features help protect company data from loss caused by hardware failures, user errors, or ransomware attacks.

Fast Communication and Efficient Collaboration

Two 10GbE ports provide high bandwidth when working with large files and shared resources. This makes the device well-suited for environments where multiple users access the same data simultaneously. Support for SMB, AFP, NFS, FTP, SFTP, and WebDAV protocols allows for easy integration of the server with computers running Windows, macOS, and Linux. The built-in graphics chip with a hardware encoding and decoding engine for H.264, H.265, MPEG-4, and VC-1 formats ensures smooth playback and transcoding of multimedia at resolutions up to 4K at 60 frames per second.

Data Security and Reliable Operation

The TerraMaster T9-500 Pro offers comprehensive security features that help protect corporate data from unauthorized access and cyber threats. The system supports AES encryption for shared volumes and folders, OTP authentication, SSL certificates, automatic IP blocking, and a firewall. The Snapshot and HyperLock features further enhance the environment’s resilience against ransomware attacks. Thanks to its compact and well-thought-out design, the device fits perfectly into the limited space of small offices without requiring a dedicated server rack.

Included

• TerraMaster T9-500 Pro NAS server
• Power cord
• RJ-45 network cable
• Quick start guide
• Warranty document
• Set of mounting screws
