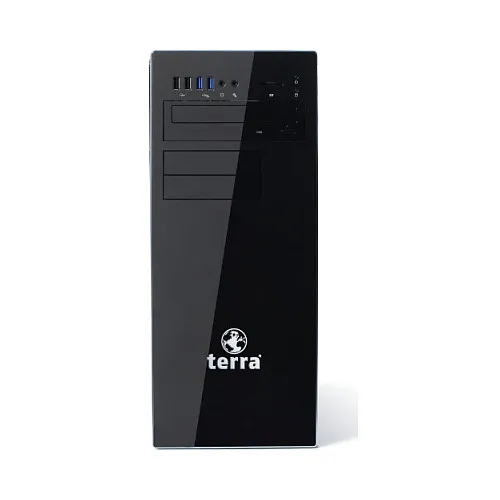

TERRA PC-HOME 6000

Processor
Processor manufacturer: Intel
Processor family: Intel Core Ultra 5
Processor generation: Intel Core Ultra (Series 2)
Processor model: 225
Processor cores: 10
Processor threads: 10
Processor boost frequency: 4.9 GHz
Performance cores: 6
Efficient cores: 4
Performance-core Max Turbo Frequency: 4.9 GHz
Efficient-core Max Turbo Frequency: 4.4 GHz
Performance-core base frequency: 3.3 GHz
Efficient-core base frequency: 2.7 GHz
Processor cache: 20 MB
Processor cache type: Smart Cache
Number of processors installed: 1
Processor socket: LGA 1851 (Socket V1)
Processor base power: 65 W
Maximum turbo power: 121 W
Neural processor unit (NPU)
Neural processor unit (NPU): Intel AI Boost
Feature: Sparsity support
Feature: Windows Studio effects support
AI software frameworks supported by NPU: DirectML, ONNX RT, OpenVINO, WebNN, Windows ML
NPU performance up to: 13 TOPs
Memory
Internal memory: 16 GB
Maximum internal memory: 256 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 1 x 16 GB
Memory slots: 4x DIMM
Memory clock speed: 4800 MHz
Storage
Total storage capacity: 1 TB
Storage media: SSD
Optical drive type: No
Number of storage drives installed: 1
Number of storage drives supported: 6
Total SSDs capacity: 1 TB
Number of SSDs installed: 1
SSD capacity: 1 TB
SSD interface: PCI Express
Feature: NVMe
SSD form factor: M.2
Feature: Card reader integrated
Compatible memory cards: SD, SDHC
Storage options: 2x M.2 (Key M) 2280/2260/2242 PCIe 5.0 x4 mode (1x 5.0 x4 mode / 1x 4.0 x4 mode) ¦ 4x SATA 6Gb/s ports, supports SATA Raid 0/1/5/10
Feature: RAID support
RAID levels: 5, 1, 0, 10
Graphics
Feature: On-board graphics card
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® Graphics
On-board graphics card model: Intel® Graphics
Resolution description: HDMI max. 4096 x 2160 @ 60Hz ¦ DP max. 7680 x 4320 @30Hz
Graphics card HDMI ports quantity: 1
Graphics card DisplayPorts quantity: 2
Performance
Market positioning: Home
Feature: Trusted Platform Module (TPM)
Product type: PC
Trusted Platform Module (TPM) version: 2.0
Audio output channels: 8.0 channels
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 100,1000 Mbit/s
LAN controller: Intel I219V
Ports & interfaces
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
DisplayPorts quantity: 2
HDMI ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 2
Number of rear USB ports: 4
Number of front USB ports: 4
Number of front audio ports: 2
Number of rear audio ports: 3
Expansion slots
PCI Express x1 (Gen 4.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Expansion slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (supports x4), 1x PCIe 4.0 x1
Power
Power supply: 400 W
Power supply input voltage: 230 V
Power supply input frequency: 50 Hz
Power consumption (typical): 44 W
Power consumption (standby): 1.8 W
80 PLUS certification: 80 PLUS Bronze
Design
Chassis type: Midi Tower
Product colour: Black
Software
Operating system installed: Windows 11 Home
Compatible operating systems: Windows 10, Windows 11
Audio
Audio system: High Definition Audio
Operational conditions
Operating temperature (T-T): 5 – 35 °C
Operating relative humidity (H-H): 10 – 75%
Weight & dimensions
Width: 180 mm
Depth: 420 mm
Height: 440 mm
Weight: 10 kg
Packaging content
Feature: Mouse included
Mouse connectivity: Wired
Feature: Keyboard included
Cables included: AC
Feature: Manual
Keyboard
Keyboard connectivity: Wired
Keyboard language: German
Features
Motherboard manufacturer: ASUS Pro B860M-C-CSM 24/7 ready
Other features
Locale: German
